Description:

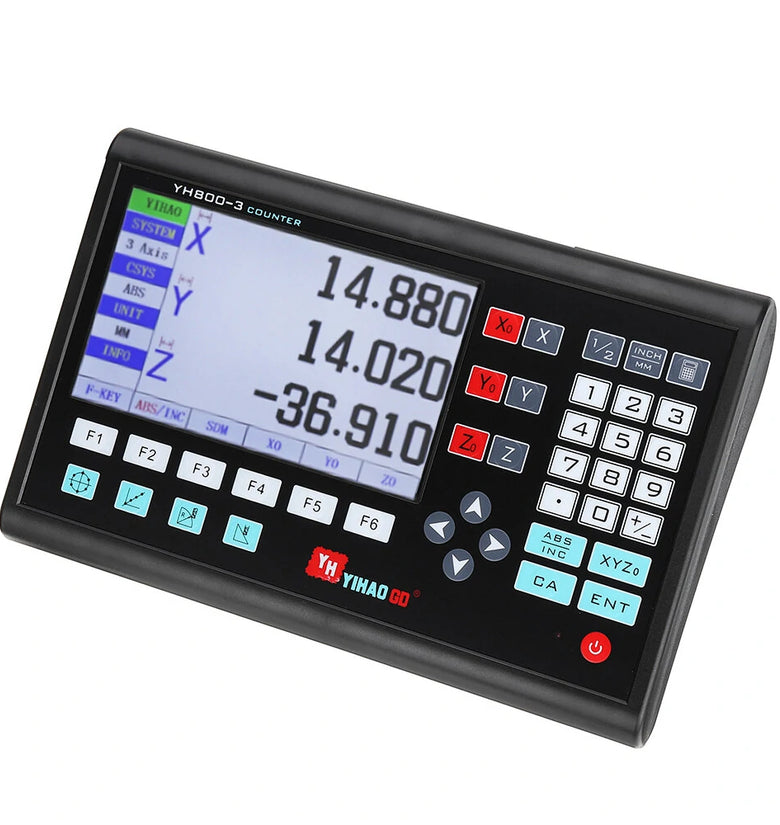

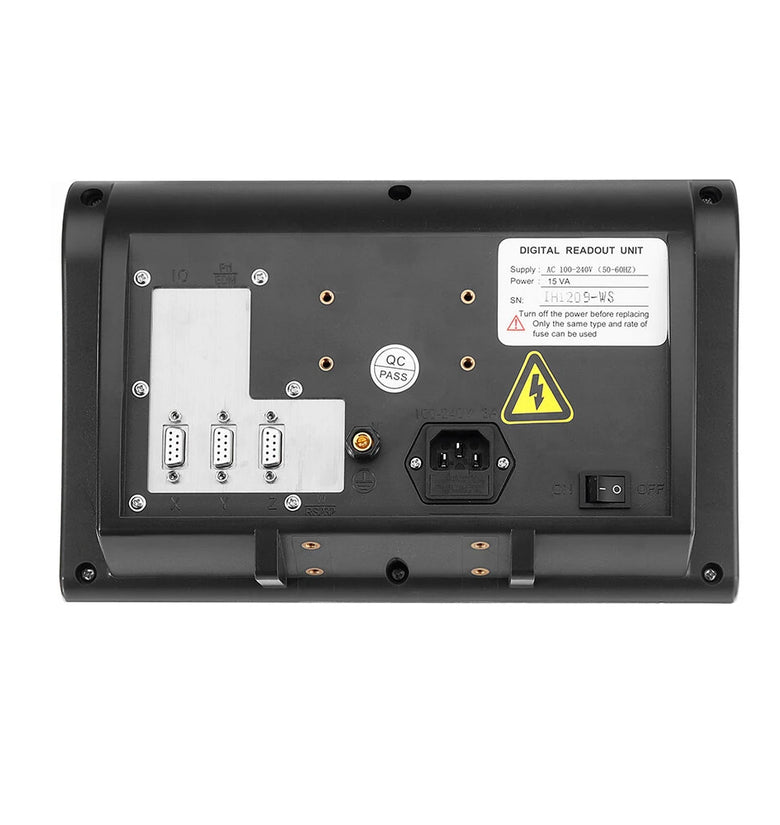

YIHAOGD YH LCD 2/3 Axis Grating CNC Milling Digital Readout Display DRO / KA300 TTL 70-970mm Electronic Linear Scale Encoders Lathe ToolYIHAOGD YH LCD digital readout can match all type of YIHAOGD linear scales, both KA300 and YE type.Big LCD screen, better display than digital tube, convenient and practical.Specification:Large LCD Dro Digital Readout Display System Parameter:Model: 2 Axis/3 AxisVoltage Range: AC 100V~240V/50HZ~60HZDigital Readout Display Acceptable Signal: TTLPlug: DB9Acceptable resolution: 10μm, 5μm, 2μm, 1μm, 0.5μm.Size:The optional length is measuring effective lengthTotal length = measuring effective length+106mm

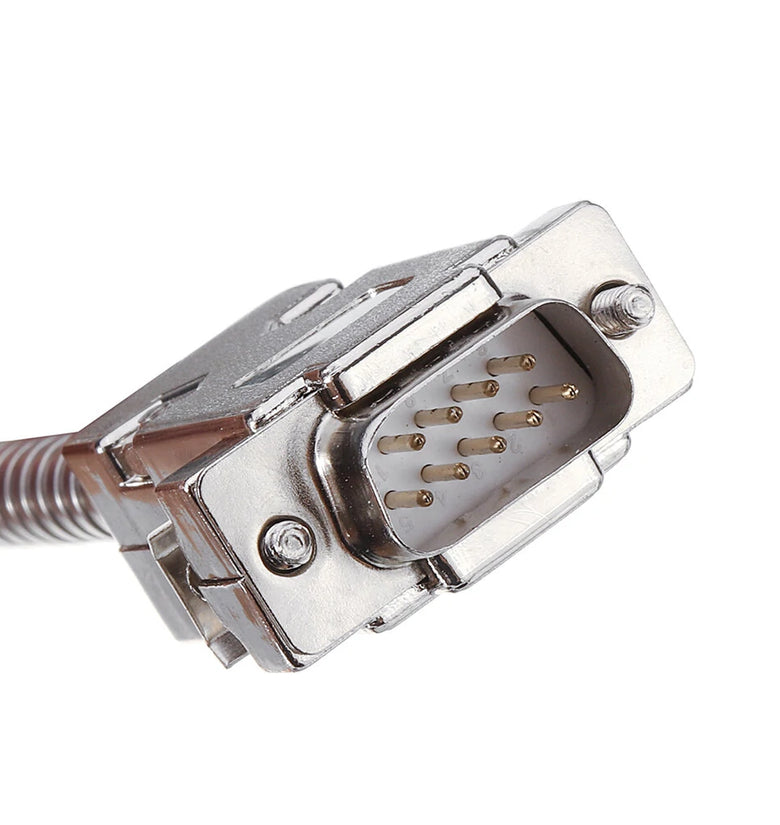

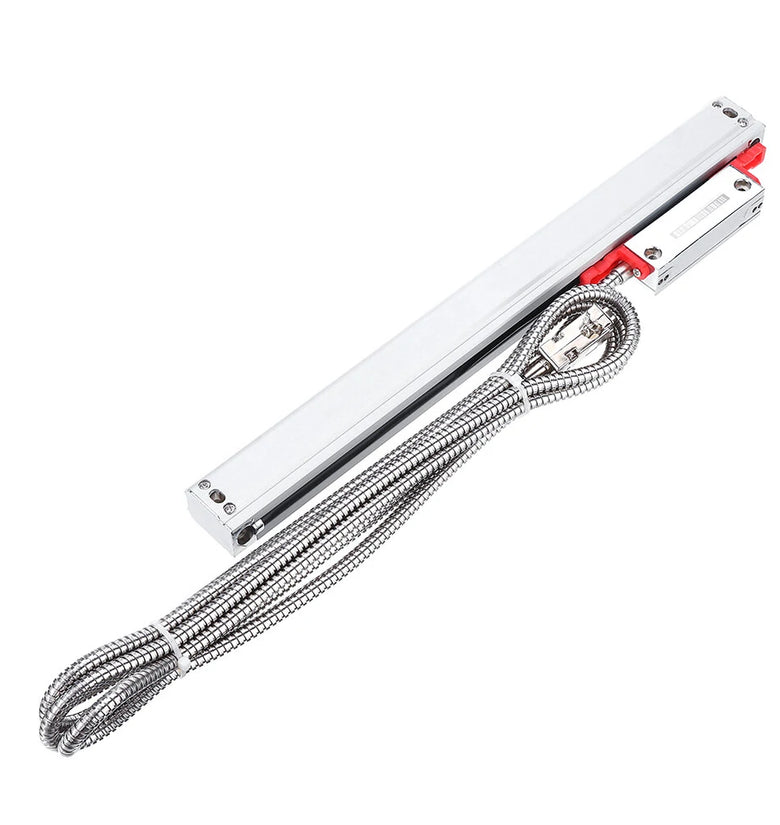

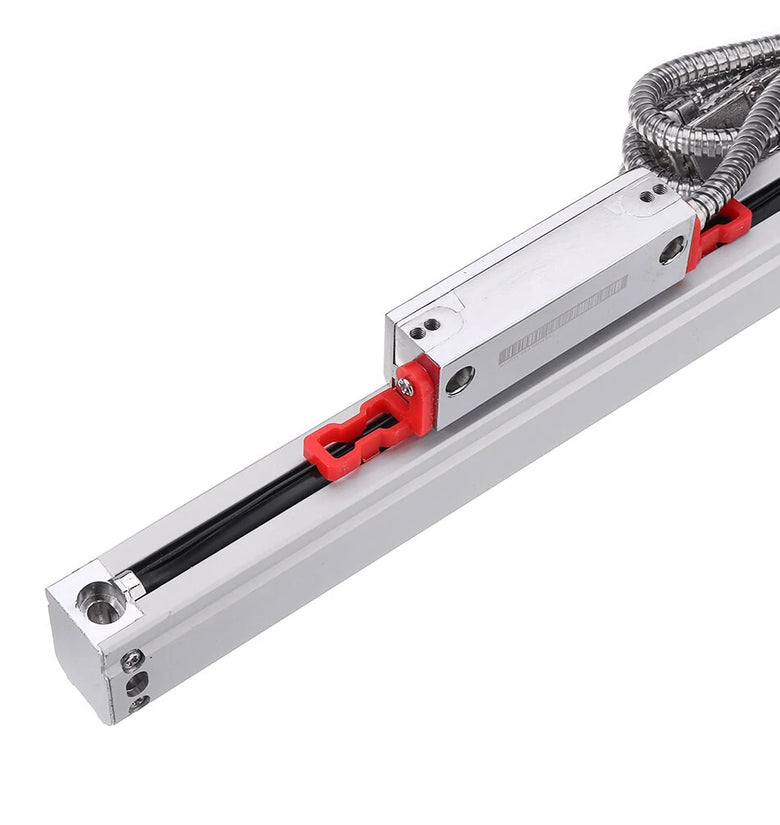

Dro Digital Readout Display System Functions:1:Zero clearing2:Reset3:mm/inch mode4:ABS/INC coordinate conversion5:200sets sub datum6:Power off Memory;7:Center of 1/28:Liner error compensation9:Sleepping mode10:Clear 200 sets Sdm datum;11:ABS/INC mode12:Calculator13:Drilling of circumference14:Drilling of oblique line15:Machining of inclined plane16:Machining of circular arc17:Lathe function(match)18:Rectangular lumen gradual processing19:Digital filtering20:Vibration filtering21: Lathe functionKA300 5U TTL Linear Scals/Linear Encoder/Linear Sensor/Linear Ruler Parameters1. Travel (measuring) length: 0-970mm2. Total (overall) length: Travel length + 106mm (0-1076mm)3. Plug: DB94. Resolution: 0.005mm(5μ)5. Input voltage: 5V6. Grating pitch: 0.02mm (50LP/min)7. Cable length: 3 Meter8. Protection class: IP549. Signal: TTLThe Signal of 5μ Linear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear SensorPin 2 Black 0VPin 6 Green APin 7 Red 5VPin 8 White BPin 9 Orange ZFeatures:Why buy YH LCD digital readout systems?Large LCD Display1.Systems increase productivity, save time and provide higher precision by translating the values measured by linear encoders, length gauges, rotary encoders or angle encoders into an easy-to-read format.2.They can be installed on new equipment or retrofitted to machines already in operation.3.Systems work with any machine where axis slides are traversed manually.4.Data interface allows for additional processing or printouts of the measured values (most models).Why buy 5u KA300 Linear Encoders?(Dust-proof, IP54 waterproof designHigh quality bearing, reliable)1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.2.High long-term speed stability.3.Sturdy construction and high resistance to vibration.4.Finer signal periods offer highest interpolation accuracy.5.Compact, lightweight and easy to install.6.Dependable—functions properly even after many years of operation.7.Sealed or enclosed linear designs available.Pacakge Included:(optional)LCD 3 Axis Digital Readout Package Included:1 Pcs x 3 Axis Digital Readout1 Pcs x Power Cable(We will send you a extra plug adapter depend on your country)1 Set x Bracket and Accessories1 Pcs x ManualLCD 2 Axis Digital Readout Package Included:1 Pcs x 2 Axis Digital Readout1 Pcs x Power Cable(We will send you a extra plug adapter depend on your country)1 Set x Bracket and Accessories1 Pcs x ManualLinear Scale Package Included:(optional length)1 Pcs x Linear Sacle1 Pcs x L plate1 Pcs x Bracket1 Pcs x Bag of screw Note:

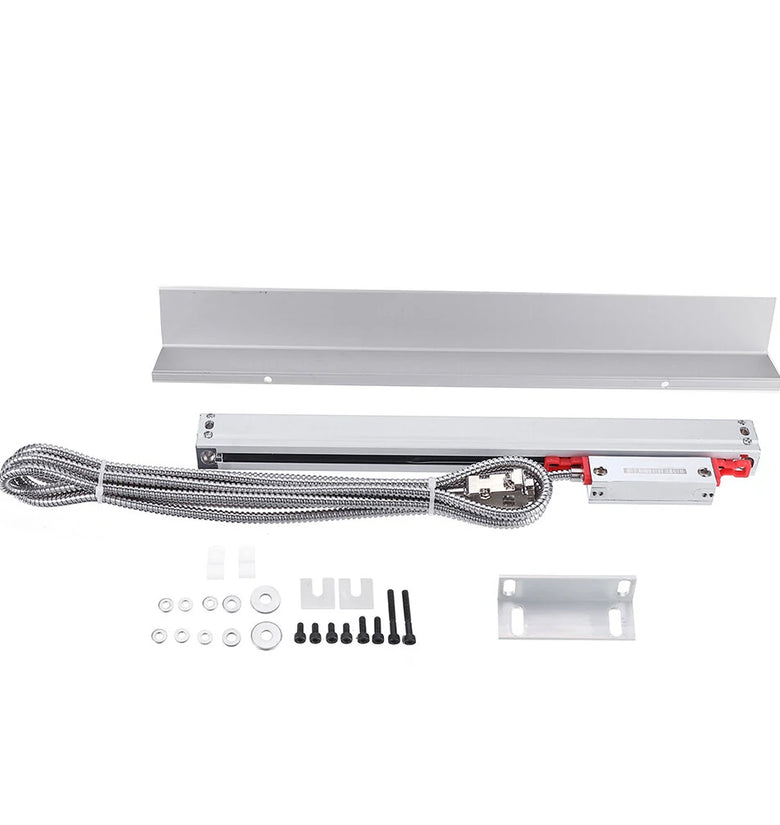

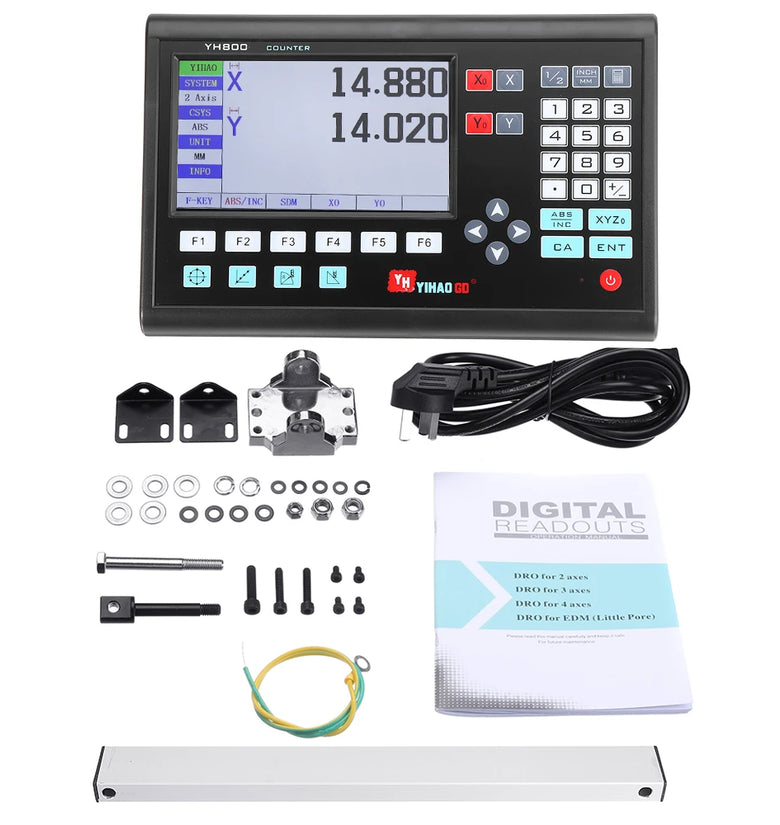

Please note that the digital readout and linear scale is optional. The package included one type only.You can click here to check the manual.More Details:
