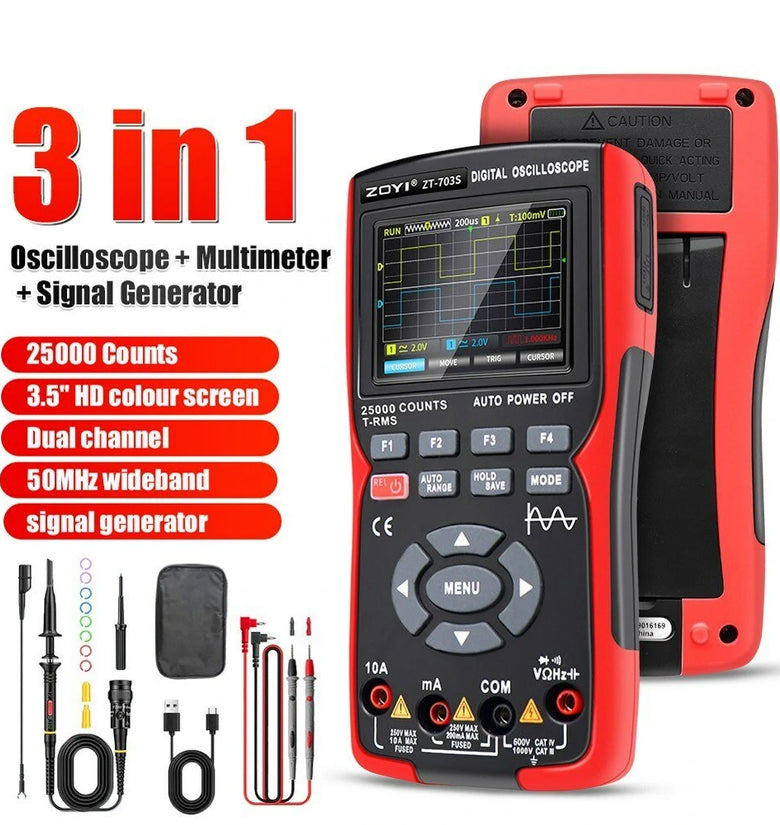

Features:

【Premium Material】: ABS+silicone housing material, drop proof and  shockproof. The printed circuit board adopts high-cost immersion gold process, with high antioxidant corrosion resistance, stable working performance and high reliability.

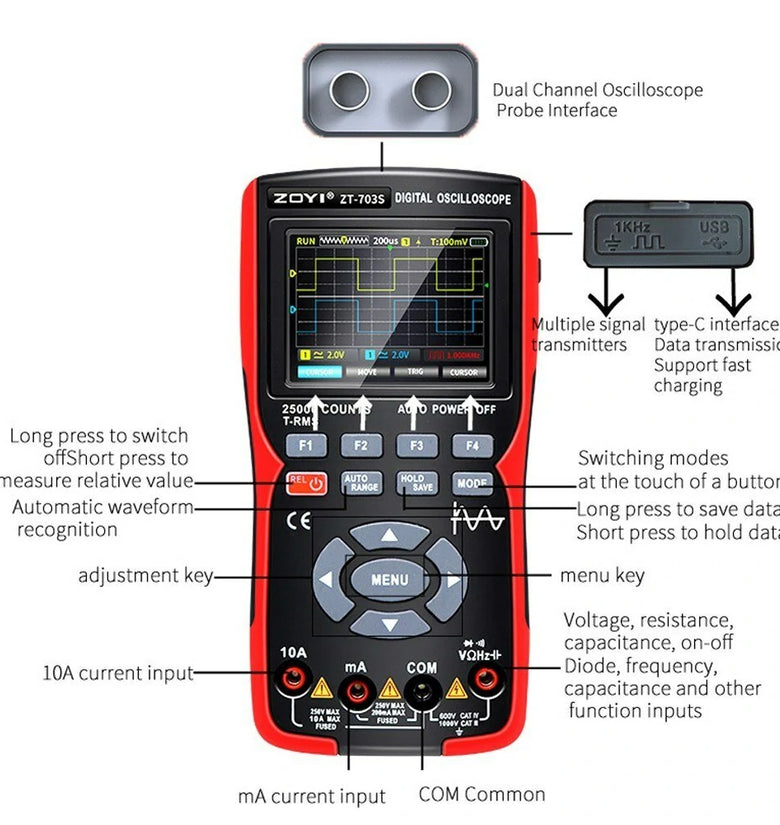

【3in1 Design with 3.5 Inch Color Display】: This product ingeniously integrates digital oscilloscope, multimeter, and signal generator functions into one device. 3.5-inch color display,  screen readings are clearer, and the visual color is richer. Data visualization design, the user-friendly interface design and operation mode, so that users do not need to spend a lot of time to learn to quickly get started, improve work efficiency.

【Signal Generator】: Equipped with a built-in signal generator function, with automatic waveform measurement and recognition function, no need to display the measured signal waveform clearly without measured signal waveform.

【High-precise Multimeter】: High precise multimeter with true RMS measuring function. Supports the test of DCvoltage, ACvoltage, DCcurrent, ACcurrent, resistance and capacitance.

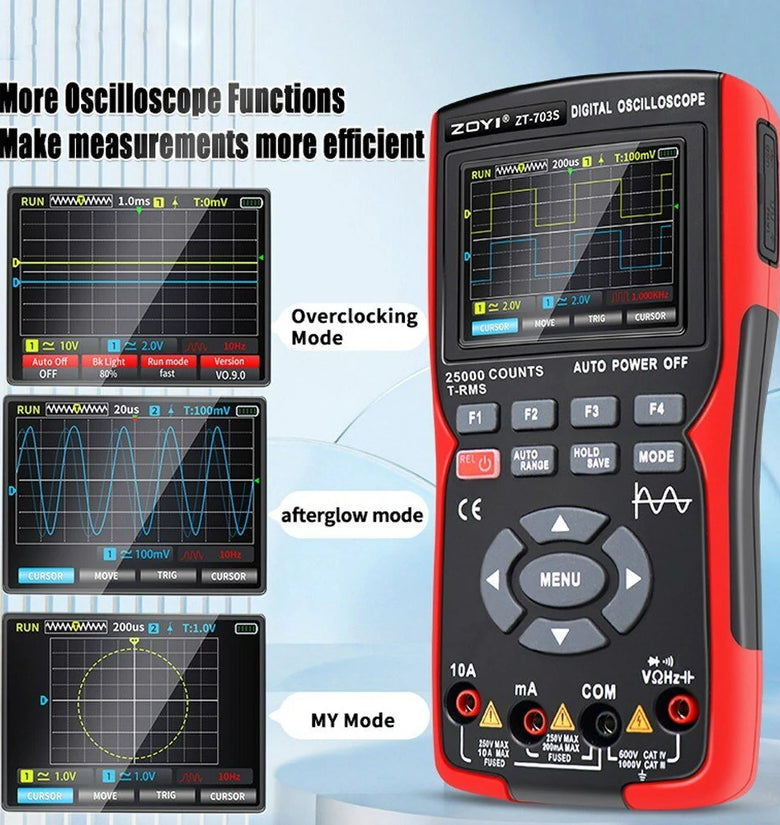

【Digital Oscilloscope Function】: The real-time sampling rate of the oscilloscope is up to 280MS/s, which can capture more signal details and provide more accurate measurement results. 50MHz bandwidth can meet the testing needs of most electronic devices, both high-frequency and low-frequency signals can be easily coped with. More Oscilloscope functions of overclocking function, afterglow mode, and XY mode, making measurements more cost-effective.

【Intelligent Anti-burning】: Full-grade overload protections, built-in intelligent anti-burn chip, and double ceramic fuses, to prevents the misuse of burn meter, safer to use. The built-in high-voltage protecting module can effectively prevents damage to the oscilloscope from high-voltage currents caused by misuse or equipment failure, improving the service time and safety of the equipment.

【Waveform Save & Screenshot Save】: Multiple waveform measurements for your daily needs, and with waveform save & screenshot save functions. Long press the SAVE button for 2 seconds to take a screenshot and save it in order to view the full screen picture and to makes secondary analysis of the saved waveform data for secondary analysis, or connect it to PC via USB cable access to the stored waveforms.

【Wide Applications】: It can easily handle measurements in a variety of fields and is widely used in the testing and debugging of electronic circuits, troubleshooting and repairing of electronic elements.

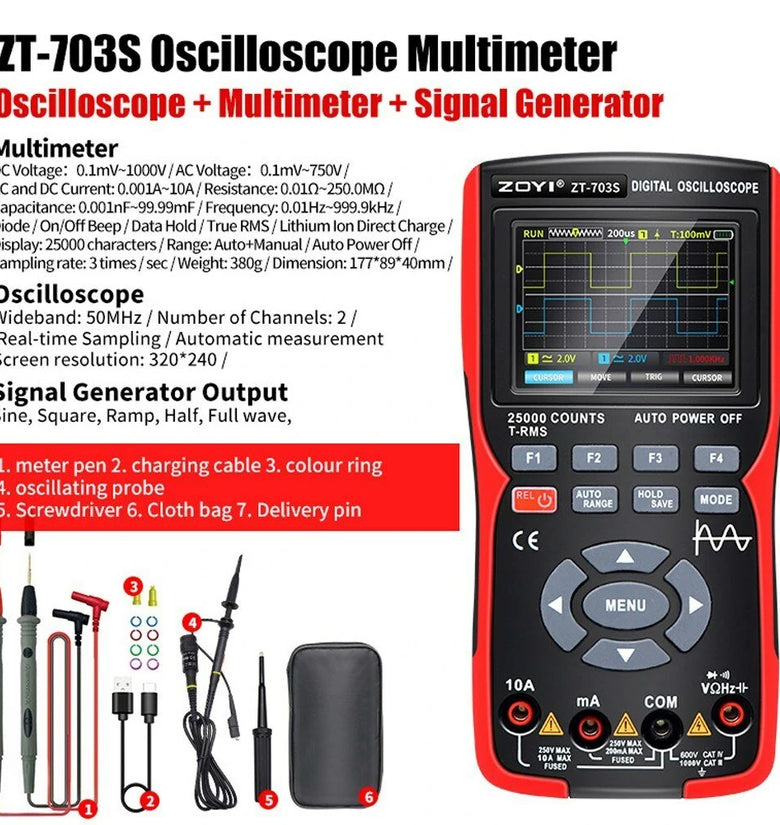

Specifications:

Name: 3in1 Oscilloscope Multimeter

Model Number: ZT-703S

Material: ABS+TPE

Type: standard configuration, high configuration (optional)

Battery: 1 * built-in 3400mAh 18650 battery (included)

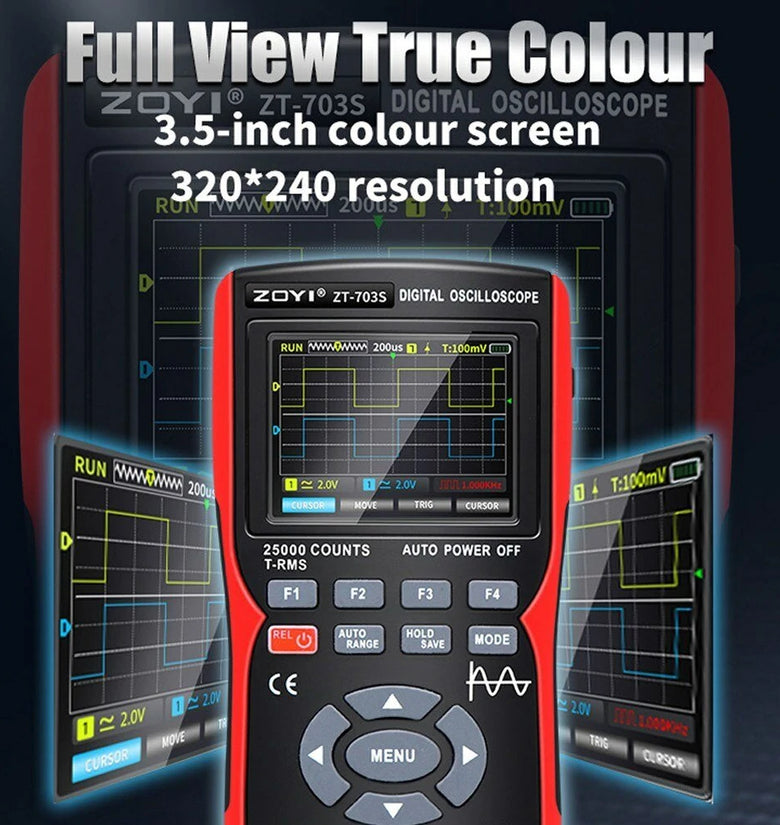

Display: 3.5inch color display, 25000 words

Screen resolution: 320*240

DCCurrent: 25.000mA-250.00mA; 2.5000A-10.000A ±(0.8%+3)

ACCurrent: 25.000mA-250.00mA; 2.5000A-10.000A ±(0.5%+3)

DCVoltage: 25.000mV-250.00mV; 2.5000V-1000.0V ±(0.5%+3)

ACVoltage: 25.000mV-250.00mV; 2.5000V-750.0V ±(0.5%+3)

AC current frequency response: 40Hz-1kHz

Resistance: 0-250.0ΜΩ, ±(1%+3)

Capacitance: 0-99 99mF, ±(2.0%+5)

Frequency: 0-999,9kHz, ± (0.1%+3)

Mode: Auto+Manual

Sampling Rate: 3 times/secon

Language: Chinese/English

True RMS: yes

Backlighting: yes

Diode: yes

Buzzer: yes

Low battery indicator: yes

Screen backlight: yes

Data Hold: yes

Bandwidth: 50MHz

Sampling rate: 1.5Sa/S-280MSa/S

Waveform interpolation: (sinx)x

Sweep speed: 10ns/div-20s/div

Time base accuracy: 20ppm

Record length: Up to 128Kbyte

Channel: 2

Trigger: auto, normal, single

Automatic measurement: Period, frequency, peak-to-peak, max, Min, RMS, Duty Cycle, Number of Pulses

Sianal gonerator: Sinewave, SQW, sawtoothwave, halfwave, fullwave

Operation mode: Normal mode 200MSa/s, high speed mode 280MSa/s

Display mode: YT, XY, Rolling

Afterglow mode: Minimum, 500ms, 1s, 10s, Unlimited

Operating temperature: 0-40℃

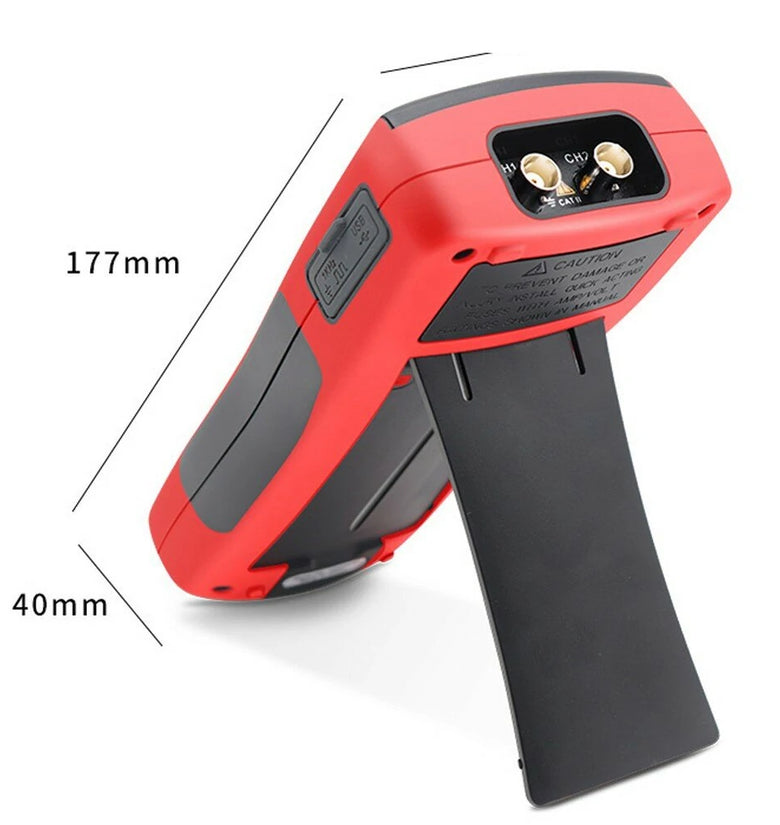

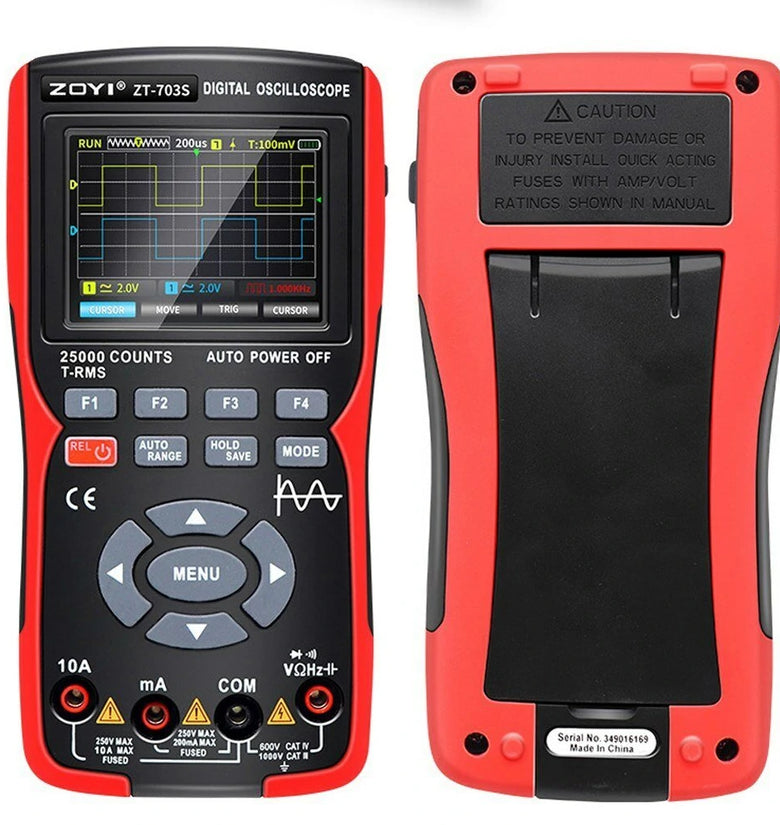

Item size: 177 * 89 * 40mm / 6.97 * 3.50 * 1.57in

Package size: 232 * 132 * 67mm / 9.13 * 5.20 * 2.64in

Package weight: 732g / 1.61lb
