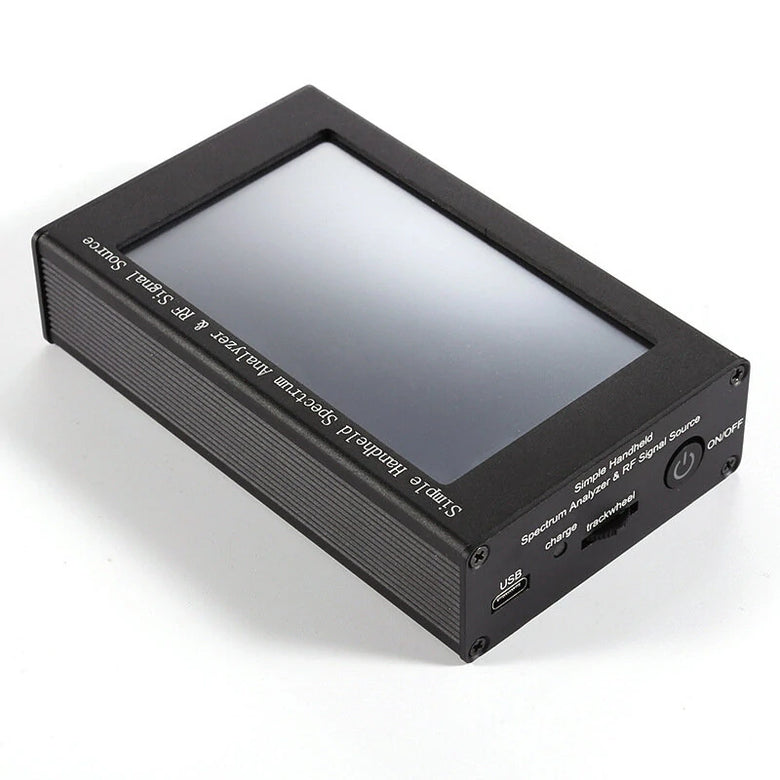

This is a high performances device designed for accurate signal measurements and analysis. This tool is perfect for engineers and technicians who requires accurate identification and monitoring of signal frequencies. With its wide frequency range and high sensitivity features, this Spectrum Analyzer provides reliable and comprehensive data for your complex signal analysis needs.
Features:
35MHz-6000MHz scanning range. Integrated spectrum analyzer, tracking source, and signal source, three functions in one, with strong performances.
ARMcore, high-speed processor.
4.3-inch touching screen control, more convenient operation.
5000mAh large capacity battery, long working time.
Compact size for easy carrying and storage.
Built in signal attenuator and amplifier.
Can display 4 MarkPoint markers
Specifications:
Spectrum analyzer functions:
Scanning range: 35MHz to 6000MHz
Maximum input signal light: 10dBm
Minimum SingleScan width: 1MHZ
Maximum SingleScan width: 5965MHz (35-600000MHz)
100MHz scanning time: ≤150ms
Background noise: -115dBm
Tracking source output range: 35MHz-6000MHz
Signal source function:
Point frequency output range: 23.51MHz to 6000MHz
Point frequency output amplitude: -30dBm to 0dBm
Minimum resolution of point frequency amplitude: 0.5dBm
Minimum resolution of point frequency: 0.01MHz
FrequencySweep output range: 23.51MHz to 6000MHz
Minimum interval between FrequencySweep points: 0.01MHz
Minimum interval for FrequencySweep time: 0.1ms
Maximum FrequencySweep time interval: 500ms
Battery: 3.7V, 5000mAh
Item size: 130 * 73 * 27mm / 5.1 * 2.9 * 1.1in
Item weight: 400g / 0.9lb
Package size: 180 * 110 * 50mm / 7.1 * 4.3 * 2.0in
Package weight: 490g / 1.1lb
Package included:
1 x
1 x Antenna
1 x Stylus
1 x Type-C Charging cable
1 x Foot Mat
