Specifications:

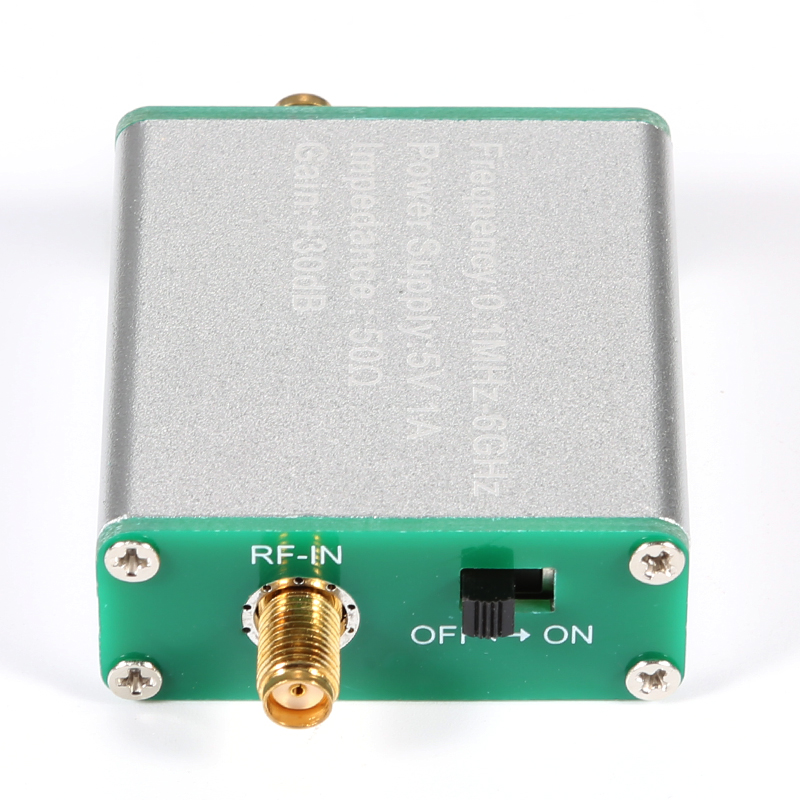

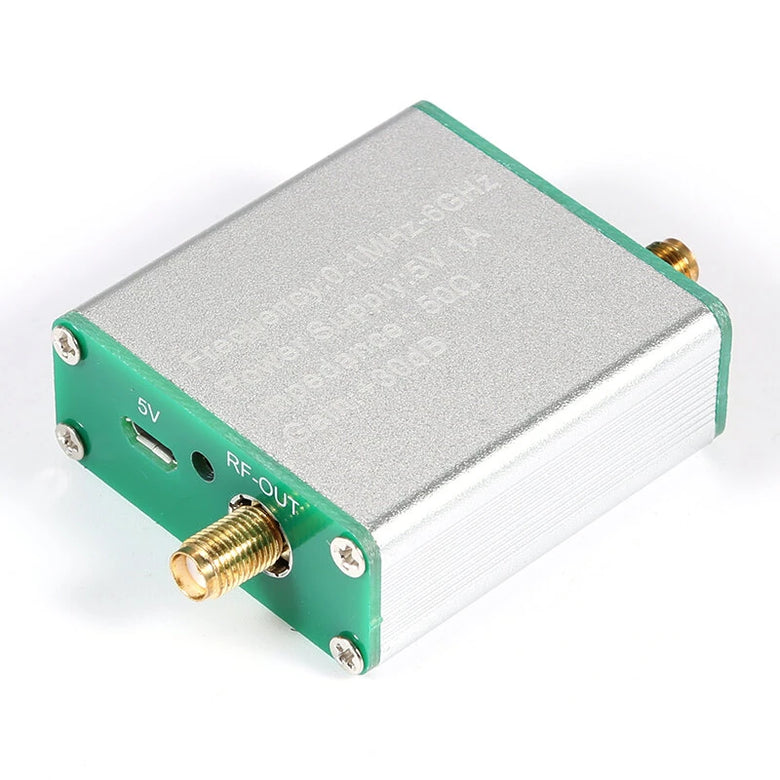

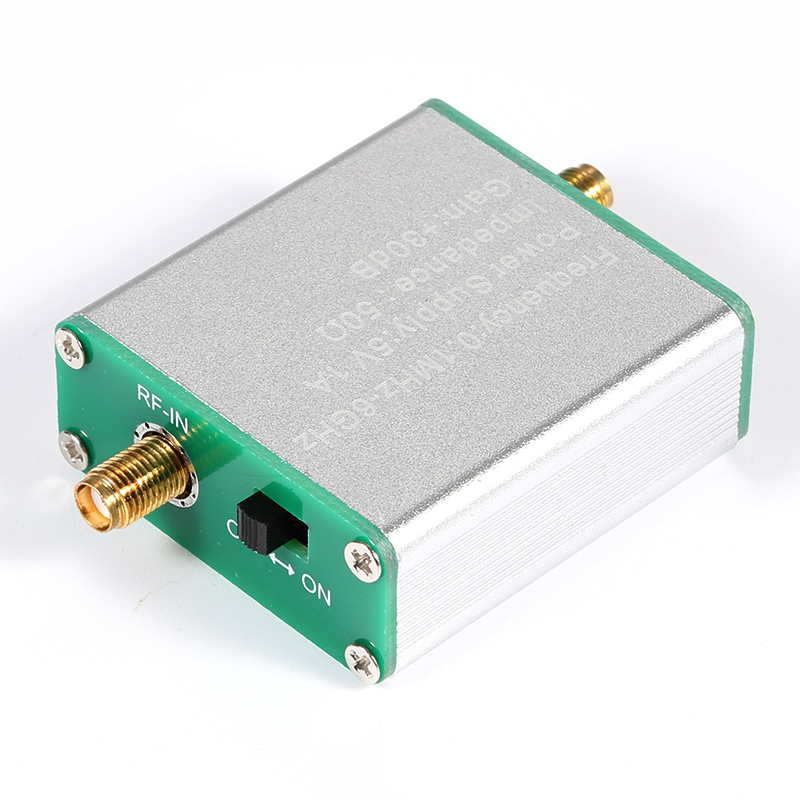

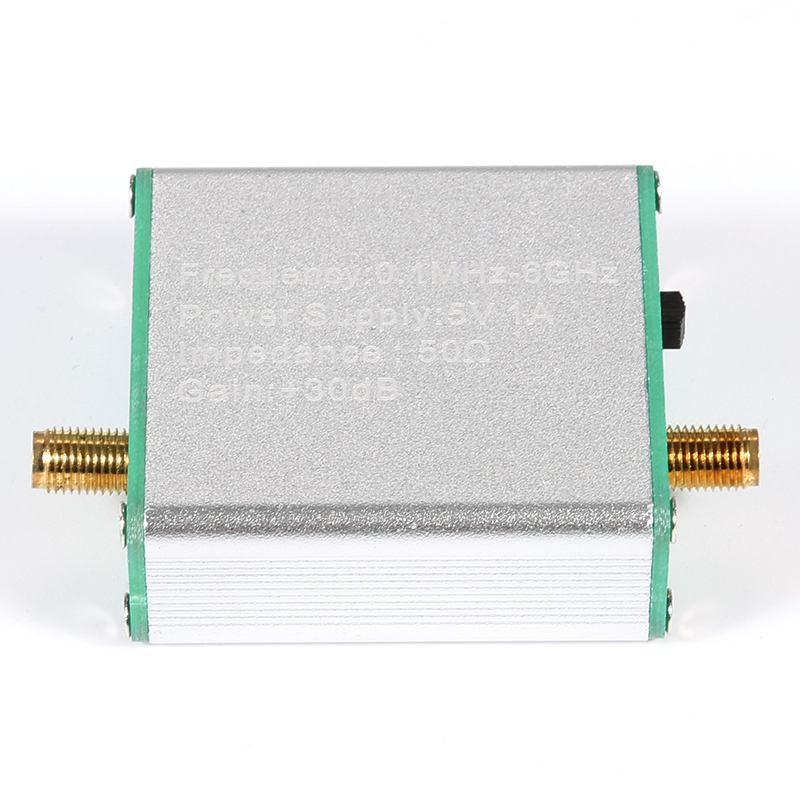

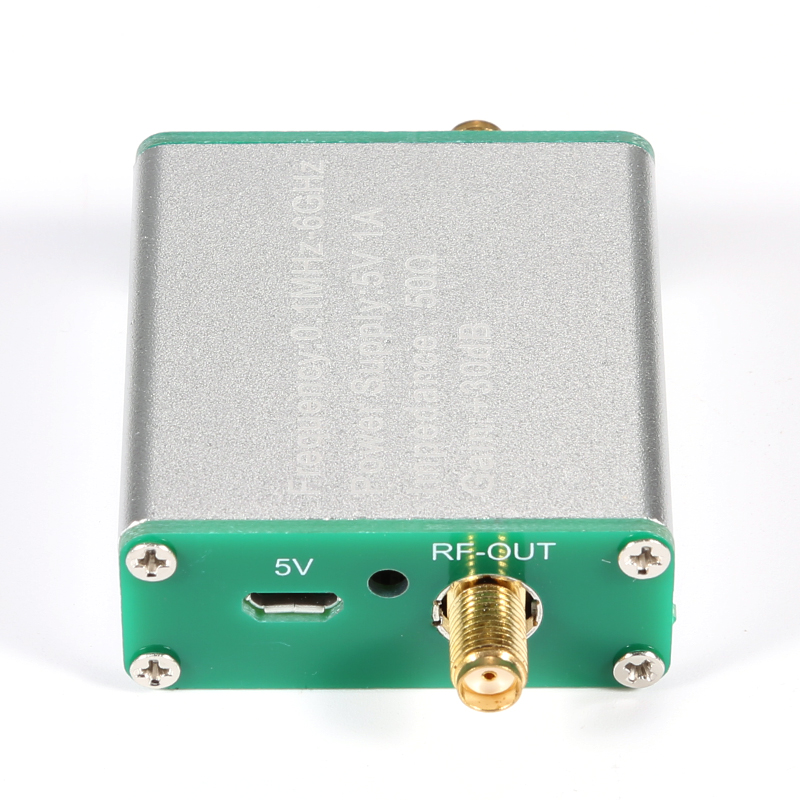

Model: 0.01-6GHz Low Noise Amplifier

Frequency Range: 20MHz-6000MHz

Amplification Gain: 35dB (typical)

Maximum Output: +20dBm (100mW, 1dB compression point)

Operating Current: 150mA

Operating Voltage: 3.3-6VDC

System Impedance: 50 Ohms

Connector: SMA Female

Dimensions: 70 x 45 x 15mm

USB Cable: USB Type-C DATA Cable

Optional Type: With Battery / Without Battery

Features:

Wide Frequency Range: Operates across a broad 20MHz to 6000MHz spectrum, suitable for various applications like wireless communication, RF transceivers, radar, and satellitecommunication.

High Gain Amplification: Provides a typical gain of 35dB, ensuring significant signal amplification with minimal noise, especially effective at low frequencies.

Enhanced Performance: Upgraded design with cascaded amplification to maintain a low noise figure and achieve higher gains.

Robust Output: Capable of delivering a maximum output power of +20dBm (100mW) at a 1dB compression point, ensuring strong signal transmission.

Flexible Power Options: Operates on a wide voltage range of 3.3-6VDC, with a USB Type-C charging port for easy and versatile power connectivity.

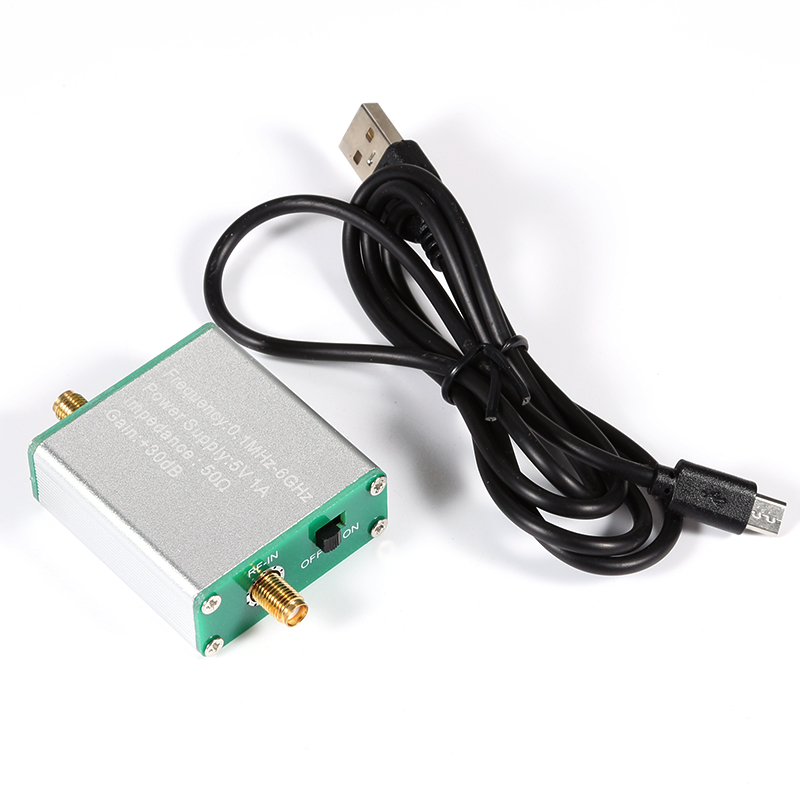

Package Included:

Type A:

1 x Low Noise Amplifier (NO BATTERY)

1 x USB Type-C DATA Cable

Type B:

1 x Low Noise Amplifier (WITH BATTERY)

1 x USB Type-C DATA Cable
