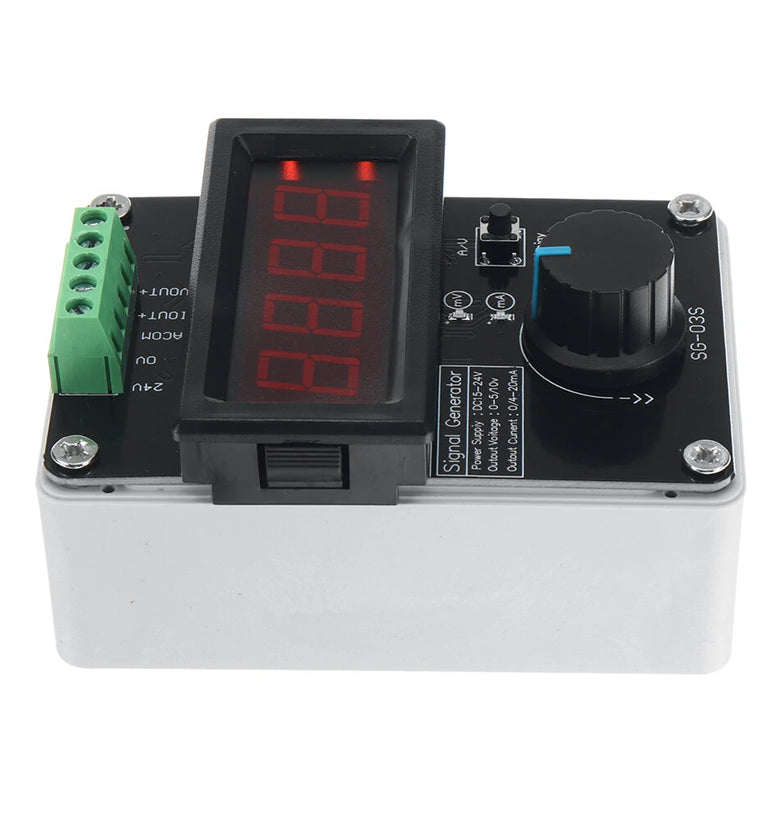

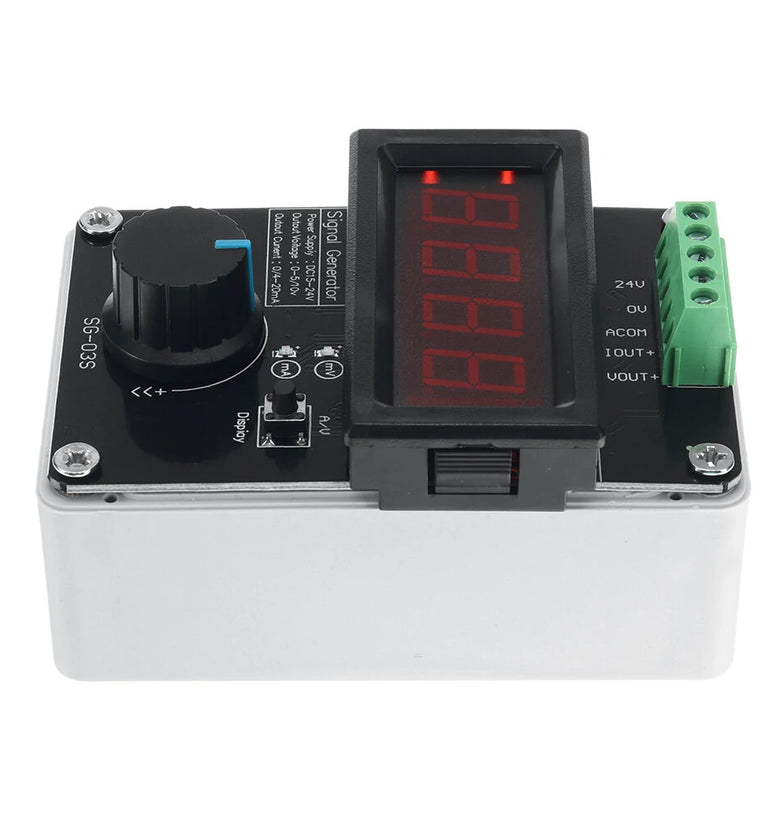

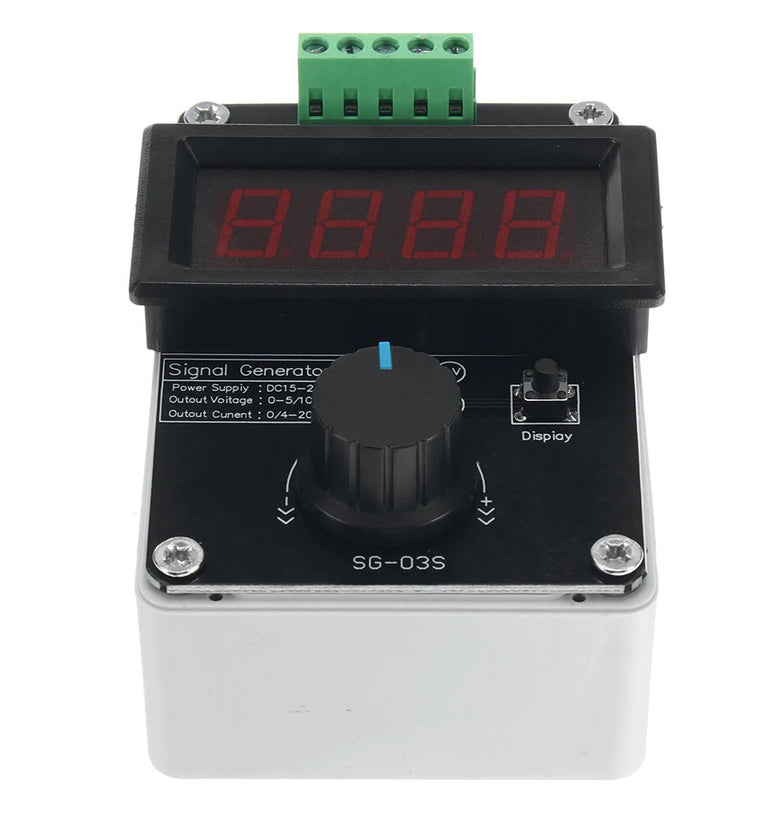

Parameters:

Supply voltage: 24VDCVoltage output: 0-10V adjustable, drive current <20mACurrent output: 0-22mA adjustable, load sampling resistance <500 ohmsAdjustment resolution: 0.1V/0.01V or 0.1mA/0.01mALinearity: better than 0.2%Display mode: 4-digit digital tubeAdjustment method: rotary encoder + keyTerminal interface definition:24v: positive pole of power supply0V: negative pole of power supplyACOM: voltage and current signal output negative poleAout+: Current signal output positive poleVout+: voltage signal output positive poleParameter settings and usage1. Switch voltage/current mode: Click the Display button to switch the current voltage/current mode, the current output value is digitally displayed, rotate the encoder to change the output value, press the encoder to reset and restore the output value;2. How to enter the menu mode: long press the rotary encoder, the screen will display ----, at this time the rotary encoder rotates once each time; in voltage mode, the order is right, left, left, left, and right, the screen will display rLLr, if the password is correct, the menu interface will be automatically entered. P001; In current mode, the order is right, left, left, and the screen displays rLrL. If the password is correct, the menu interface will automatically enter and P001 will be displayed;3. Save and exit: When the 'POOX' interface is currently displayed, long pressing the encoder will save and exit to the main interface;4. Exit without saving: When the 'POOX' interface is currently displayed, enter the parameter adjustment mode and long press the encoder to exit to the main interface without saving;

Features:

1. Versatile Output Range: The Signal Generator boasts an adjustable voltage output range of 0-10V and a current output range of 0-22mA, allowing for a wide range of applications. With a drive current of less than 20mA and a load sampling resistor of less than 500Ω, this generator is perfect for a variety of uses.

2. Precise Adjustment: The Signal Generator features an adjustment resolution of 0.1V /0.01V or 0.1mA/0.01mA, ensuring precise and accurate signal generation. The rotary encoder + button adjustment method allows for easy and intuitive use.

3. Excellent Linearity: With a linearity of better than 0.2%, the Signal Generator provides consistent and accurate signal generation. Users can rely on this generator for precise and reliable results.

4. User-Friendly Display: The Signal Generator features a 4-digit digital tube display for easy and clear reading of output values. This user-friendly display makes it simple to monitor and adjust the generator's output.

5. High-Quality Design: The Signal Generator is designed with high-quality materials and components, ensuring long-lasting and reliable performance. Its compact and durable design makes it easy to use and transport, making it an ideal choice for both laboratory and field use.

Signal generator operating instructions

Parameter	illustrate	Remark	Default value
P001	model	0: Coarse adjustment 1: Fine adjustment	0
P002	Voltage range	0: 0-10V 1: 0-5V 2: 0~3V 3: 0-2.5V	0
P003	Coarse resolution	Adjust resolution = 0.1V x current display value	01
P004	Fine-tune resolution	Adjust resolution = 0.01V x current display value	01
P005	10V calibration	Rotate the encoder until 10V and then press the rotary encoder to confirm	4015
P006	0.03V calibration	Rotate the encoder until it reaches 0.03V and then press the rotary encoder to confirm.	18
P007	Save after power off	0: Off 1: On (stable and saved for 600s)	0

Current menu

Parameter	illustrate	Remark	Default value
P001	model	0: Coarse adjustment 1: Fine adjustment	0
P002	Current range	4: 0-20mA 5: 4-20mA 6: 0-22mA 7: 4-22mA	4
P003	Coarse resolution	Adjustment resolution = 0.1mA x current display value	01
P004	Fine-tune resolution	Adjustment resolution = 0.01mA x current display value	01
P005	20mA calibration	Rotate the encoder until 20mA and then press the rotary encoder to confirm	3702
P006	0.1mA calibration	Rotate the encoder until it reaches 0.1mA and then press the rotary encoder to confirm.	8
P007	Save when current is cut off	0: Off 1: On (stable and saved for 600s)	0

Package Include:

1× Module Board
