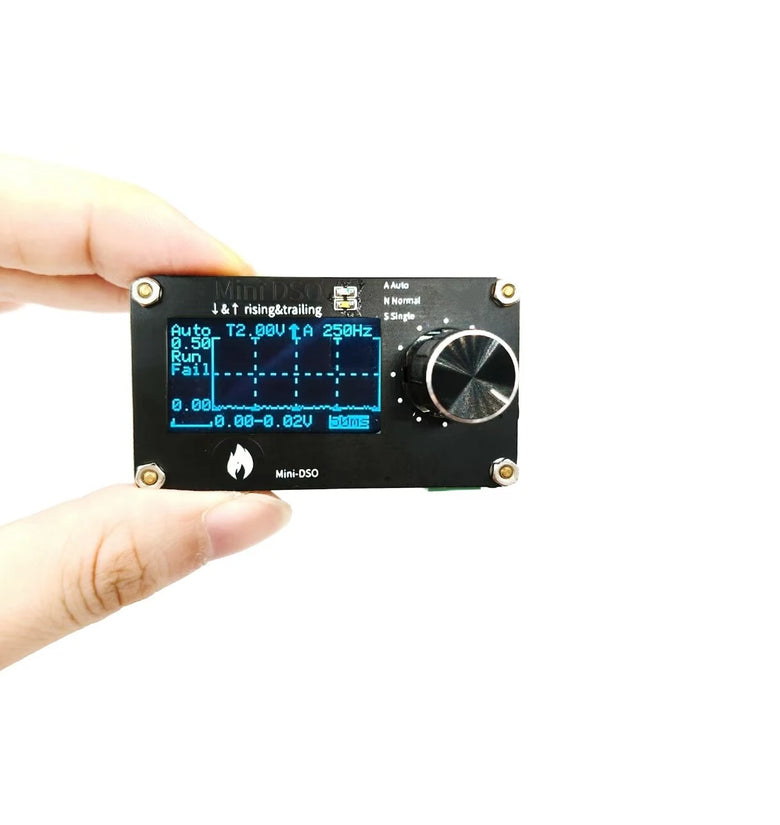

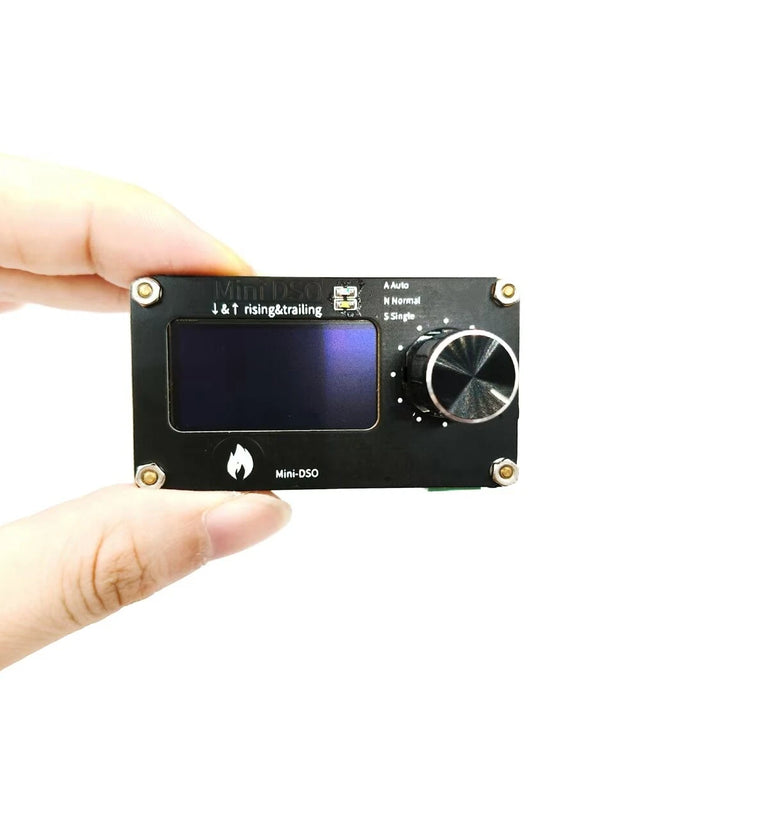

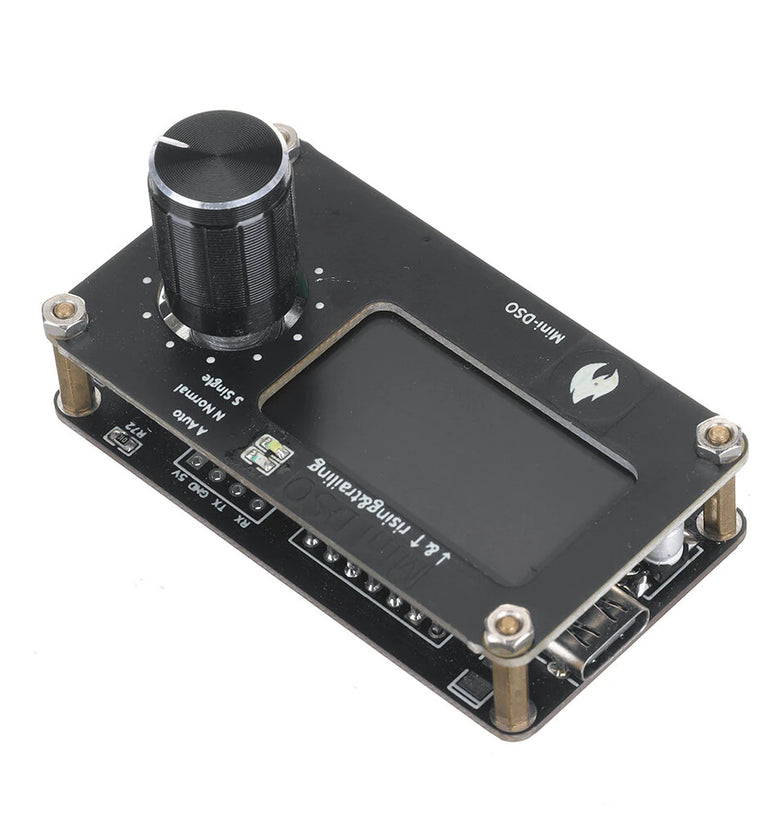

0-30K 250kHz Mini DIY Digital Oscilloscope for Educational Learning Measurement Electronic Maintenance

R 689.70



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Features:
    MCU: STC8A8K64S4A12 @27MHz
    System power supply: 5V type power supply
    Display: 0.96inch or 1.3inch
    Controller: One EC11 Encoder
    Input: Single Channel
    Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms, 10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us
    100us only available in Auto Trigger Mode
    Voltage Range: 0-30V
    Sampling Rating: 250kHz @100us/div

    How to Operation:
    Main Interface - Parameter Mode:
    Single Click Encoder: Run/Stop sampling
    Double Click Encoder: Enter Wave Scroll Mode
    Long Press Encoder: Enter Settings Interface
    Rotate Encoder: Adjust parameters
    Rotate Encoder While Pressing: Switch between options
    Main Interface - Wave Scroll Mode:
    Single Click Encoder: Run/Stop sampling
    Double Click Encoder: Enter Parameter Mode
    Long Press Encoder: Enter Settings Interface
    Rotate Encoder: Scroll waveform horizontally (only available when sampling stopped)
    Rotate Encoder While Pressing: Scroll waveform vertically (only available when sampling stopped)
    Settings Interface:
    Single Click Encoder: N/A
    Double Click Encoder: N/A
    Long Press Encoder: Return to Main Interface
    Rotate Encoder: Adjust parameters
    Rotate Encoder While Pressing: Switch between options

    Package Included：

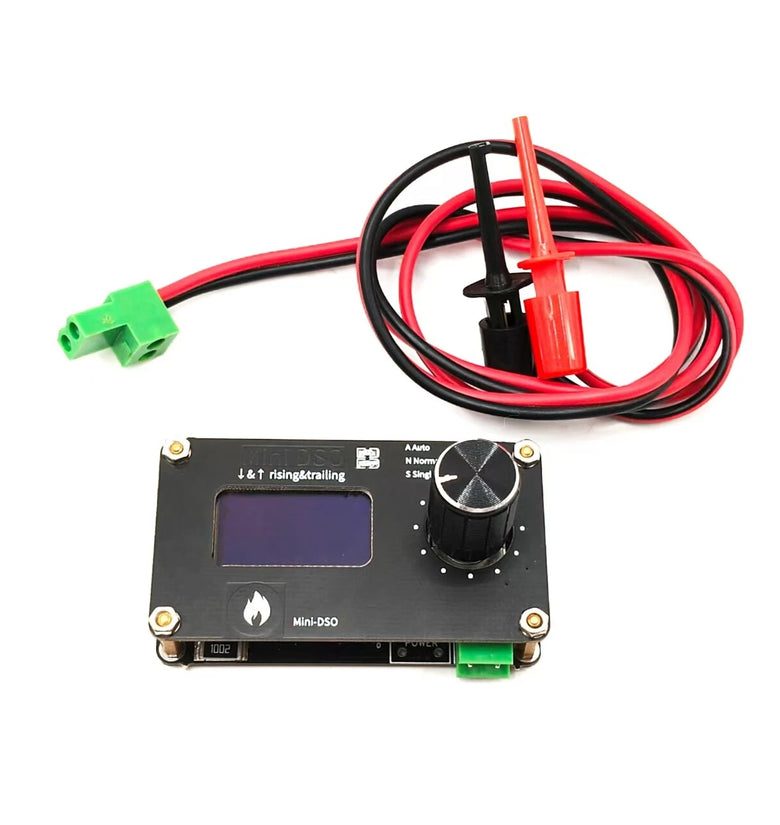

    1 x Mini OSC
