Specification:
| Glass panel | 1.28 inch |
| Dimensions | 35.6(H)*38.1(V)*1.55(D)mm |
| Display size | φ32.4mm |
| Resolution | 240 RGB*240 |
| Pixel size | 0.135(H)*0.135(V) |
| Interface mode | 4-wire SPI |
| Perspective | ALL View |
| Driver chip | GC9A01 |
| Backlight | 2 white LED Parallel |
| Pixel arrangement | RGB Vertical stripe |
| LCM brightness | 350cd/㎡ |
| Display color | 65K |
| Display mode | Normally black |
| Input voltage | 3.0±0.2V |
| Weight | 3.2g |
| Operating temperature | -20~+70°C |
| Storage temperature | -30~+80°C |
Pin definition:
| Pin | Pin definition | Function Description |
| 1 | GND | Power Ground |
| 2 | LEDK | LED Cathode |
| 3 | LEDA | LED Anode |
| 4 | VDD | Power supply for Analog |
| 5 | GND | Power Ground |
| 6 | GND | Power Ground |
| 7 | D/C | Display data/command selection pin in 4-line serial interface |
| 8 | /cs | Chip selection pin;Low enable,high disable. |
| 9 | SCL | This pin is used to be serial interface clock |
| 10 | SDA | SPI interface input/output pin,the data is latched on the rising edge of the SCL signal. |
| 11 | RESET | This signal will reset the device and it must be applied to properly initialize the chip.Signal is active low. |
| 12 | GND | Power Ground |
Features:
1. The display module utilizes a GC9A01 driver for efficient performances.
2. The module offers a high-resolution, offering vivid graphics with a pixel size of 0.135(H)*0.135(V).
3. Comfortable viewing from any angle is ensured by the IPS Round and ALL View feature.
4. The module has a maximum brightness of up to 350cd/m, comfortable for the eye.
5. The display is equipped with 2 White LED backlights in parallel which provide additional clarity for visuals.
Package Includes:

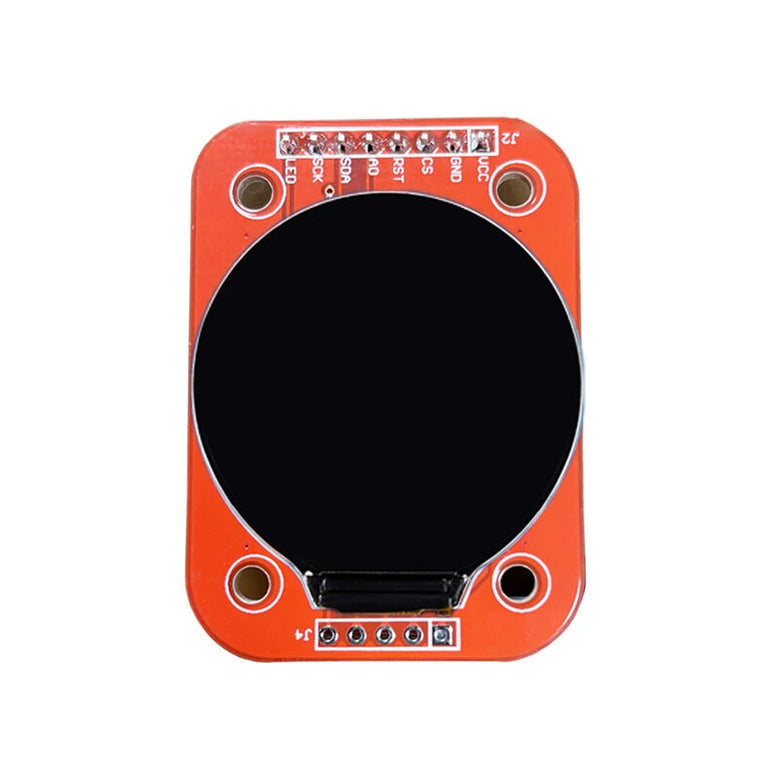

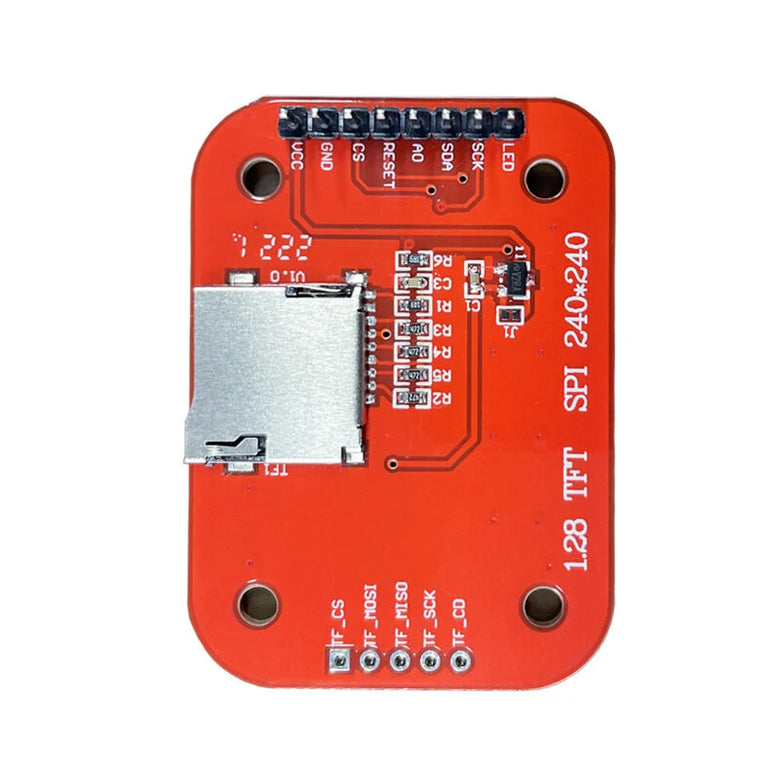

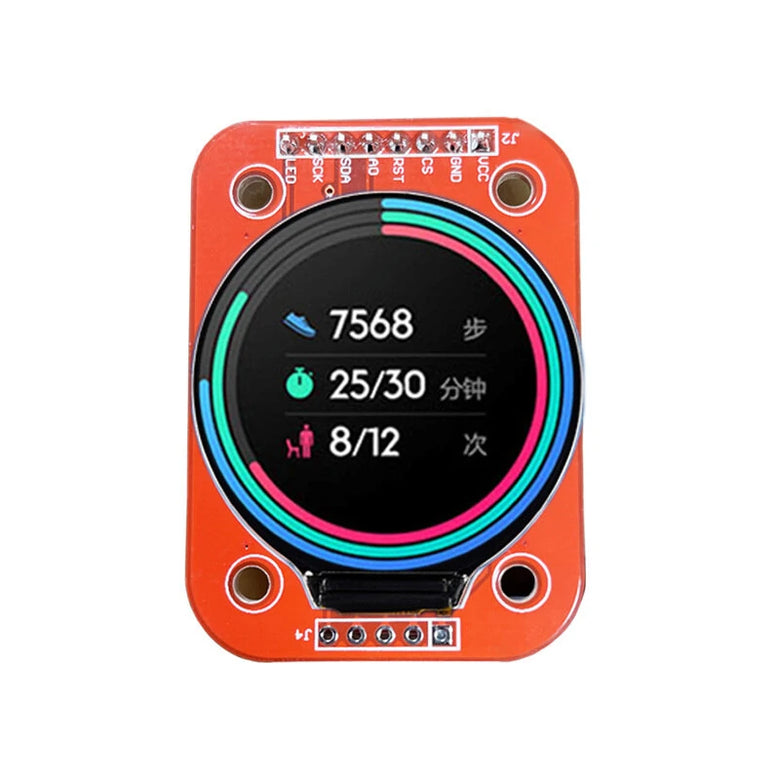

1* 1.28 Inch TFT LCD Display Module
