Features:
- Module with regulator IC supports 3.2V/5V power supply

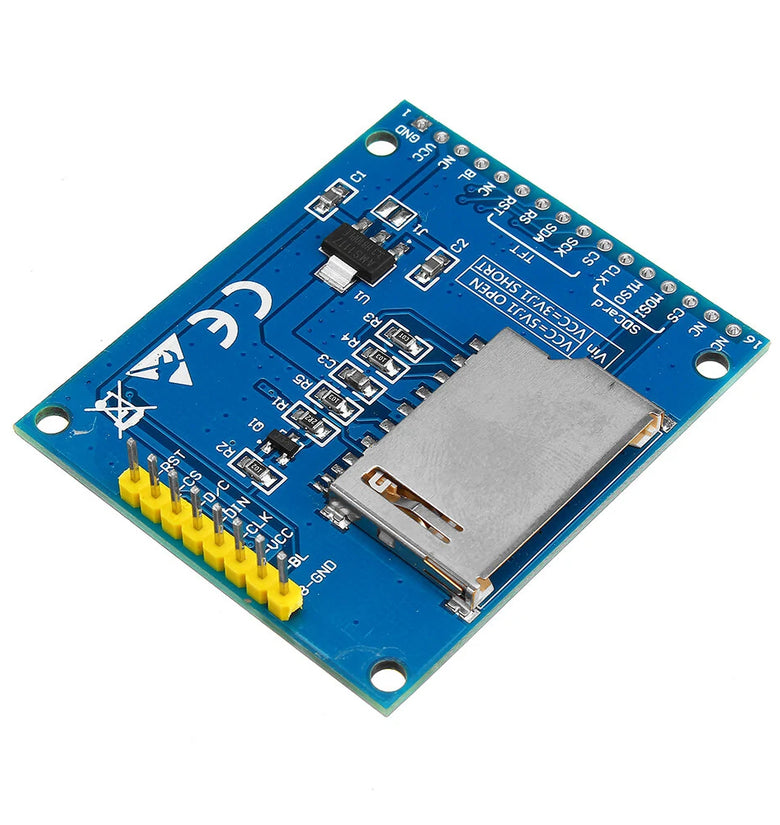

- With SD card holder, you can do experiments like digital photo frame
- The module reserves the Nokia3310/5110 interface, supports the 1602 interface, and plugs in & out!
- IO for streamlined wiring

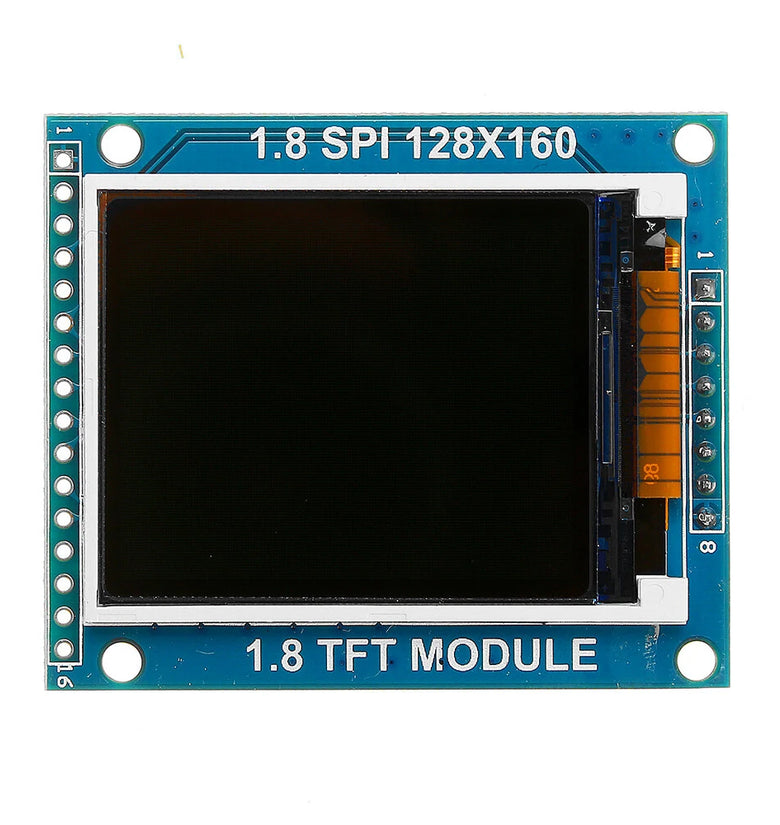

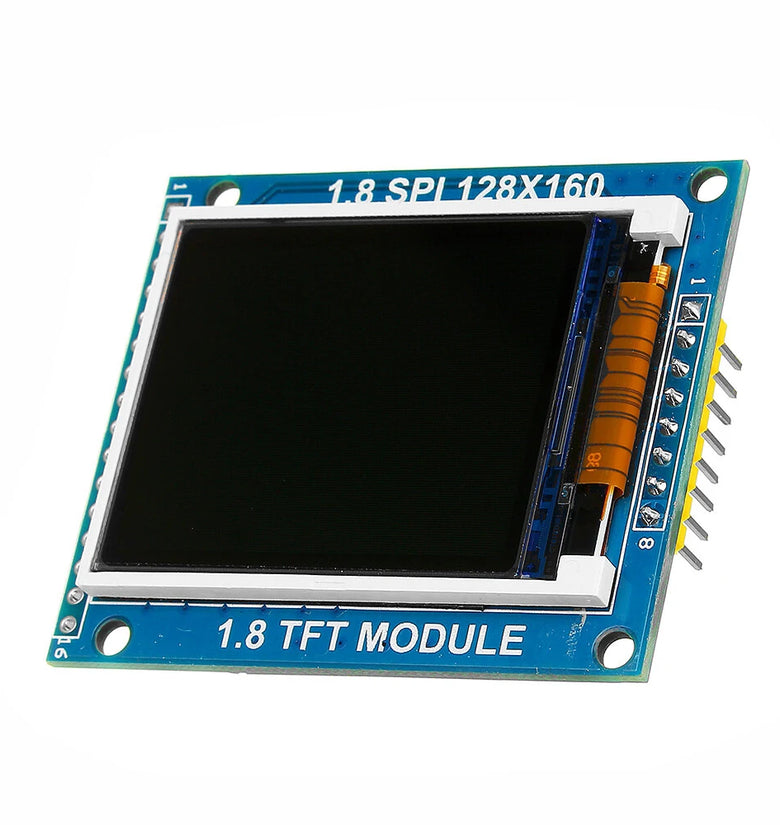

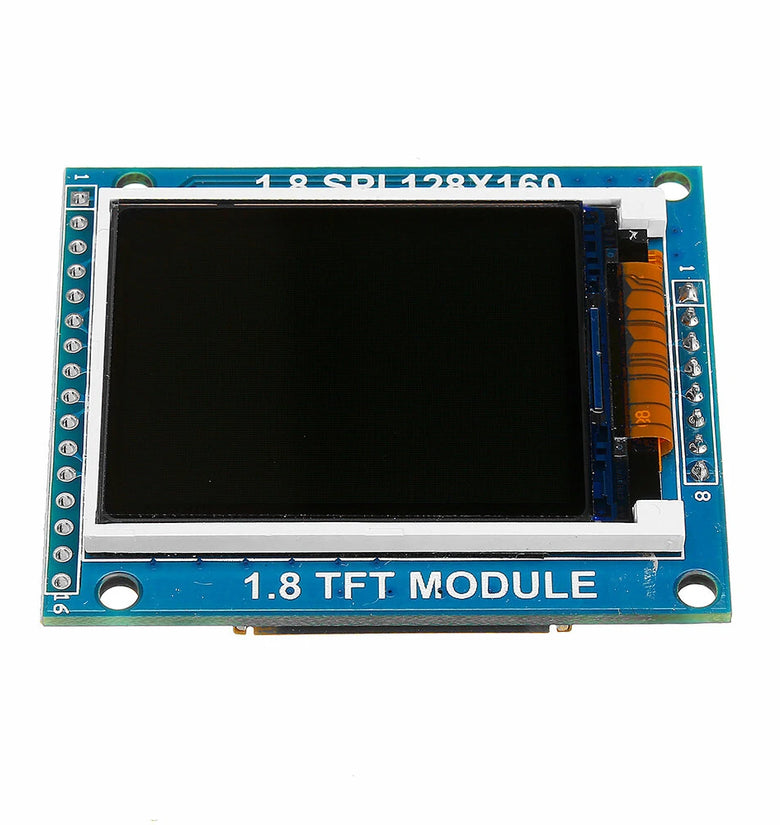

- LCD resolution: 128X160, driver IC: ILI9163/ST7735
Wiring:
IO for streamlined wiring: (only 3 IOs after optimization)
1. RST-- directly connected to the microcontroller reset signal terminal, this IO can save
2. D/C--connected to low level, the chip selects long-term effective, this IO can save
3. D/C--connected to IO control register selection
4. DIN--connected to IO control data transmission
5. CLK--connected to IO control SPI bus
6. BL--Connected to the high level 3.3V backlight is always bright, then this IO can save

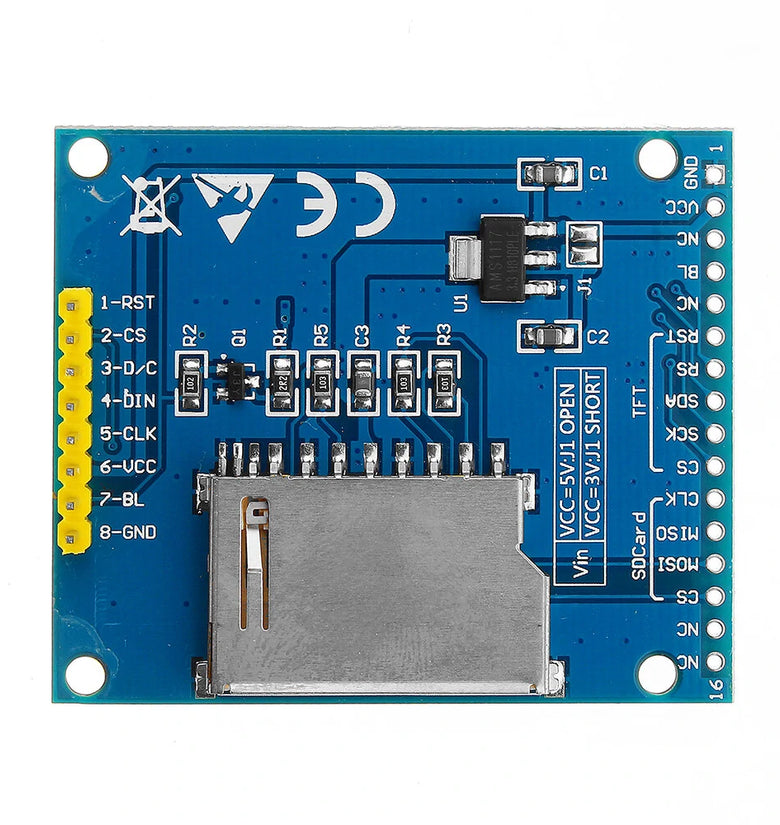

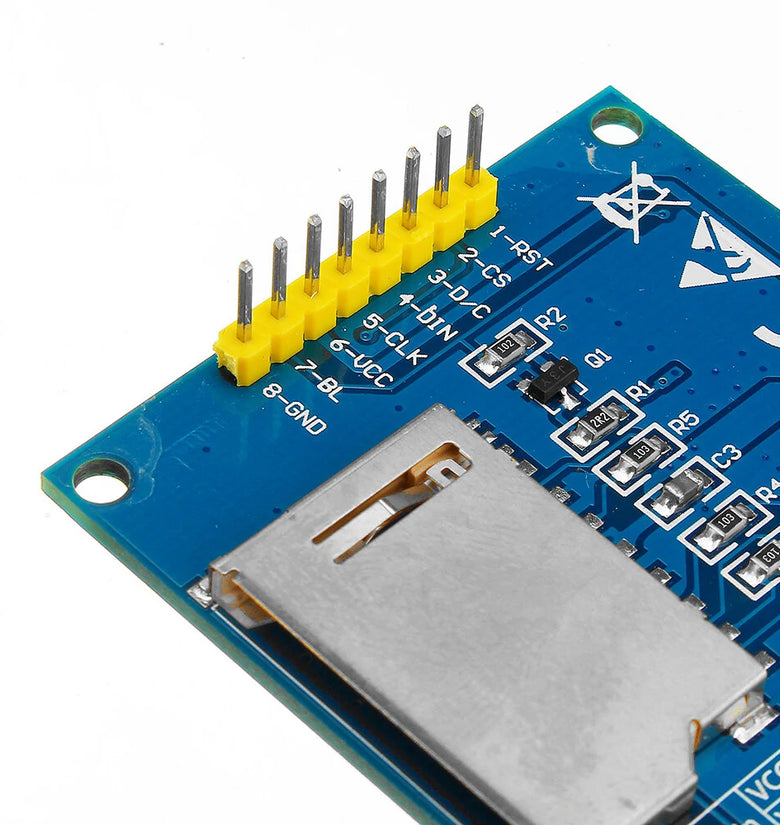

IO for standard wiring: (6 IO)
1. RST--connected to IO control LCD reset
2. CE--connected to IO control chip selection
3. D/C--connected to IO control register selection
4. DIN--connected to IO control data transmission
5. CLK--connected to IO control SPI bus
6. BL--connect IO control backlight on or off or PWM control brightness
Package Included:

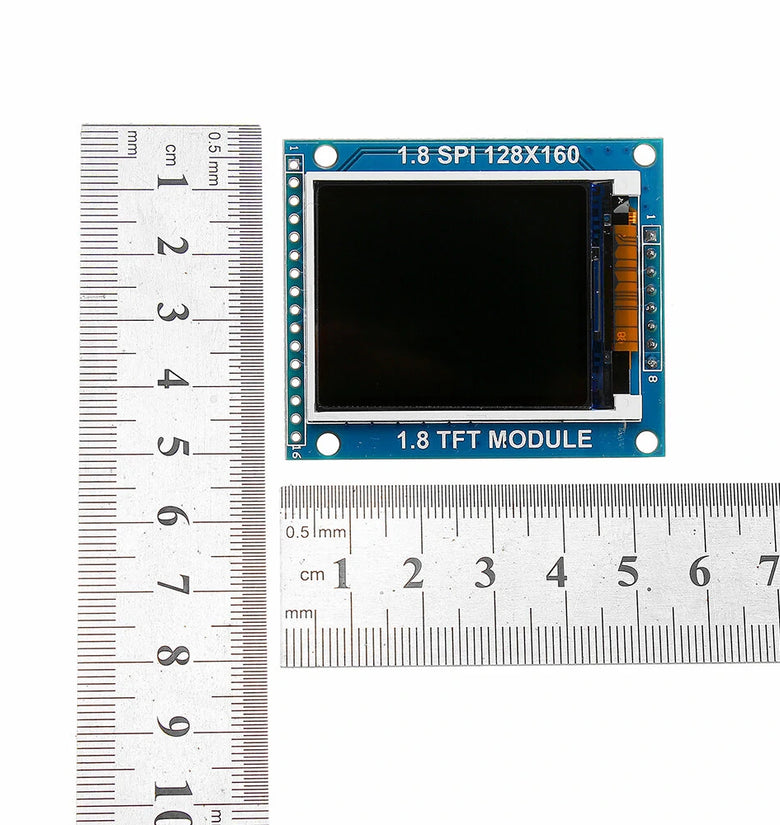

1 x 1.8 Inch LCD Module
