Features:

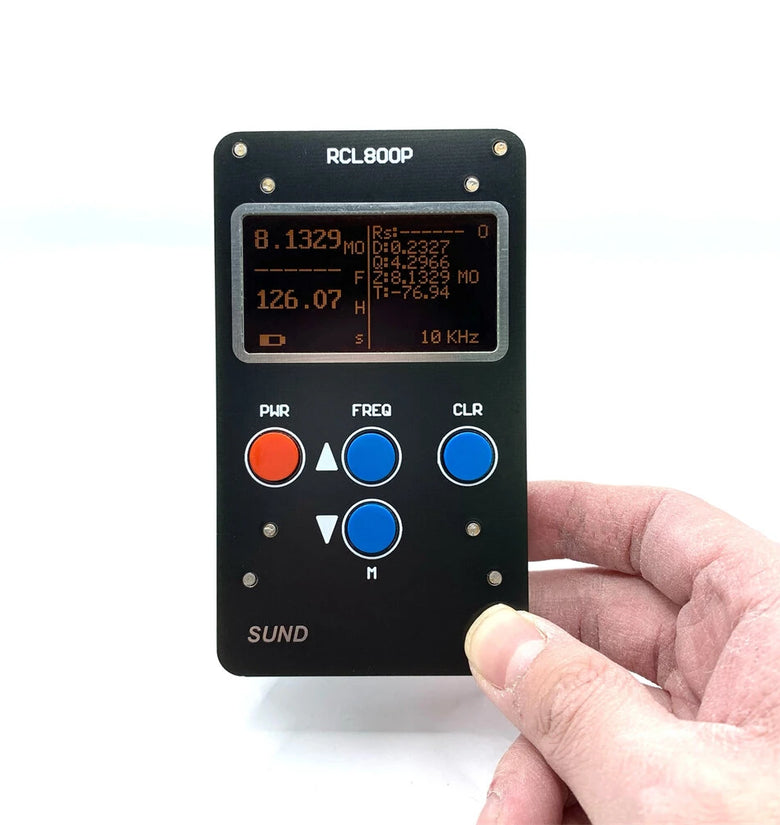

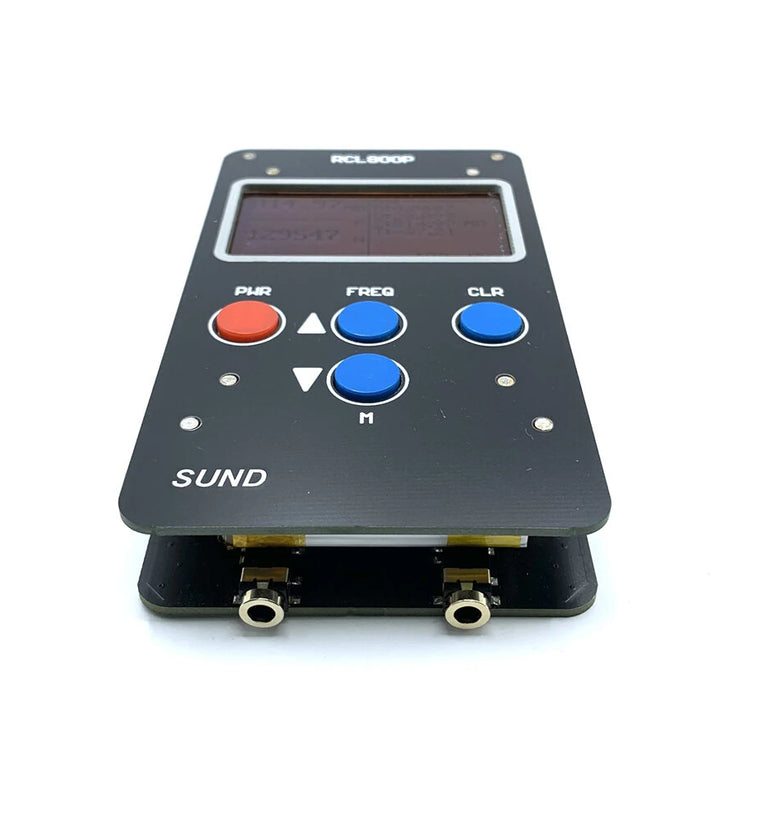

1. Mini, lightweight, and portable LCR digital bridge, only 17mm thick
2. Basic accuracy up to 0.1%, meeting the most demanding testing applications
3. Simultaneous display of all parameters, intelligent component type determination, eliminating frequent switching
4. Simple and easy-to-use interface
5. Auto-gain and auto-ranging
6. Supports three test frequencies: 100Hz, 1kHz, and 10kHz
7. Built-in battery with USB Type-C charging
8. Factory calibrated, generally ready for use without calibration; user calibration is also supported.
Specification:
Test Parameters: L, C, R, D, Q, ESR, θ
Basic Accuracy: 0.10%
Equivalent Circuit: Series/Parallel
Ranging Mode: Auto
Test Speed: 2 times/s
Calibration: Supported

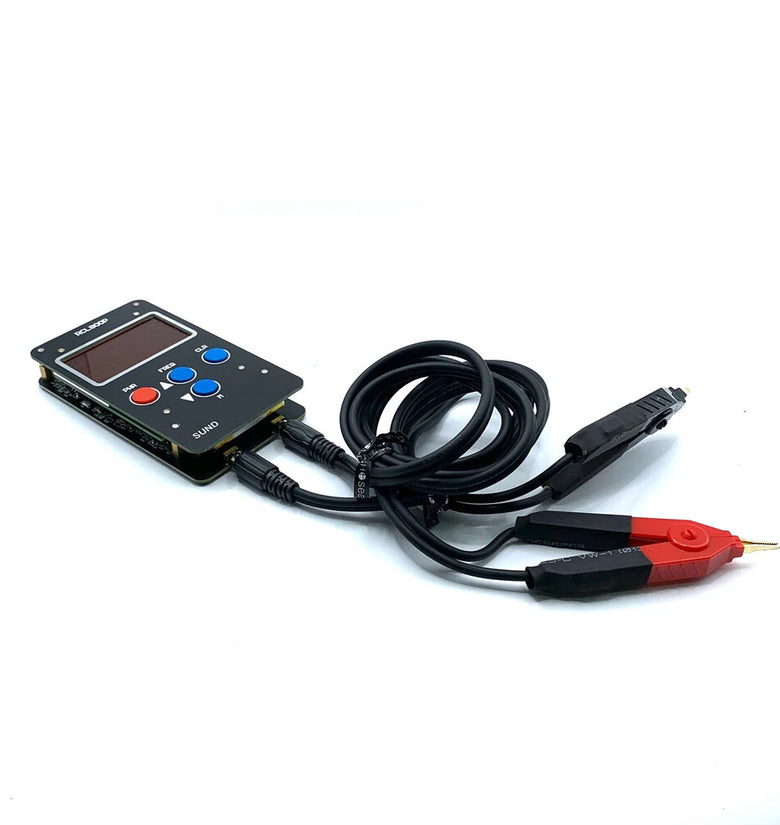

Test Terminal Configuration: Four-terminal Kelvin test leads
Display: LCD
Backlight: Supported
Battery indicator: Supported
Low battery shutdown: Supported
Battery life: Approximately 3 hours
Power supply: Battery
Battery capacity: 400mAH
Charging port: USB Type-C
Test signal frequency: 100Hz, 1kHz, 10kHz
Test signal level: 2V
Measurement display range:
R: 0.0001Ω--9999.9MΩ
C: 0.0001PF--9999.9mF
L: 0.0001µH--9999.9H
D, Q: 0.0001--99999
Operating temperature and humidity: 0°C-40°C | ≤90%RH
Power consumption Power consumption: ≤0.85W
Dimensions (L x W x H): 116 x 68 x 17mm
Main unit weight: 150g

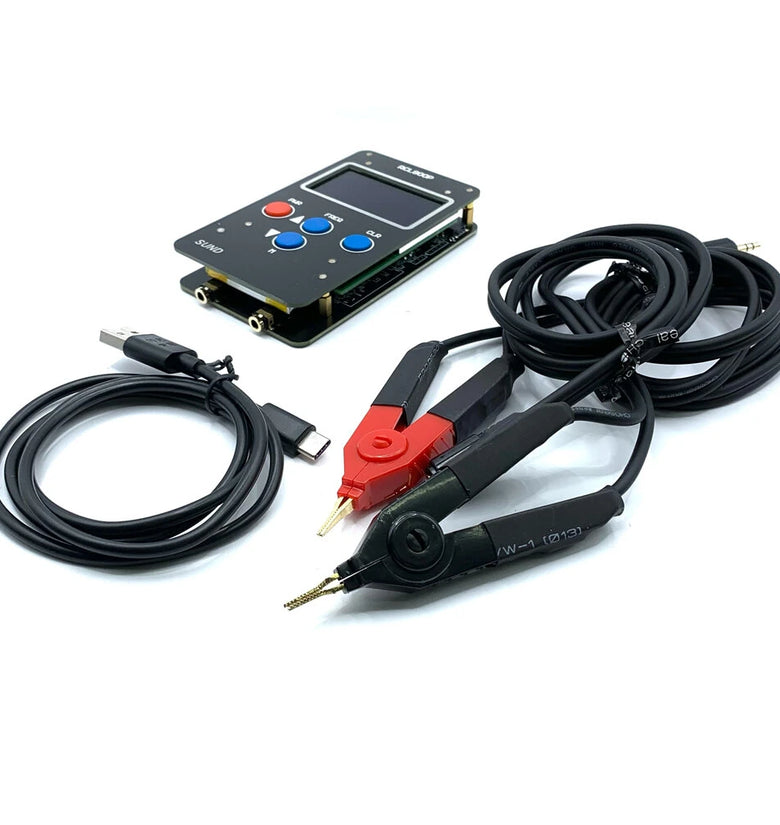

Package Included:
1 x Power Bridge
1 x Pair of Test Clips
1 x Charging Cable
