Specifications:

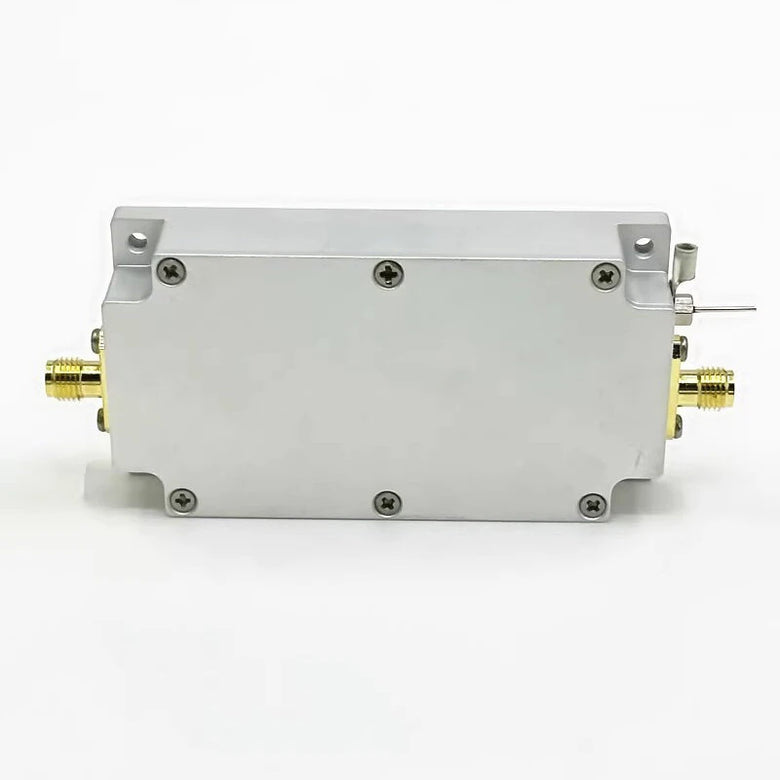

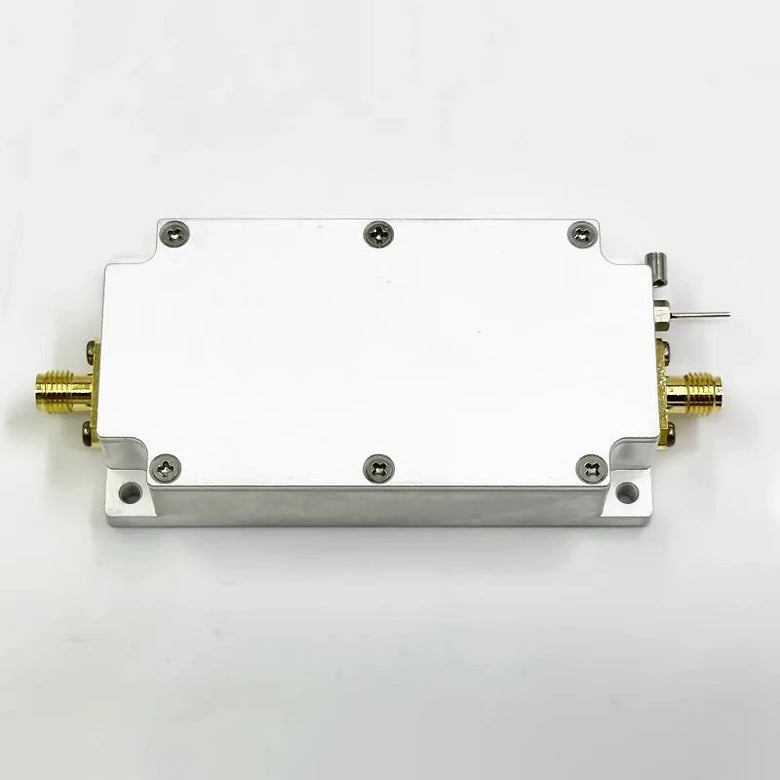

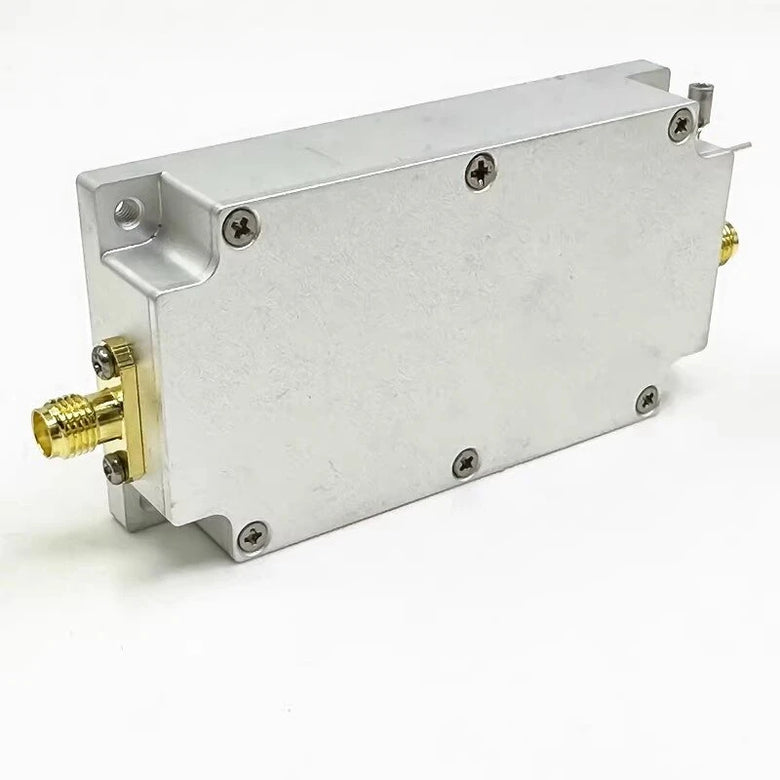

Model: RF Power Amplifier

Working Frequency: 1200-1320MHz (1268MHz)

Output Power:

13W (41dBm@24V, RFin=5dBm (3mW))

15W (42dBm@28V, RFin=5dBm (3mW))

20W (43dBm@28V, RFin=7dBm (5mW))

Working Voltage: 20-28V (24V recommended)

Working Current: 1.7A (depending on the supply voltage)

System Impedance: 50 ohms

Overall Size: 76x40x16.5mm (without joint)

Connector Type: SMA female head (outer screw inner hole)

Note: Additional heat sink is required

Features:

1.Versatile Frequency Range:

Operating within the frequency range of 1200-1320MHz, and optimized for 1268MHz, this RF power amplifier supports a wide array of applications. This broad operating range makes it perfect for various RF communications, ensuring maximum versatility.

2.Multiple Power Output Levels:

With selectable output power levels of 13W, 15W, and 20W, this amplifier provides tailored amplification for different scenarios. Users can choose the power level that best fits their requirements, ensuring optimal signal strength and coverage.

3.Wide Voltage Range:

The amplifier’s ability to operate between 20V and 28V, with a recommended setting of 24V, offers flexible power supply options. This allows for seamless integration into different environments and systems, m
