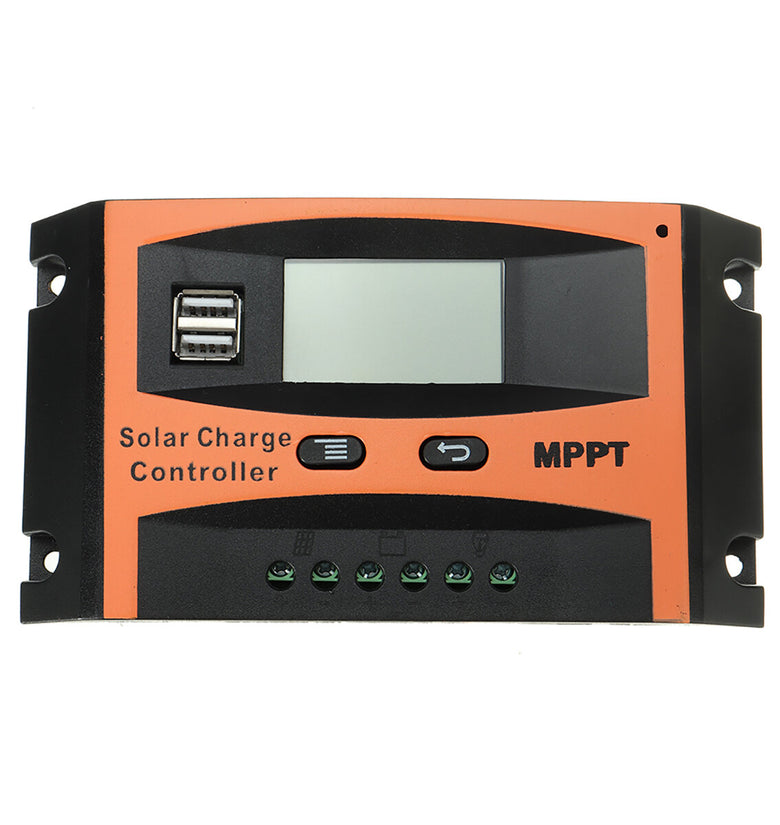

● Fully 3-stage PWM charge management ● Big LCD display, all adjustable parameter ● Dual mosfet reverse current protection, low heat production ● Dual USB output, the maximum current of 2.5A, to support Apple's mobile phone charging ● Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection ● Suitable for solar green light, solar light boxes advertising board, solar insecticidal lights, housing solar power generation system, marine solar power generation system, outdoor survival solar power generation system | |
Specification |
Back Board Material: Iron Color: Black+Orange Display: LCD Screen Working voltage: 12V / 24V Rated charging current: 30A / 40A / 50A / 60A Rated load current: 30A/40A/50A/60A Self-consumption: ＜10MA Floating charge voltage: 13.8V / 27.6V (adjustable) Undervoltage protection: 10.7V / 21.4V (adjustable) Charger controller specification charging mode: 3 kinds Working temperature: 35-60°C Storage temperature: 40°C -70°C USB Output: 2 way USB output, 5V/2.5A(MAX) Size (L)X(W)X(H):16.8x9x3.8cm / 6.6x3.5x1.5inch |
Package Contents |
1 x English User Manual (excluding other decorations) |
SYSTEM CONNECTION:
1.Connect the battery to the charge regulator-plus and minus.
2.Connect the photovoltaic module to the regulator-plus and minus.
3.Connect the consumer to the regulator-plus and minus.
NOTE: The reverse order applies when deinstalling, an improper sequences order can damage the controller.
SAFETY INSTRUCTIONS:
1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.
2.The battery cable should be as short as possible to minimize loss.
3.The regulator is only suitable for lead acid batteries: OPEN,AGM,GEL, it is not suited for nickel metal hydride, lithium ions or other batteries.
4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.
