Specifications:

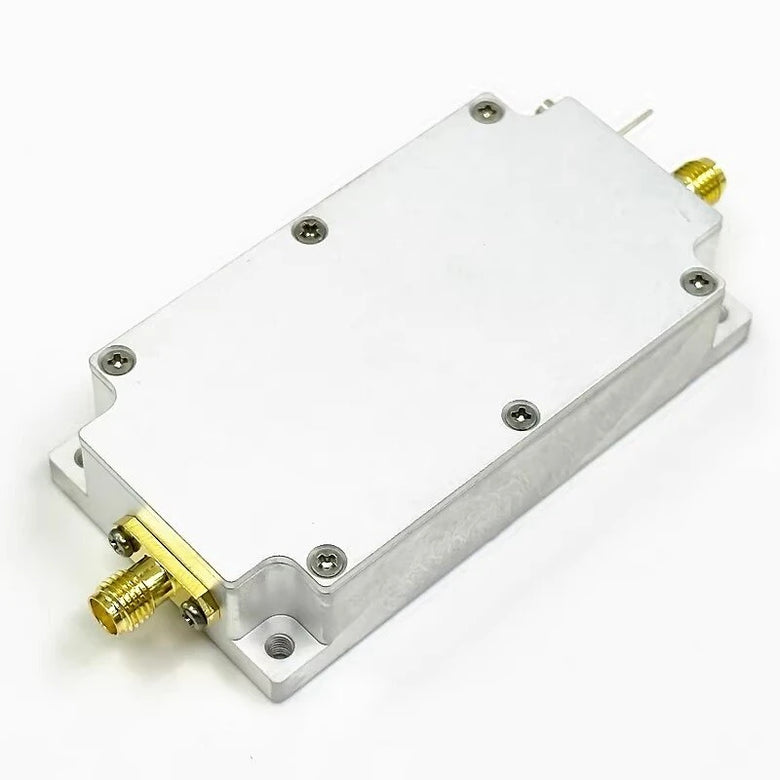

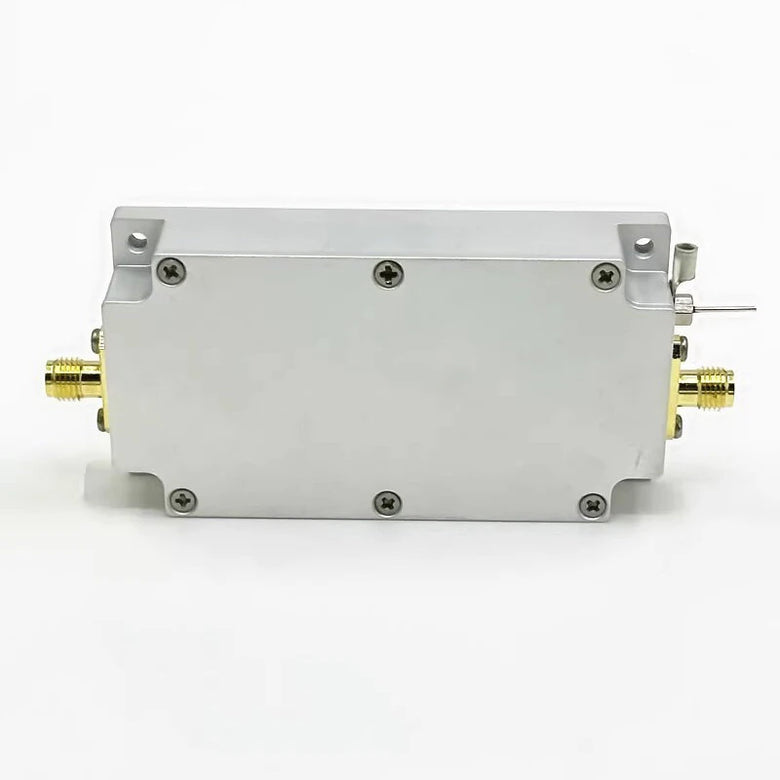

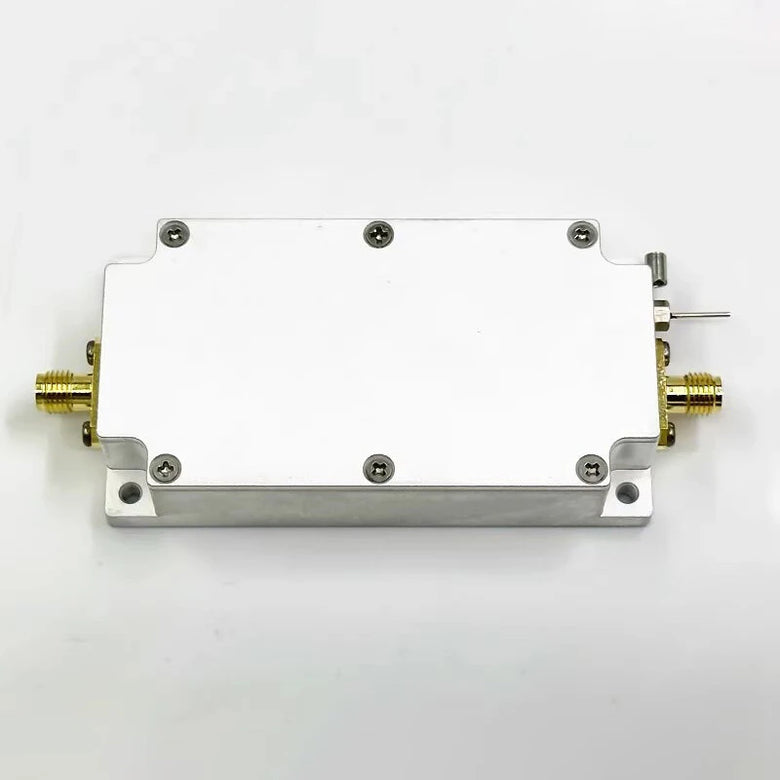

Model: RF Power Amplifier

Working Frequency: 1500-1600MHz (1561MHz, 1575MHz, 1604MHz)

Output Power:

13W (41dBm@24V, RFin=5dBm (3mW))

15W (42dBm@28V, RFin=5dBm (3mW))

20W (43dBm@28V, RFin=7dBm (5mW))

Working Voltage: 20-28V (recommended 24V)

Working Current: 1.7A (depending on the supply voltage)

System Impedance: 50 ohms

Dimensions: 76x40x16.5mm (excluding joints)

Product Weight: 95g

Connector Type: SMA female head (external screw and internal hole)

Precautions: Additional heat sink is required

Features:

1.Broad Operating Frequency Range:

Covering 1500MHz to 1600MHz, with specific support for 1561MHz, 1575MHz, and 1604MHz frequencies, this RF power amplifier is ideal for diverse applications. This wide frequency range caters to various communication needs, providing flexibility and adaptability.

2.Scalable Output Power Options:

Offering multiple output power levels, including 13W, 15W, and 20W, this amplifier provides scalable solution for different signal strength requirements. With the ability to match power needs precisely, it ensures efficient signal amplification for various setups.

3.Flexible Voltage Operation:

Designed to operate within a voltage range of 20-28V, and with a recommended 24V, this amplifier supports flexible power supply configurations. This adaptability makes it easier to integrate into existing systems, providing consistent performance at different voltages.

4.Compact and Lightweight Design:

Measuring just 76x40x16.5mm and weighing only 95g, this amplifier boasts a compact and lightweight design. These dimensions make it easy to install in space-constrained environments without compromising on power and functionality.

5.Standard SMA Connectivity:

Equipped with an SMA female head connector featuring an external screw and internal hole, this amplifier ensures reliable and secure connections. The standard SMA interface facilitates seamless integration with other RF components, enhancing overall system performance.

Package Included:

1 x RF Power Amplifier Modulemso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
