Specifications:

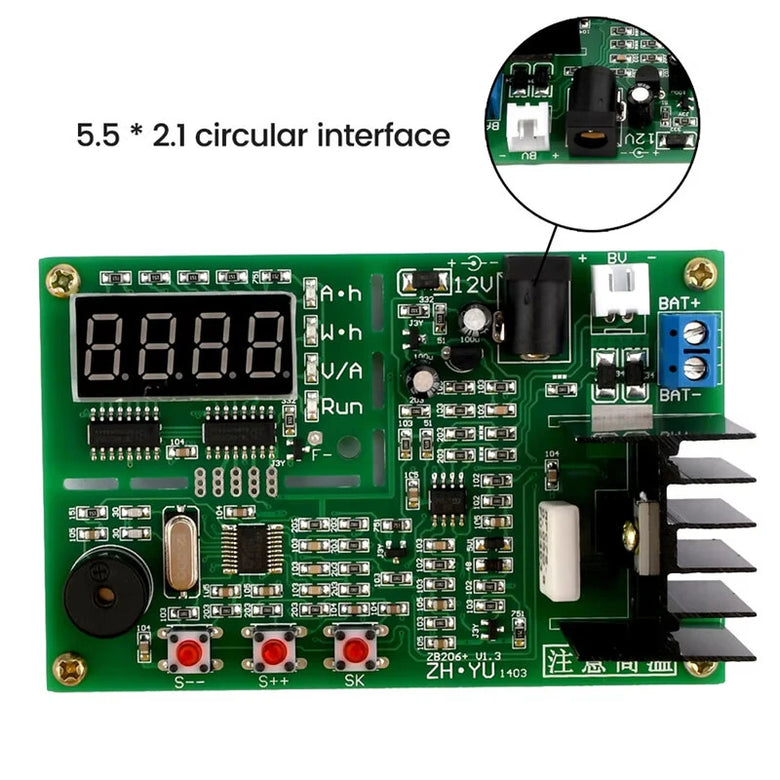

Power Supply Voltage: DC12V (DC11-14V)

Operating Current: not exceeding 35mA

Battery Input Terminal Voltage: not exceeding 8.5V

Discharge Current Error: less than 1% + 2mA

Voltage Measurement Error: less than 1% - 3D

Overall Measurement Result Error: 0.1-0.2A 2.5%, 0.3-0.5A 1.6%, 0.6-1.0A 1.2%, 1.1A-2.6A 1%

Ah Statistical Range: 80.00Ah

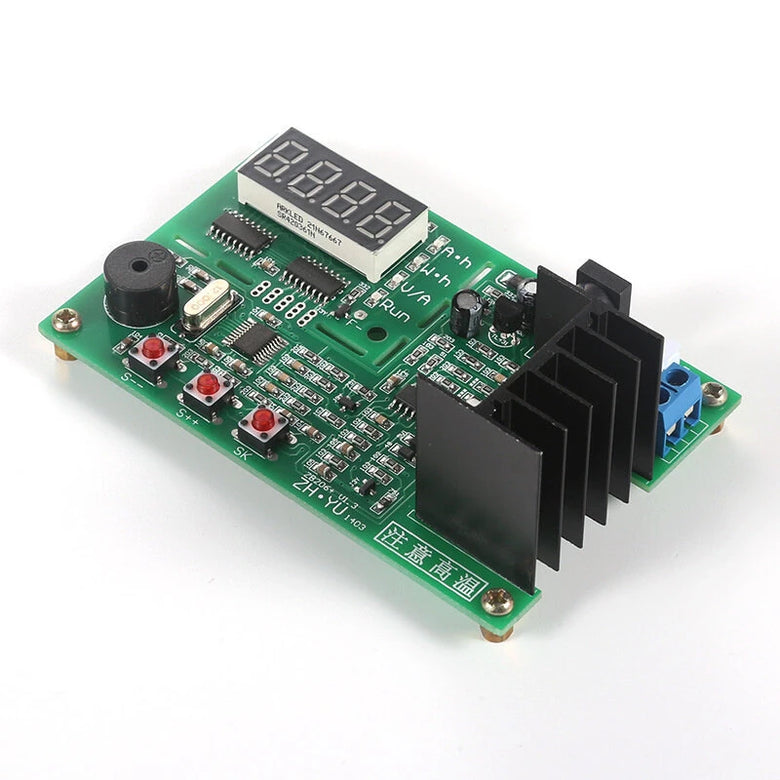

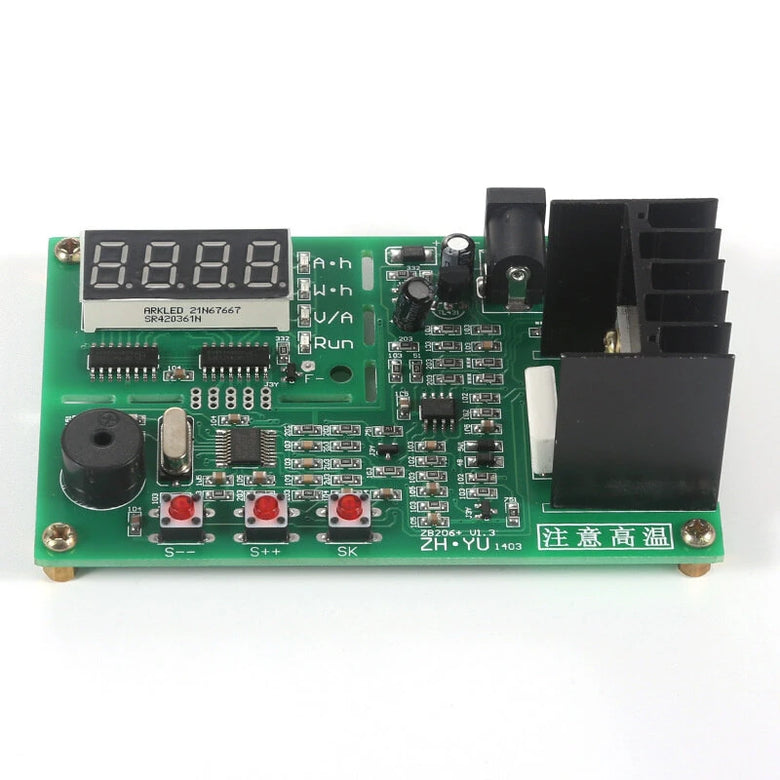

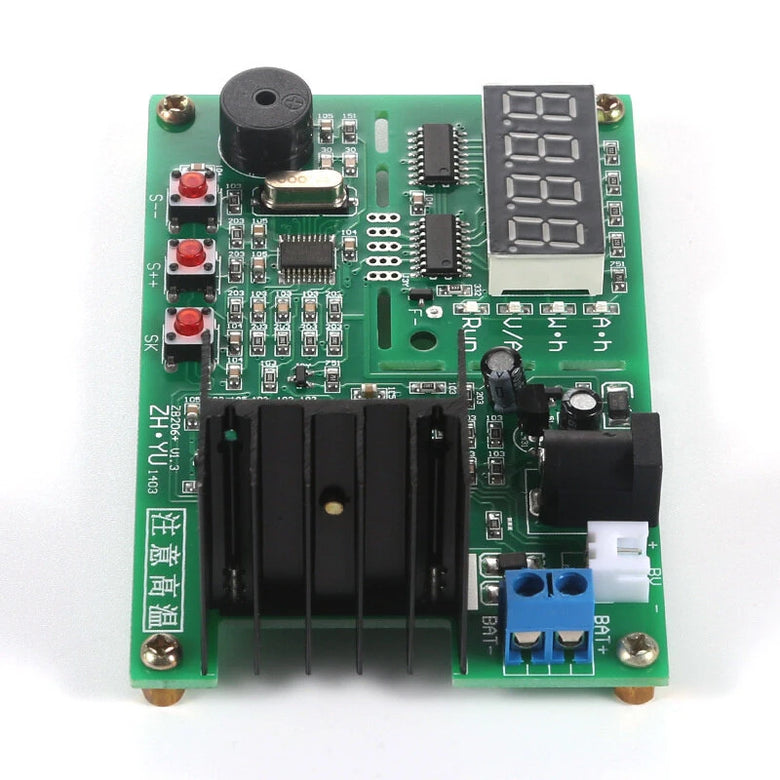

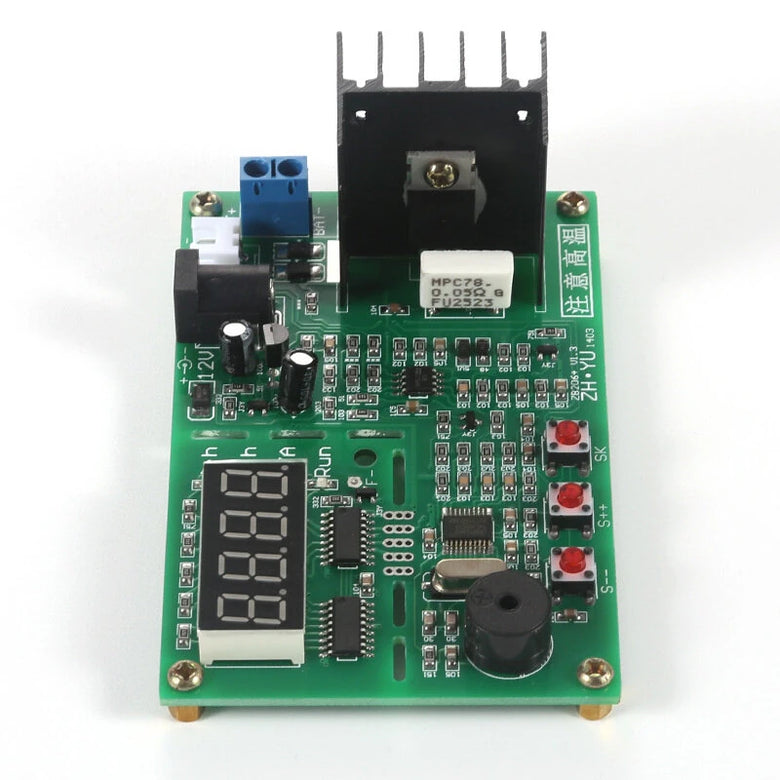

Circuit Board Size (excluding copper feet): 97mm x 62mm x 38mm

Positioning Holes: 90mm x 55mm, diameter 3.2mm

Features:

1.Advanced Calculation Capabilities: Integrated with advanced computation functions, this device does not require computer assistance to directly obtain battery energy (Wh) and battery discharge platform voltage (V). This optimization simplifies the testing process and ensures efficient measurement.

2.Multiple Protection Mechanisms: The product comes with multiple built-in protection features such as reverse battery connection, over-power, over-voltage, and abnormal power voltage. These safety measures ensure reliable and secure operation under various conditions.

3.Adjustable Discharge Current: The discharge current can be adjusted from 0.1-2.6A with 0.1A increments, ensuring precise and flexible testing. The smooth current high-cost MOS heat dissipation solution, coupled with an independent MOS linear region monitoring circuit, guarantees absolute accura
