Specifications:

Measurement Capabilities: Voltage, Current, Power, Capacity, Electricity, Temperature, Time

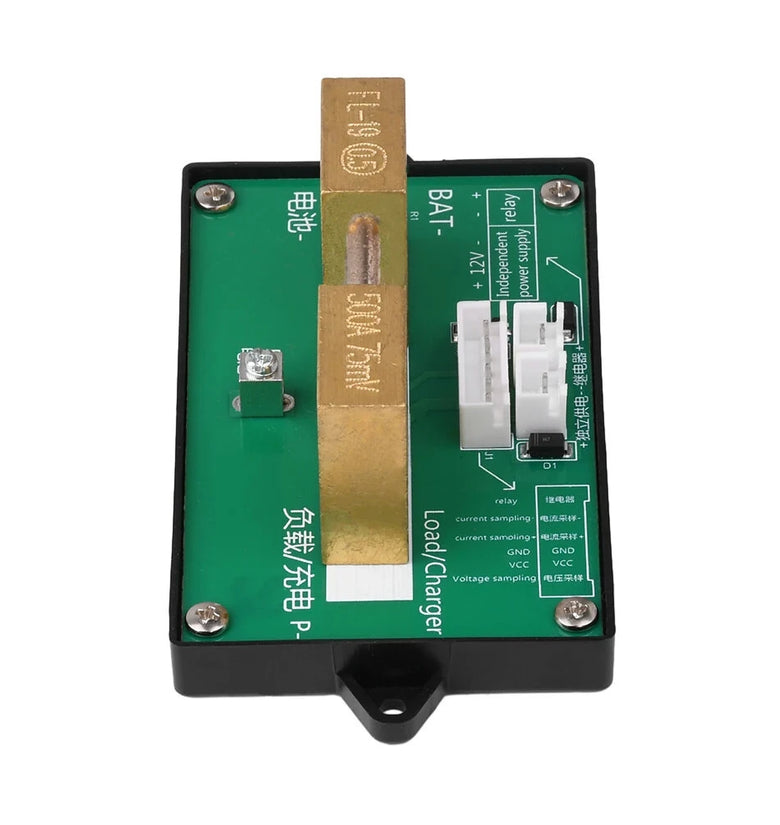

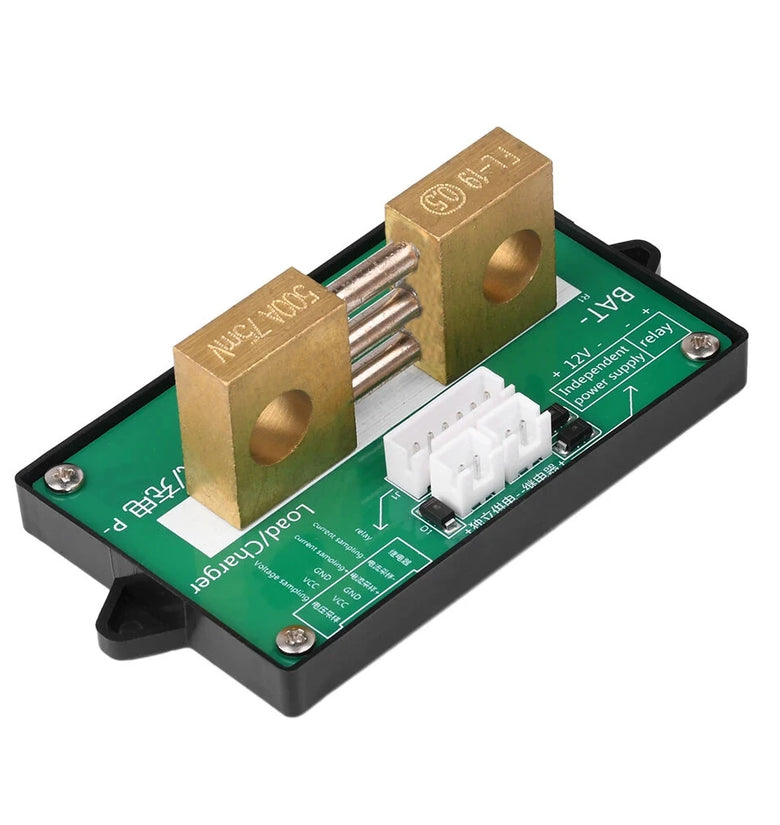

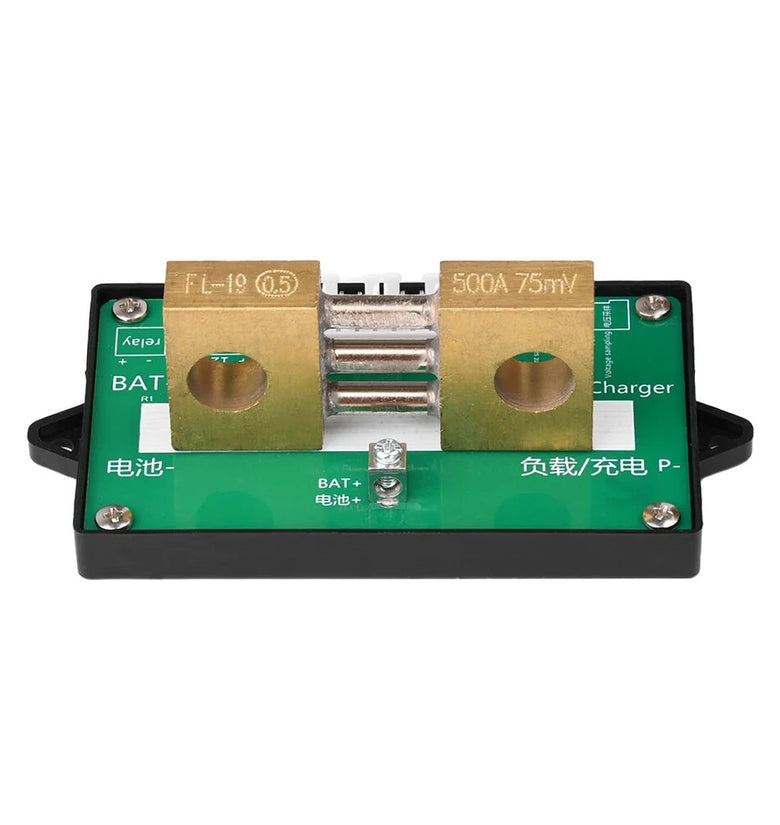

Input/Output Interface: 100A/200A/300A/400A/500A via shunt adapter board wiring

Instrument Working Voltage: DC 7-200V

Voltage Measurement Range: DC 7-200V

Current Measurement Range:

100A (with shunt adapter board)

200A (with shunt adapter board)

300A (with shunt adapter board)

400A (with shunt adapter board)

500A (with shunt adapter board)

Power Measurement Range: 00.00W-1.000KW-999.9KW

Capacity Measurement Range: 0-9999.9KAh

Electricity Measurement Range: 0-9999.9KWh

Temperature Measurement Range: 0-99℃

Display Size: 95×54×21.6mm

Mounting Aperture: 51×88mm

Features:

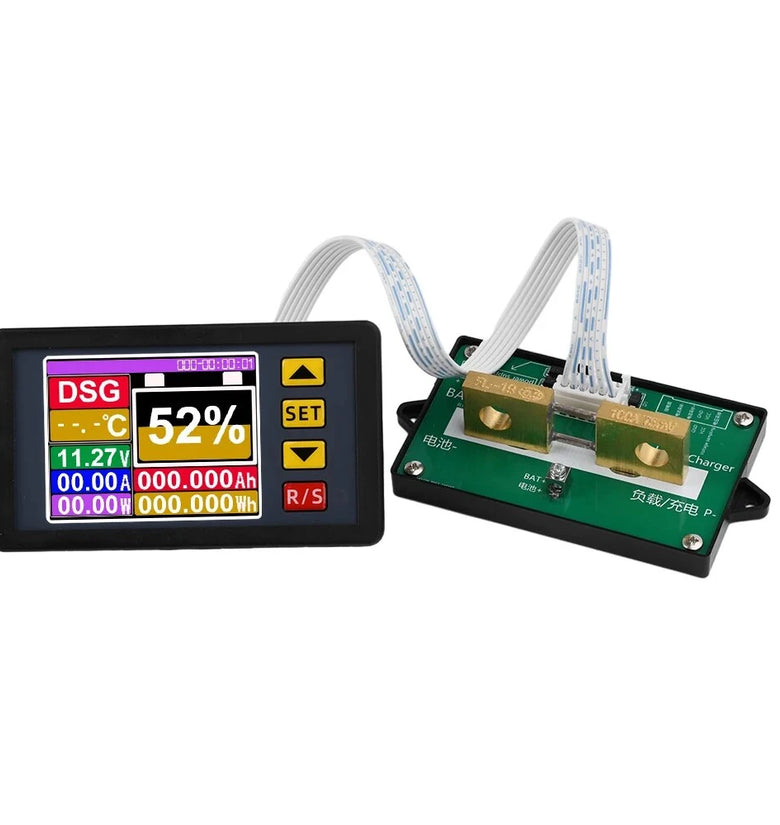

1. Comprehensive Measurement Functions: This multifunctional meter can measure voltage, current, power, capacity, electricity, temperature, and time simultaneously, providing a one-stop solution for comprehensive monitoring of electrical systems.

2. Bidirectional Current and Power Display: The device supports bidirectional current indication and percentage power display based on manually set capacity. This makes it easier to monitor power flow direction and total battery capacity percentage, enhancing energy management.

 <
