Specifications:

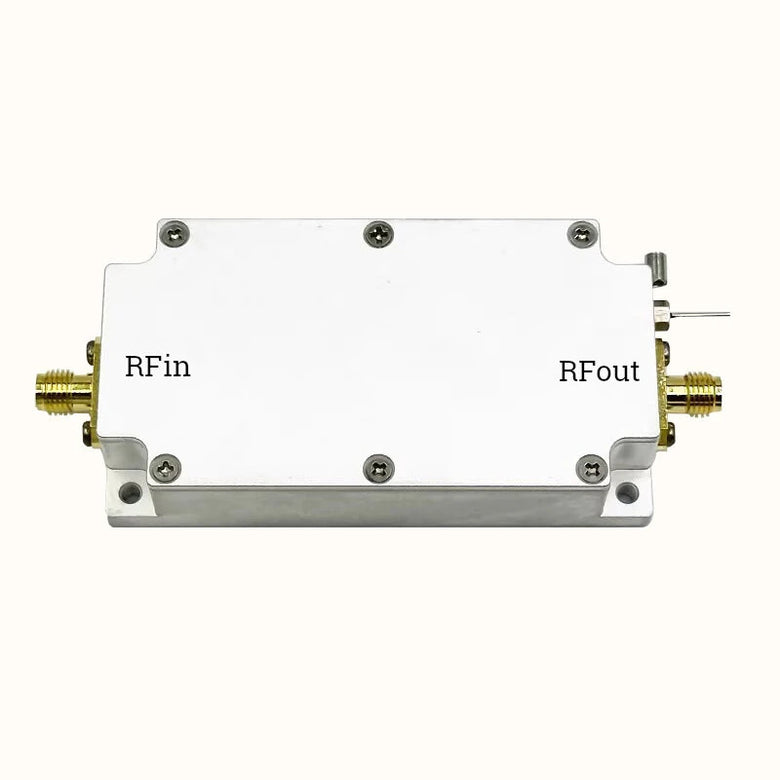

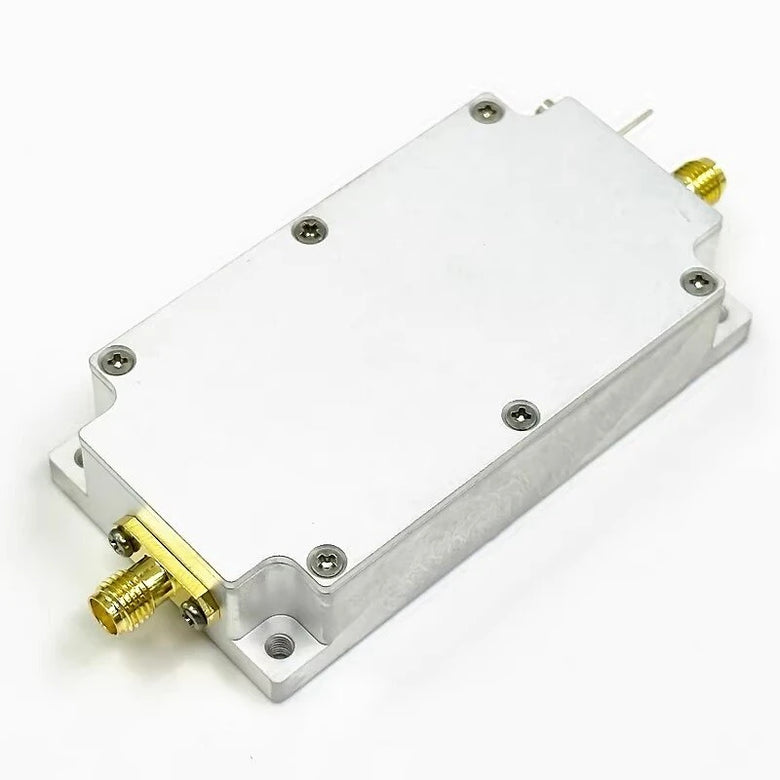

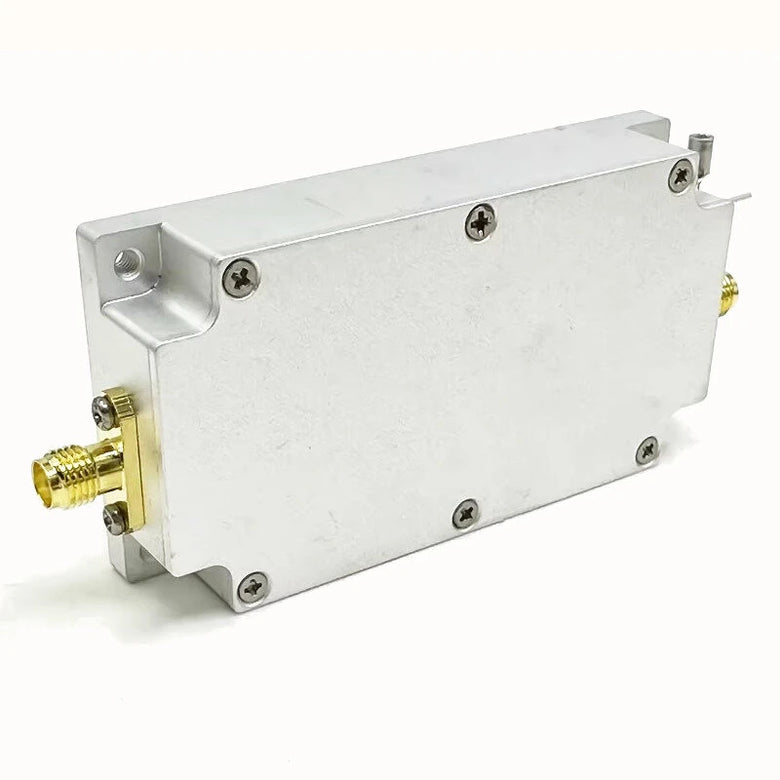

Model: RF Power Amplifier

Working Frequency: 2.4-2.5GHz (2.45GHz)

Output Power: 10W (40dBm@28V, RFin=6dBm (4mW))

Working Voltage: 24-28V (26V recommended)

Working Current: 1.7A (depending on the supply voltage)

System Impedance: 50 ohms

Dimensions: 76x40x16.5mm (without joint)

Connector Type: SMA female head (outer screw inner hole)

Heat Dissipation: External auxiliary heat dissipation is required

Note: After receiving the product, you need to connect the load first and then power it on. If you power it on directly, it will burn out and cannot be used.

Features:

1.Wide Frequency Range:

Operating between 2.4GHz and 2.5GHz, this RF power amplifier is highly suitable for a variety of wireless communication applications. The centered frequency of 2.45GHz ensures optimal performance for common wireless technologies such as Wi-Fi and Bluetooth.

2.High Output Power:

With a robust output power of 10W (40dBm at 28V), this amplifier provides strong signal strength and extensive coverage. This high power output is essential for maintaining reliable communication over larger distances and through various environmental conditions.

3.Variable Working Voltage:

The amplifier operates within a voltage range of 24-28V, with a recommended 26V for optimal
