Specifications:

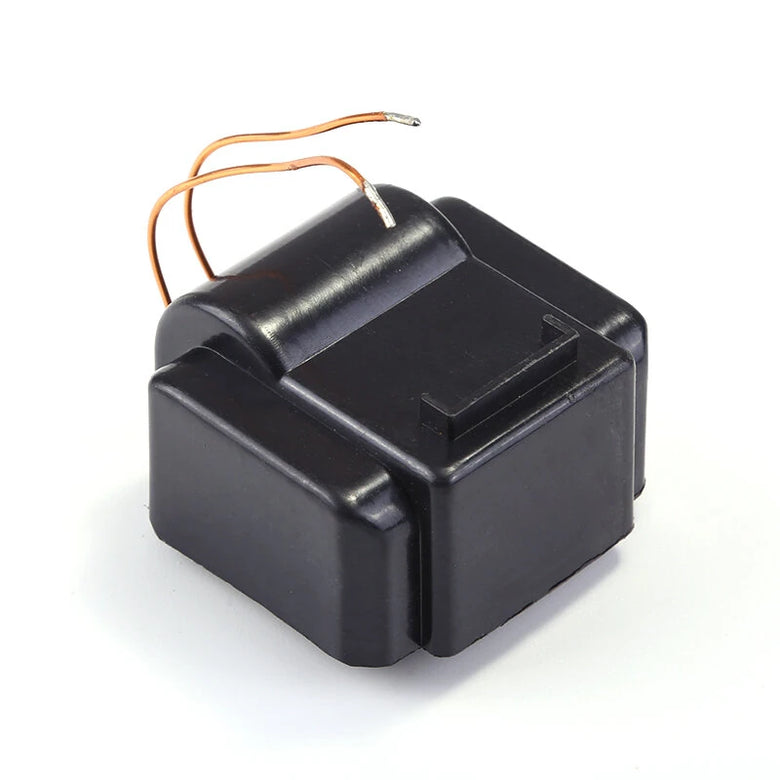

Product Function: High-voltage step-up transformer
Max Voltage Resistance: 30KV (recommended usage under 20KV)
Turns Ratio: 5:900
Frequency Range: 23KHz–130KHz
Primary Wire Diameter: 1mm
Secondary Wire Diameter: 0.16mm
Resistance: 43Ω
Continuous Power: 100W
Peak Power: 200W
Encapsulation Type: Epoxy resin hard coating
Product Dimensions: 45.5 x 48mm
Features:
1. High-output voltage: Delivers stable high voltage up to 20KV, ideal for applications such as ignition systems, ozone generation, air purification, and high-energy electric fields.
2. Energy-efficient design: Adopts advanced high-frequency transformer technology for efficient power conversion, minimizing energy waste while optimizing performance in compact spaces.
3. Enhanced structural integrity: Built with premium insulation materials and carefully constructed to ensure reliable operation in high-voltage environments, offering longevity with minimal maintenance.
4. Purification capability: Designed for the efficient production of ozone and negative ions to reduce contaminants, eliminate odors, and improve indoor air quality.
5. Diverse applications: Suitable for a variety of systems, including ozone generators, exhaust purification devices, automotive ignition upgrades, and other high-voltage-dependent systems.
Package Included:
1 x High-voltage Step-up Transformer
Instructions for Use:
This high-voltage transformer must be used with a driver board and cannot be directly powered! It is compatible with 12V~24V ZVS driver boards. Please configure the appropriate driver circuit according to your actual needs.
