Specifications:

Multimeter Specification (HDS160)

- DC Voltage (V): 60.000mV / 600.00mV / 6.0000V / 60.000V / 600.00V / 1000.0V, Optimal Accuracy: ± (0.05%+5 dig)

- AC Voltage (V): 600.00mV / 6.0000V / 60.0000V / 600.00V / 750.00V, Optimal Accuracy: ± (0.1%+30dig)

- DC Current (A): 600.00uA / 6000.0uA / 60.000mA / 600.00mA / 6.000A / 10.00A, Optimal Accuracy: ± (0.15%+10dig)

- AC Current (A): 600.00uA / 6000.0uA / 60.0000mA / 600.00mA / 6.0000A / 10.00A, Optimal Accuracy: ± (0.5%+20dig)

- Resistance (Ω): 600.0Ω / 6.0000kΩ / 60.000kΩ / 600.0kΩ / 6.000MΩ / 60.000MΩ, Optimal Accuracy: ± (0.15%+10dig)

- Capacitance (F): 6.000nF / 60.000nF / 600.00nF / 6.0000µF / 60.00µF / 600.0µF / 6.000mF / 60.00mF, Optimal Accuracy: ± (2.0%+20dig)

- Frequency (Hz): 60.000Hz / 600.00Hz / 6.0000kHz / 60.00kHz / 600.0kHz / 6.000MHz / 60.00MHz, Optimal Accuracy: ± (0.2%+10dig)

- Duty Cycle: 0.1%~99.9% (typical value: Vrms=1V, f=100Hz), Optimal Accuracy: ± (1.2%+3dig)

- Diode: 3.0000V, Optimal Accuracy: ± (2.5%+10dig)

- On-Off: 1000.0Ω

- Display: 60000

Features:

1. High Precision Multimeter:

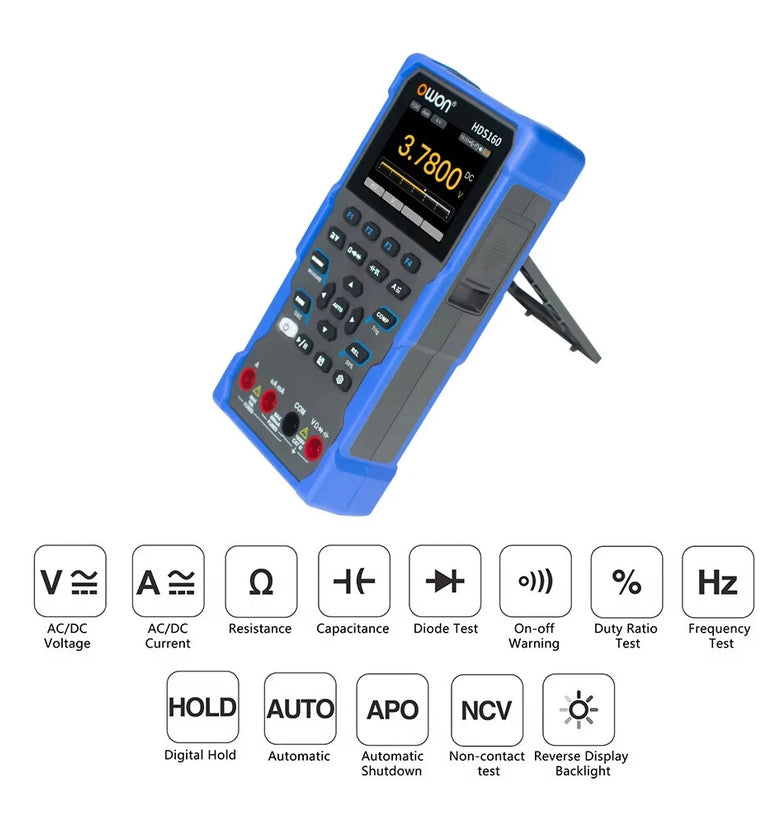

   The HDS160 offers an impressive 60,000 counts for a highly detailed measurement. It covers a wide range of parameters including DC and AC voltage, current, resistance, capacitance, and frequency, ensuring comprehensive electrical analysis.

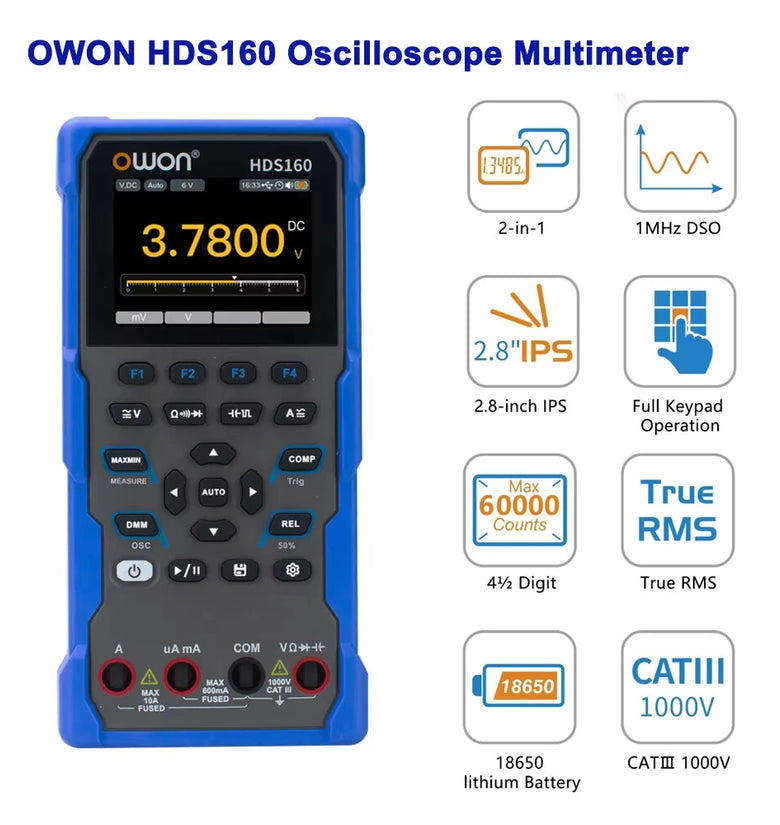

2. Integrated Oscilloscope Function:

   Featuring
