1. Input Voltage: AC85V-AC220V2. RF Frequency: 315MHZ3. RF Working mode:Super heterodyne receiver4. Receiver Sensitivity: -107dBm5. Remote Control Distance: >100 meter(In open environment)6. Decoding Way: MCU Software decoding7. Can store the number of remote control:328. Support remote control type: Fixed code, learning code9. Channel: 1CH10 .Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched)11. Wiring Method:Fixed wiring terminal12. Rated load:10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC13. Dimension:5.4cm*3.1cm*1.4cm
Working/output method:
1. Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.2. Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.3. Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
Clear & Learn Code:
1. Clear function - After pressing the 'KEY' button 8 times, the LED will go off and release all the remote control data in the memory. When the LED flashes for 5 times, it indicates that the clear function is completed.
2. learning function - click the learning button 'KEY', LED indicator light indicates that the microprocessor to enter the learning state of the code, press the matching wireless remote control button, LED light blinks 3 times then turn off means Code success.
3. LED flashes to determine the selected function. * Flashing 1 time - Jogging function * Flashing 2 times - Self-locking function * Blink 3 times - Interlock function
Note:
When using for the first time, make sure to clear the factory code and clear the remote control code.
Package included:

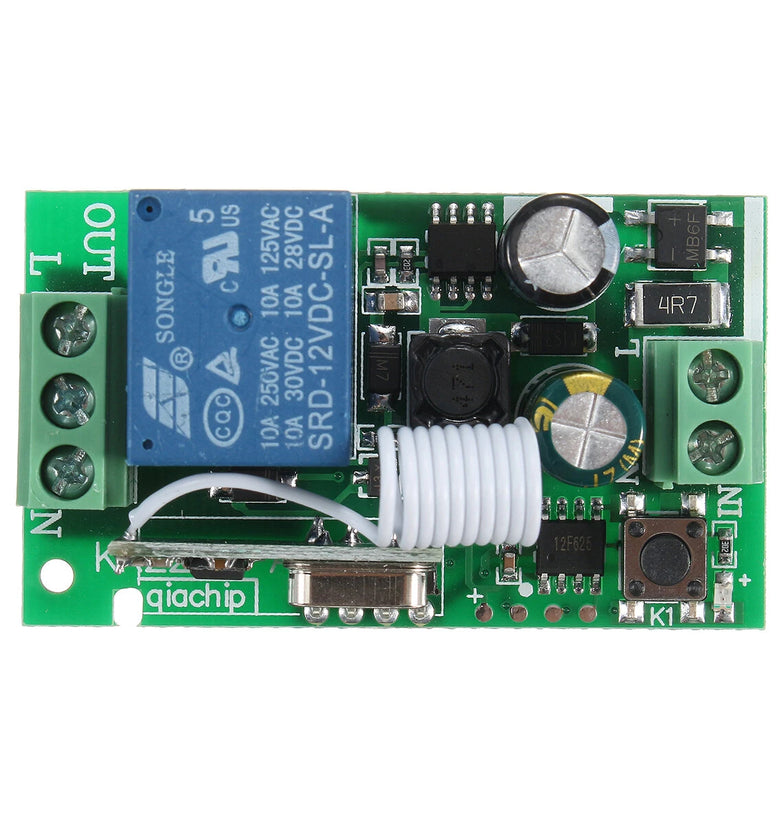

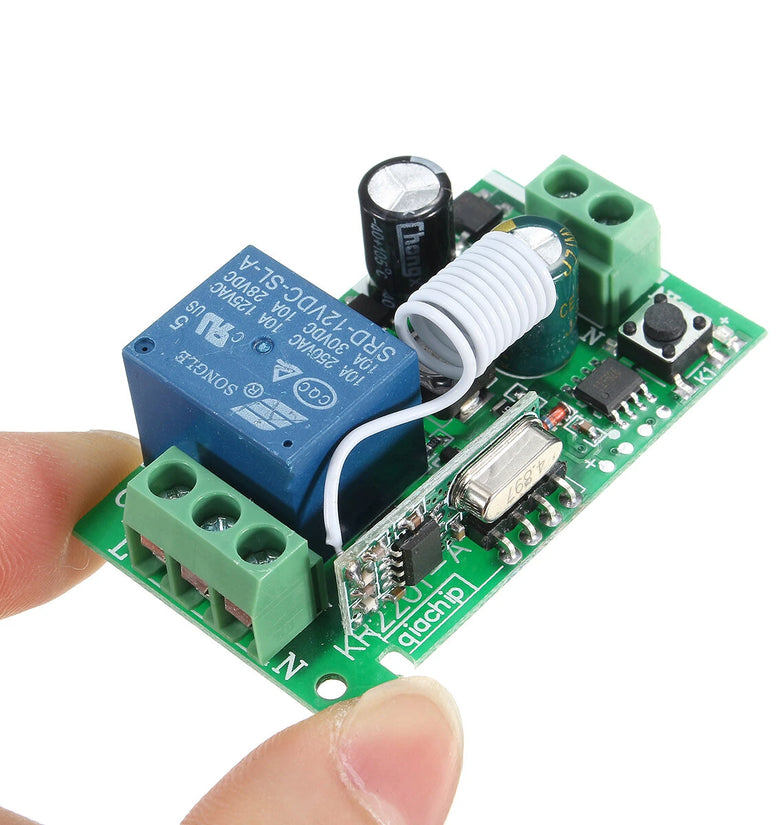

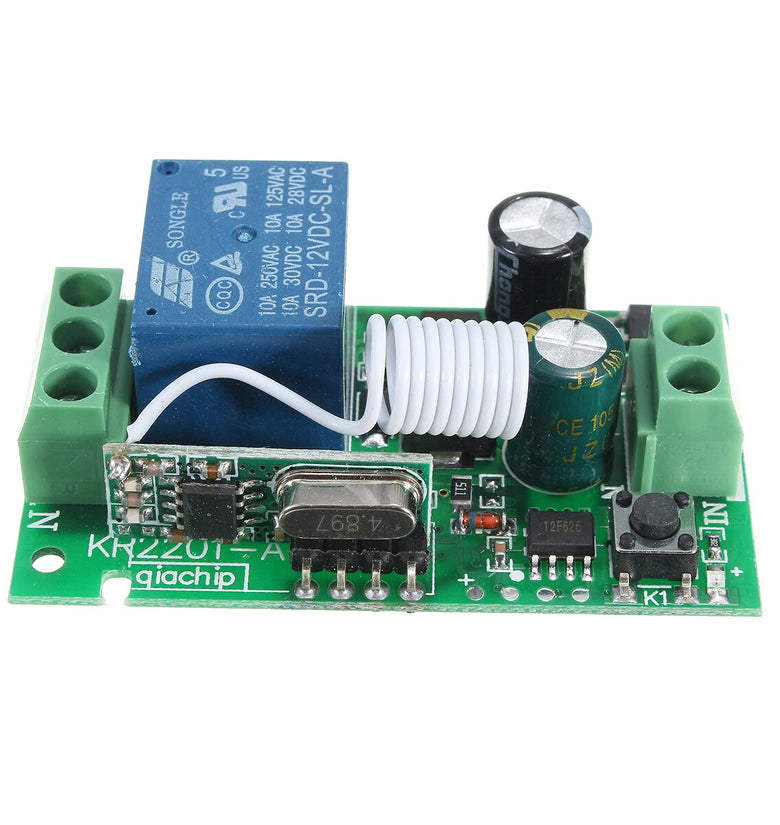

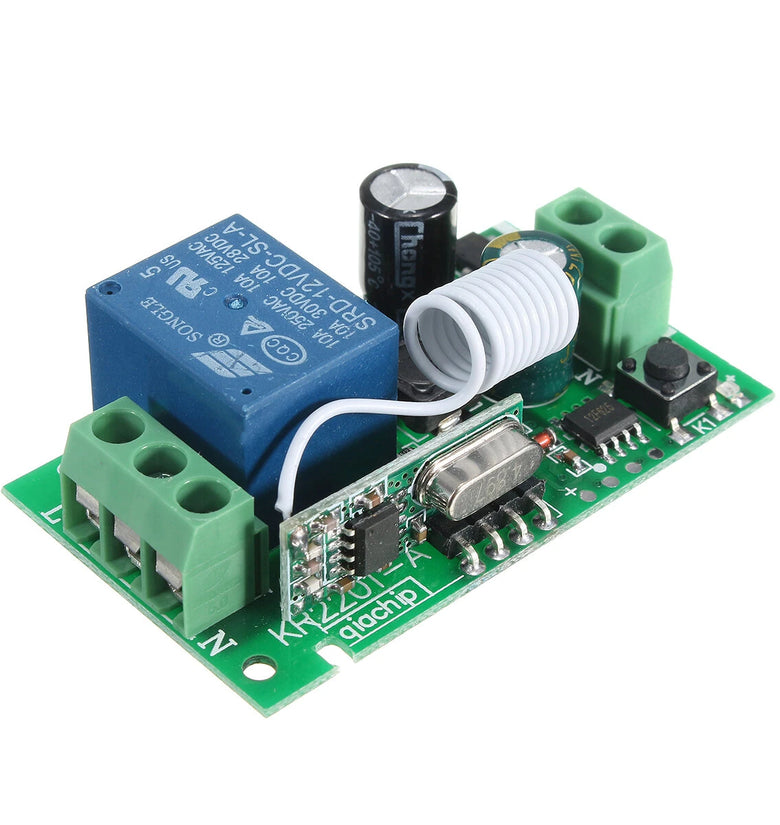

2 x 220V 1 Channel Wireless Relay Switch
