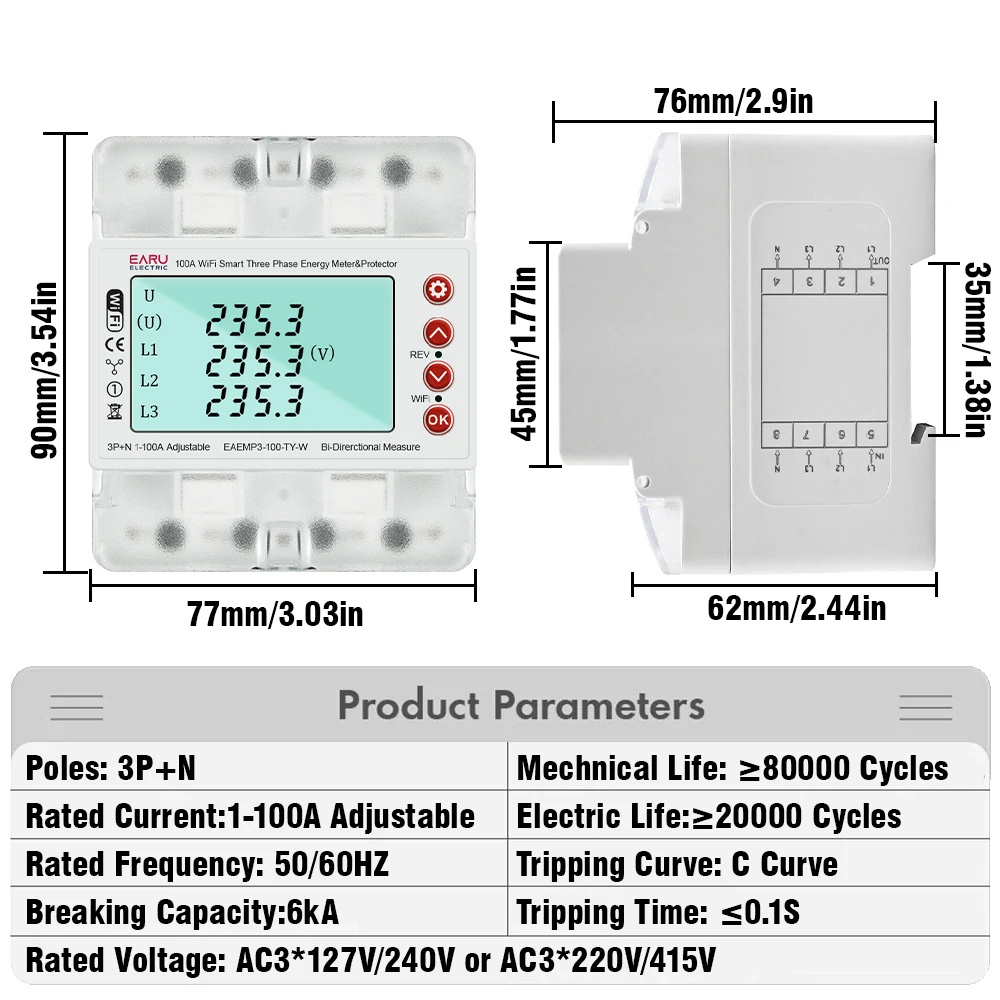

Specifications:

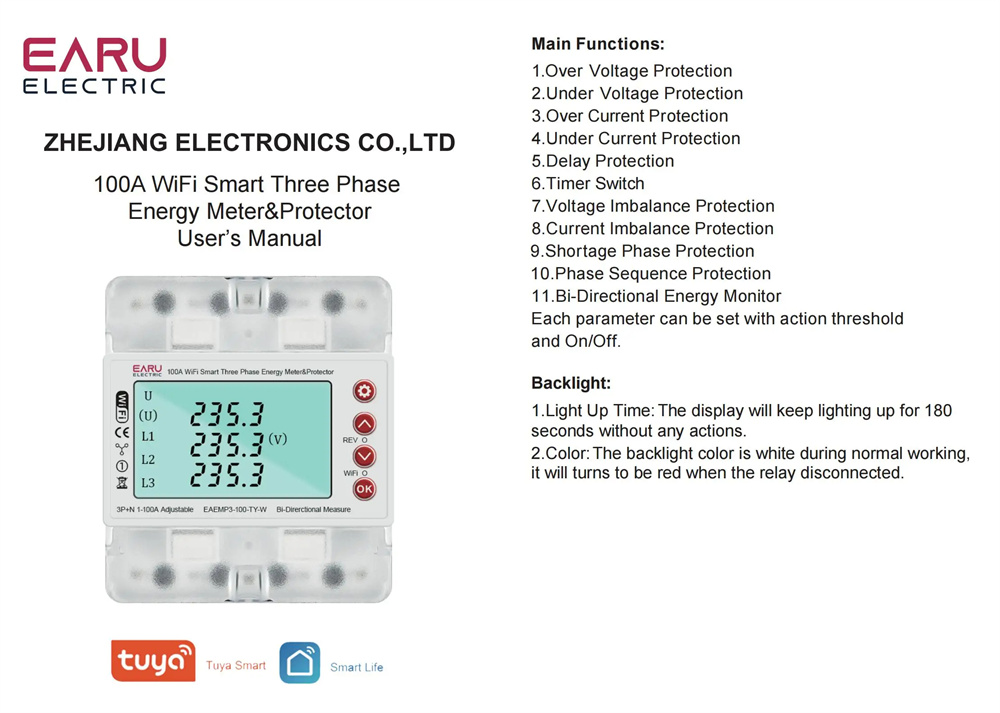

Product Name: 3 Phase Energy Power Meter

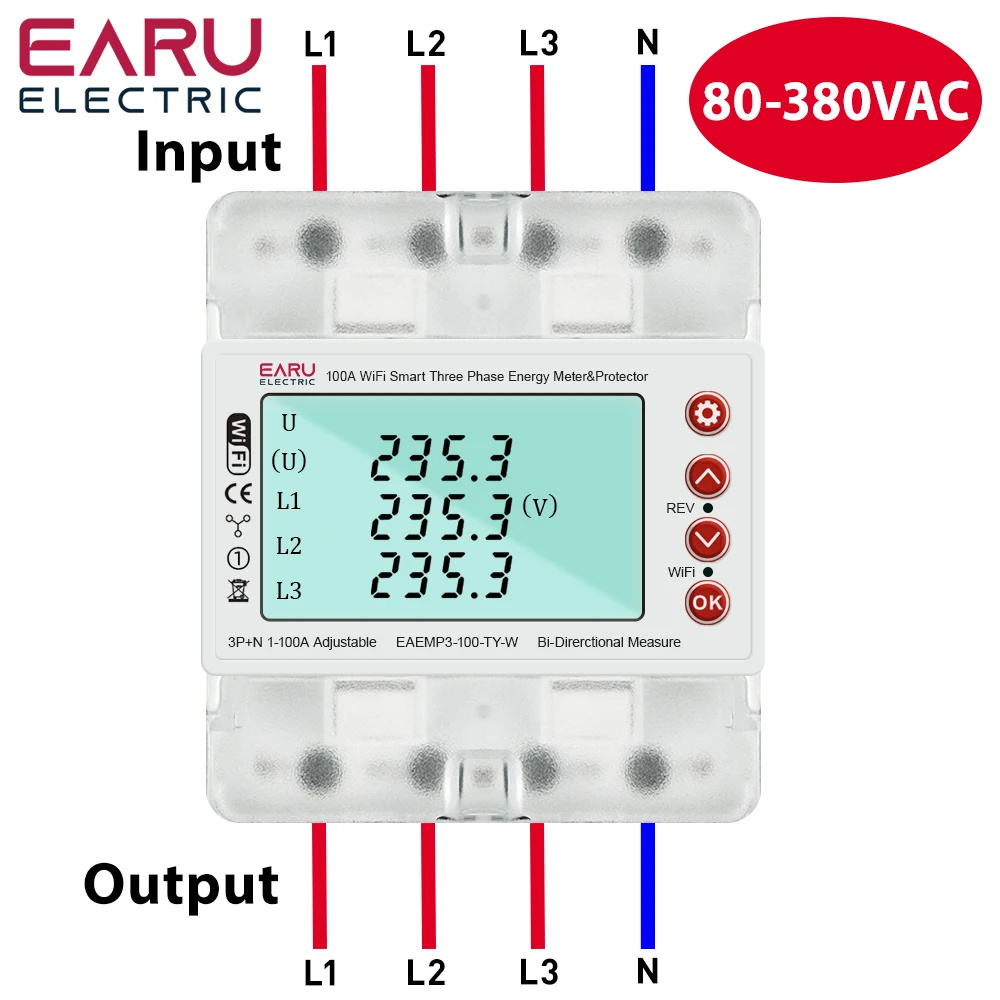

Poles: 3P+N
Mechnical Life: ≥80000 Cycles
Rated Current: 1-100A Adjustable
Electric Life: ≥20000 Cycles
Rated Frequency: 50/60HZ
Tripping Curve: C Curve
Breaking Capacity: 6kA
Tripping Time: ≤0.1S
Rated Voltage: AC3*127V/240V or AC3*220V/415V

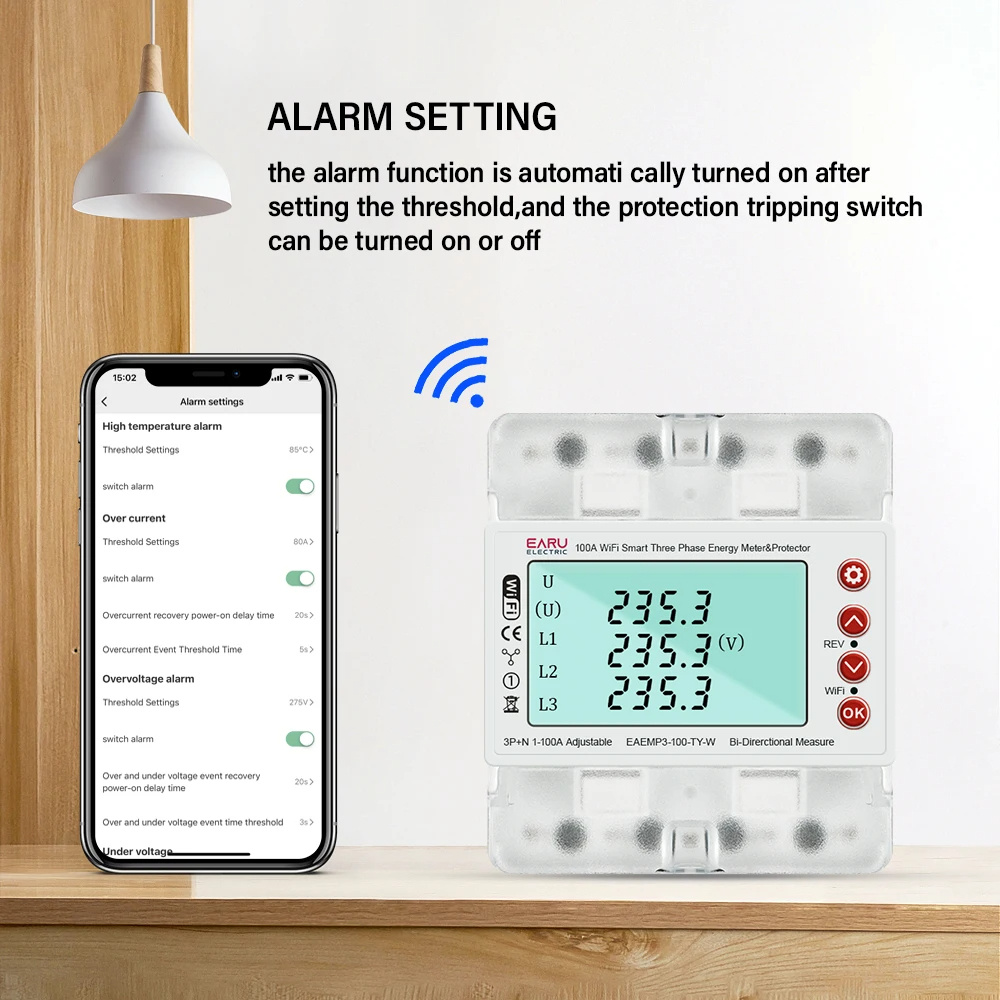

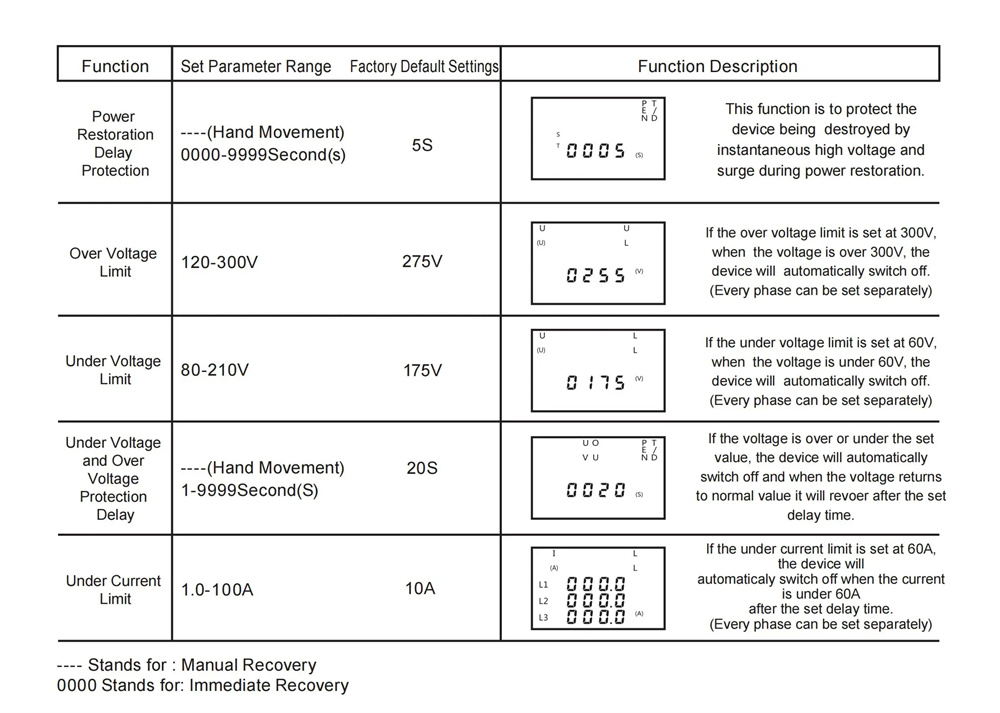

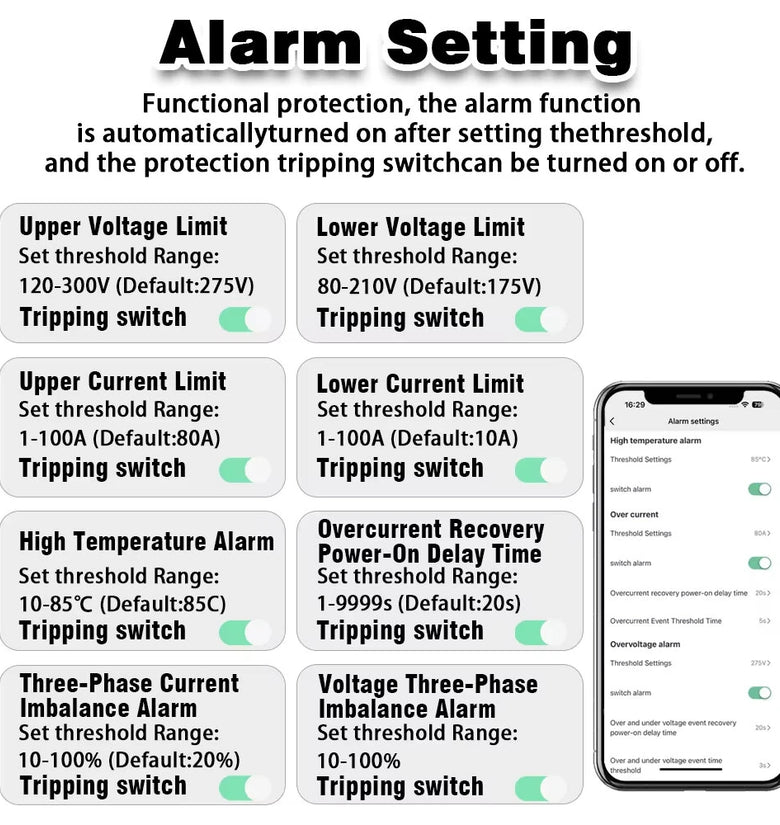

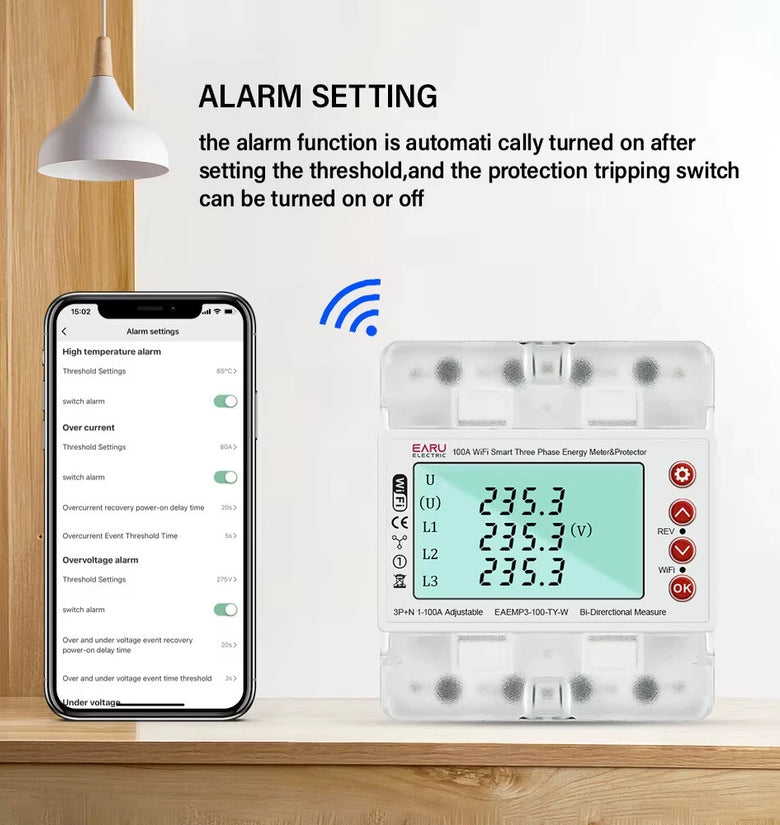

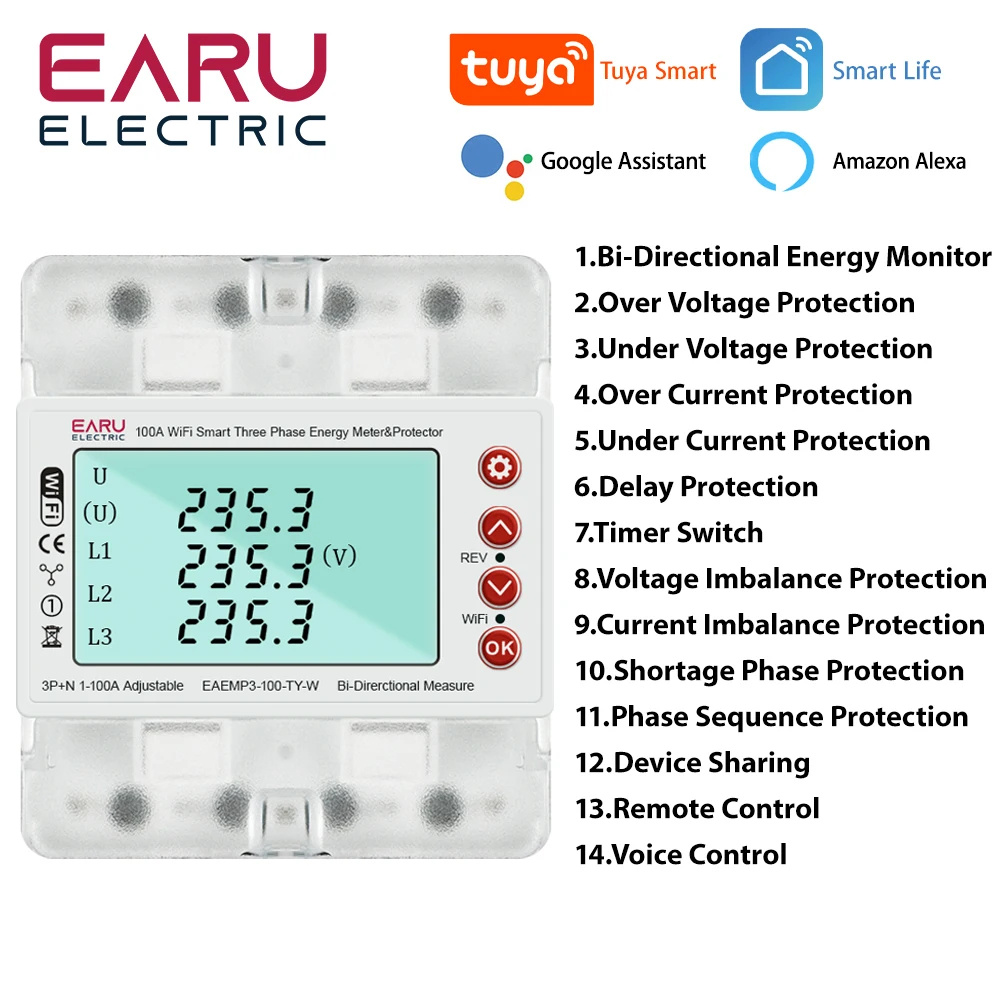

Function:

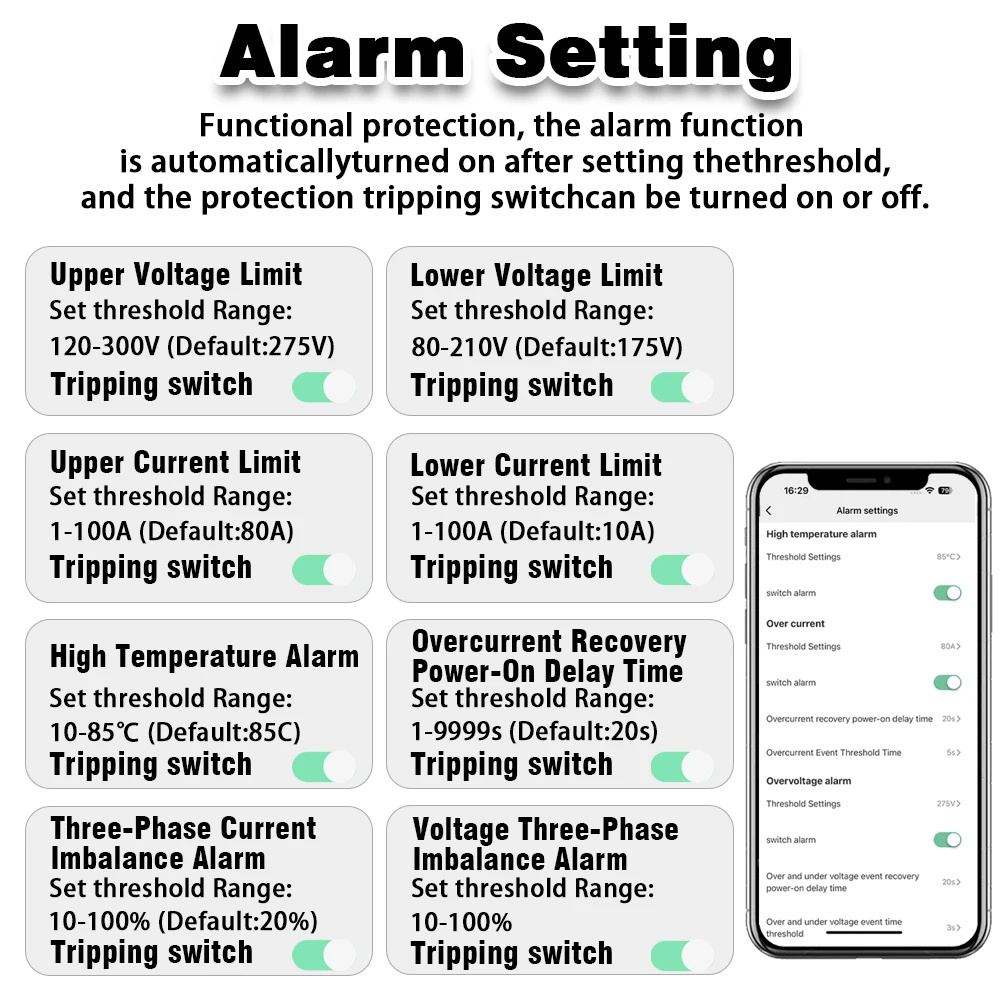

1.Upper Voltage Limit:120-300V (Adjustable) (Default:275V)
2.Lower Voltage Limit:80-210V (Adjustable) (Default:175V)
3.Upper Current Limit:1-100A (Adjustable) (Default:80A)
4.Lower Current Limit:1-100A (Adjustable) (Default:10A)
5.High Temperature Alarm:10-85℃ (Adjustable) (Default:85℃)
6.Overcurrent Recovery Power-On Delay Time:1-9999s (Adjustable) (Default:20s)
7.Overcurrent Event Threshold Time:1-999s (Adjustable) (Default:5s)
8.Over and Under Voltage Event Recovery Power-On Delay Time:1-9999s (Adjustable) (Default:20s)
9.Over and Under Voltage Event Time Threshold:1-9999s (Adjustable) (Default:3s)
10.Three-Phase Current Imbalance Alarm:10-100% (Adjustable) (Default:20%)

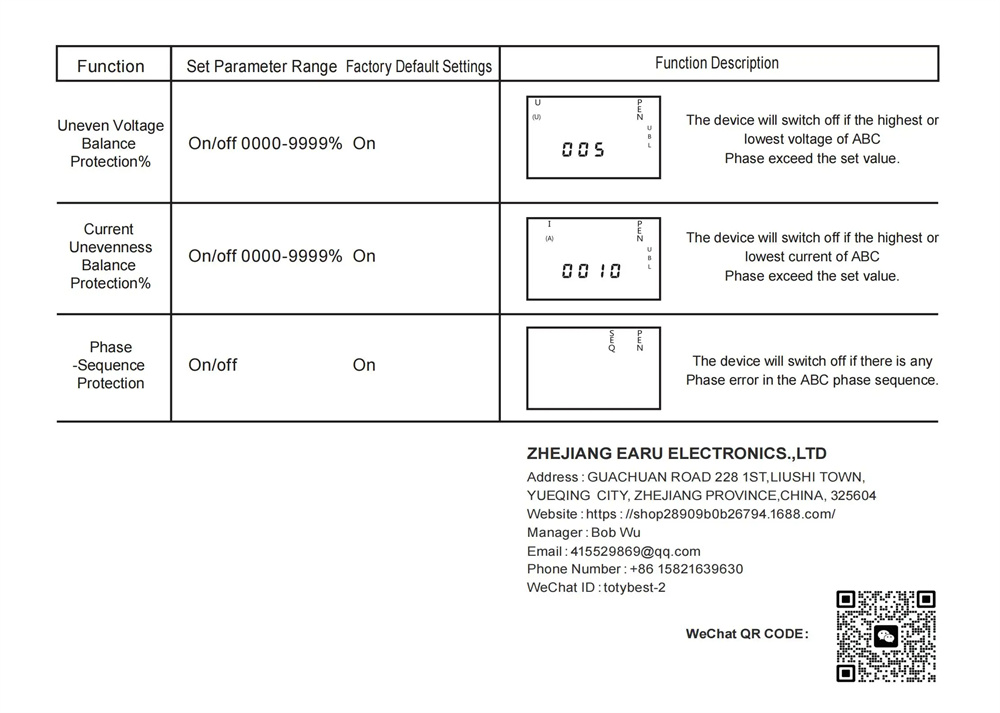

11.Voltage Three-Phase Imbalance Alarm

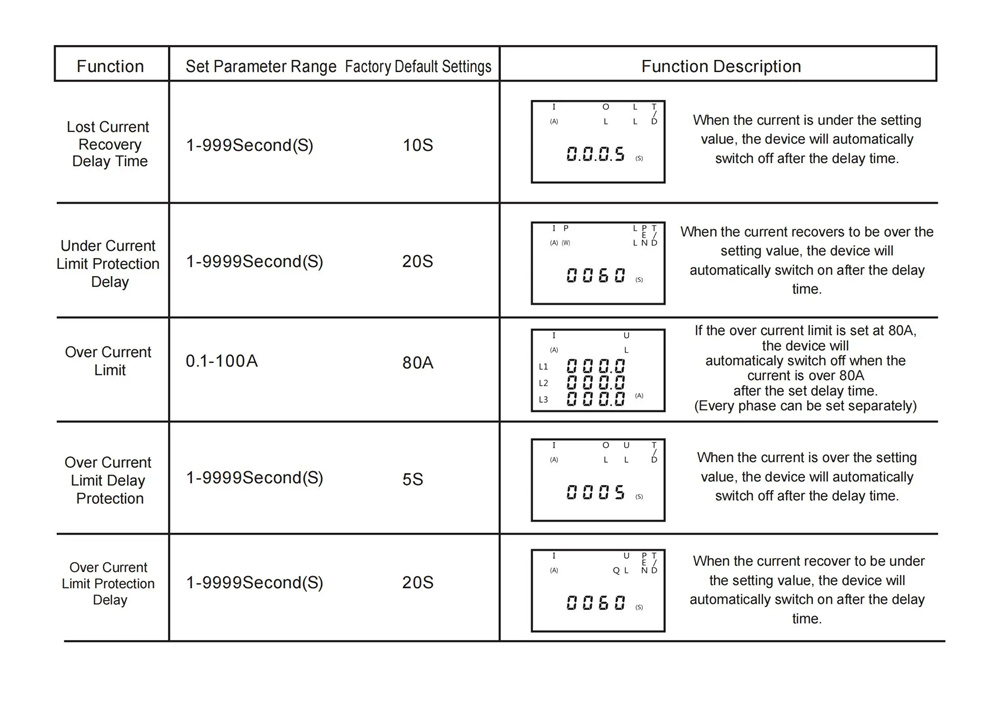

12.Lost Current Recovery Delay Time
13.Time Threshold of Lost Flow Event

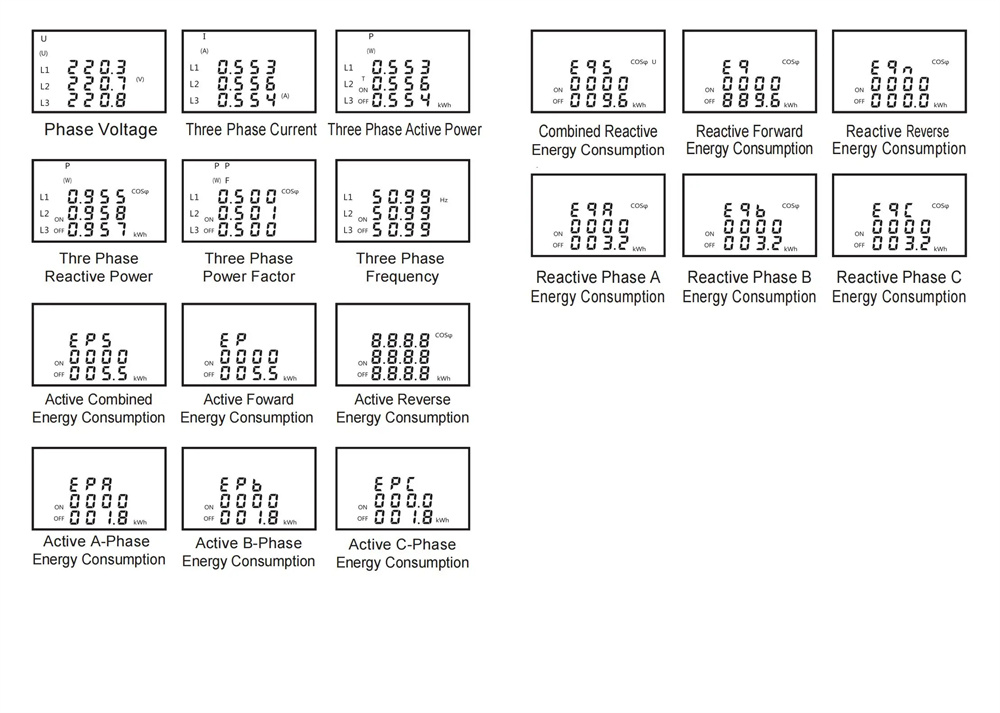

14.Power Display Range：0-9999999.9kWh(Adjustable)
15.Reclosing Allowed Times:1-30 (Adjustable) (Default:1)
16.Reclose Recover Seconds:1-99 (Adjustable) (Default:1)
17.Power-On Delay Power-On-Time:1-9999 (Adjustable) (Default:5)

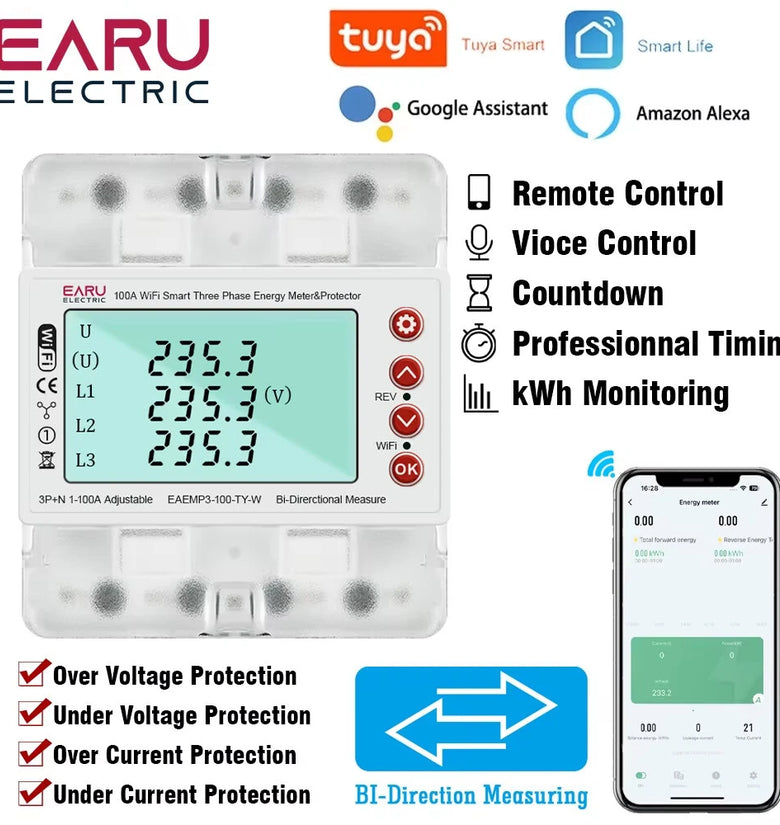

18.Device Sharing

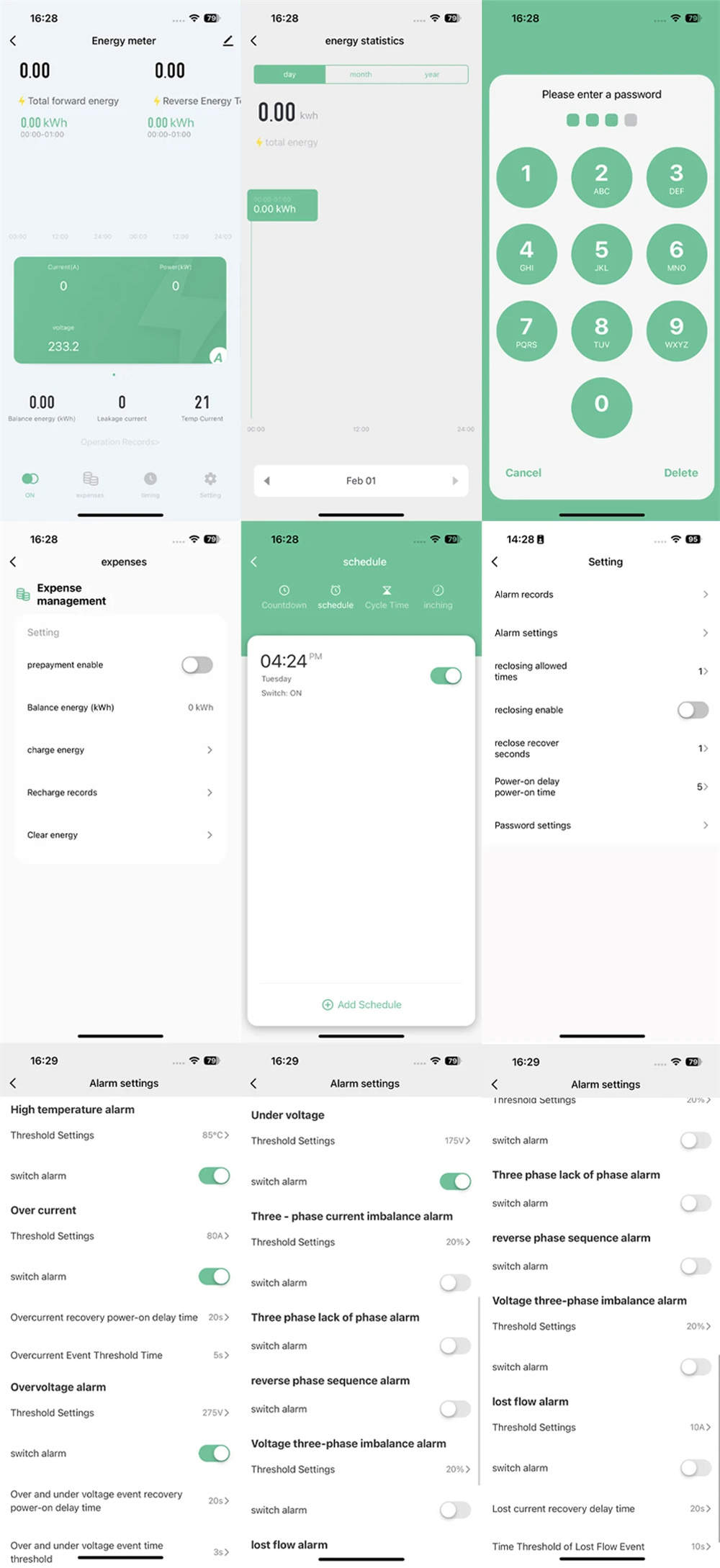

19.Remote Control
20.Voice Control

Package Include:
1x 3 Phase Energy Power Meter
