Specifications:

Input voltage: DC 3.3 - 13V

Output voltage: DC ±15(Deviation is ±4%)

Maximum input current: 1.8A

Maximum output current : +Vo is 600mA,-Vo is 120mA

Quiescent current: 3-4mA

DC DC Boost Converter Module working frequency 400kHz.

Operating temperature  : -40~+125℃

Storage temperature  : -65~+150 ℃

Pin  : 2.54mm

Size : 25 x 16.3 x 6.6mm

Features:

Internal Optimize Power MOSFET

High efficiency up to 90%

Built in Frequency Compensation

Built in Soft-Start Function

Built in Thermal Shutdown Function

Built in Current Limit Function

Note:

1. Due to the diode partial pressure, the voltage of -Vo is lower than +Vo.

2. In order to obtain a more stable voltage, it is recommended that the output is greater than 15mA.

3. -Vo cannot be used alone, or no voltage output.But you can just use +Vo .

Applications:

ADC/DAC/Operational Amplifier

RS232 RS485 RS422 Bus

Audio equipment

LCD power supply

Instrumentation equipment

MCU Board

Motor Power

Instrumentation multimeter

Wifi/Router/Ethernet devices

Attention:

1. Input voltage can not be greater than the maximum input .

2. Output power can not be greater than the maximum load for a long time.

3. Input power must be greater than the output power, because the power consumption of the module itself.

Package Included:

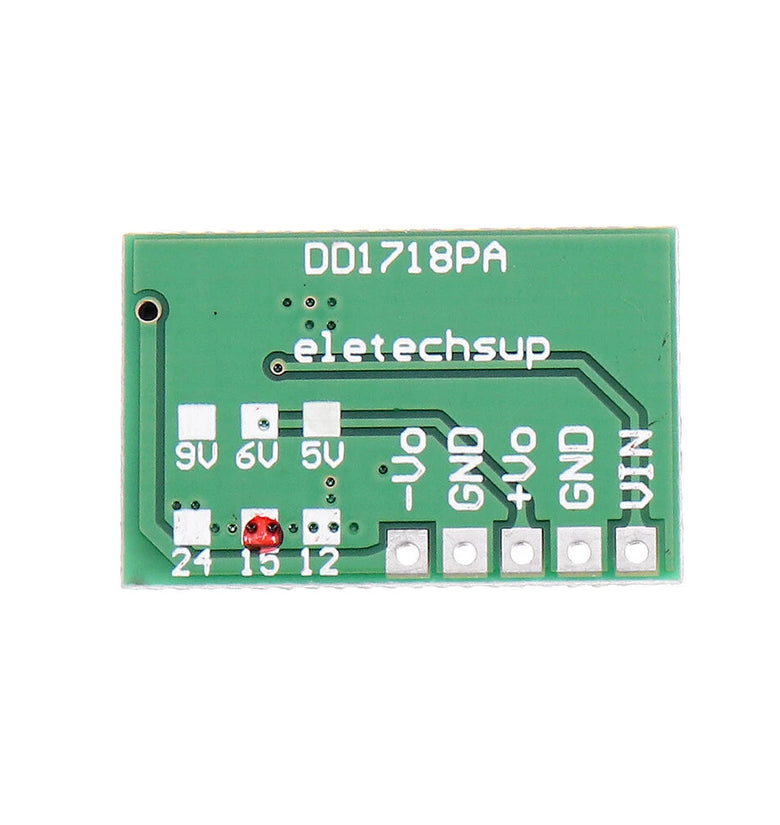

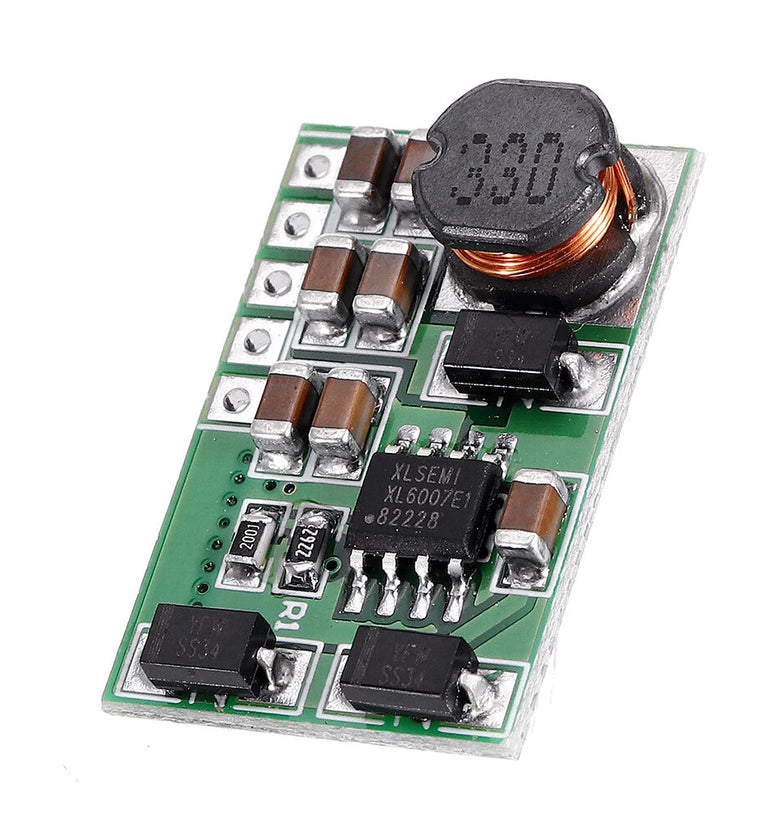

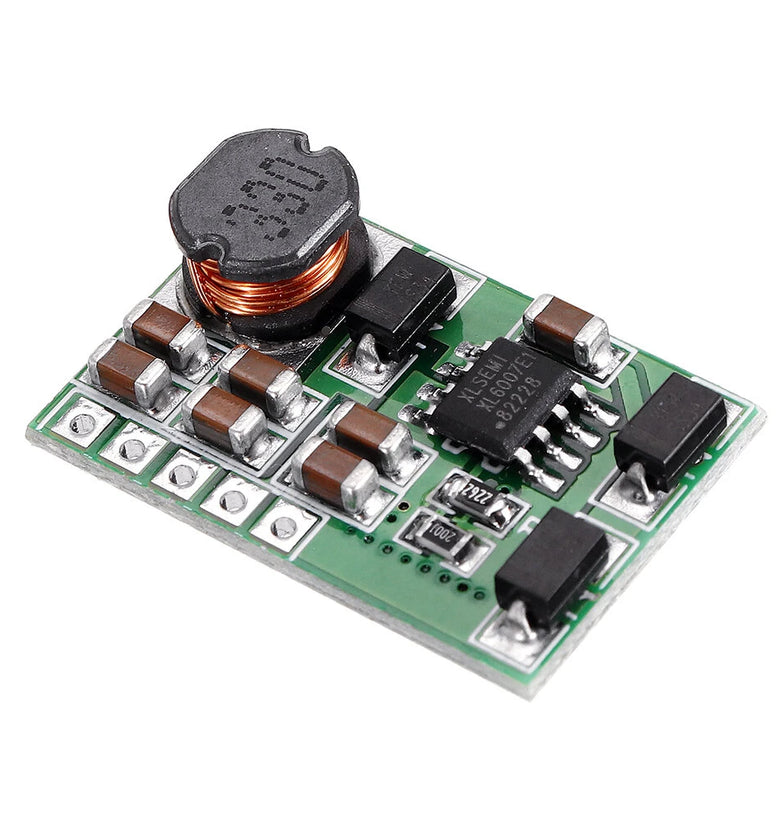

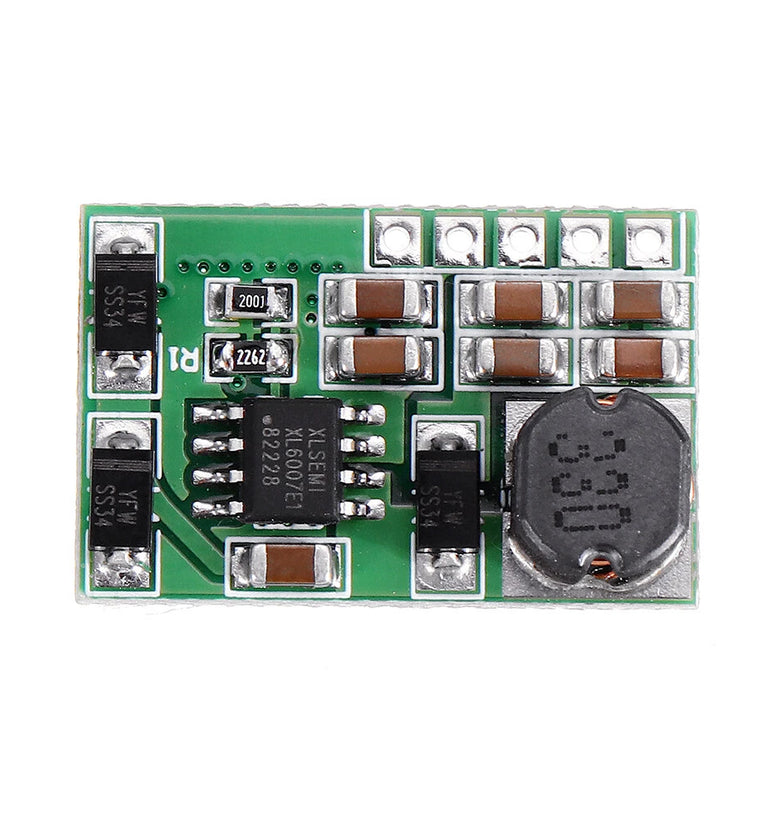

3 x DC 3.3-13V to DC ±15V DC Step Up Voltage Converter Board
