Description:

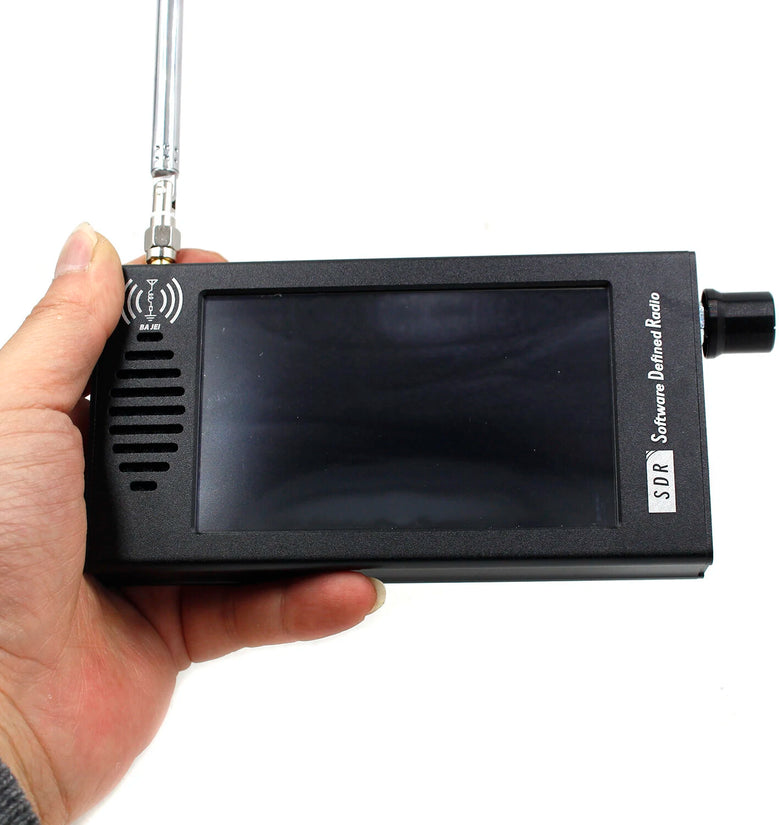

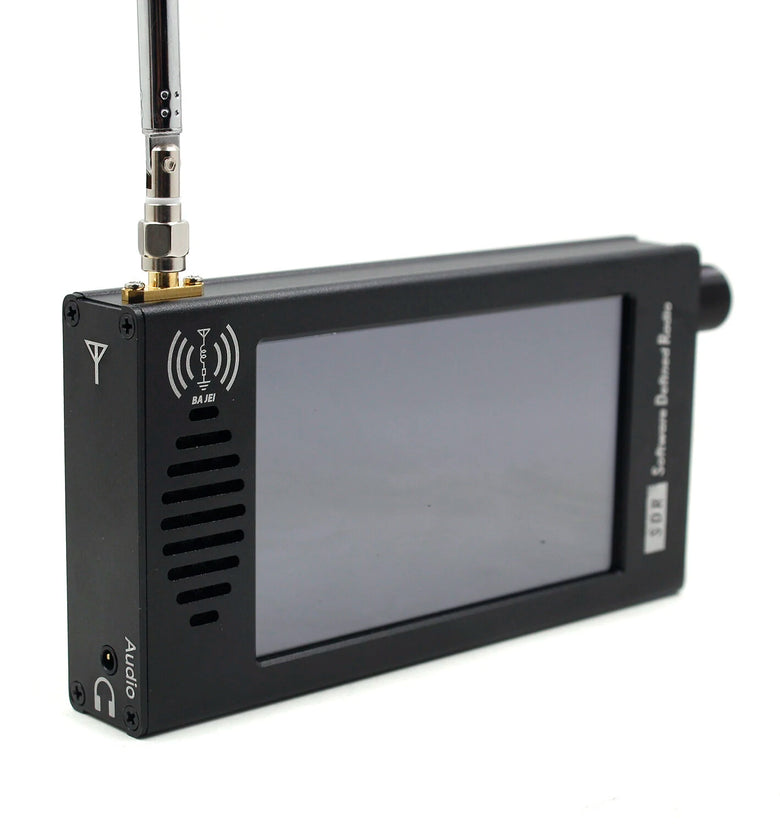

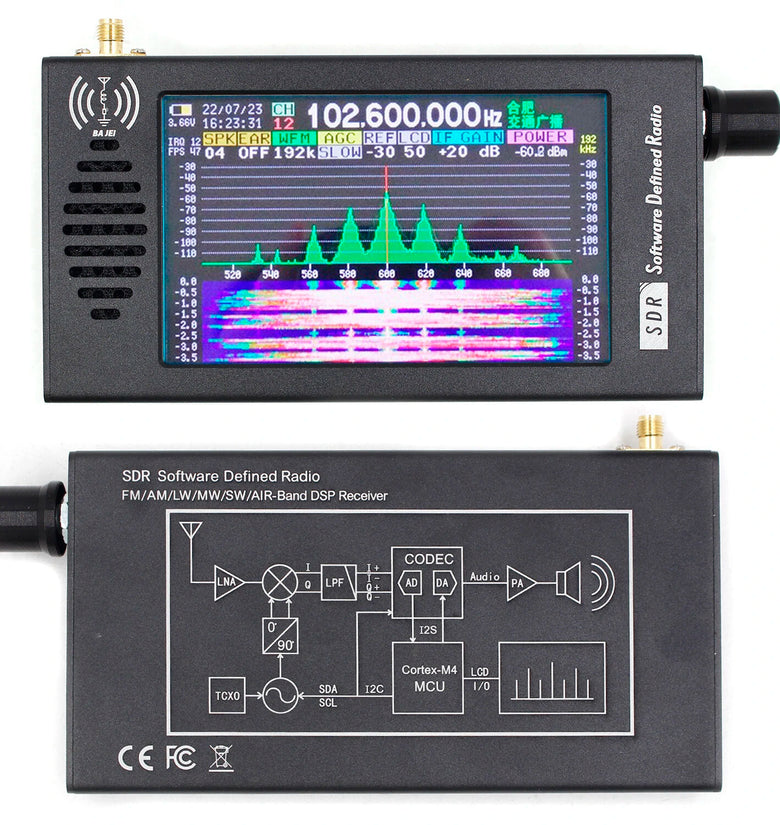

SDR 101 is a DSP digital demodulation radio based on SDR software-defined radio architecture. It has a 192kHz width spectrogram and waterfall display capabilities, and cooperates with 16bit sampling to realize a high dynamic receiver with CW, AM, SSB, FM demodulation functions. The whole machine adopts an all-aluminum alloy CNC shell, with a 4.3-inch 800x480 resolution high-brightness IPS LCD display, while maintaining a compact and compact body.

Immediately take it to the outdoors, enjoy the natural scenery and the fun of listening anytime, anywhere!

Tips ：Only the frequency input function can be touched. Other functions do not support touch screen function and can only be selected by pressing the knob.

>>Please click here to download the SDR 101 product manual<<

Basic parameters:

Display technology:： 4.3-inch IPS 800x480 resolution DC dimming bright LCD

Control method： resistive touch screen + rotary encoder

Frequency range： 100k – 149MHz

Working mode： CW, AM, SSB single sideband (LSB/USB), WFM, FM broadcast stereo (requires earphones)

Step frequency： 1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

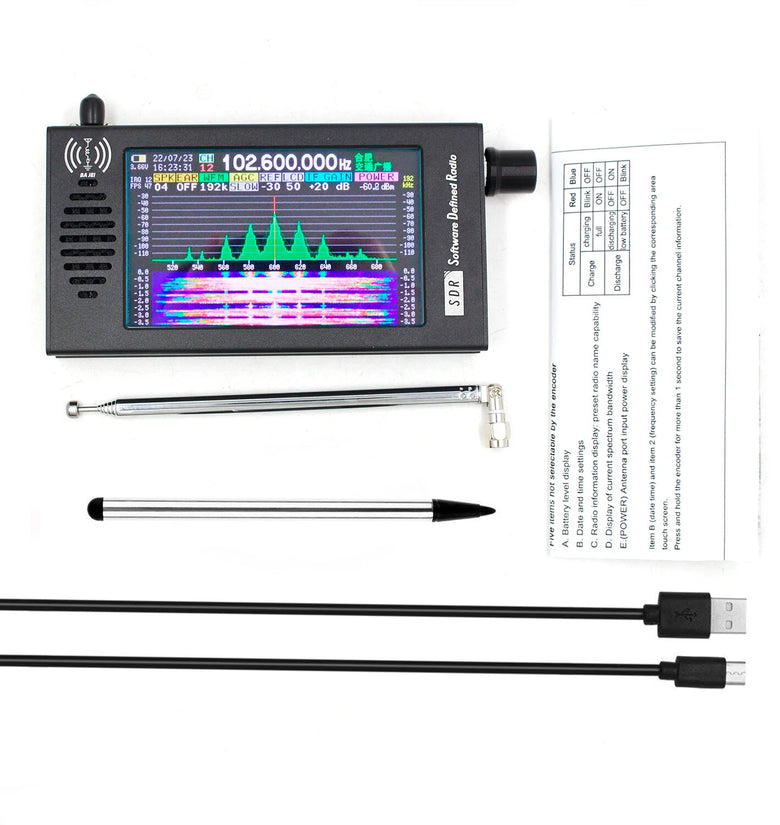

Spectral bandwidth： 192kHz, 128kHz, 64kHz, FFT real-time spectrum display

Antenna interface： BNC male, impedance 50Ω, maximum input power -20dBm

Reference crystal： TCXO 26MHz ±0.5ppm

Audio interface： support ordinary 3.5mm earphone or CTIA (American Standard) interface earphone

Speaker power： maximum 3W, 4Ω multimedia speaker speaker

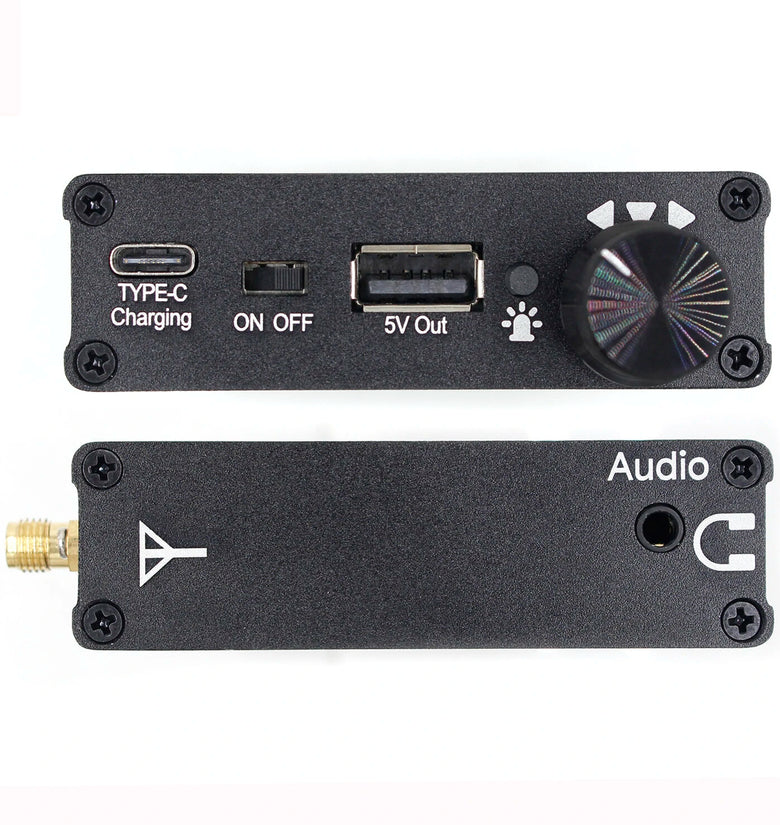

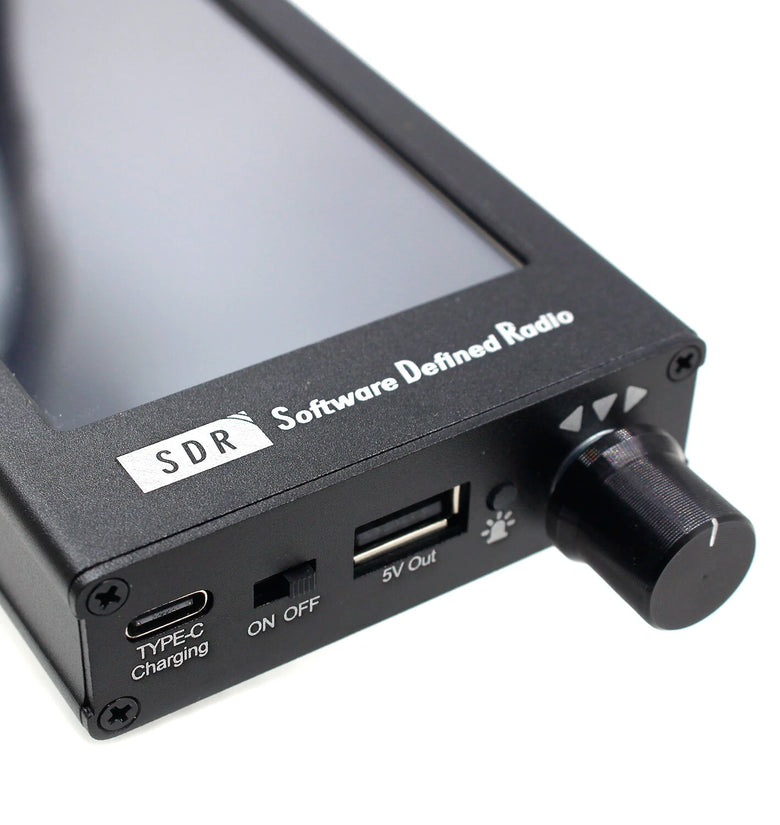

Charging port： USB Type-C, 5.0V/2A

Current consumption： about 250mA @ 5V

Battery capacity： 5000mAh/3.7V, 18.5Wh

Use time： About 10-12 hours, depending on the volume and brightness settings of the machine

Channel saving：
