Specifications:

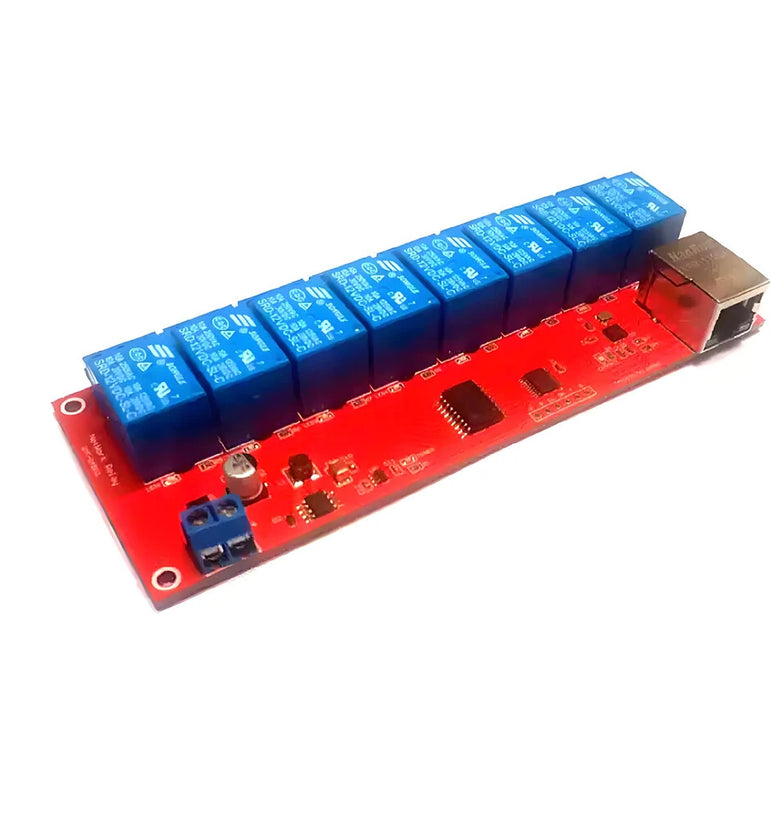

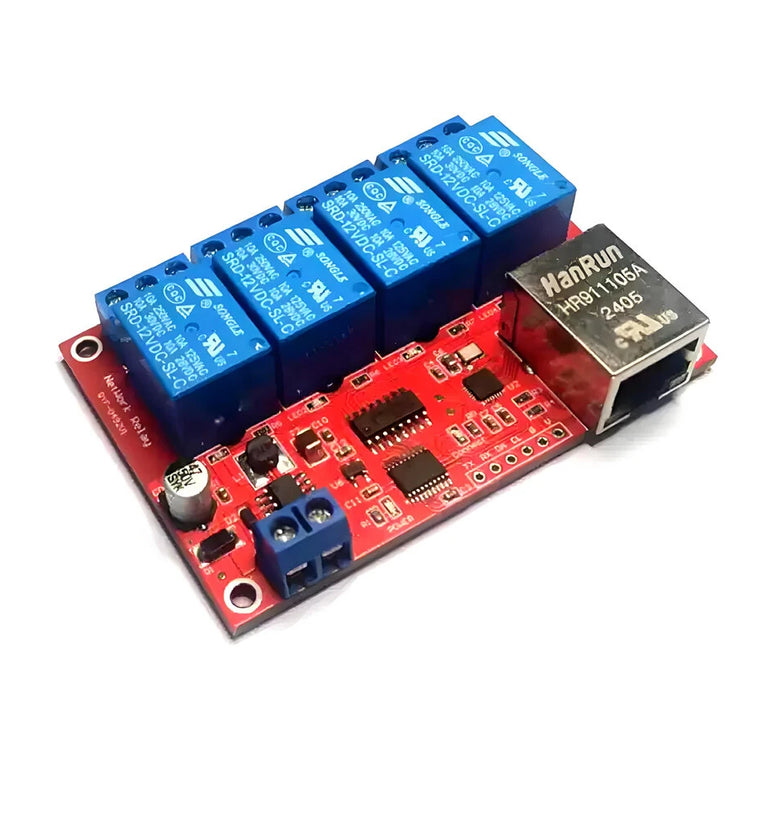

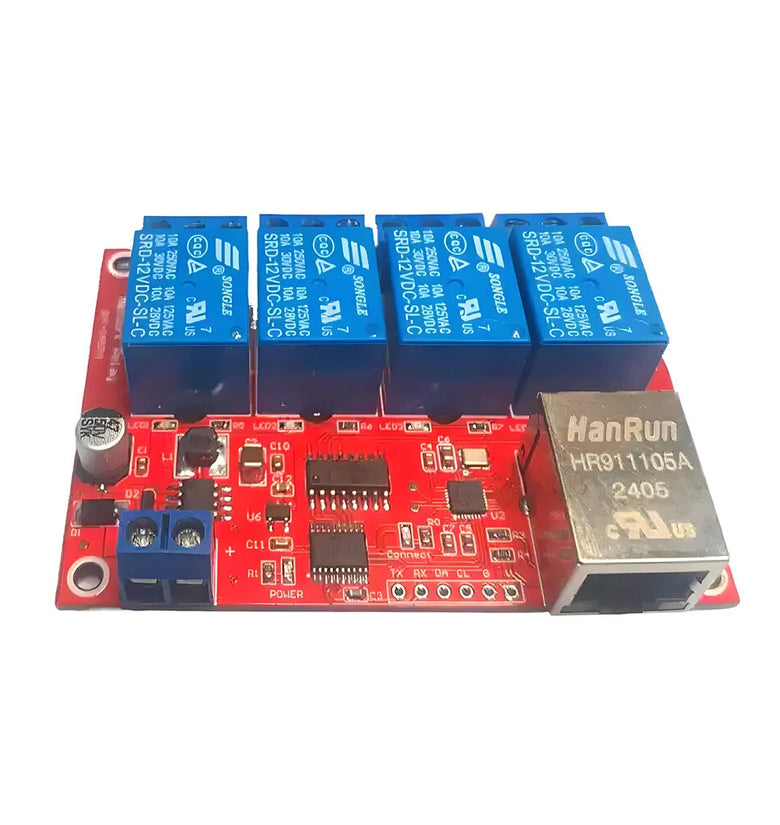

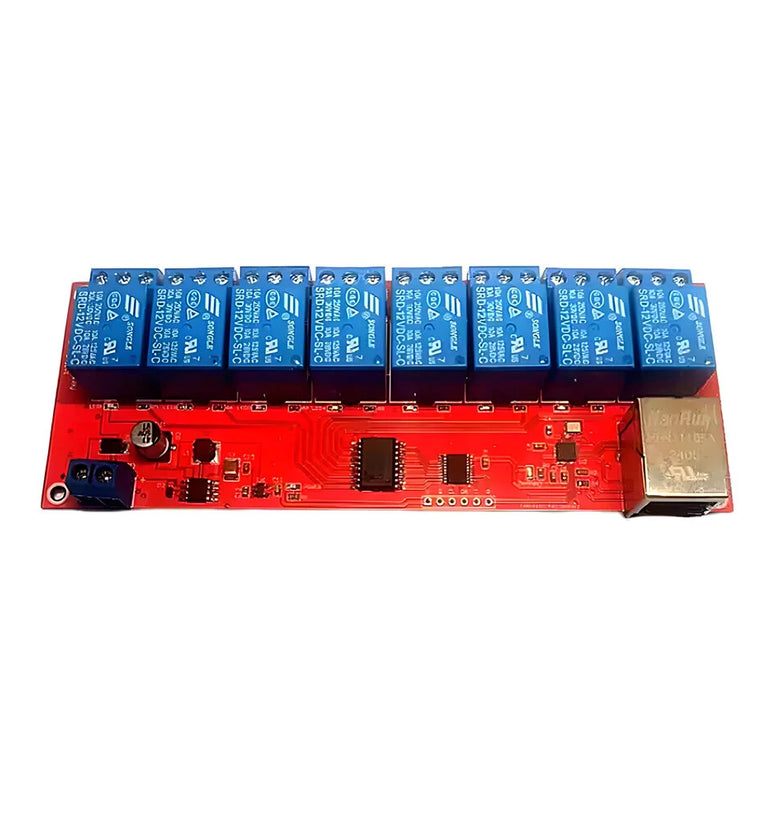

Product Type: TCPIP Network Relay Switch

Voltage Options: 5V/12V/24V (optional)

Styles: 4-channel, 8-channel (optional)

Max Working Current of Module: ≤250mA

Relay Contact Rating: AC: 250V 10A, DC: 30V 10A

Working Temperature: -45°C to 85°C

Network Speed: <10M

Features:

1. Advanced Microcontroller Integration

Our relay modules integrate a 32-bit MCU and a dedicated network chip, providing a streamlined hardware setup that ensures efficient operations and ease of use. This integration simplifies the control process and enhances overall functionality.

2. Simple Protocol Commands

The relay module utilizes straightforward command protocols, allowing users to easily execute remote controls. Configuration as a TCP SERVER or TCP Client is achieved with minimal effort, enhancing user convenience and operational simplicity.

3. Dual-Operation Modes

Supporting both TCP/IP communication protocols, the relay modules can be easily configured for versatile applications. This dual-mode capability allows for seamless integration into various network environments, providing flexible operational settings for different scenarios.

4. Flexible Voltage Options

Available with working voltages of 5V, 12V, and 24V, our re
