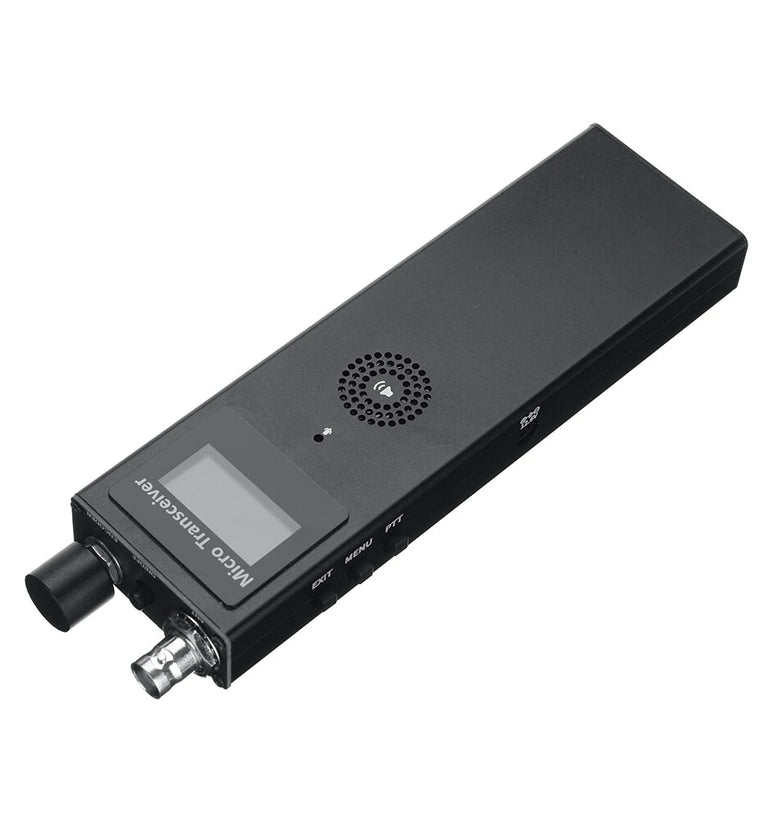

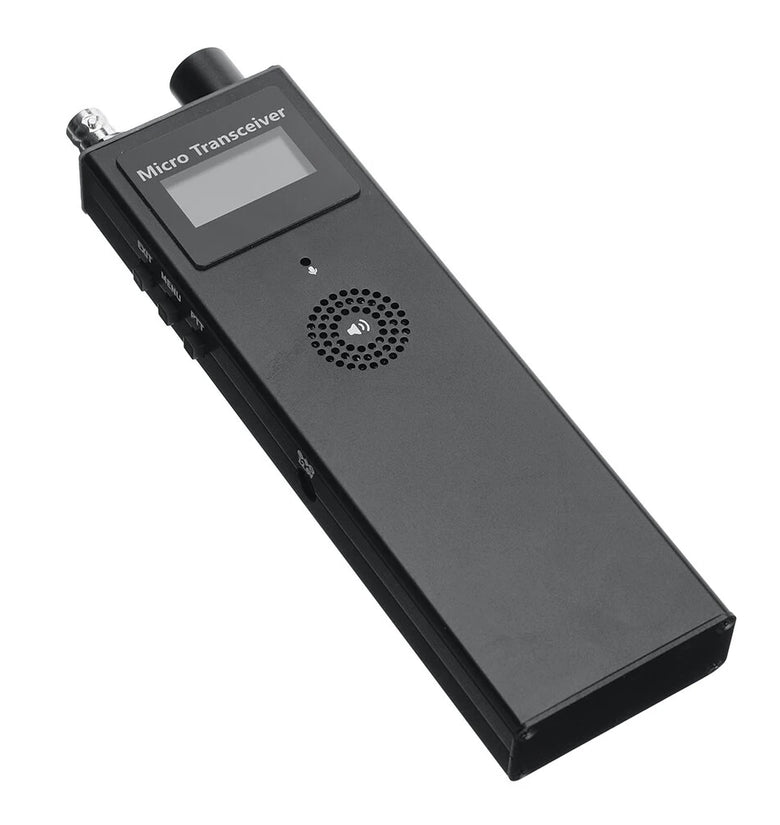

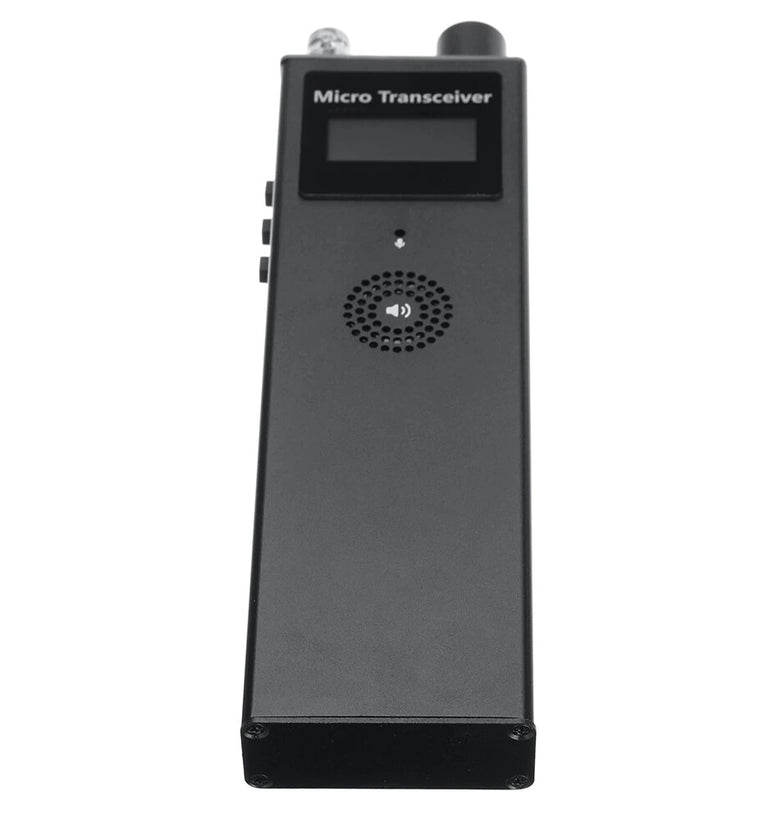

Introduction:This is a HF band QRP SSB / CW transceiver. It is very small and easy to carry outdoors. It uses a 1.3 'OLED LCD screen for easy reading.Built in speaker, support to connect to PC, use FT8, jt65, FT4 and other digital modes, support CW mode, software control, and support CW automatic decoding.Characteristic:1. 4-band coverage 10/15/20/40M 4 Band (modified based on the source program and different from the source program).

2. Excellent PCB design and excellent circuit performance.

3. Need 12.6V power supply, the power can be up to 3-5w in forth bands.

4. High launch efficiency, with 40m / 20m efficiency higher than 80% and 15m efficiency higher than 60%. (Note: transmission is prohibited in non 40m / 20m / 15m / 10m band and can only be used for reception).

5. Ultra small volume and weight: 82 * 50 * 20MM (excluding protruding parts), body weight 180g, very suitable for mountaineering.

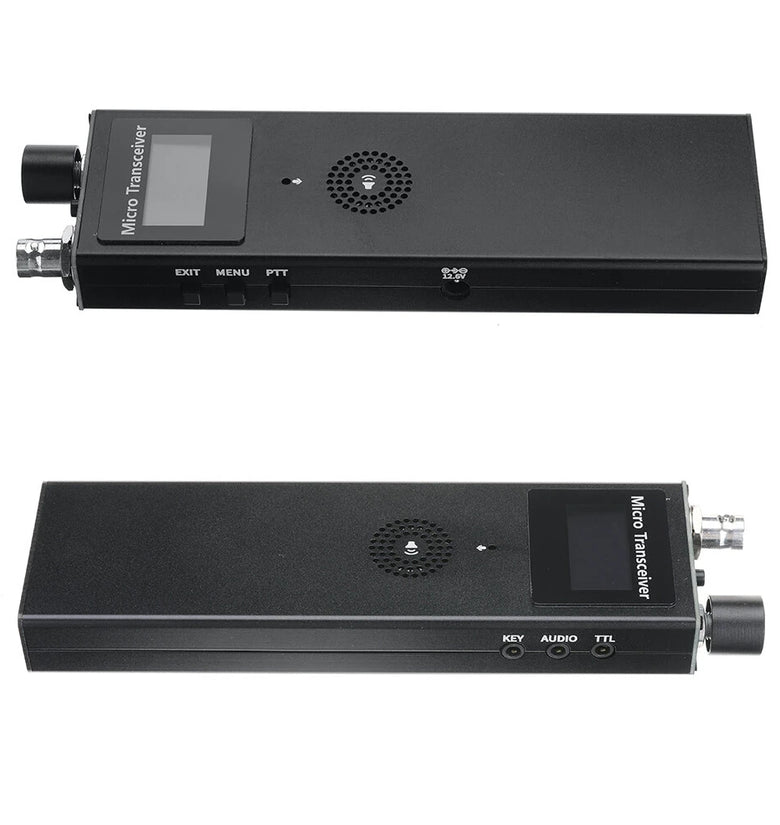

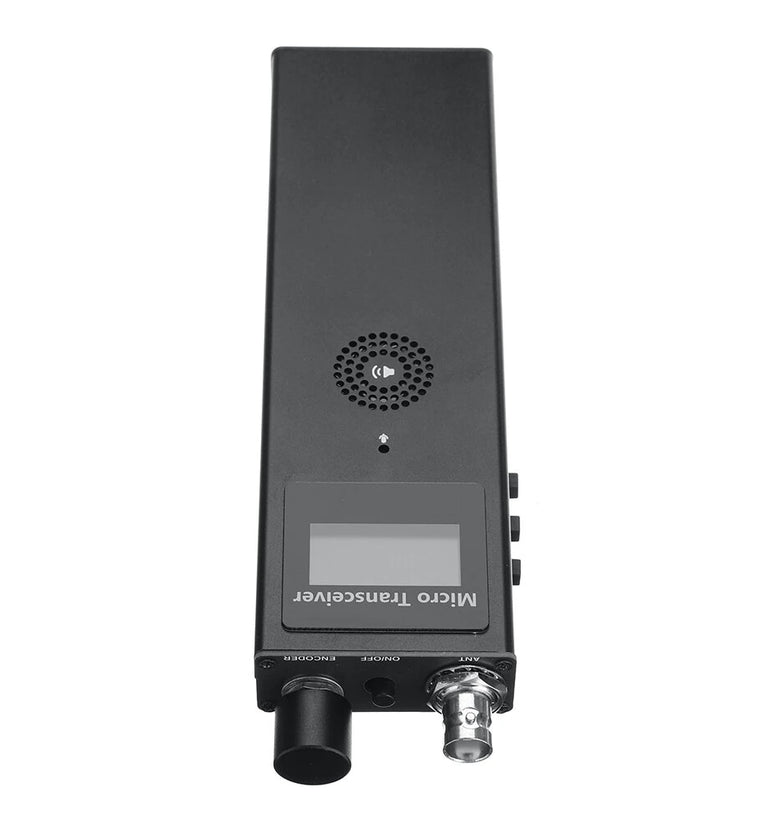

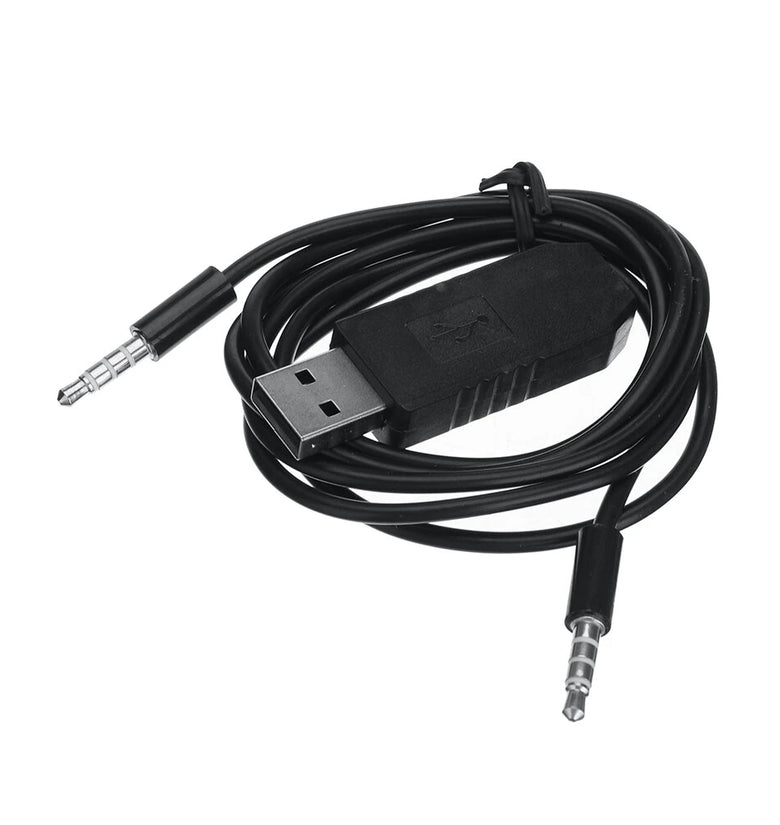

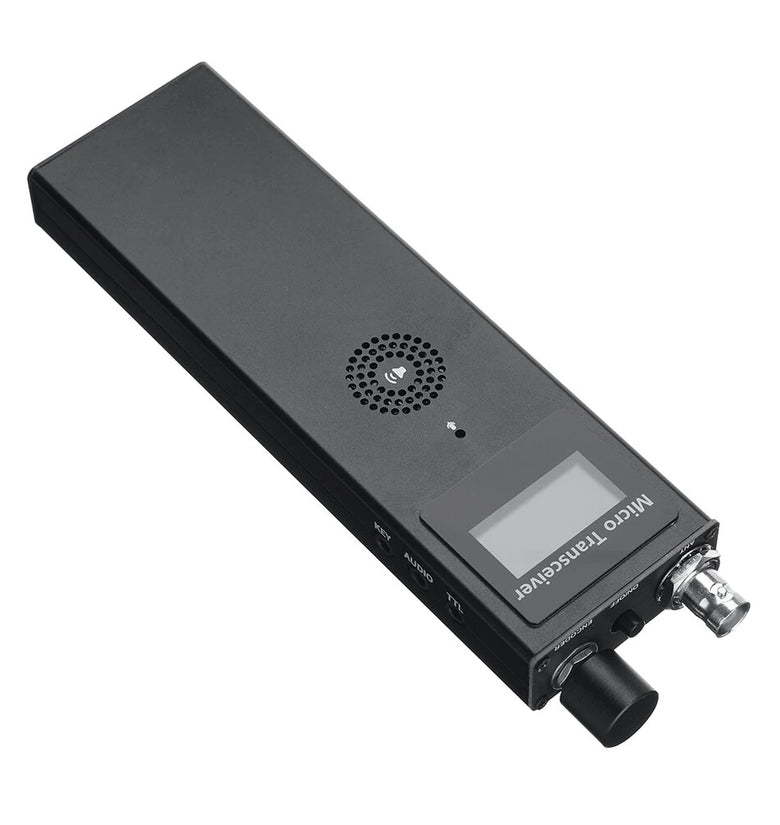

6. Multiple interface - CAT(Firmware Upgrade port), MIC / key, audio (headset supporting Android adaptation).
