Specifications:
Frequency Range:
Receive: 0.5MHz ~ 30MHz
Transmit: 1.8MHz ~ 30MHz (limited by LPF)
Operating Modes: CW, AM, SSB
Minimum Frequency Step: 10Hz
Antenna Impedance: 50Ω
Operating Temperature: 0℃ ~ +50℃
Power Supply Voltage: 10.5 ~ 12.6V DC, negative grounded
Current Consumption:
Receive: 100mA (Max)
Transmit: 1A (Max)
Dimensions: 50mm (W) x 20mm (H) x 80mm (L) (excludes protrusions)
Weight: Approx. 180g (main unit only)
RF Output Power:
0.1–5W (SSB/CW) at 12.6V DC
0.1–5W (AM carrier)
Battery Capacity: 1100mAh

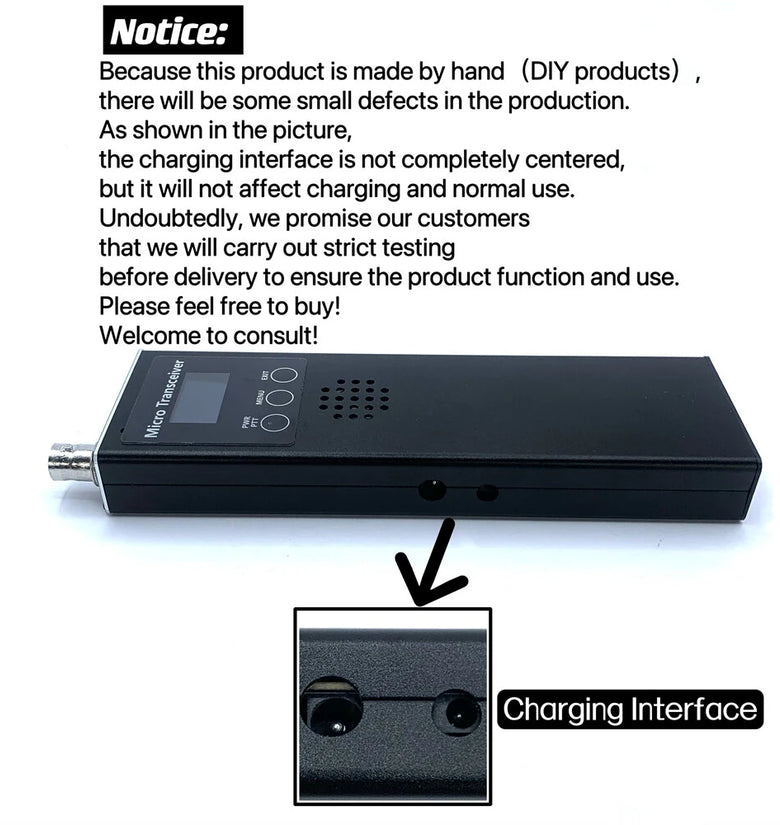

Power Interface: DC5521
Features:

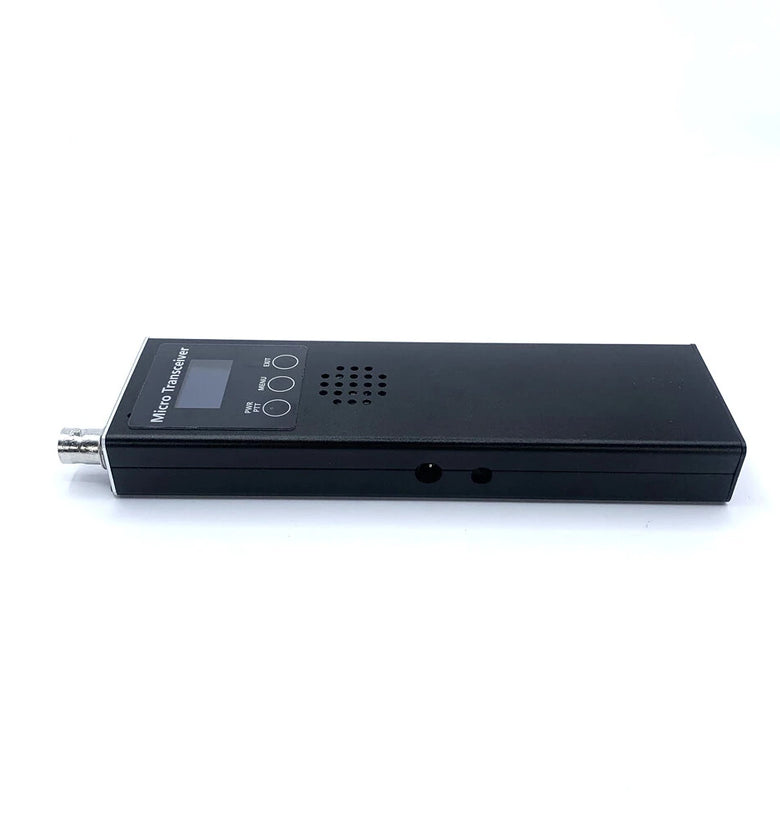

1. Compact and Lightweight Design:

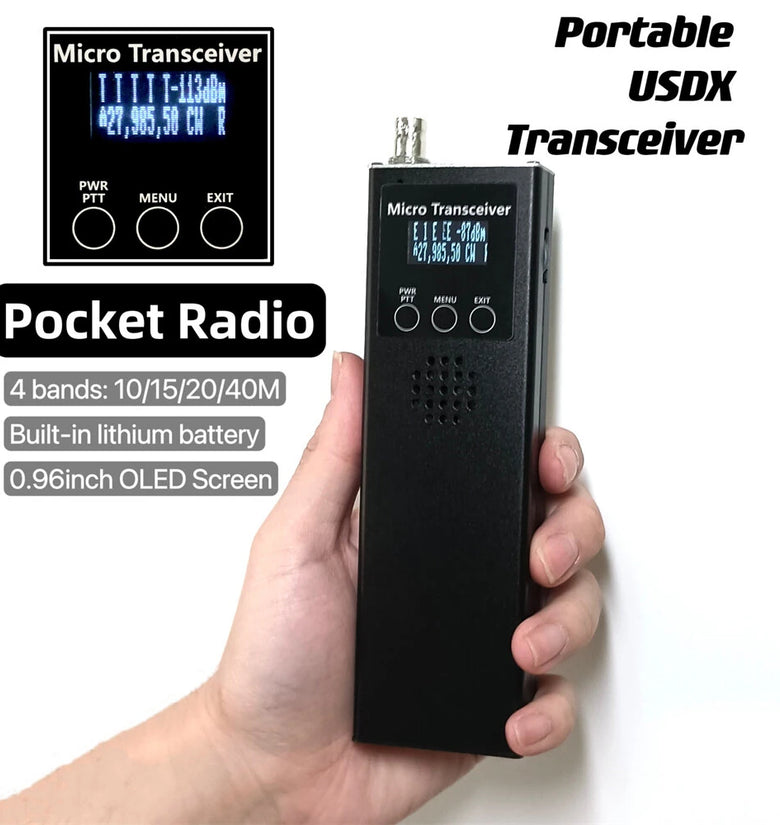

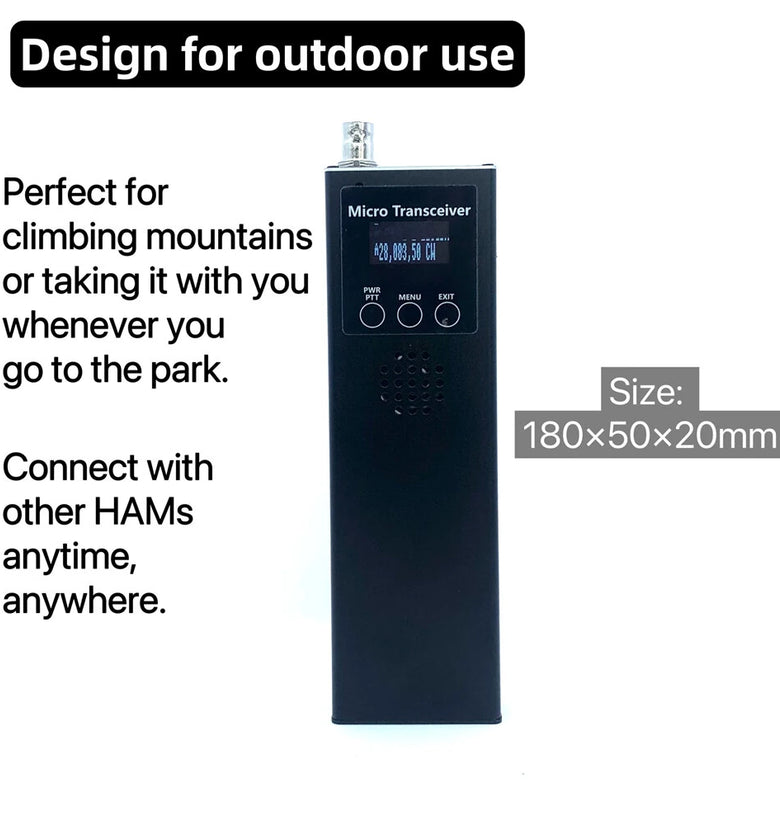

Featuring an ultra-compact body measuring just 82 x 50 x 20mm and weighing only 180 grams, this transceiver is highly portable and ideal for outdoor activities like mountaineering.
2. Multi-Mode Operation:
Supports CW, AM, and SSB modes, making it versatile for voice, code, and digital communication applications.
3. High RF Transmission Efficiency:
Optimized for efficient transmission, with 80%+ efficiency in the 40m and 20m bands, and 60%+ efficiency in the 15m band.
4. Comprehensive Connectivity:

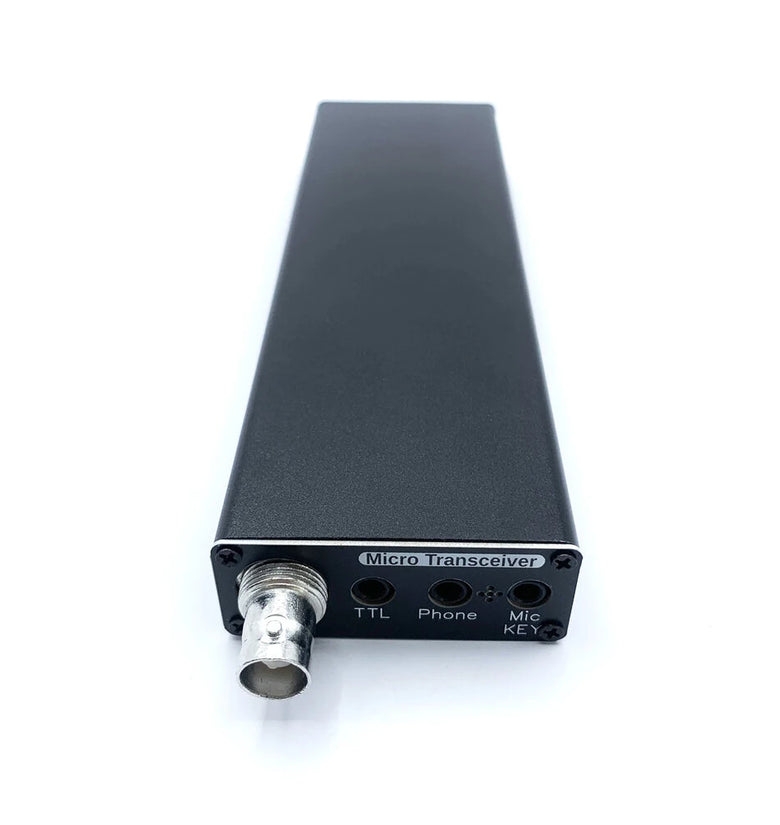

Equipped with multiple interfaces including CAT (firmware upgrade port), microphone/key input, and headset audio output compatible with Android devices.
5. Enhanced Display and Components:
Incorporates a 1.3-inch OLED screen for clear readings, coupled with premium components like Omron magnetic holding relays, TCXO crystal oscillator, and high-quality speakers for reliable performance.

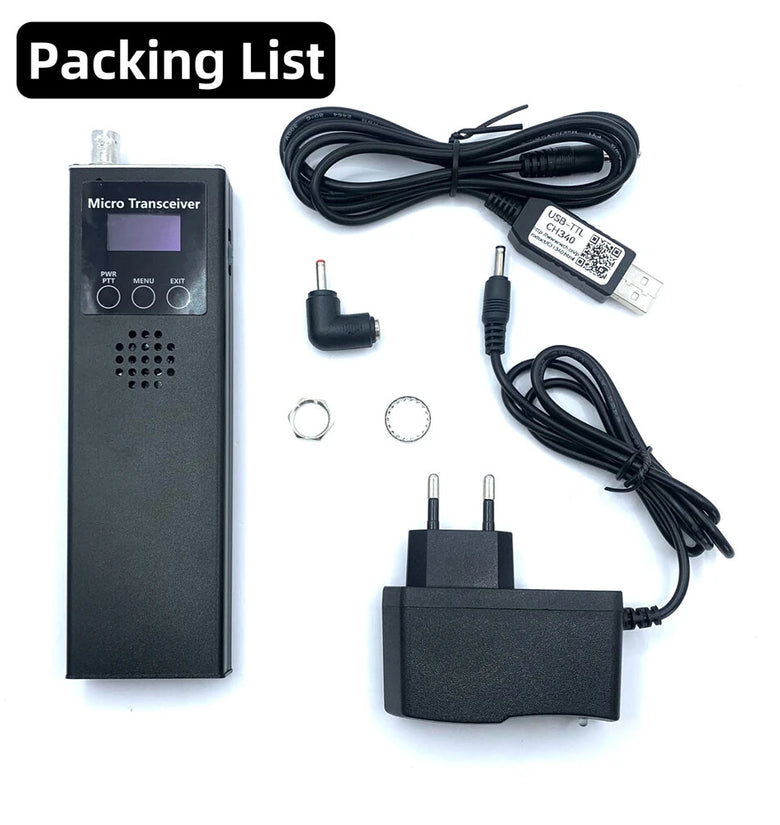

Package Included:
1 x Pocket Radio
1 x Power Supply
