Specifications:

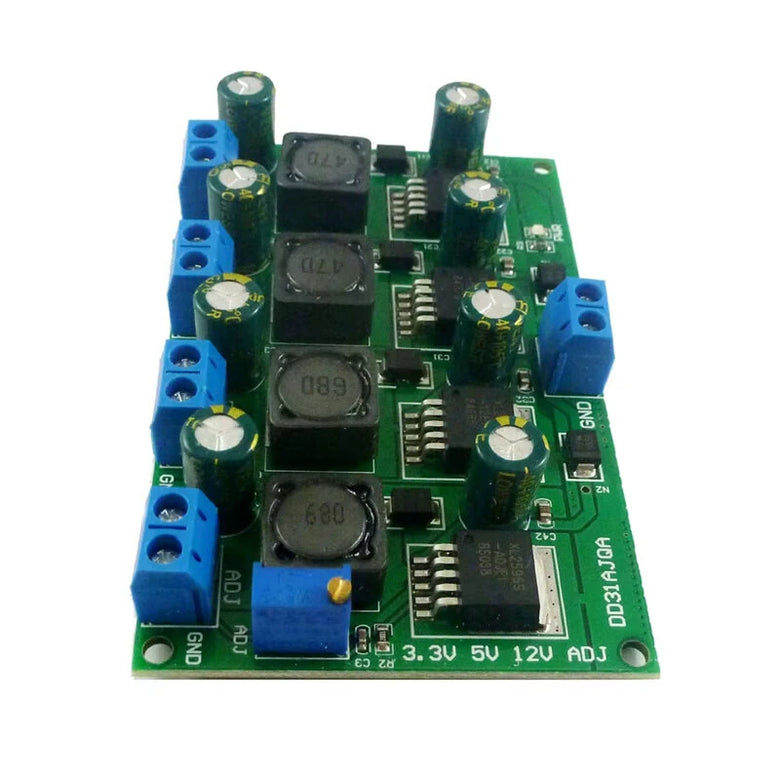

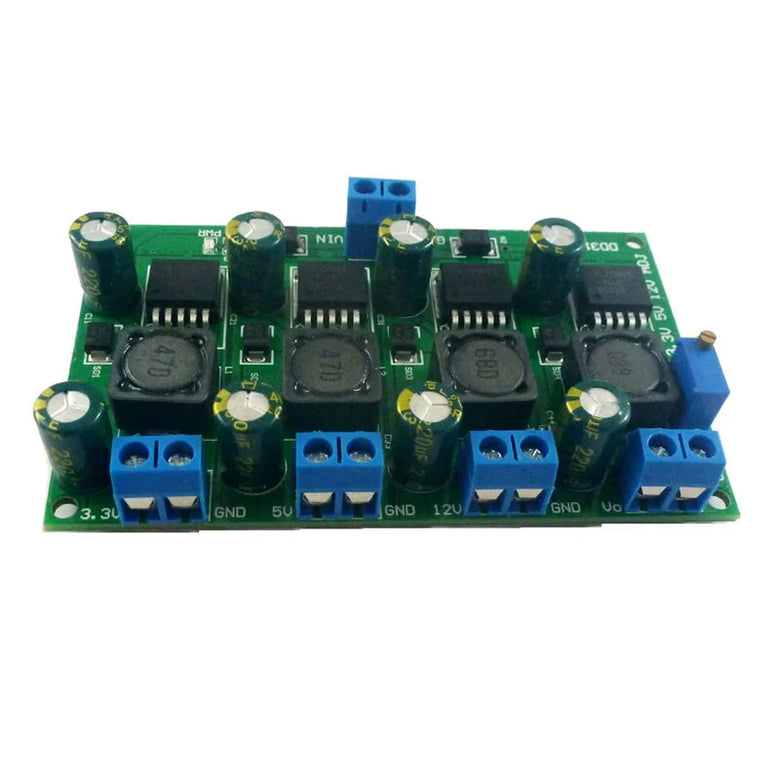

- Name: 4-channel Step-down Buck DC-DC Converter Power Module

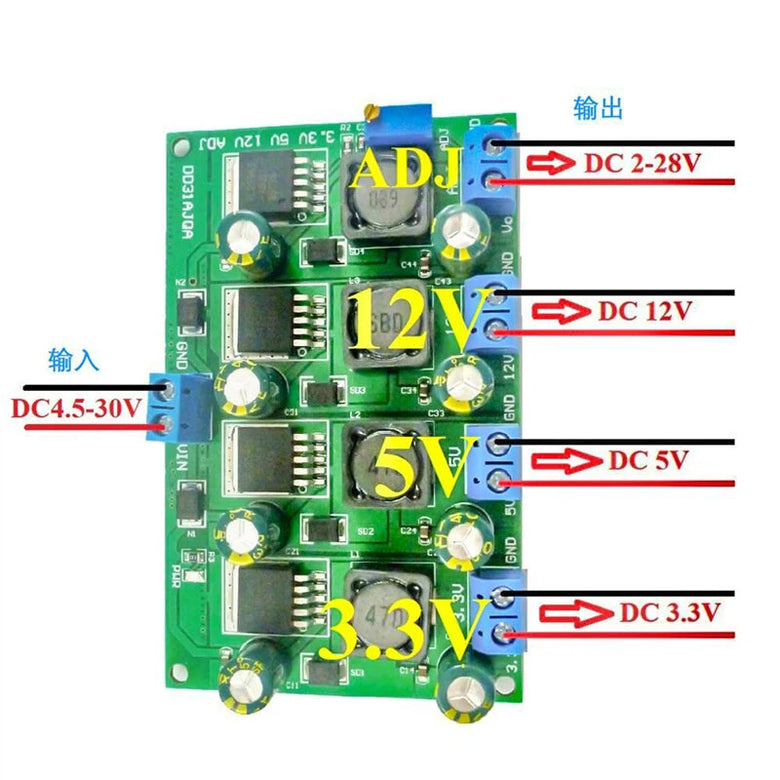

- Input Voltage: 4.5-30V

- Output Voltage: 3.3V (±3%); 5V (±3%); 12V (±3%); Adjustable Output 2-28V

- Maximum Output Current per Channel: 3A

- Overall Maximum Load Power: 50 watts

- Master Chip: XL2596 (compatible with LM2596)

- Working Frequency: 150 KHz

- Protection Features: Input reverse connection protection, built-in thermal shutdown function, built-in current limit function, built-in secondary current limit function

- Operating Temperature: -40°C to +85°C

- Storage Temperature: -65°C to +150°C

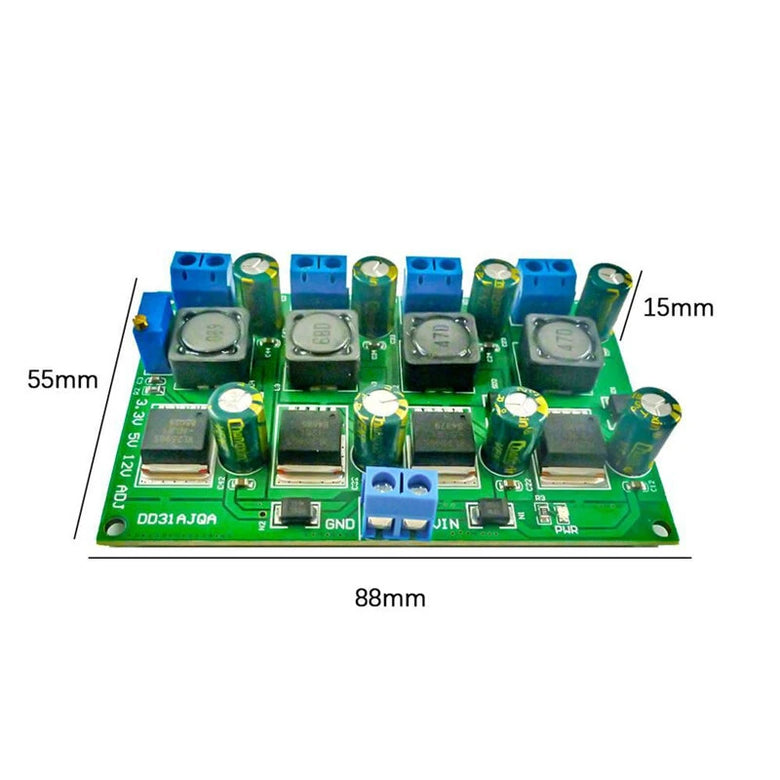

- Size: 88 x 55 x 15 mm

- Weight: 57 g

Features:

1. Versatile Output Options

   - Provides four adjustable output channels (3.3V, 5V, 12V, 2-28V), offering flexibility for various electronic devices and applications.

2. High Efficiency

   - Efficient power conversion with up to 50 watts total load power and 3A maximum output current per channel, making it suitable for heavy-duty tasks.

3. Robust Protection Mechanisms

   - Equipped with input reverse connection protection, thermal shutdown, and dual current limit functions to ensure safe operation under various conditions.

4. Compact and Lightweight Design

   - Measures only 88 x 55 x 15 mm and weighs 57 grams, making it easy to integrate into tight spaces and portable applications.

5. Broad Compatibility

   - Ideal for MCU ARM STM32 CPU FPGA/CPLD UNOs MEGA3560, PTZ CCTV IP cameras, smart home automation, WiFi routers, LED motors, battery-powered equipment, and wireless modules such as Nrf24l01, CC1101, CC2500, CC2530 Zigbees.

Package Included:

1 x 4-channel Step-down Buck DC-DC Converter Power Module
