Specification:

1) Operating frequency :45-1100MHz

2) Working voltage :24-26V(DC)

3) Working current :400-600mA

4) Amplification gain :32dB

5) Output power :36.5dBm (4w typical value) Maximum 5W

6)) Working state: Class A linear

7) Joint form :SMA standard female head (outer screw inner hole)

8) Overall size :75*100*47mm(without joint)

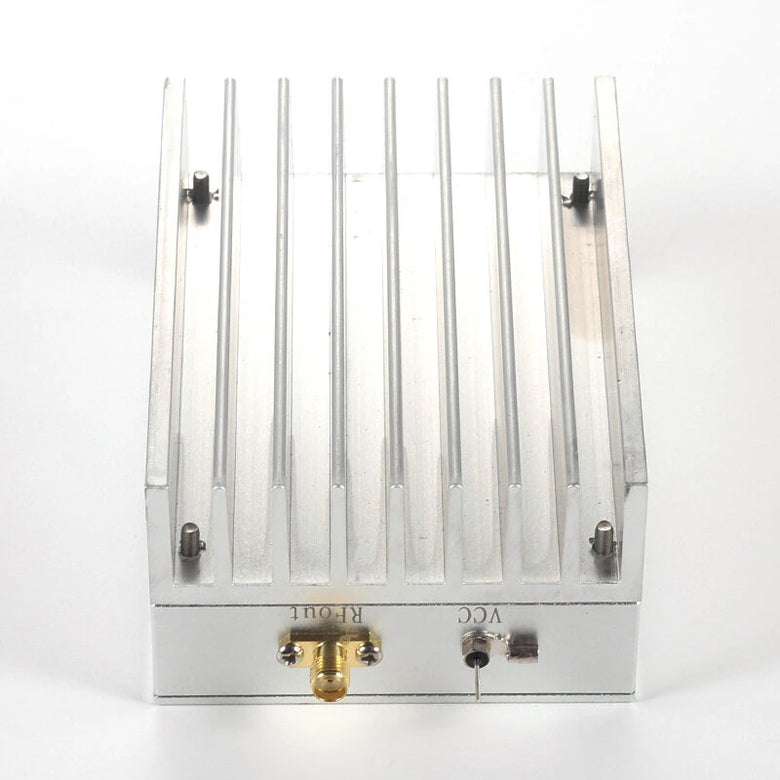

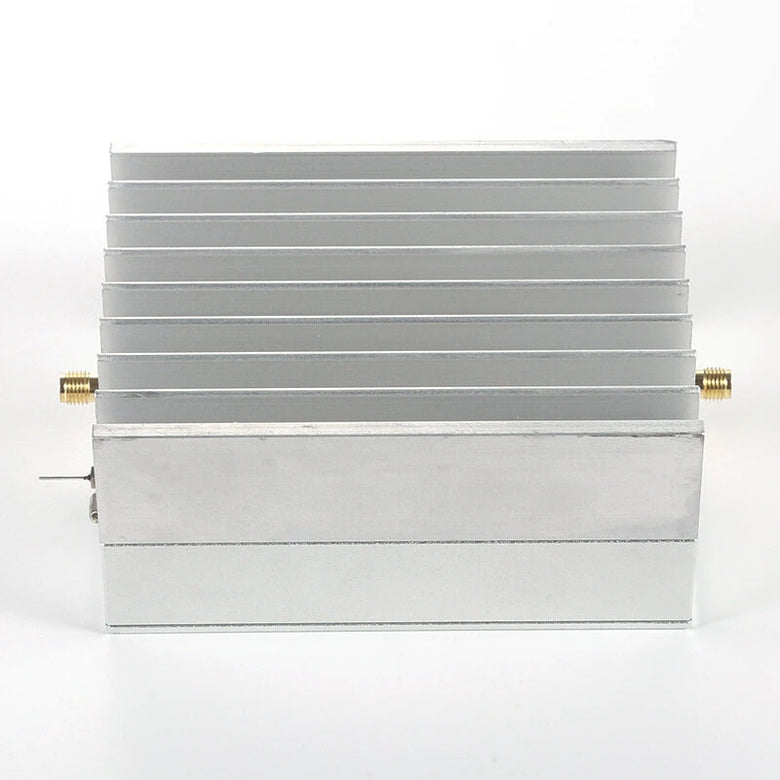

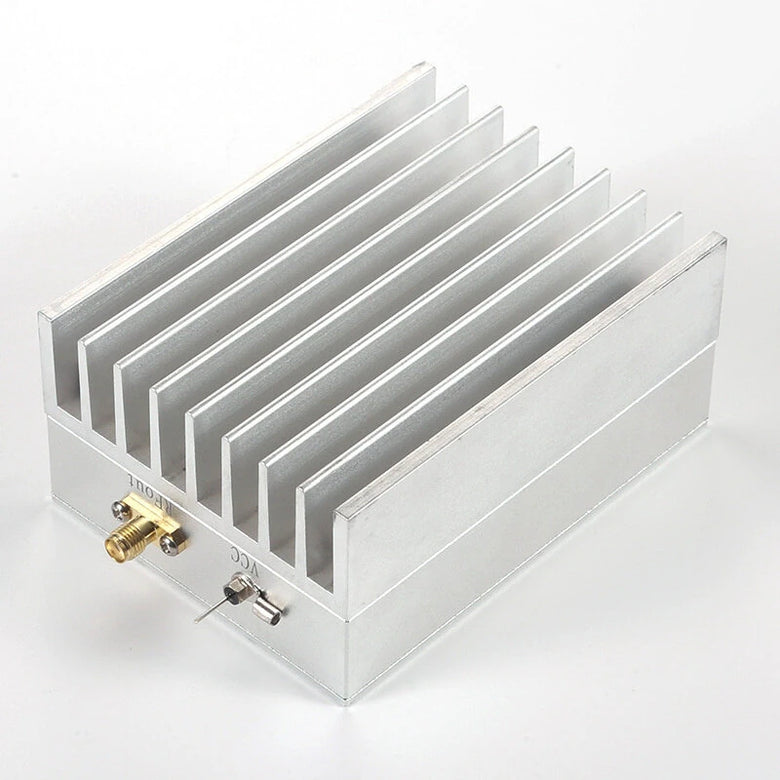

Connection mode:

1) RFin: signal input (signal that needs to be amplified)

2) RFout: signal output terminal (output terminal after signal amplification)

3) VCC: positive power supply (through-core capacitor power supply)

4)GND: power supply negative terminal (line nose and shielding shell)

Note: During installation, the shell is in close contact with other metals for auxiliary heat dissipation.

Features:

1.Wide Frequency Range: This RF amplifier operates within a broad frequency range of 45-1100MHz, making it highly versatile for various applications, including DTMB digital TV. The wide range ensures compatibility with multiple signal sources and usage scenarios.

2.High Gain and Output Power: With an amplification gain of 32dB and a typical output power of 4W (maximum 5W), the amplifier significantly strengthens weak RF signals. This feature ensures clear and stable signal transmission, w
