| Rated Power | Digital Display | Adjustable Knob | Item ID |
| 480W | Voltage | Voltage | 1908262 |
| Voltage | Voltage & Current | 1925431 | |
| Voltage & Current | Voltage & Current | 1925433 | |
| 1000W | Voltage & Current | Voltage | 1927330 |
| Voltage & Current | Voltage & Current | 1925287 |
Specifictation:

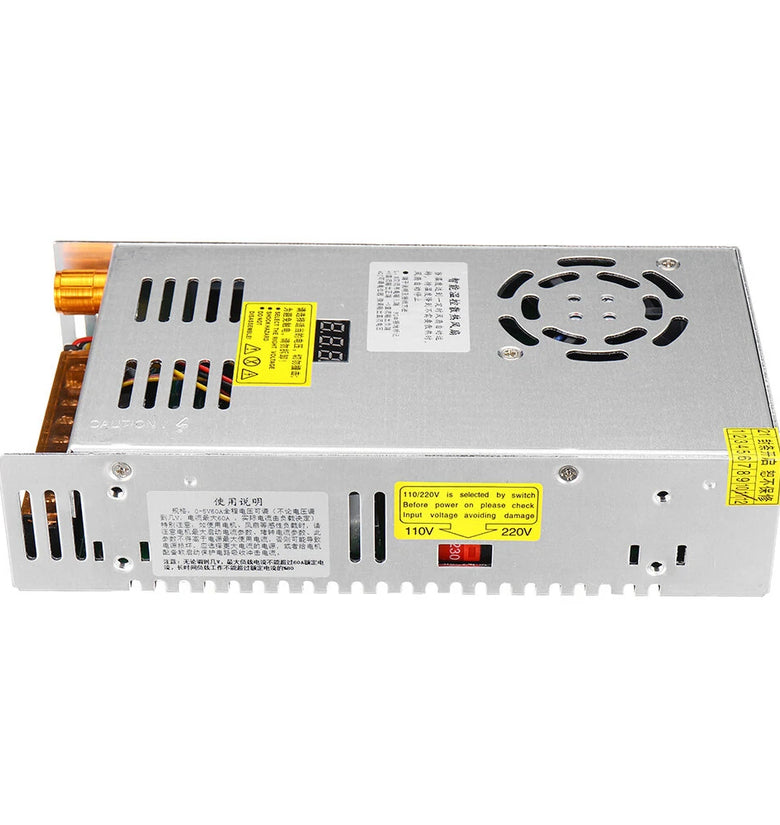

Input voltage: 110/220V AC (selected by switch)
| Output power | limiting output voltage range | current range |
| 480W | 0-5V | 60A |
| 0-12V | 40A | |
| 0-24V | 20A | |
| 0-36V | 15A | |
| 0-48V | 10A | |
| 0-60V | 8A | |
| 0-80V | 6A | |
| 0-120V | 4A | |
| 0-220V | 2A |
For max current, if you choose 0-80v, when set the voltage at 24v, the max current still is 6A.
Ripple voltage:not more than 100 mV
Voltage-stabilized equivalent internal resistance: not more than 0.O5Ω
Short circuit, overload protection and automatic recovery
Size:215*115*50mm

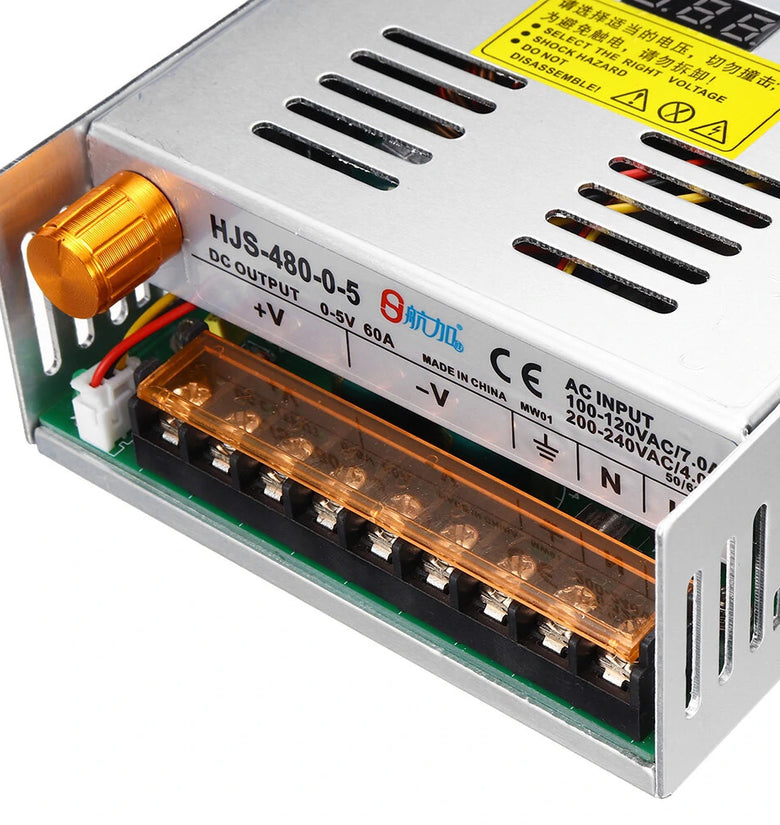

L, N : AC input terminal
FG: ground mark
V+: DC output positive terminal
V-: DC output negative terminal
ADJ adjustable potentiometer: Fine-tuning output DC voltage
● full voltage input
● Miniaturization
●Protection function Short circuit / overload / over voltage
●100% full load aging test
Input Voltage & Frequency Range----------110V/220VAC/47～63Hz
Start surge current ---------------20A@120VAC (cold start)
Output adjustment range --------------- ±100% (rated output voltage)
Overload protection -------------------105%~200% (rated load), self-recovery
Overvoltage protection -------------------115%~135% (rated output voltage)
Short circuit protection ------------------- self-recovery
Output start time ---------------≤2S@120VAC ≤1.0S@230VAC
O
Insulation strength ------------------- Input-Output: AC1500V, 1min； Input - housing: AC1500V, 1min； Output - Case: DC500V, 1min
Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)
Package Included:

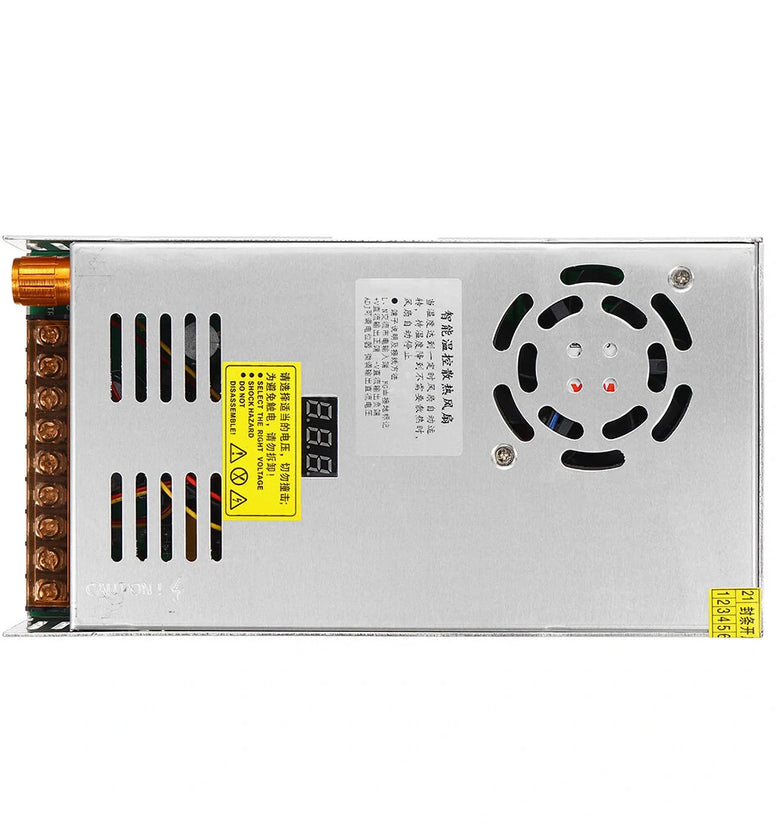

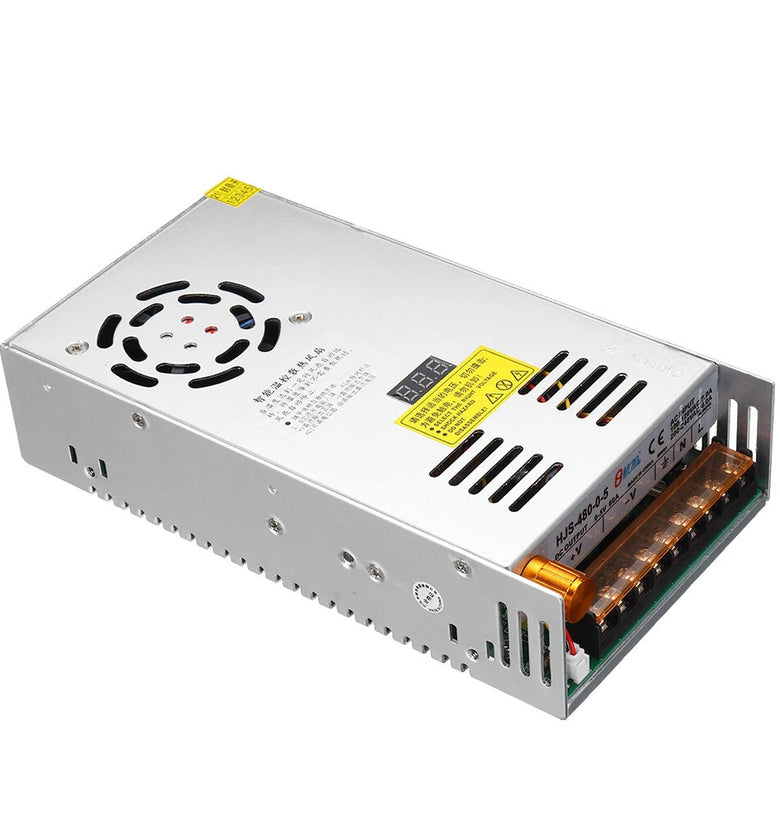

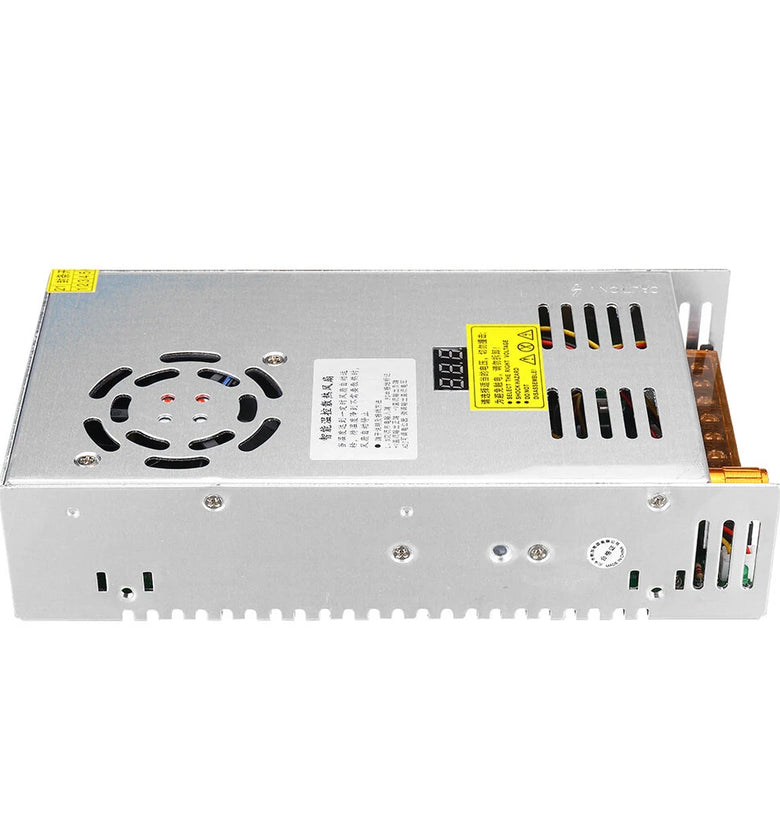

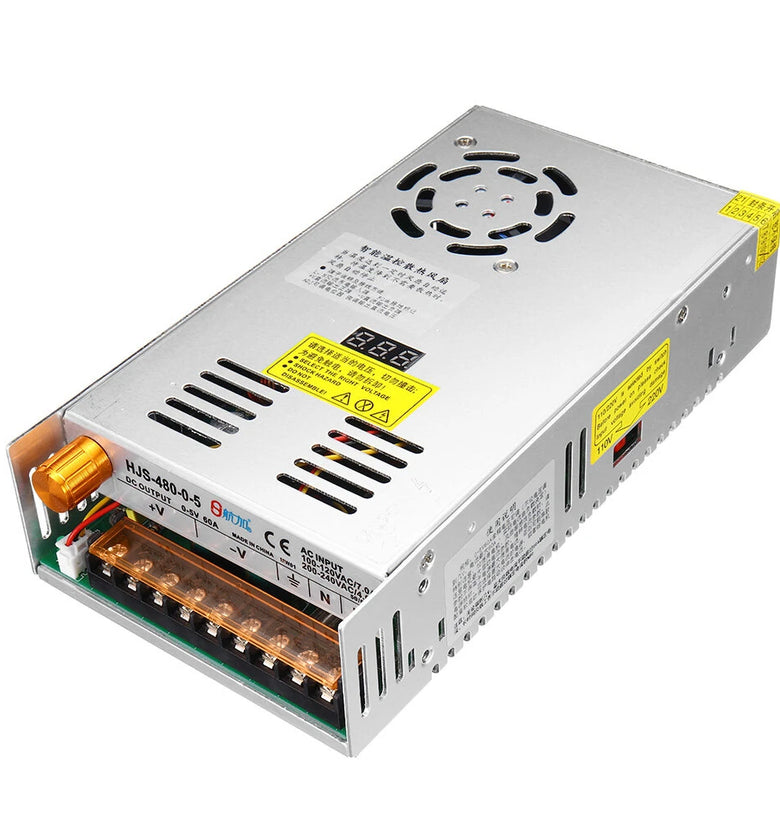

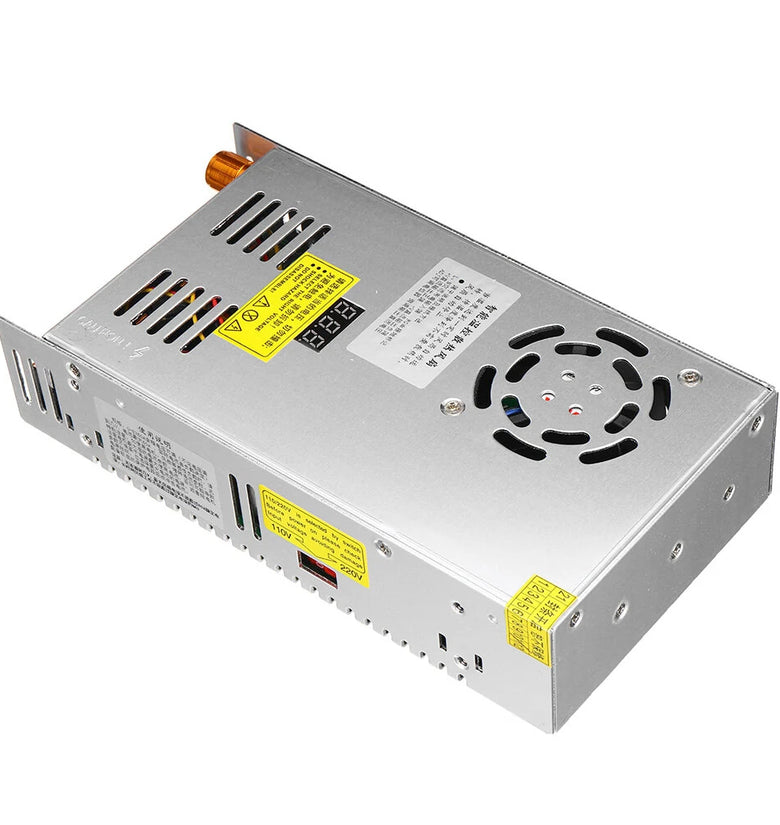

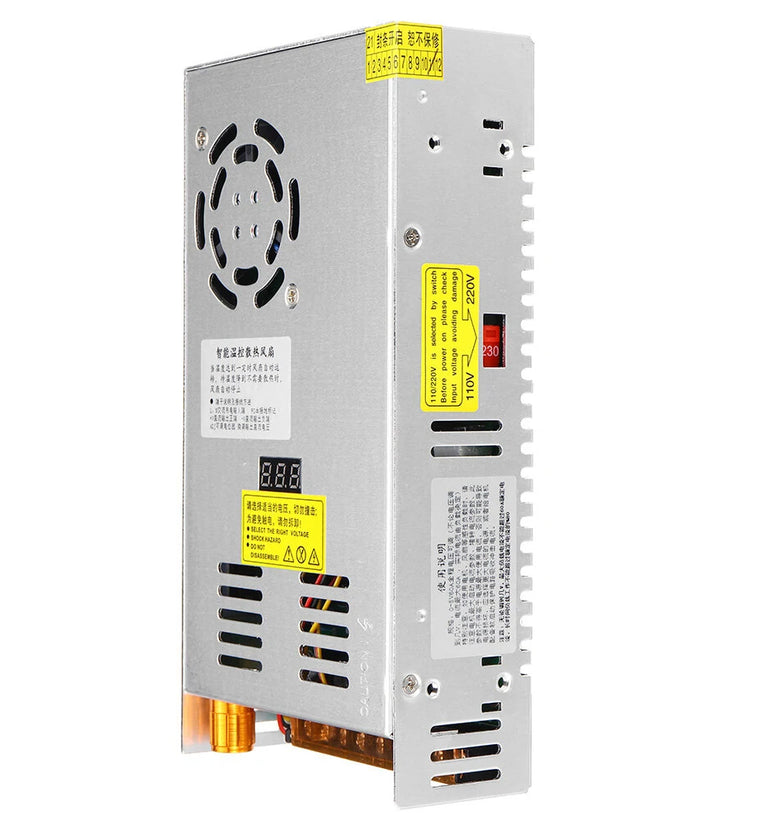

1 x 480W Digital Display Switching Power Supply
