Specification:
Certification: CE RoHS 3C
Power Supply:Backup Battery
Work Voltage: DC 9V - 75V
Work Current: 12V/30MA - 60MA
Sleep Current: 12V/5MA - 15MA
Power: 0.36W
Battery Capacity: 140mAH(3.7V Polymer Battery)
Work Temp: -20℃ - 70℃
Storage Temp: -30℃ - 80℃
Work Humidity:5% - 95%
Module Brand/Chip Model: MT6261D
Band : 4G: 850/900/1800/1900MHZ
SIM Card: Standard SIM card
Aerial: Internal
Module Brand/Chip Model: ZKMicro AT6558D
Cold Start: Average 32S
Hot Start: Average 1S
Sensitivity (tracking): -162DBM
Aerial: Internal
External Port: I/O: H-IN 1 channel（ACC）

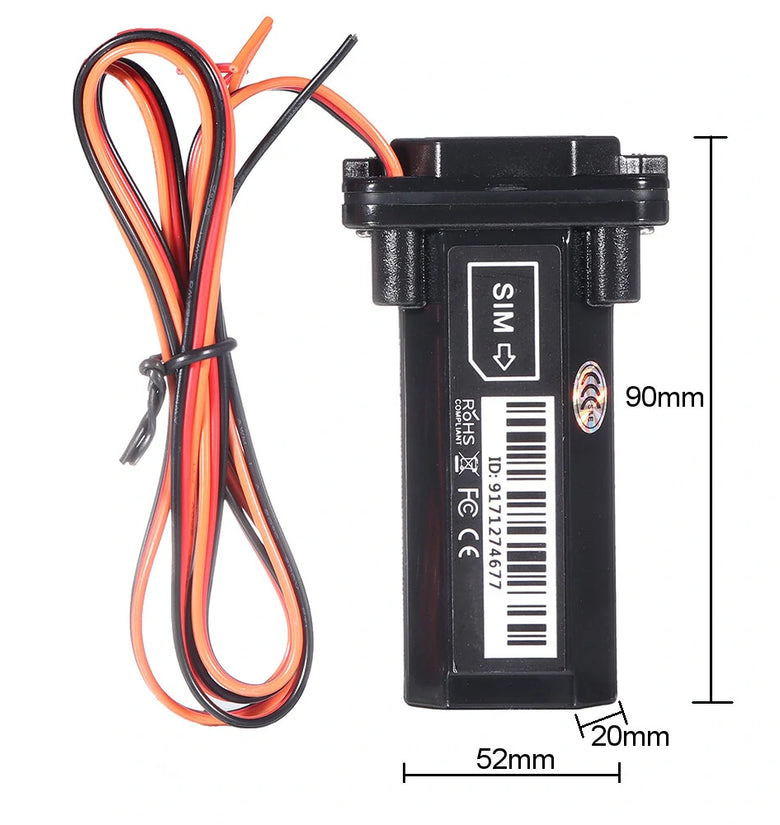

Dimension: L90mm * W52mm * H20mm
Housing Material: ABS plastic

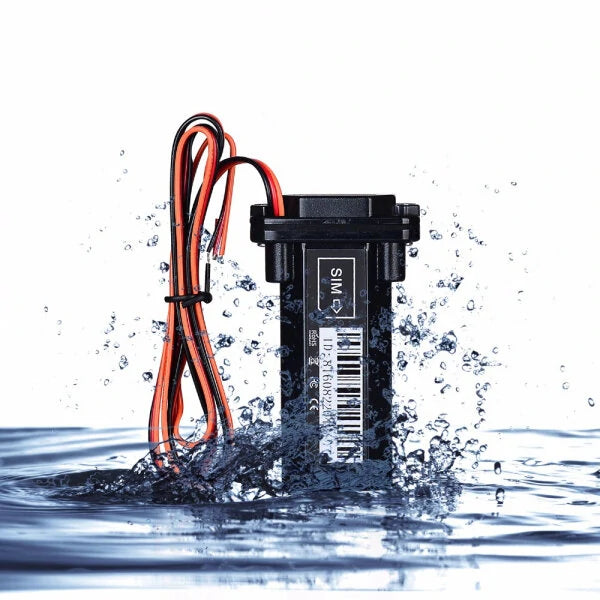

IP Range: IP67


Description:
1. It has advanced technology 4-frequency GSM 850/900/1800/1900 MHz which can work worldwide.
2.Working based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor
any movable equipment by SMS, APP and Internet 
3. Application: Rental vehicles, credit vehicles, motorcycle, car, electric bike, scooter, atv,
 passenger vehicles, taxis, truck, etc.
 
Main Function:
1.  Real-time tracking
 2. Vibration/Displacement/Low battery/Power off/over speed alert
3. Main power cut off alert
4.  ACC detection 
5. Geo-fence
6. History Route 
7. AGPS locating

Package Included:
1X GPS Tracker
1X User Manual
 1X Sticker
2X Hook& Loops

Q：Start up Fail?
A：Check the cable connect right or not.

Q：The device can not obtain location information?
A：Place the unit at the open area to test.

Q：How to choose SIM card?
A: the SIM card must support GSM&GPRS，and ensure that the card has enough currency and credit.

Q: How to use in the foreign countries?
A：please set the APN before use，please edit the text “APN123456 CMNET “ anuse in other countries, APN details, please consult your local SIM card carrier.

Note:
There are no instructions included in this kit.If you want to know how to use or install it,please contact us by Email.We will provide help as much as possible.
