Description:

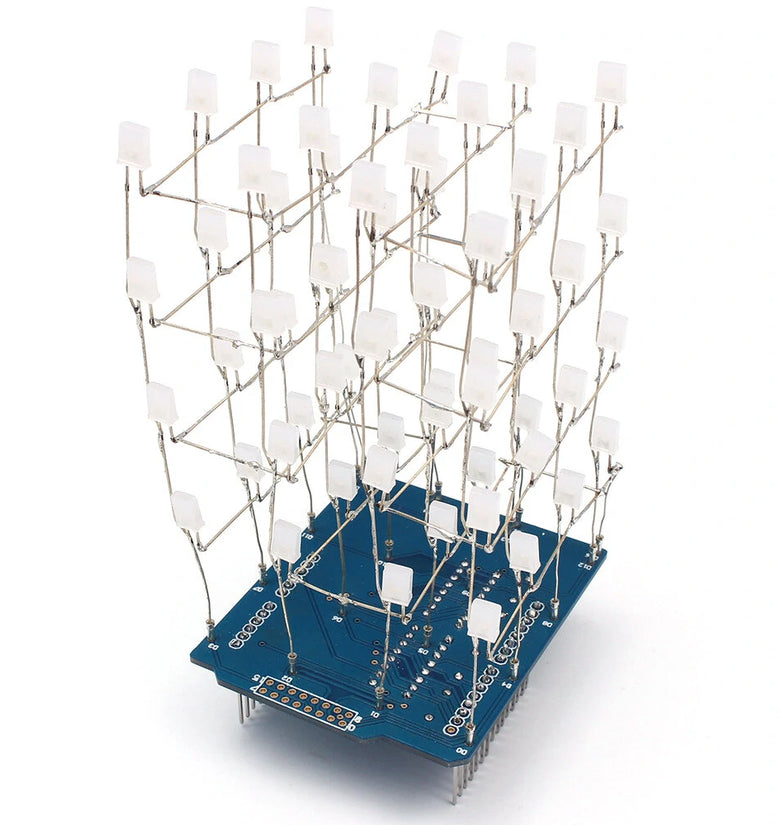

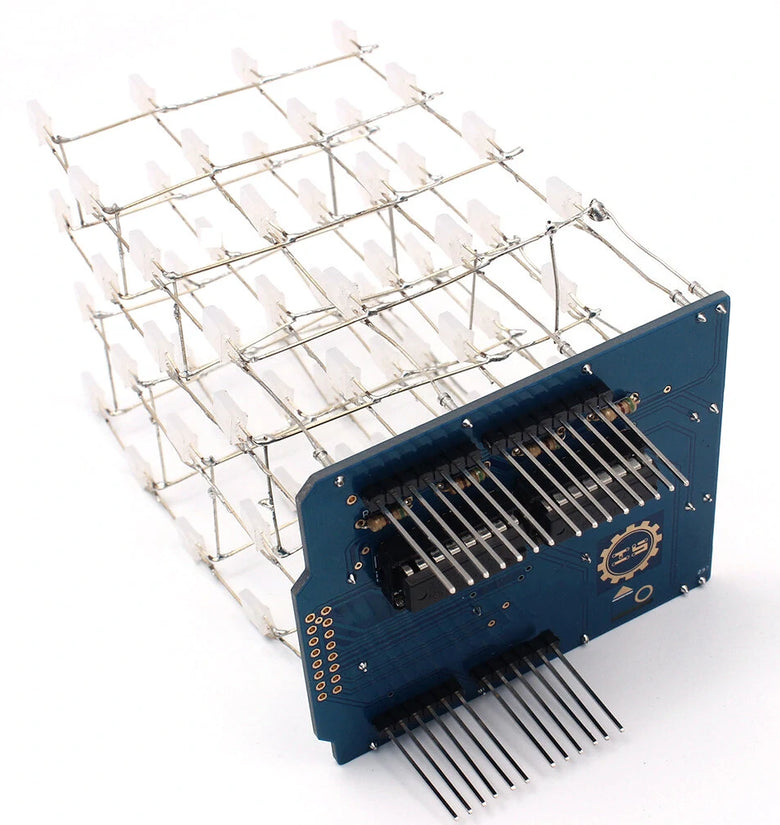

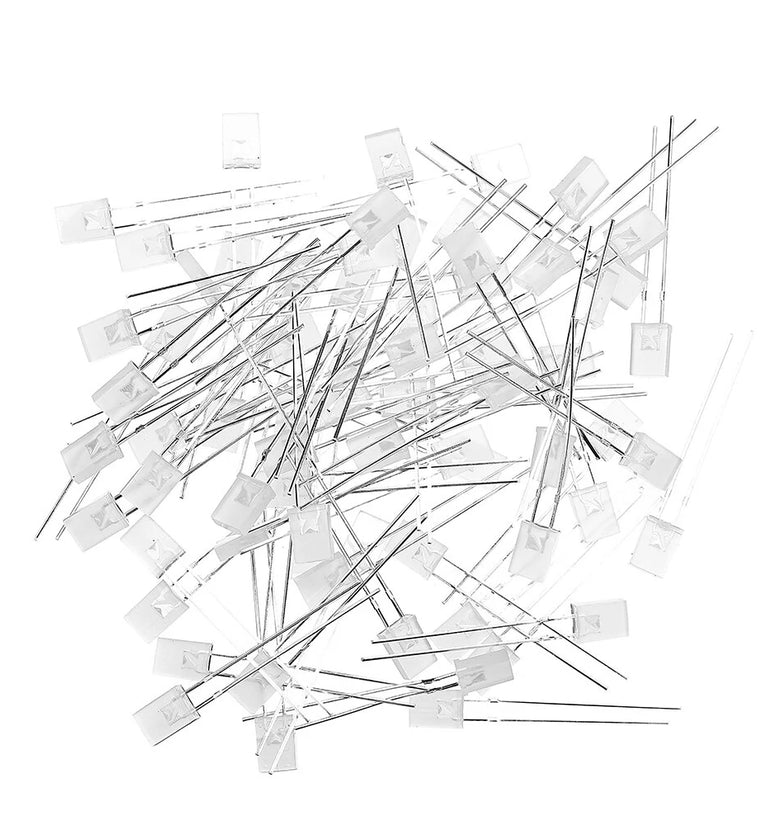

4x4x4 Light Cube kit uses 64 cuboid LED. Expansion board uses two 74HC595 shift register chips, using eight I/Os can light the 4x4x4 Light Cube, it’s hardware resources needed is less than other 4x4x4 light cubic expansion board(needs 20 I/Os to control).
Circuit Description:

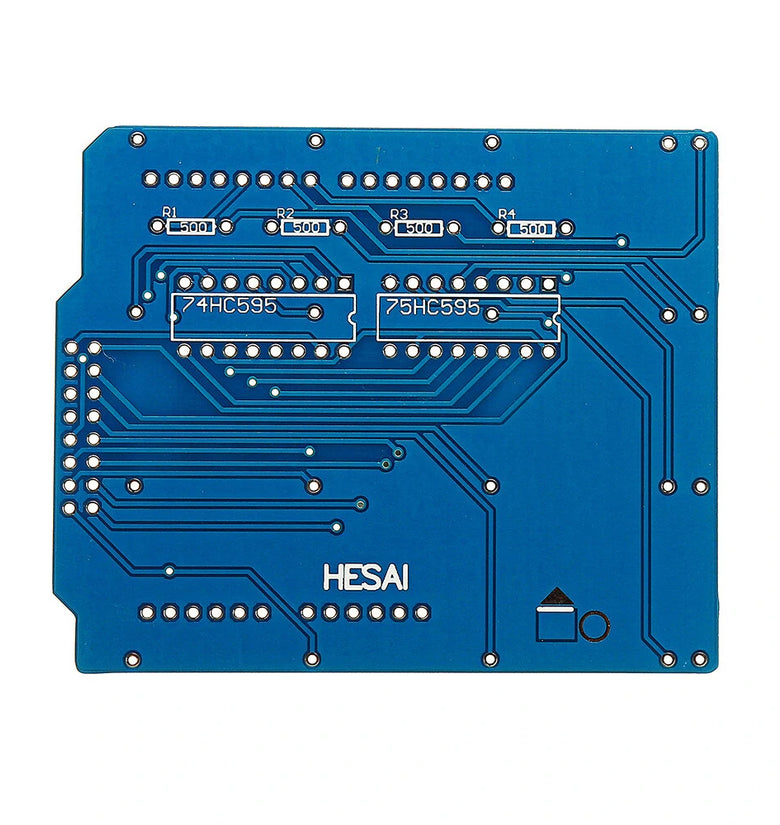

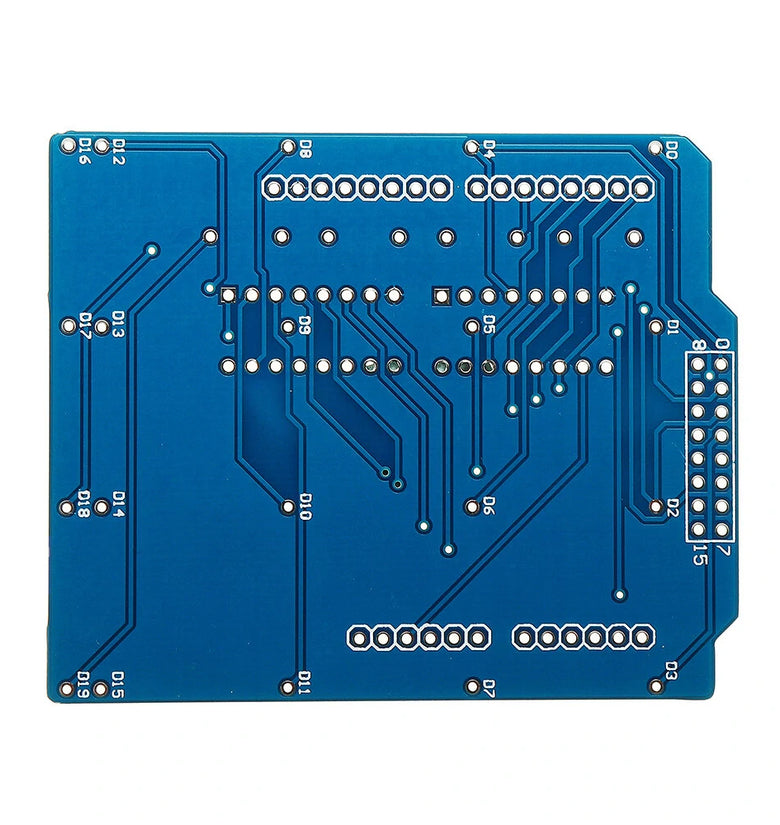

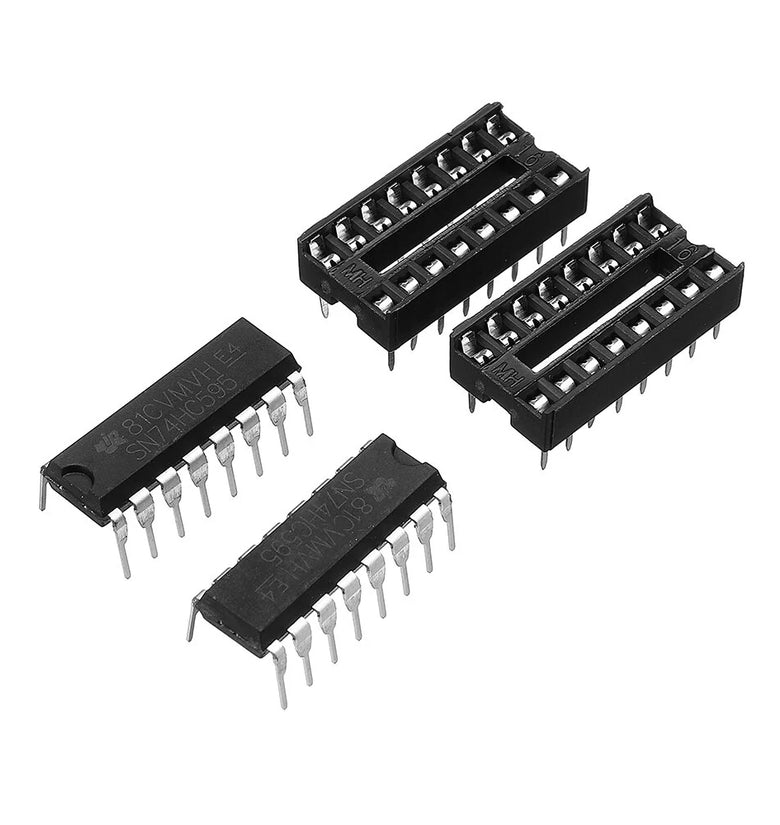

The display part of4x4x4 Light Cube kit consists of 64 cuboids LED, uses two 74HC595shift register chip to control LED anode, the 4 I/O ports controls 4 common cathodes of LED.

>>>Manual: Click here to open<<<
Parameters:
Control module: control boardPCB size: 61*74mmLED color: blue
Attention:
This kit is 4x4x4 light cubic expansion board, without control chip or control module.
Package included:

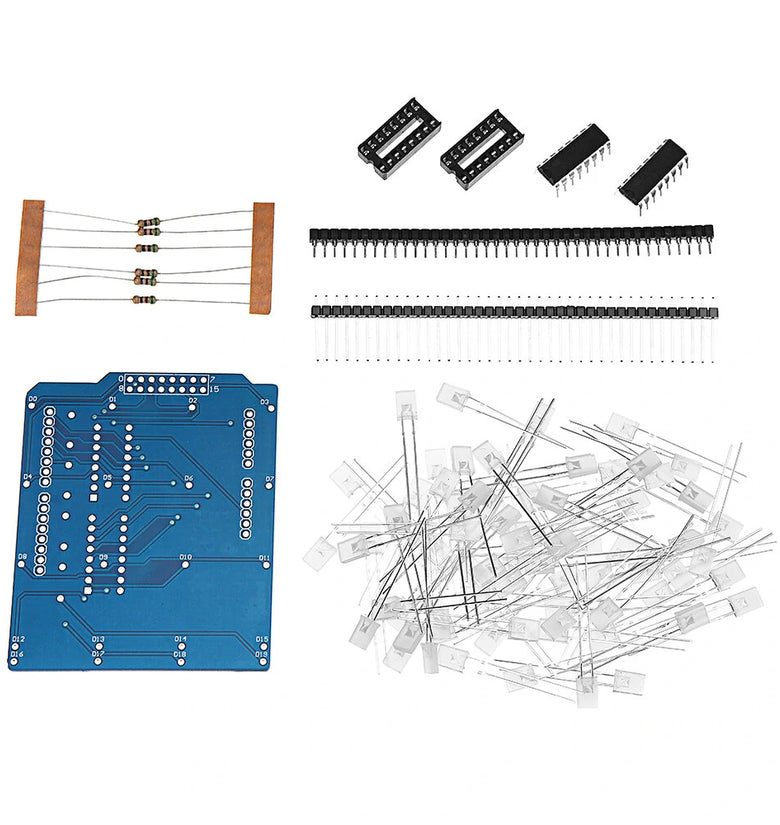

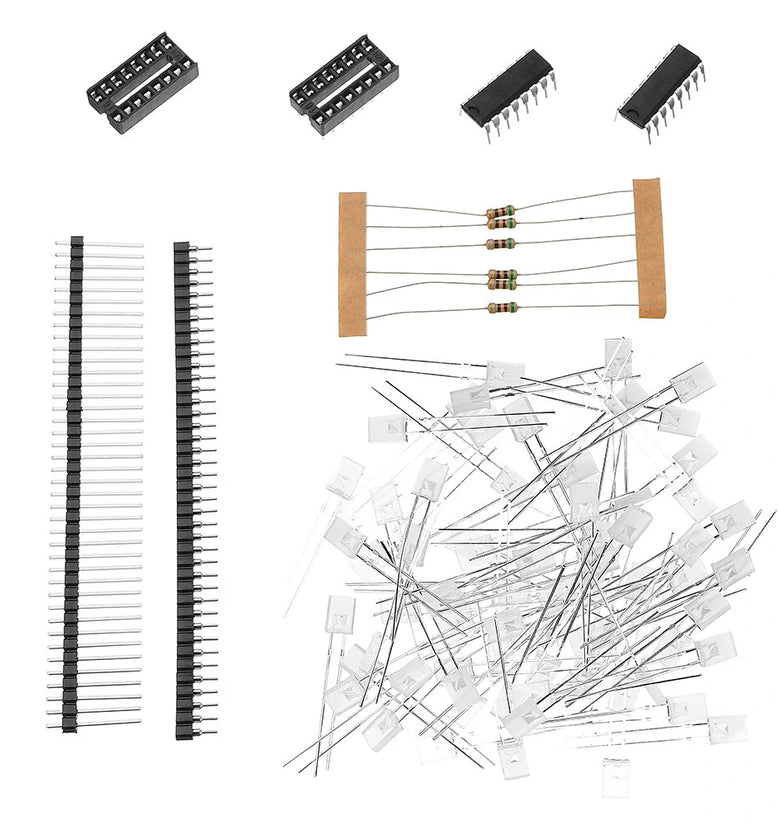

1 x 4X4X4 Blue LED Light Cube Kit
