Specification:

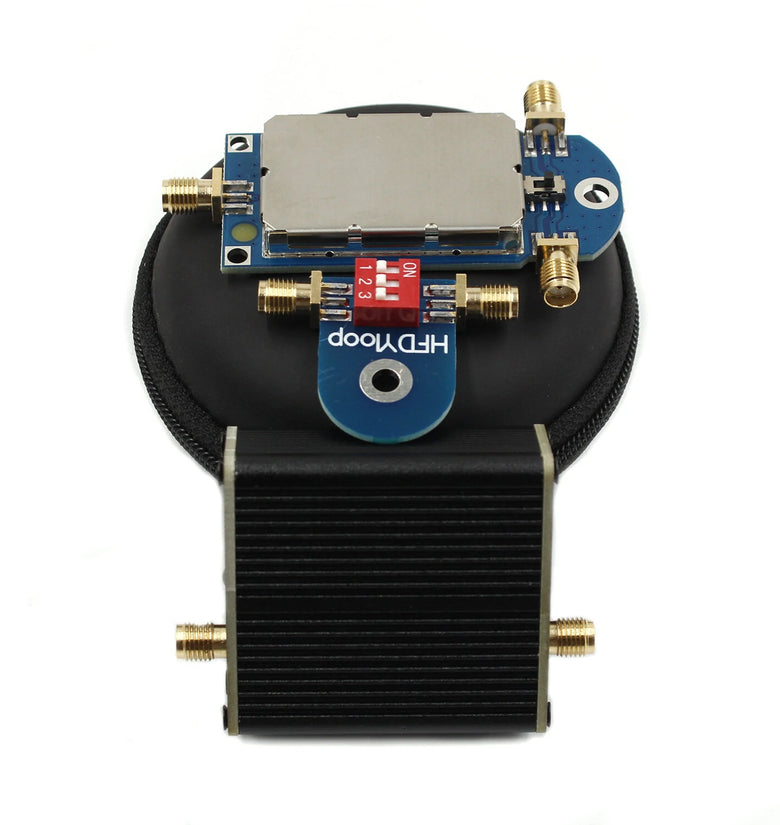

Product Name: 50K-500MHz Wideband Active Small Magnetic Loop Antenna
Frequency Range: 50kHz to 500MHz
Gain: 17dB at 10MHz
Output Noise: -125dBm at 10MHz, BW=100Hz
P1dB (1dB Compression Point): +15.5dBm@10MHz
OIP3 (Third Order Intercept Point): +38dBm@10MHz
Power Supply Voltage: 9V to 12V (Please use a stabilized power supply. Battery can cause voltage instability and affect performance.)
Power Supply Current: 130mA to 150mA
Antenna Interface: SMA(M)
Output Interface: SMA(F)
Coaxial Cable Type: RG402
Coaxial Cable Loss: 0.145dB/m
Antenna Diameter: 60cm

Power size: 5.5-2.1mm

Features:

1. Wide Frequency Range: This small magnetic loop antenna covers a broad frequency range from 50kHz to 500MHz, making it suitable for various radio receivers, SDRs, and radios.
2. High Gain: With a gain of 17dB at 10MHz, it provides significant signal amplification, enhancing the reception of weak signals and improving overall performance.
3. Low Noise: The antenna boasts low output noise of -125dBm at 10MHz with a bandwidth of 100Hz, ensuring clean and clear signal reception.
4. High Interference Resistance: Featuring an OIP3 of +38dBm at 10MHz, it can handle strong signals without distortion, making it suitable for environments with high signnal interference.
5. Versatile Power Options: It can be powered by a voltage range of 9V to 12V, offering flexibility in power supply options.

Package Include:

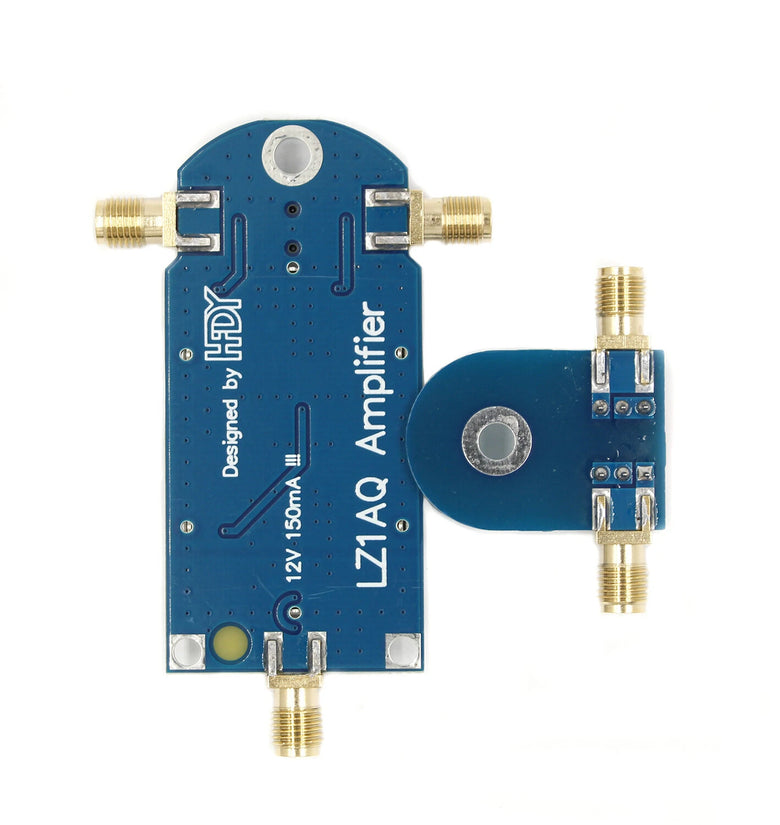

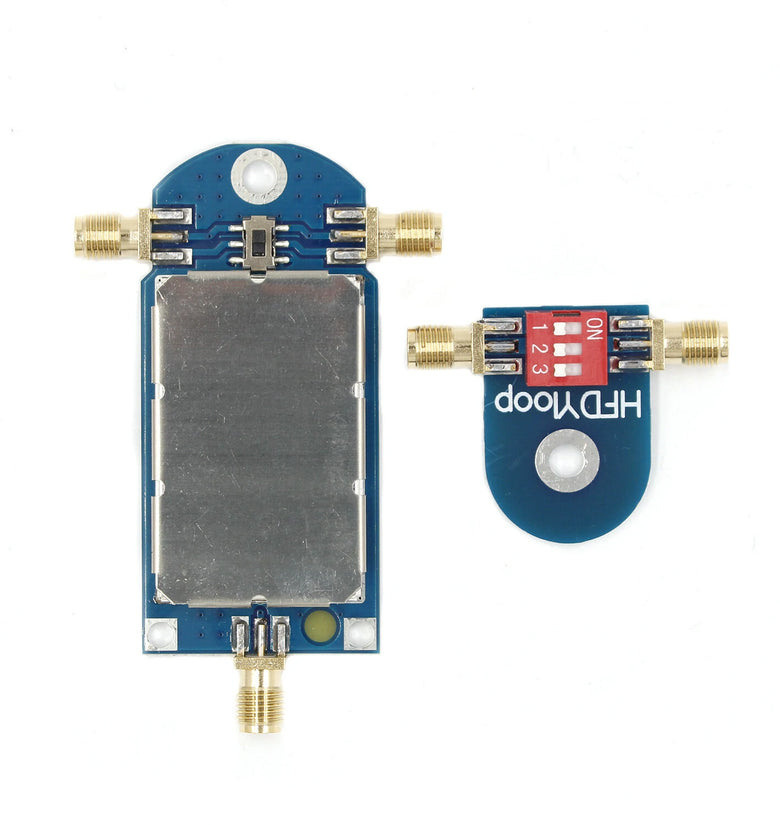

1x Small loop antenna amplifier board
1x Headphone jack adapter cable
1x Top jumper board
2x Small toroid (RG402 coax)
1x 7m feeder
1x 1 meter feeder
2x Sticky hooks
1x EVA storage bag
