  • 7.9 inch IPS PC Case Secondary Screen 400x1280 TFT LCD Temperature Monitoring Ultra Wide Stretched Bar Long Advertising Display

SKU:

7.9 inch IPS PC Case Secondary Screen 400x1280 TFT LCD Temperature Monitoring Ultra Wide Stretched Bar Long Advertising Display

R 2,108.70



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Note: This item does not support long-running programming, otherwise the screen will be damaged and the warranty will be void.

    Specifications:

    Model: LR79
    Size: 7.9inch TFT-LCD
    LCD Type: IPS
    Resolution: 400*1280
    Touch Function: No
    Dot Pitch: 0.1485(H)x0.1485(V)
    Signal Interface: MIPI
    Refresh Rate: 60Hz
    Viewing Direction: Free
    View Angle: 170°Full View Angle
    Size Ratio: 5:16
    Response Time: 40ms(Typ.)(Tr+Tf)
    Contrast Ratio: 900:1
    Brightness: 500cd/㎡

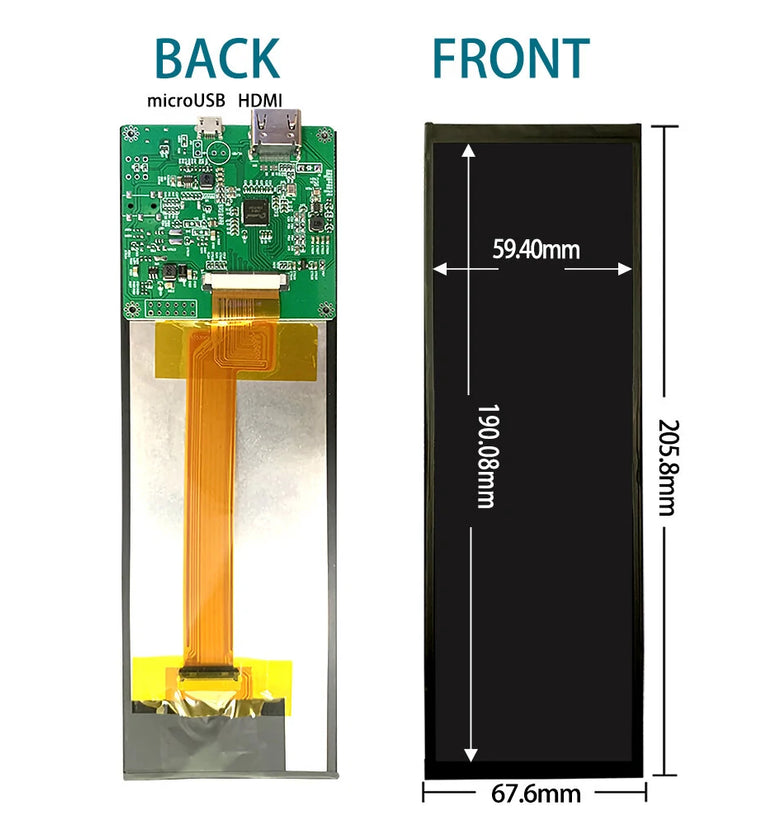

    Outline Dimension: 67.6(W)x205.8(H)x13.3(T)mm
    Active Area: 59.40(W)x190.08(H)mm
    Color Gamut: 70% NTSC
    Display Colors: 16.7M
    Backlight: WLED(19.2V (Type.))
    Connector: 30pins ZIF
    Thickness: 16.5(mm)
    Display Input: HDMI1.4
    Audio Out: NO

    When used on Raspberry Pi, you need to modify the 'config.txt'

    Add the following code to the config.txt file:
    max_usb_current=1
    hdm_group=2
    hdm_mode=87
    hdm_timings=400 0 100 10 140 1280 10 20 20 2 0 0 0 60 0 43000000 3

    Note: If it is Raspberry Pi 4, you also need to comment out dtoverlay=vc4-fkms-V3D.

    Package includes:

    1 x 7.9inch LCD Screen
    1 x Cable
    1 x USB cable
