Specifications:
Type: MG0-000-0027 / MG0-001-0060

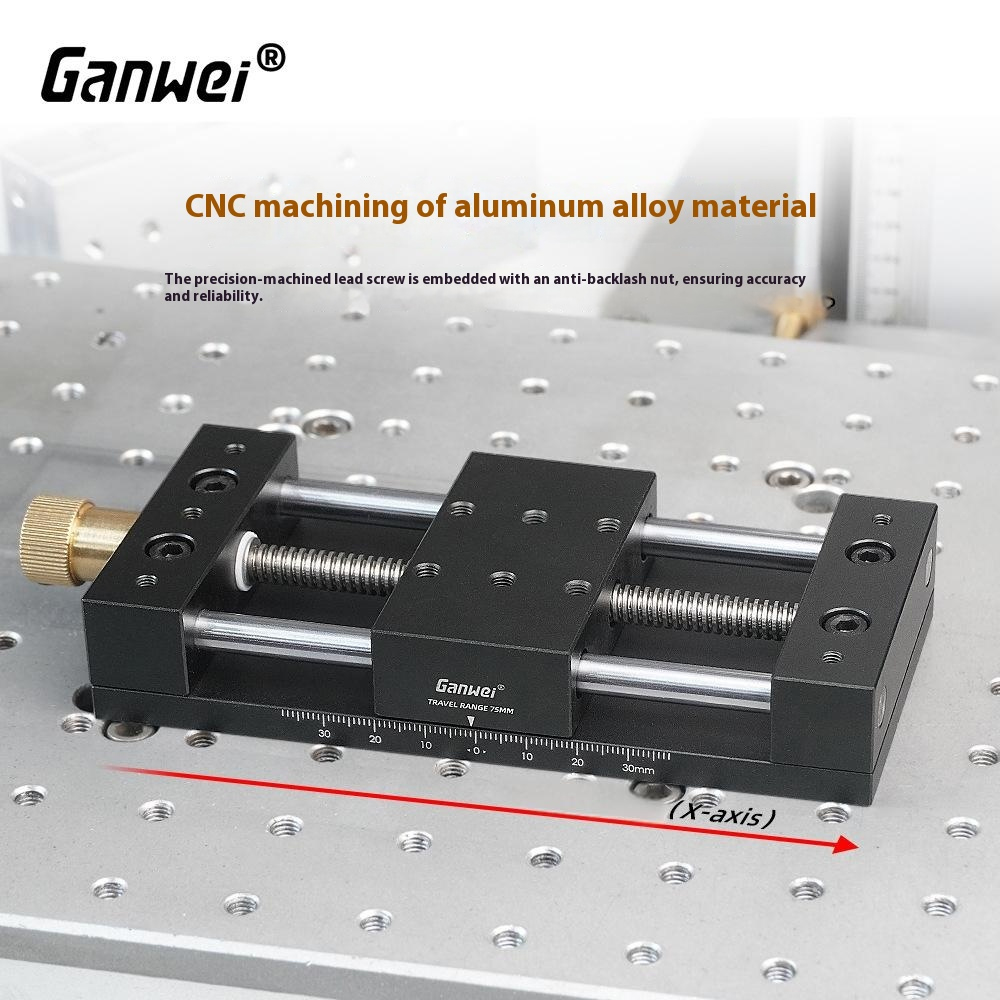

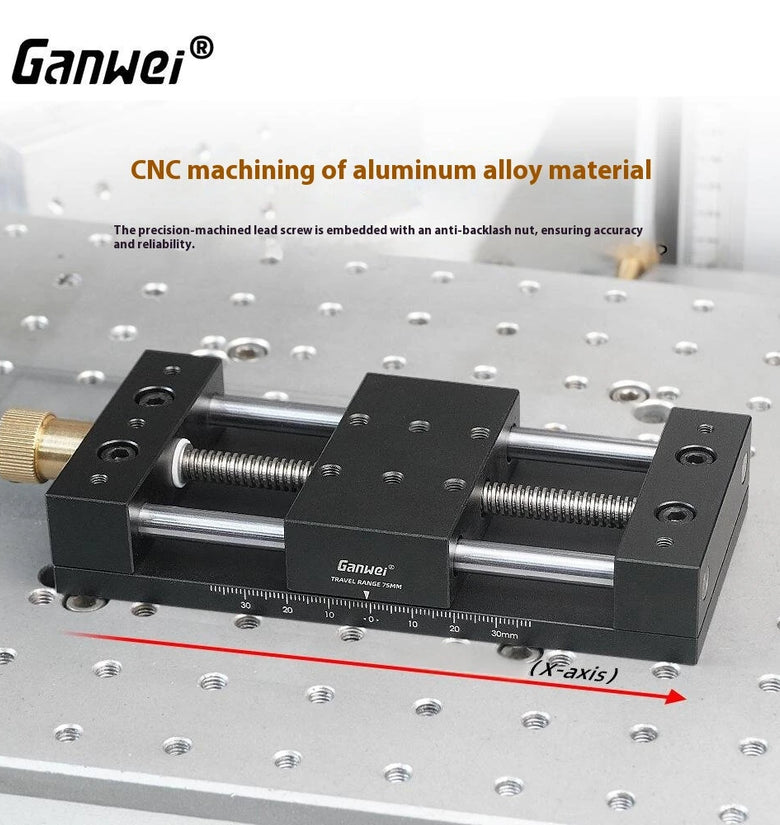

Material: Aluminum alloy (main body), stainless steel guide shaft, brass lead screw nut

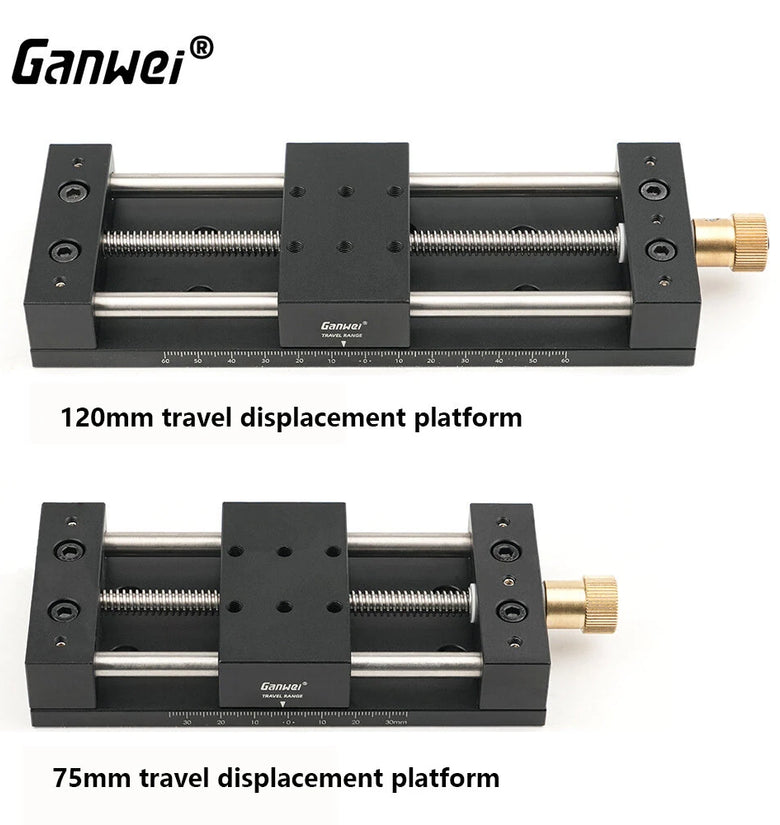

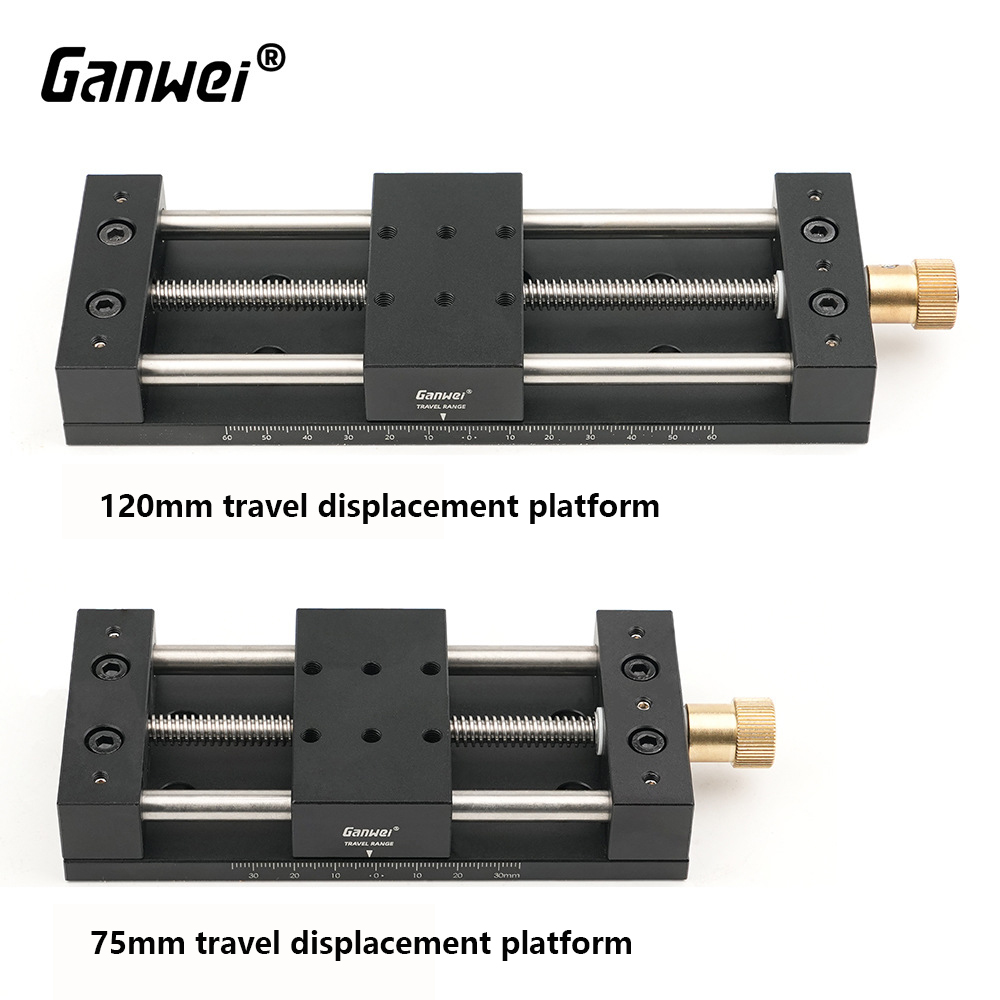

Travel Range: Available in 75mm(MG0-000-0027) or 120mm(MG0-001-0060)
Load Capacity: 10kg
Screw Pitch: 2mm per revolution
Lock Mechanism: Top screw
Graduation Scale: Laser engraved for precise positioning
Fixed Screw: M5 (Six holes)
Sliding Surface Dimensions: 40mm x 70mm
Package Size: 230mm x 100mm x 70mm (for single platform)
Net Weight: 0.7kg (75mm without base plate); 0.8kg (75mm with base plate)


Features:
1. High Precision Movement: Designed for highly accurate linear displacement, utilizing brass lead screw nuts and stainless steel guide shafts for consistent performance.
2. Laser-Engraved Graduation Scale: Equipped with clear graduation markings to facilitate convenient measurements and precise positioning.
3. Wide Load Capacity: Capable of supporting a load of up to 10kg, making it suitable for diverse lab and industrial applications.
4. Compact Design Options: Available with or without base plates, allowing users to select the configuration most suited to their setup.
5. Sturdy Aluminum Construction: Crafted from aluminum alloy with a high-quality anodized finish that resists corrosion and wear over time.


Package Included:

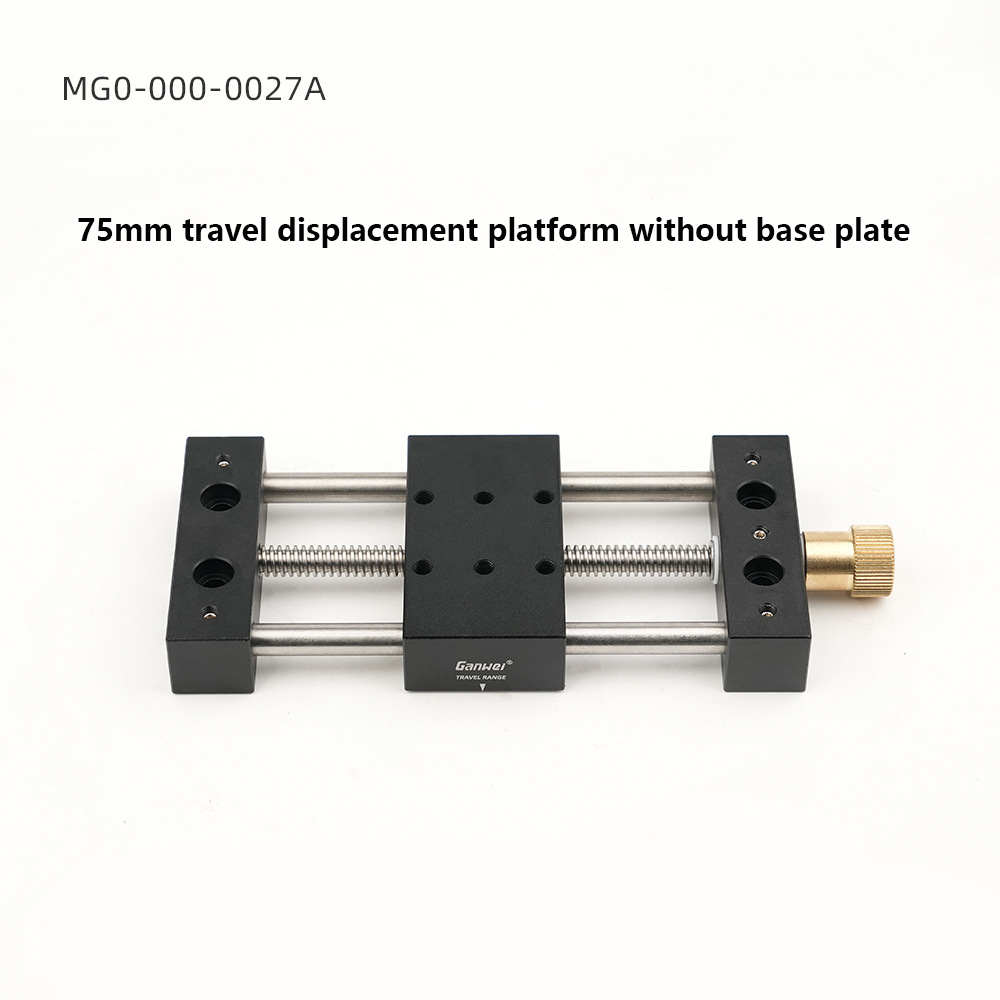

MG0-000-0027A：
1 x 75mm travel displacement platform without base plate

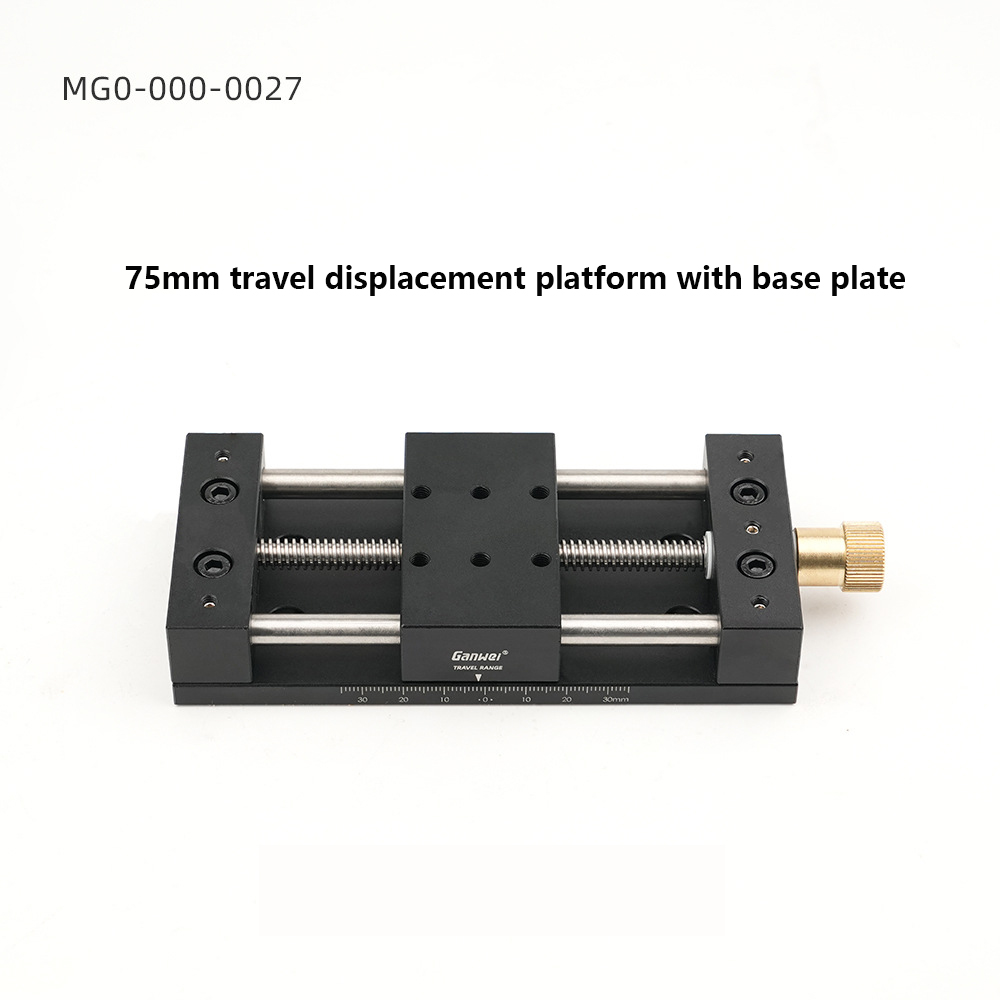

MG0-000-0027:
1 x 75mm travel displacement platform with base plate
MG0-000-0027B:
2 x 75mm travel displacement platform with base plate

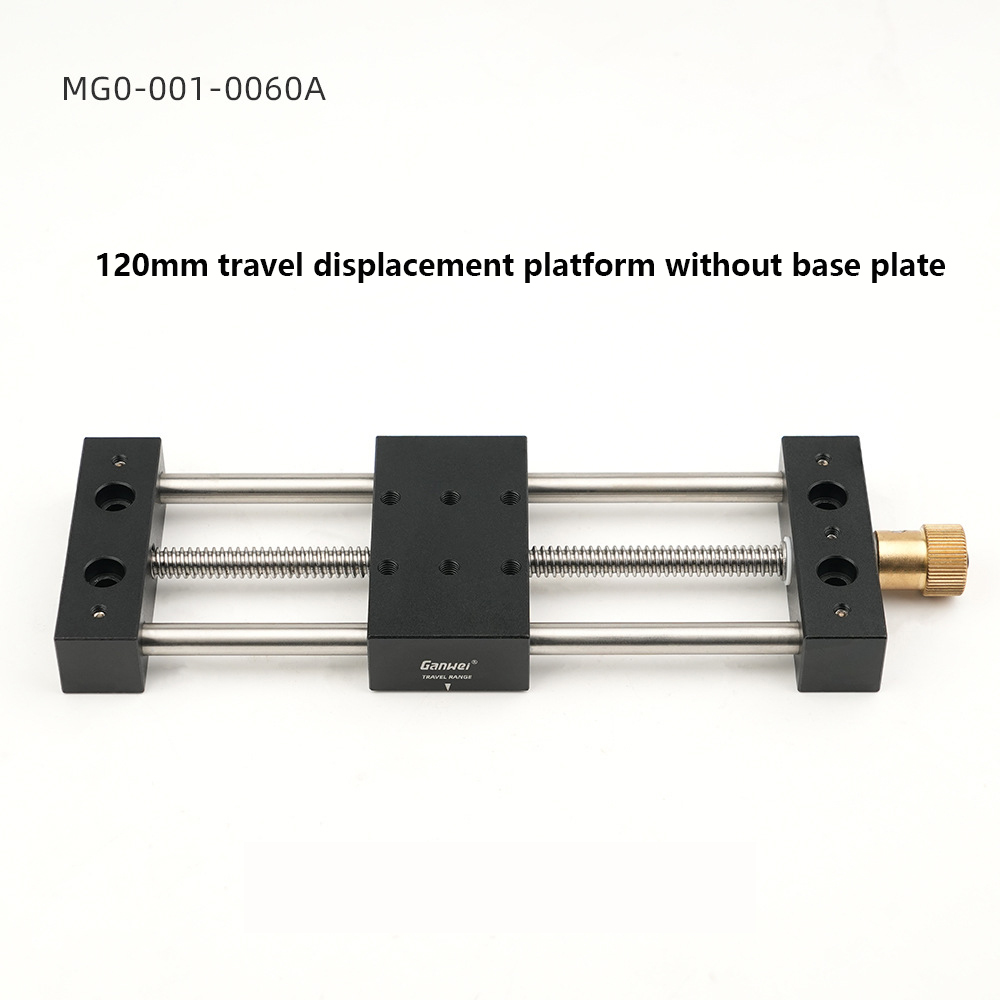

MG0-001-0060A:
1 x 120mm travel displacement platform without base plate
MG0-001-0060:
1 x 120mm travel displacement platform with base plate

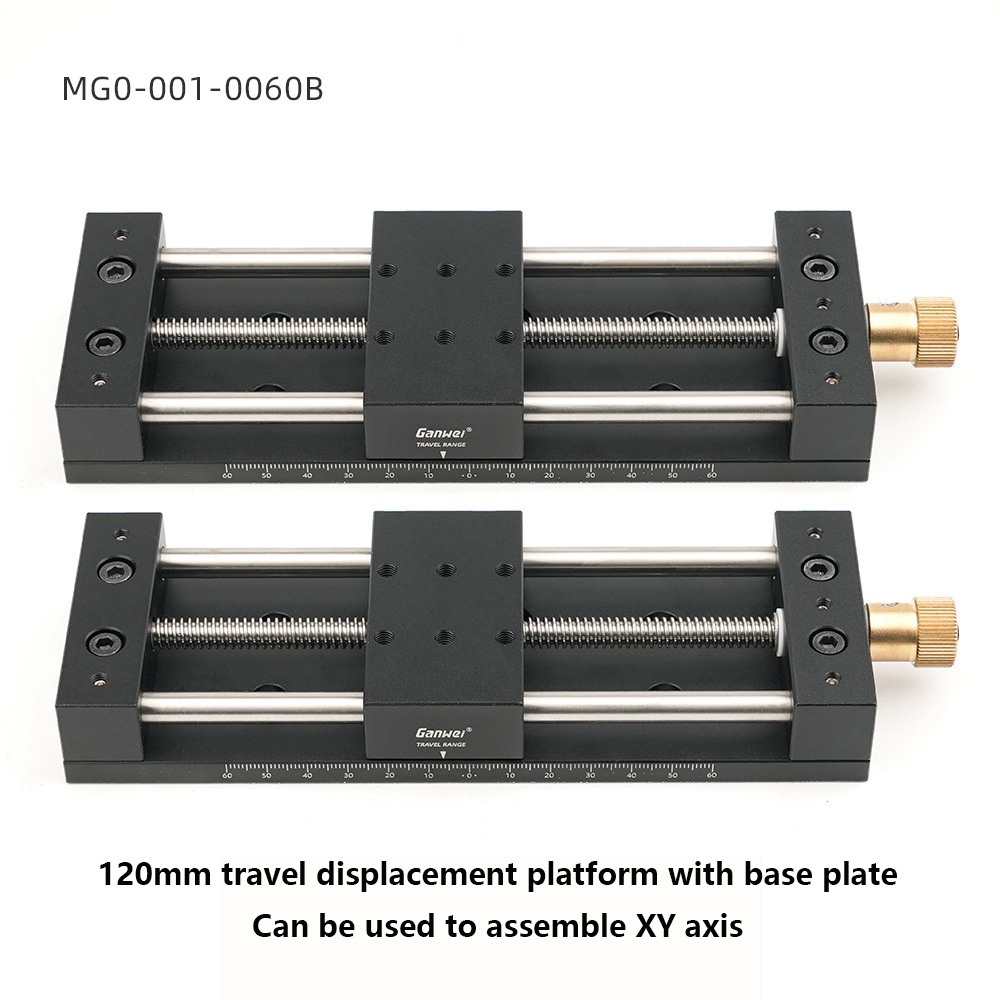

MG0-001-0060B:
2 x 120mm travel displacement platform with base plate
