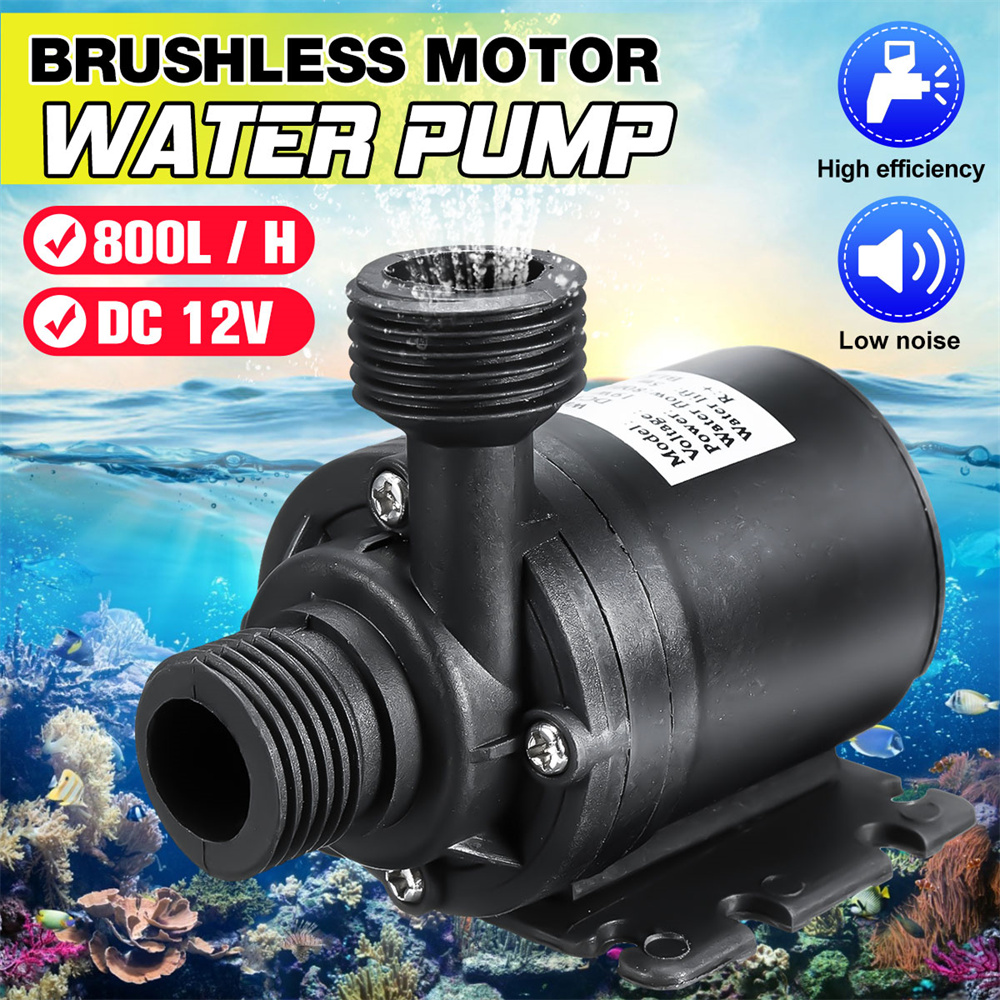

Specifications:
| Name: |
Water Pump |
| Model: |
ZYW680 |
| Materials: |
ABS |

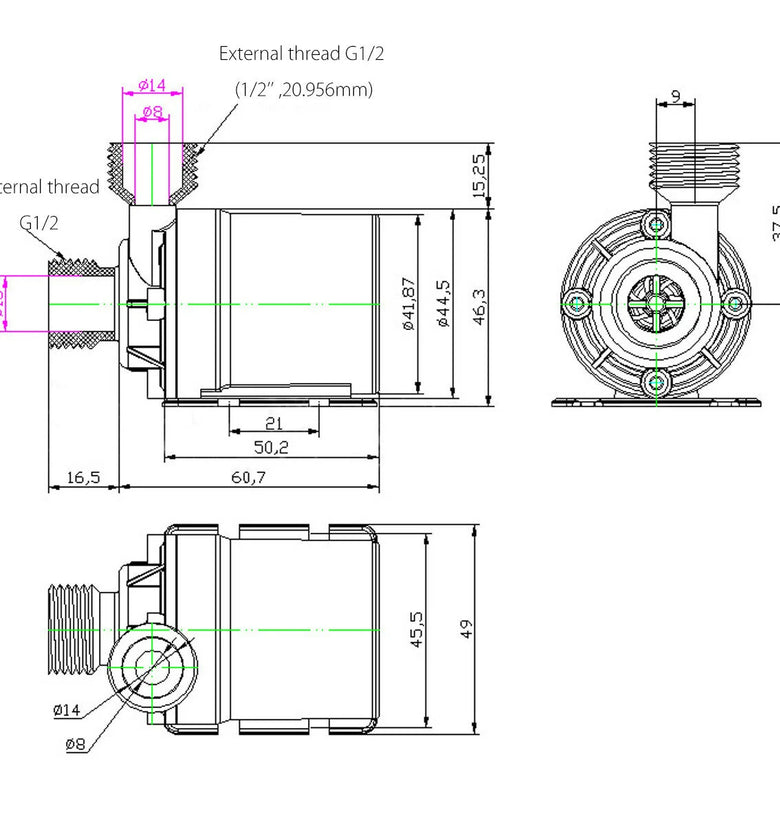

| Inlet/Outlet: |
4mm Threaded port |
| Voltage: |
DC12V |
| Power: |
19W |
| Maximum Rated Current: |
1000MA |
| Flow Rate: |
800L/h(m3/h) |
| Max Water lift: |
5 metre |
| Working environment temperature: |
1-60℃ |
| Max circulating water temperature: |
100°C |
| Noise: |
<40 db (water) under operation |
| Drive mode: |
electromagnetic |
| Conveying medium: |
hot water pump |
| Pump shaft position: |
horizontal |
| Impeller structure: |
open impeller |
| Impeller suction method: |
single suction type |

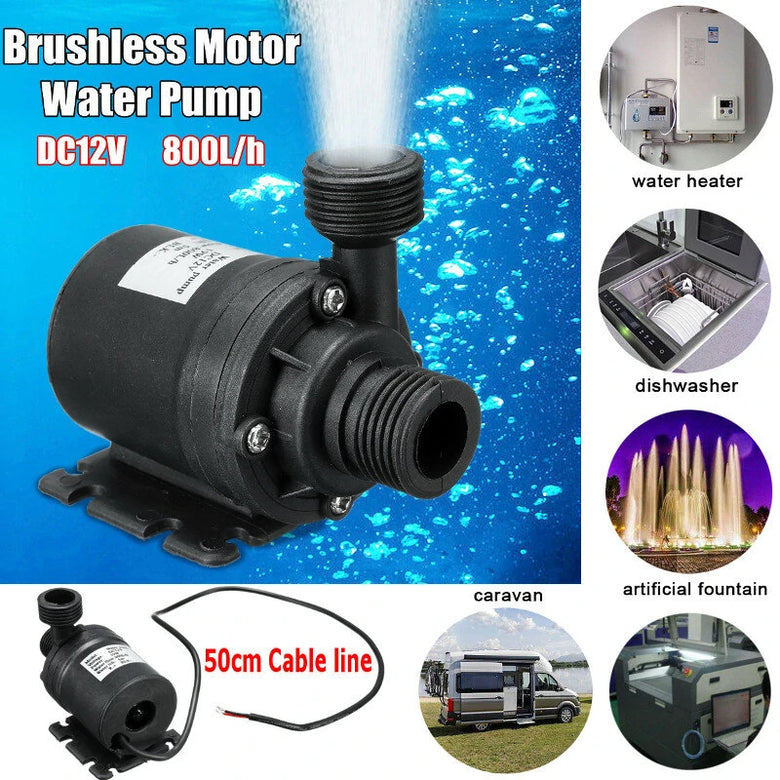

| Cable line: |
50cm |

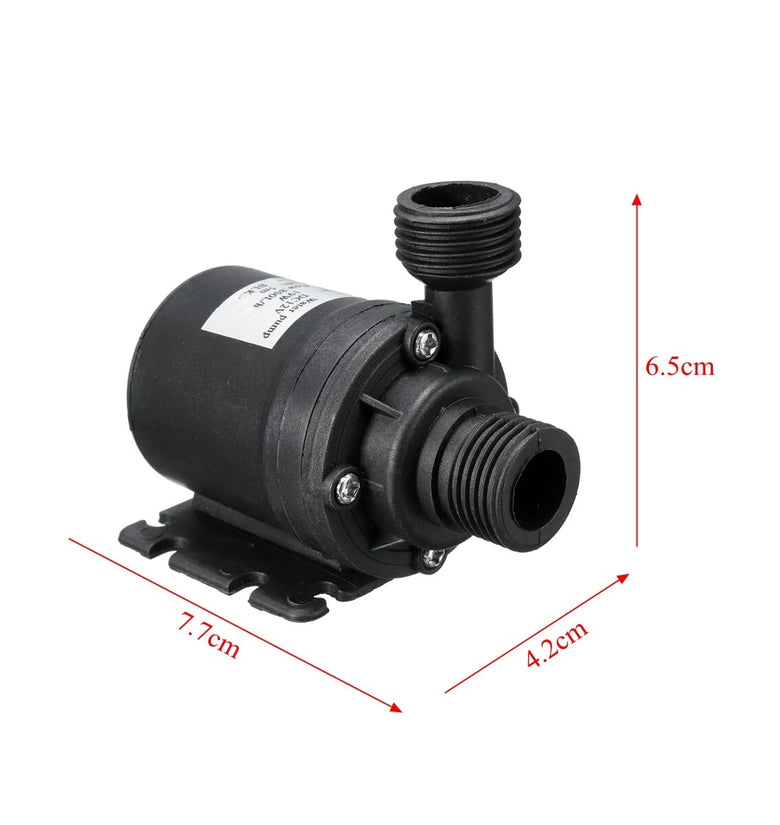

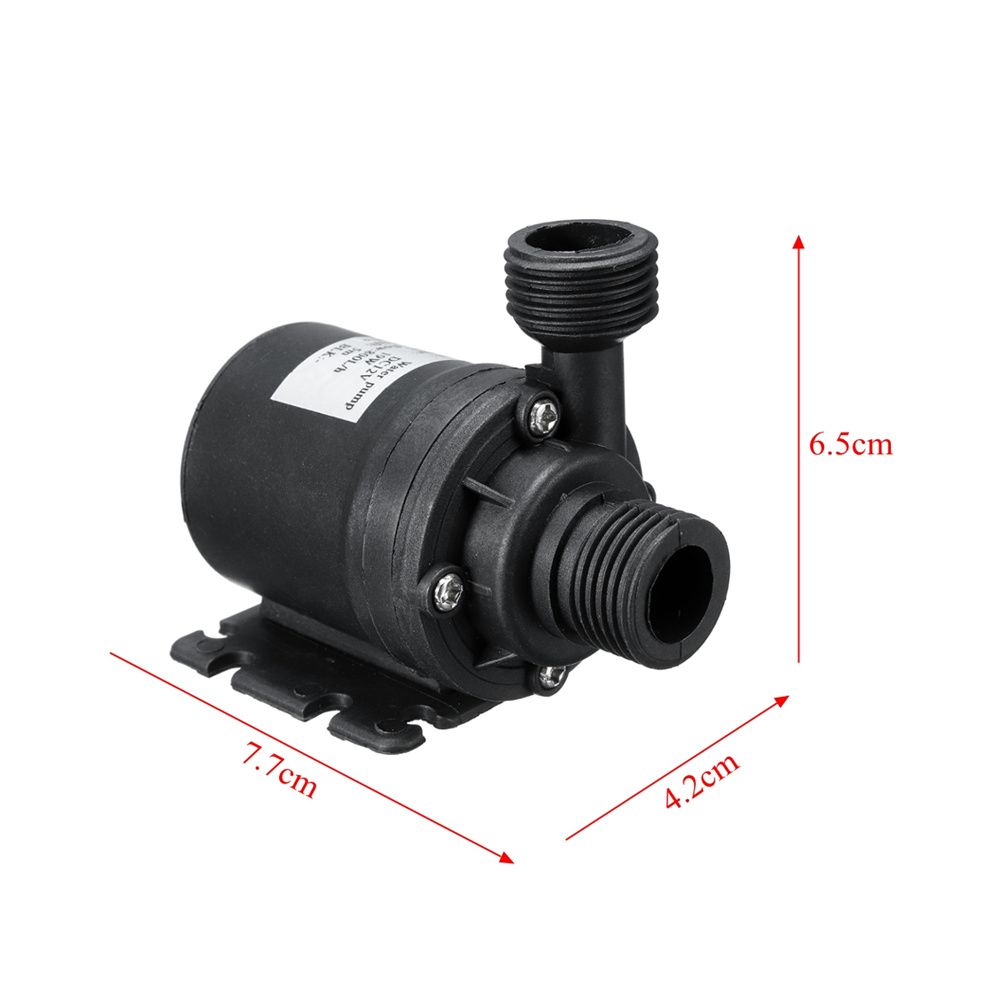

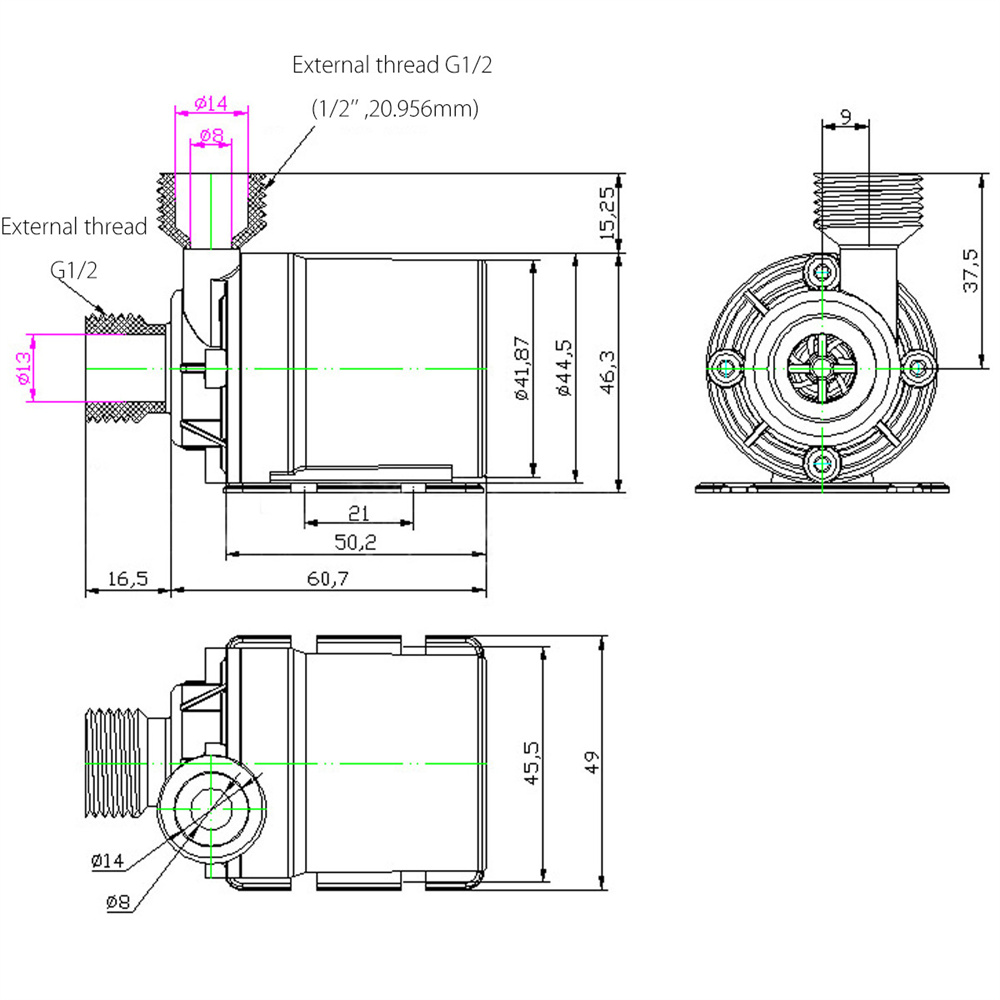

| Sizes: |
About 7.7cm(L) x 4.2cm(W) x 6.5cm(H) |
Features:
- Uses advanced electronic components and high-quality wear-resistant shaft.
- Long working life, continuous power-on working time of more than 10,000 hours.
- It is smooth operation, high efficiency, good performance.
- Small volume, low noise, safety and environmental protection.

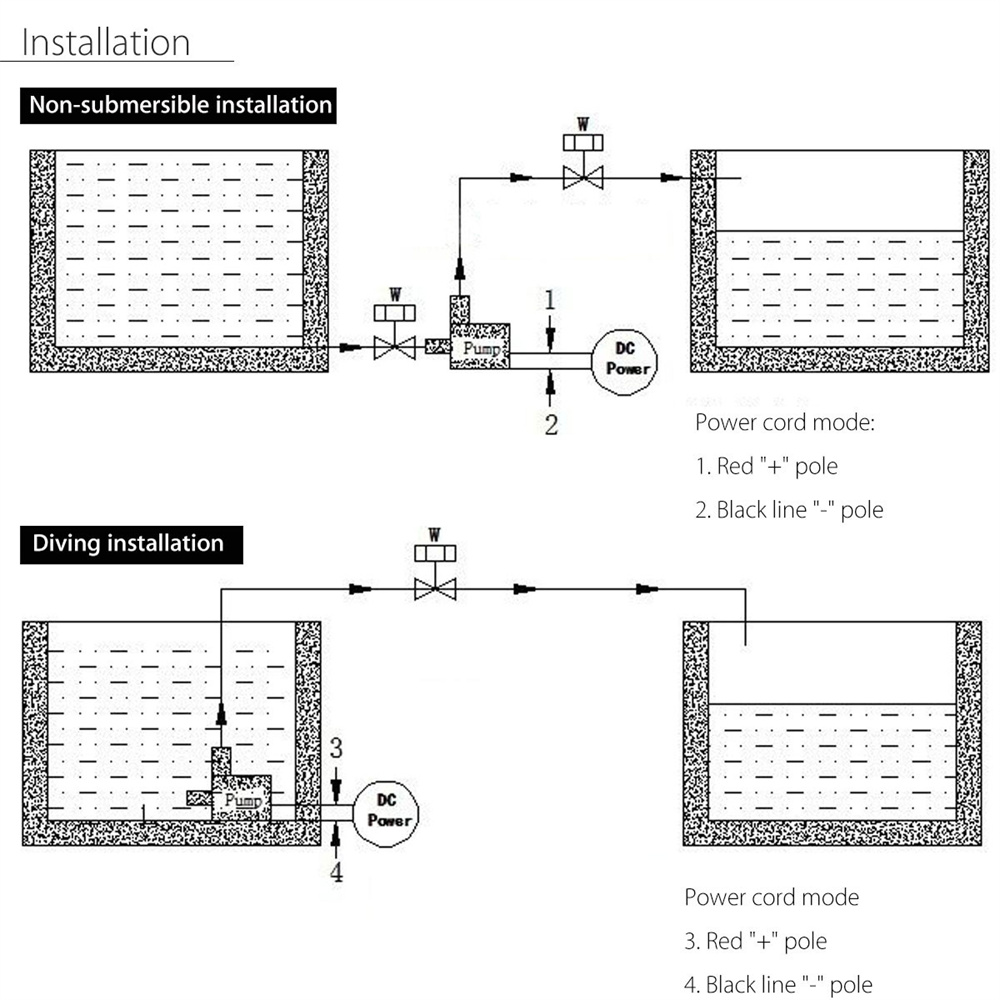

Usage:

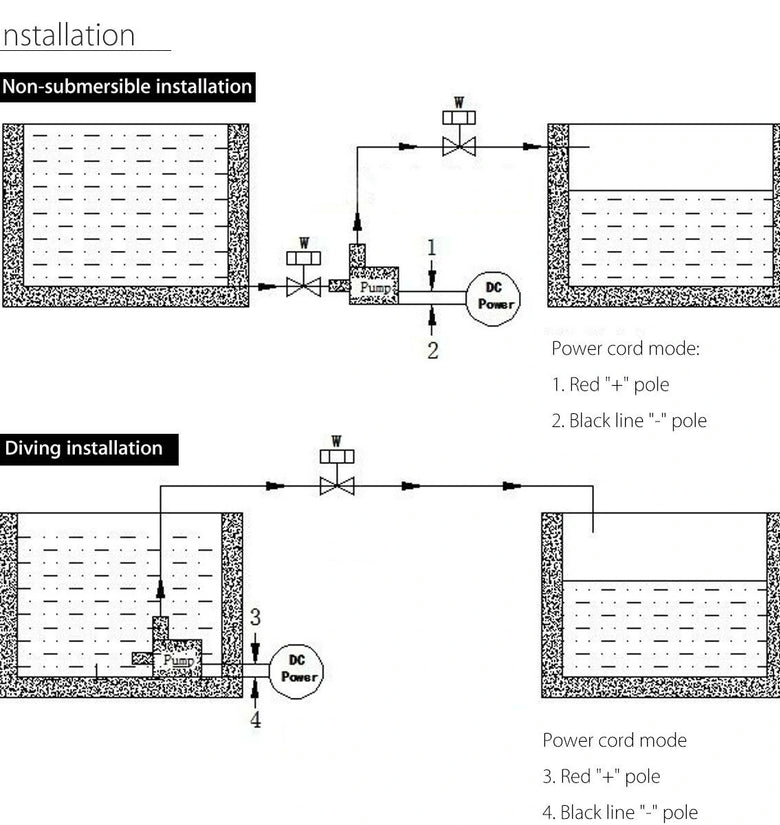

The water pump cable (red l!ne is positive, do not take the wrong) received a suitable power supply (the battery can be a battery, it can be a power converter), and then a good water pipe, then pump into the water, Can be used normally.
(Note: The DC brushless pump is a centrifugal pump, the pump water flow with the increase of the head decreases. No diving without self-priming function, prohibit no water free.)
Common Troubleshooting:
1. The pump flow is reduced or no water. (The pump chamber can be disassembled for cleaning).
2. Tland use when the pump does not run water. (There is air in the pump or in the pipeline.)
Package included:

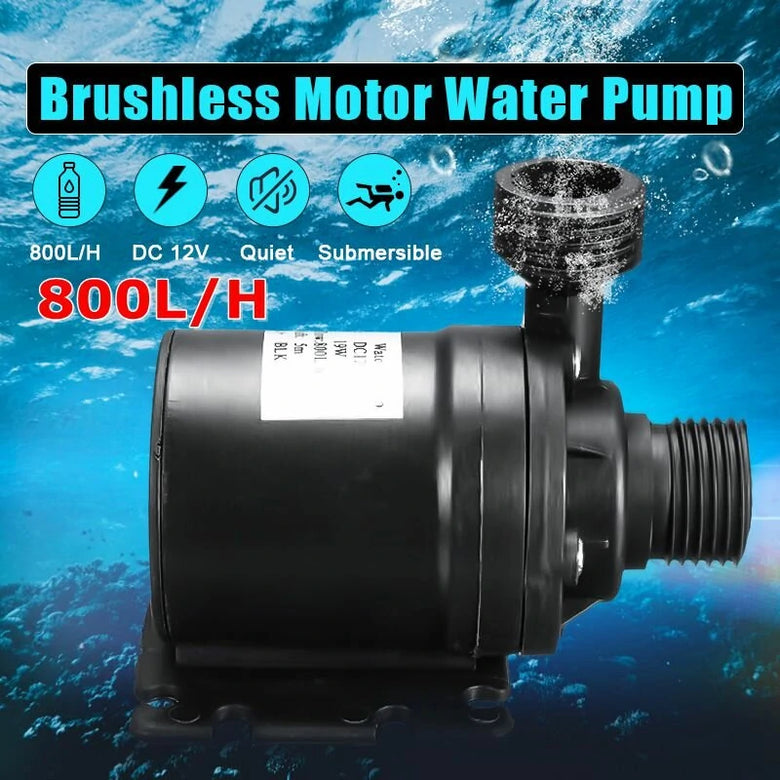

1 x Brushless Motor Water Pump
