Specifications:

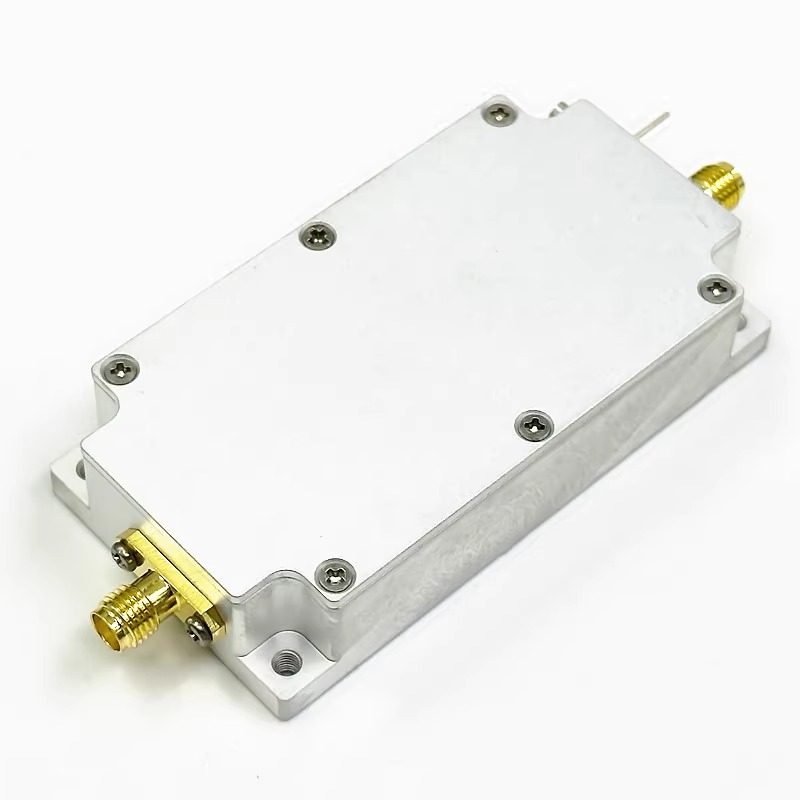

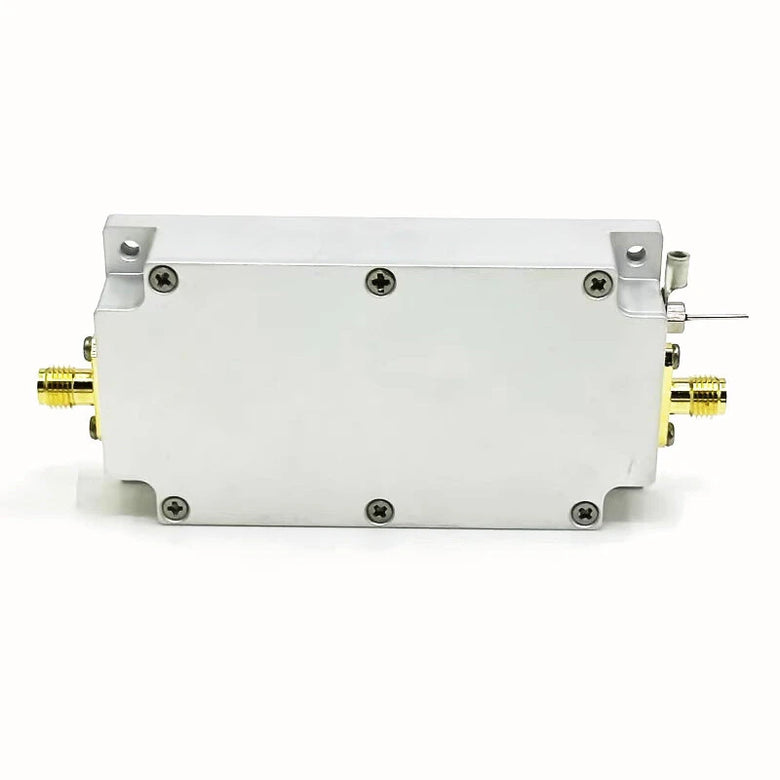

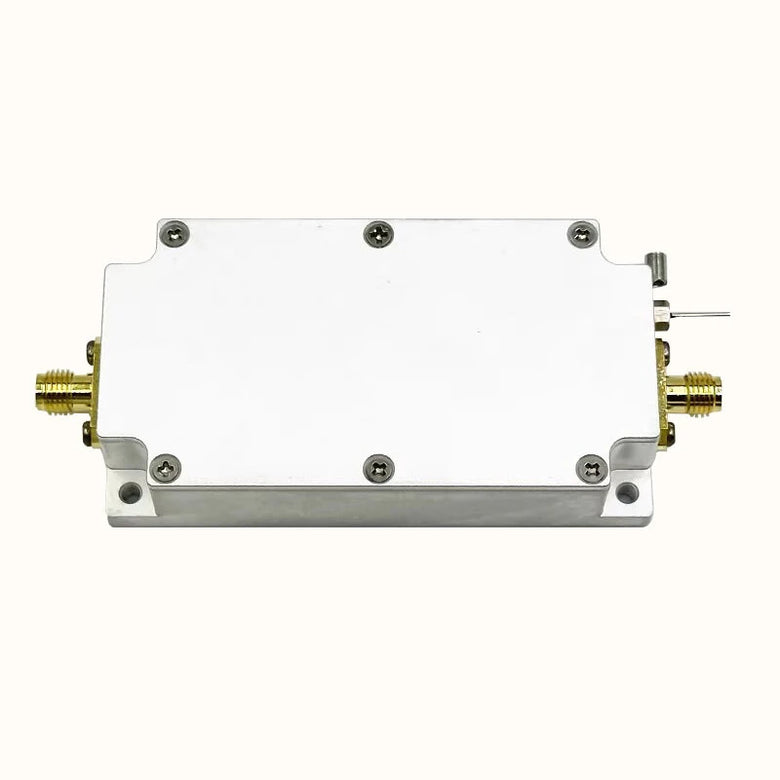

Model: 915MHz RF Power Amplifier

Working Frequency: 820-970MHz (860MHz, 915MHz)

Output Power:

13W (41dBm@24V, RFin=5dBm (3mW))

15W (42dBm@28V, RFin=5dBm (3mW))

20W (43dBm@28V, RFin=7dBm (5mW))

Working Voltage: 20-28V (24V recommended)

Working Current: 1.7A (depending on the supply voltage)

System Impedance: 50 ohms

Overall Size: 76x40x16.5mm (without joint)

Connector Type: SMA female head (outer screw inner hole)

Note: Additional heat sink required

Features:

1.Wide Working Frequency Range:

The 915MHz RF Power Amplifier operates across a broad frequency range of 820-970MHz, including specific frequencies like 860MHz and 915MHz, making it adaptable to various applications and ensuring wide compatibility.

2.High Output Power:

This module offers significant output power options, ranging from 13W to 20W depending on the operating conditions and input. This flexibility allows users to select the power level that best suits their transmission needs.

3.Versatile Voltage Operation:

With a working voltage range of 20-28V, the amplifier provides versatility in power supply options. The recommended 24V ensures optimal performance, while allowing adjustments based on specific requirements.

4.Standard System Impedance:

Featuring a 50-ohm system impedance, the amplifier ensures compatibility with standard RF systems. This impedance match is important for maintaining signal integrity and maximizing efficiency.

5.Compact and Connector-Ready:

The module's compact size makes it easy to integrate into various setups. With SMA female connectors, it offers a reliable connection interface that's easy to implement in different configurations.

Package Included:

1 x 915MHz RF Power Amplifier Modulemso-hansi-font-family:Calibri;mso-bidi-font-family:'Times New Roman';font-size:10.5000pt;
