[Product Name]

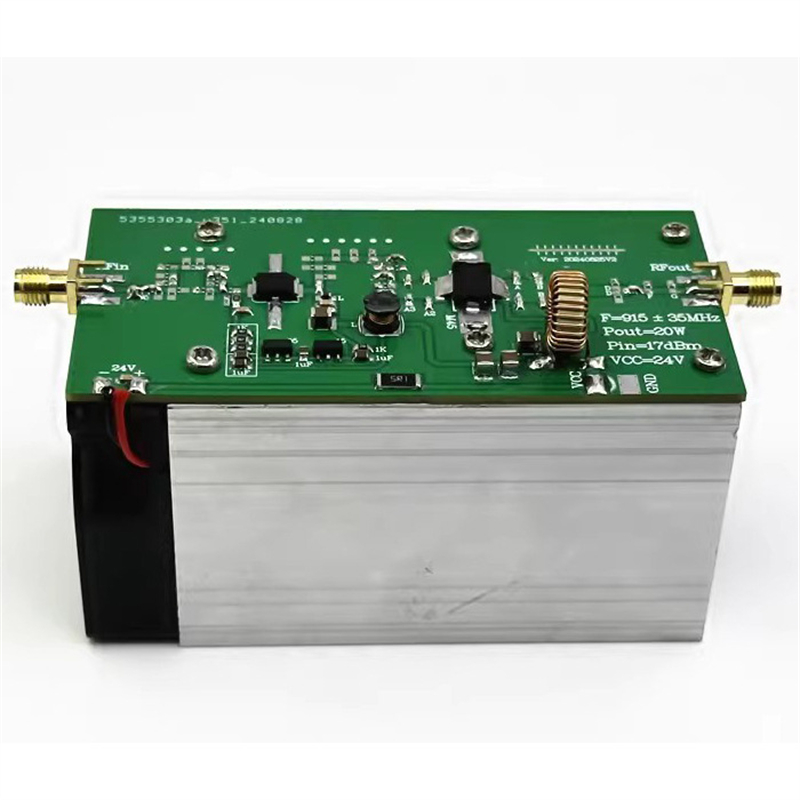

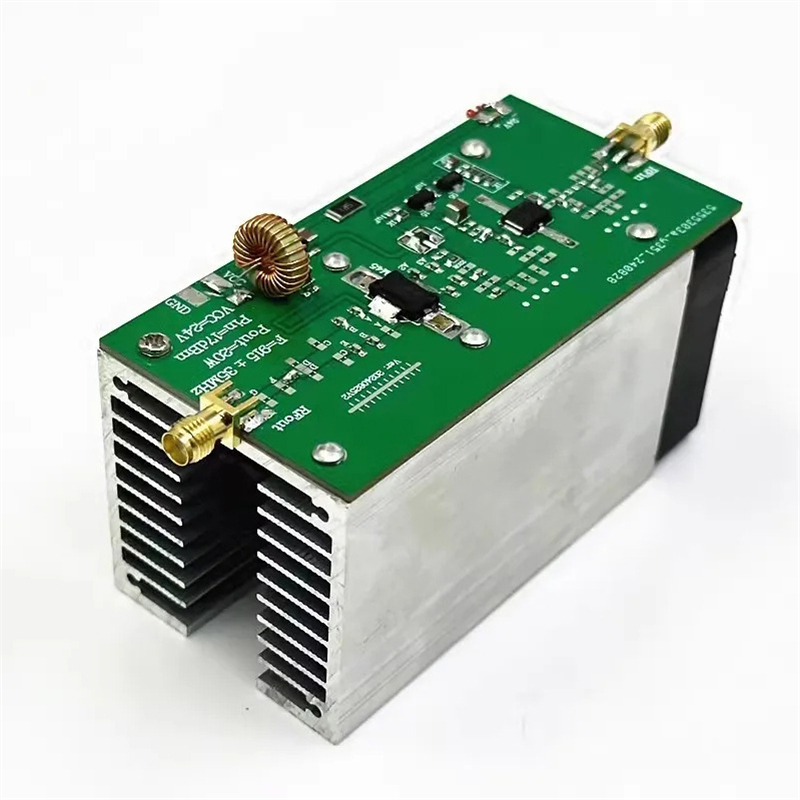

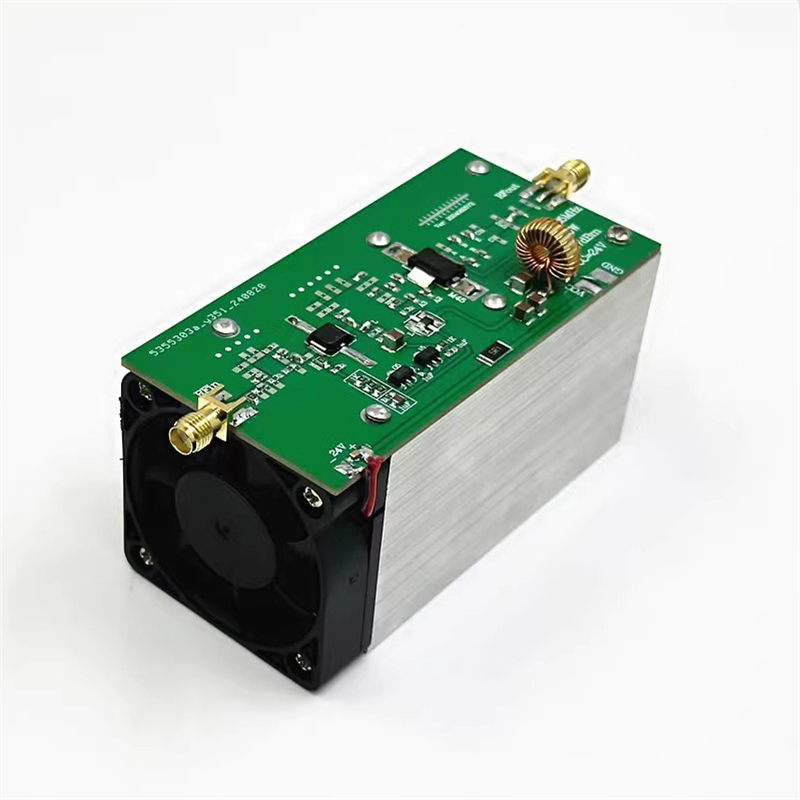

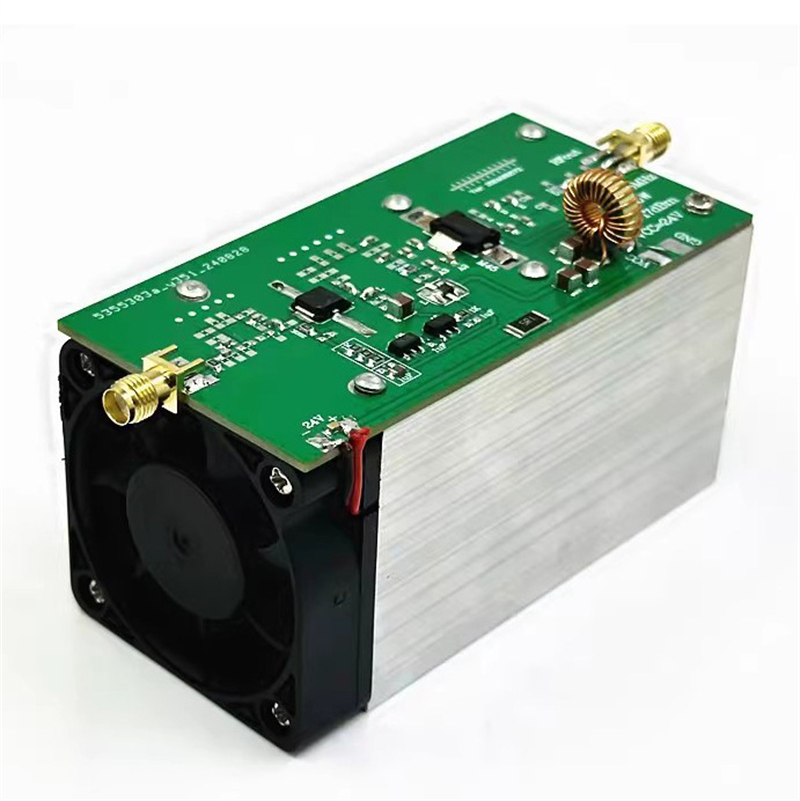

915MHz 20W+ RF Power Amplifier (with Heatsink)

[Specification]
● Operating Frequency: 915±35MHz
● Output Power: ≥20W (Input 13-20dBm / 0.02W)
● Operating Voltage: 24-28V DC (24V recommended)
● Operating Current: ≈3.5A (Dynamically adjusted with voltage/input)
● Connector Type: SMA-Female (External Thread, Female Hole)

[Physical Characteristics]
▷ Dimensions: 50×50×100mm (excluding connector)
▷ Weight: 230g
▷ Heatsink Structure: Integrated aluminum alloy heatsink

[Application Scenarios]
✓ Industrial Wireless Communication Systems
✓ 915MHz ISM Band Device Enhancement
✓ Internet of Things (IoT) Base Stations
✓ Long-Range RF Signal Coverage

[Product Advantage]
◆ Wide voltage compatibility: Flexible 24-28V power supply
◆ Plug and play: Standard SMA interface for fast deployment
◆ Efficient heat dissipation: Continuously and stably outputs 20W+ power
◆ Compact design: Palm-sized, space-saving

[Package Included]
1 x 915MHz 20W RF Power Amplifier
