Specifications:
Supply Voltage: ±5V
Operating Current: ±95mA
Conversion Gain: 8dB
RF/LO Input Frequency Range: DC to 500MHz
IF Output Frequency Range: DC to 250MHz
Third-Order Intercept Point (IP3): +24dBm
1dB Compression Point: +10dBm
Output Impedance: 50Ω

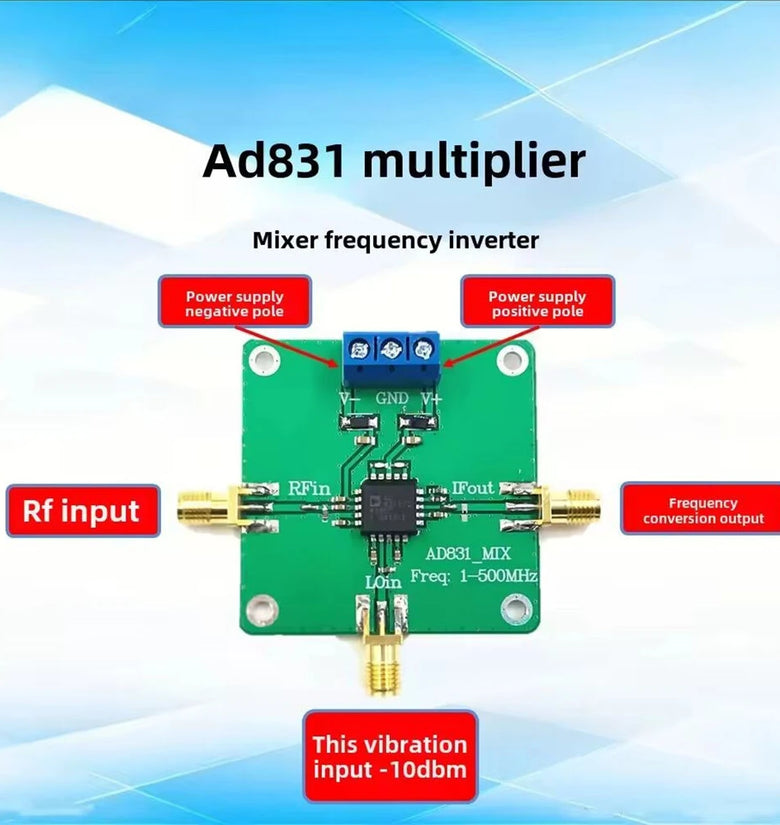

Interface Type: SMA female (external thread, inner hole)

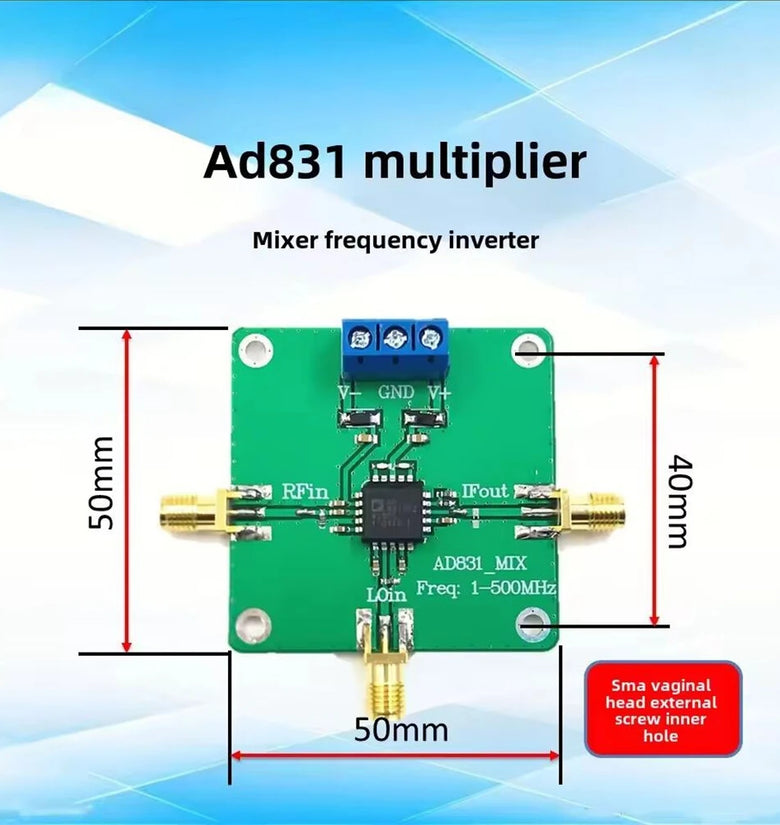

Dimensions: 50 x 50 mm
Weight: 16g

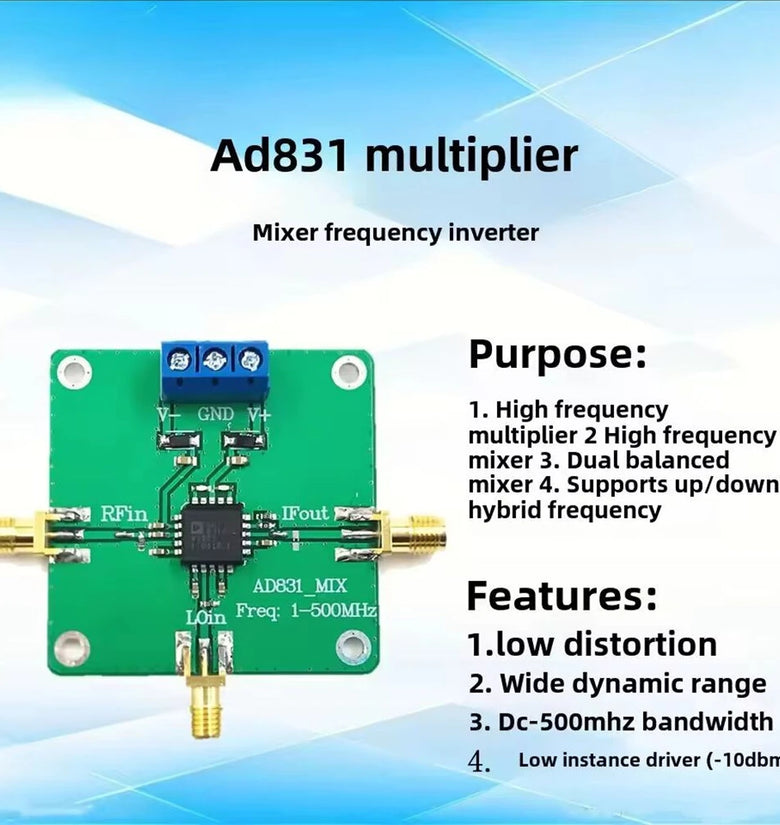

Features:
1. Wide Frequency Coverage
Supports DC to 500MHz RF/LO input and DC to 250MHz IF output, enabling high flexibility in diverse high-frequency applications.
2. Integrated LO Driver
Built-in LO driver eliminates the need for high-power external components, requiring only -10dBm LO input for optimal operation.
3. Optimized Power Efficiency
Allows users to program operating power levels to balance performance and energy consumption according to specific requirements.
4. Exceptional Linearity
Guarantees superior signal integrity with a +24dBm IP3 and +10dBm 1dB compression point, ideal for handling strong signal environments.
5. Compact Design
Offers a lightweight and space-saving form factor at 50 x 50mm and 16g, simplifying integration in densely packed systems.

Package Included:

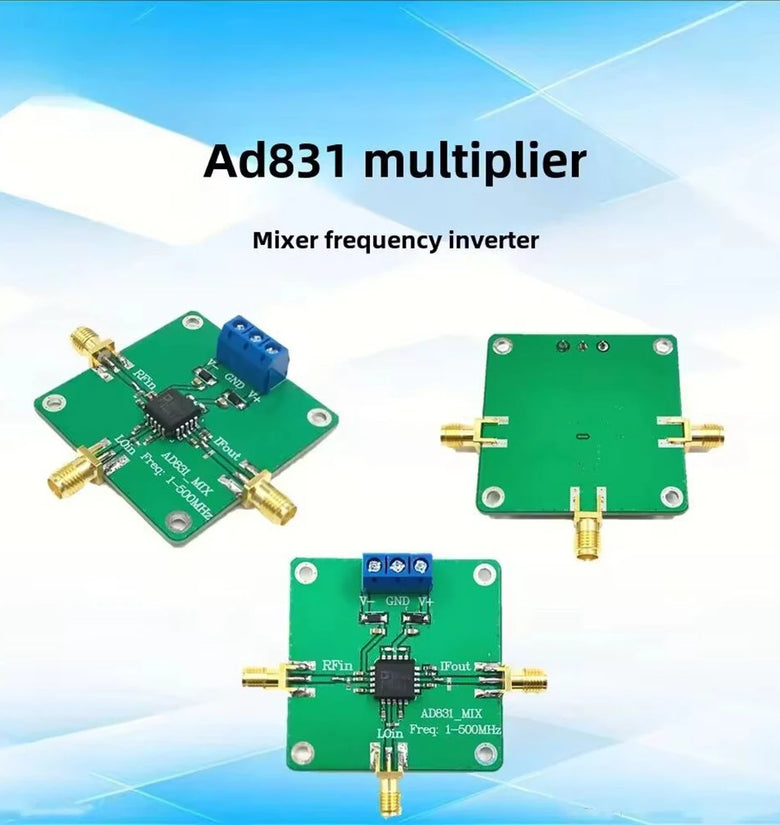

1 x High Performance AD831 Mixer Module
