Specifications:

FPGA: XC7z020-2CLG400I with dual-core Cortex-A9 processor

RF Chip: AD9363 configured in AD9361 mode

Frequency Range: 70MHz to 6GHz

Sampling Rate: Up to 61.44MHz

Memory: 1GB, 32-bit wide DDR3 running at 1066MHz

Storage: 32MB QSPI, supports TF card expansion

Clock Accuracy: VCTCXO initial frequency accuracy of 0.5PPM, external PPS or 10MHz disciplined oscillator supported

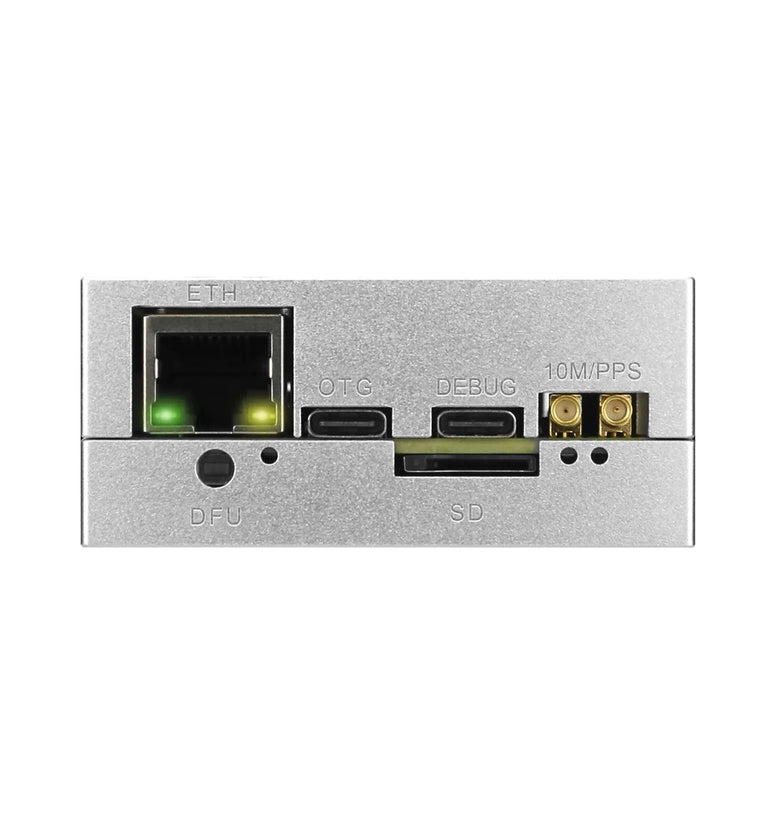

Interfaces: Gigabit Ethernet, USB OTG (TYPE-C), onboard JTAG and USB-to-serial port

PCB Design: 10-layer, impedance matching and signal integrity

Features:

1.Advanced FPGA with High-Speed Processing

Powered by XC7z020-2CLG400I FPGA featuring a dual-core Cortex-A9 processor, this SDR ensures high-performance computation for demanding applications.

2.Wide Frequency Range & Sampling Capability

Capable of operating within a frequency range of 70MHz to 6GHz with up to 61.44MHz sampling rate, the SDR is suitable for diverse RF applications.

3.Flexible Storage Options & Boot Modes

Equipped with 32MB QSPI for internal storage and expandable TF card support, the SDR offers automatic switching between QSPI boot and TF card boot modes.

4.Highly Accurate Internal & External Clock Reference

Integrated VCTCXO provides 0.5PPM initial frequency precision, while PPS or external 10MHz disciplined oscillator input enhances clock accuracy further.

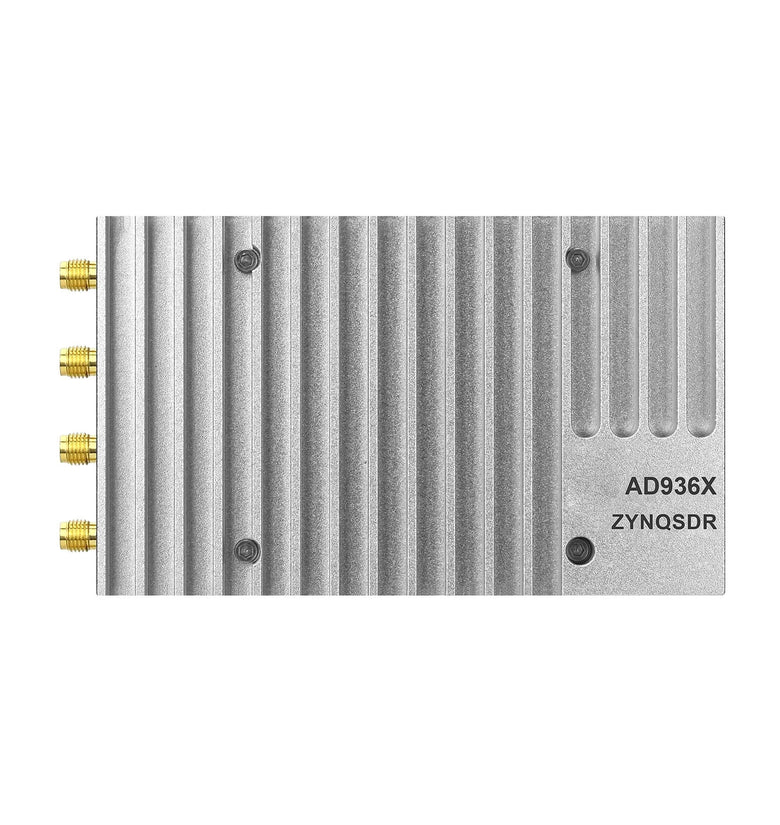

5.Robust Design for Heat Dissipation
