Specifications:

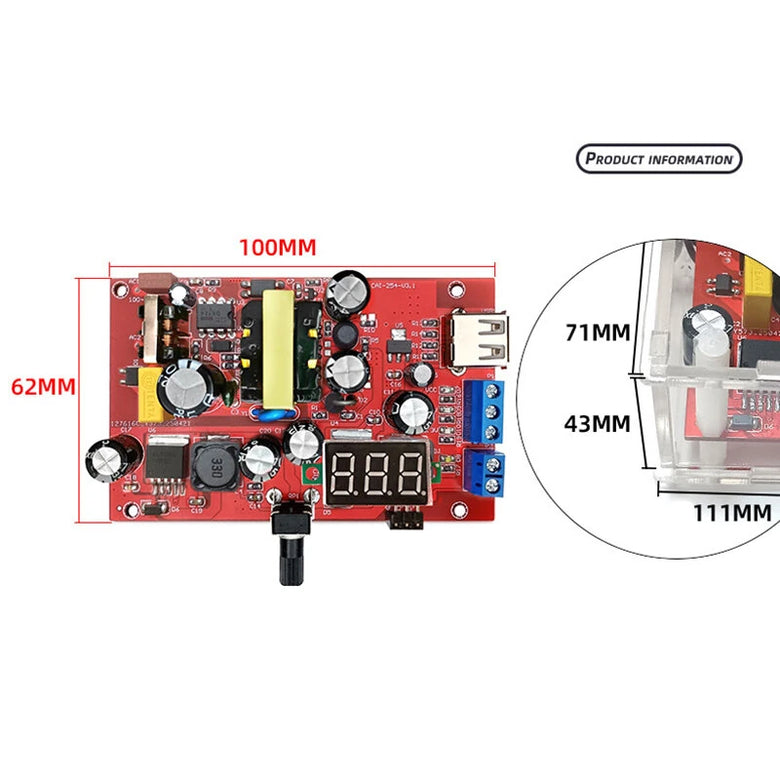

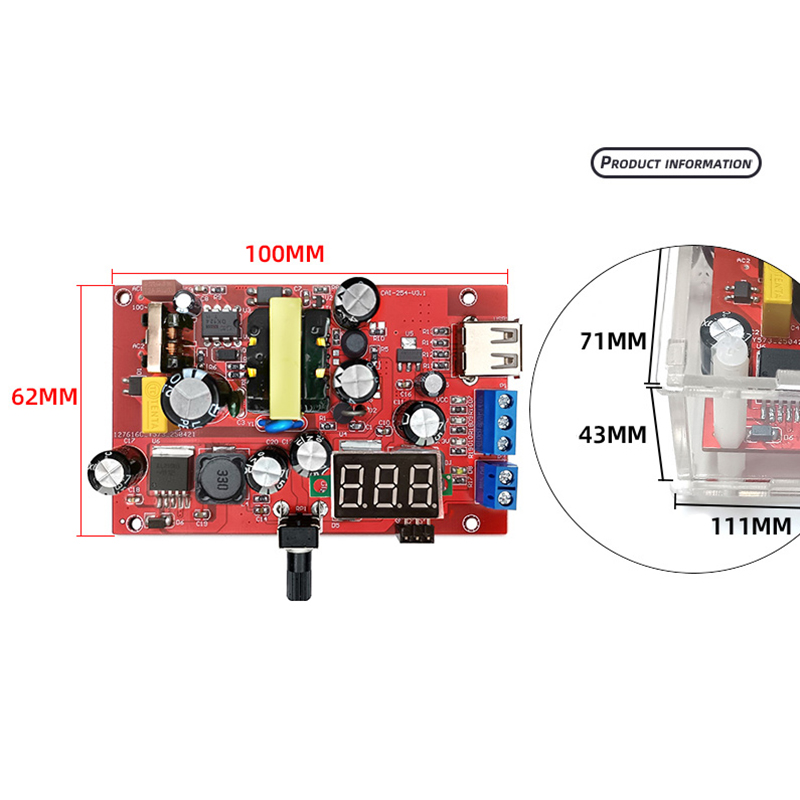

PCB Dimensions: 62mm x 100mm
External Dimensions: Length 71mm x Width 111mm x Height 43mm

Input: AC220V

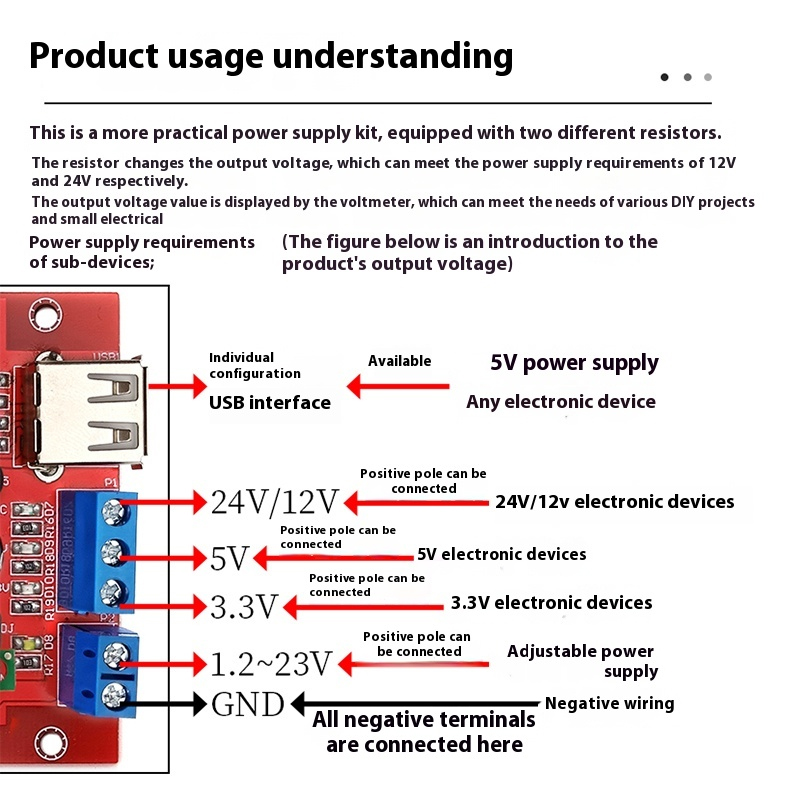

Adjustable Output Voltage Range: (R10 R15 position change resistor switch 12/24V)
24V model: 1.2V–23V adjustable, 3.3V, 5V, 24V, USB 1A output
12V model: 1.2V–11V adjustable, 3.3V, 5V, 12V, USB 2A output
Output Current: Rated 1A at 24V; Rated 2A at 12V
Output Power: Maximum 24W

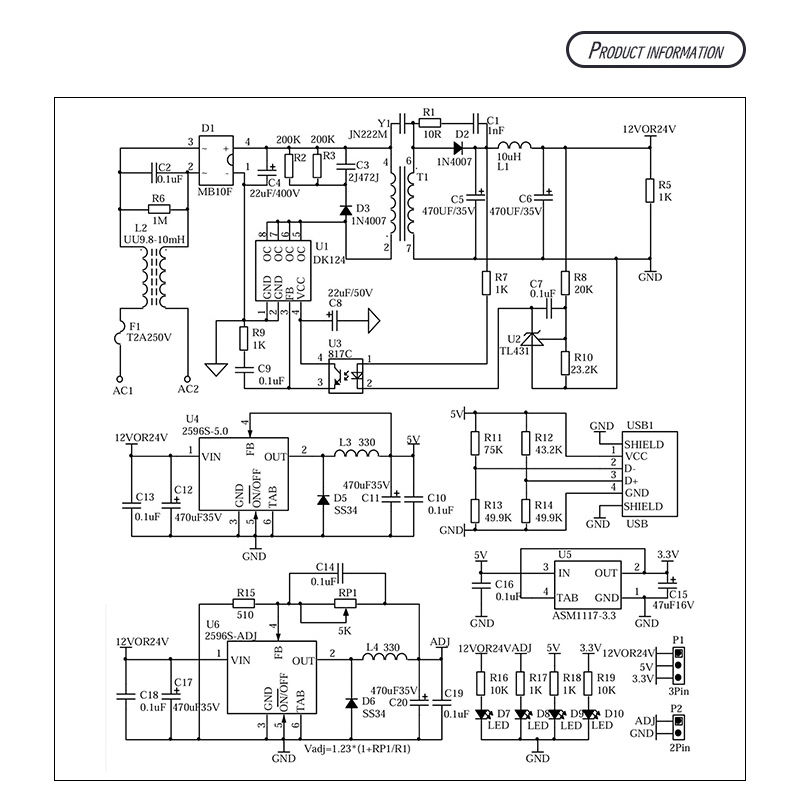

Voltage Regulation ICs: 2596-ADJ, 2596-5.0, 1117-3.3
Voltage Display: 3-digit LED digital display
Adjustment Method: Rotary potentiometer for voltage output; current is not adjustable
Applications: Circuit testing, USB-powered devices, micro motors, fans, and more

Note: This is a DIY kit, you need to assemble and solder.

Features:
1. Precise Voltage Adjustment
Offers fine-tuning voltage output with a rotary potentiometer, ideal for experimental circuits requiring accurate power settings.
2. Versatile Outputs
Multiple selectable voltage levels (such as 3.3V, 5V, and 24V) and USB interface to accommodate a wide variety of applications.
3. Compact and Efficient Design
Designed with minimal dimensions (71mm x 111mm x 43mm), this power kit saves space while maintaining performance integrity.
4. Real-Time Voltage Display
Features a 3-digit LED display that provides an instant and clear view of voltage output.
5. Broad Compatibility
Suitable for diverse settings including powering USB devices, running small motors, cooling fans, and laboratory circuit tests.

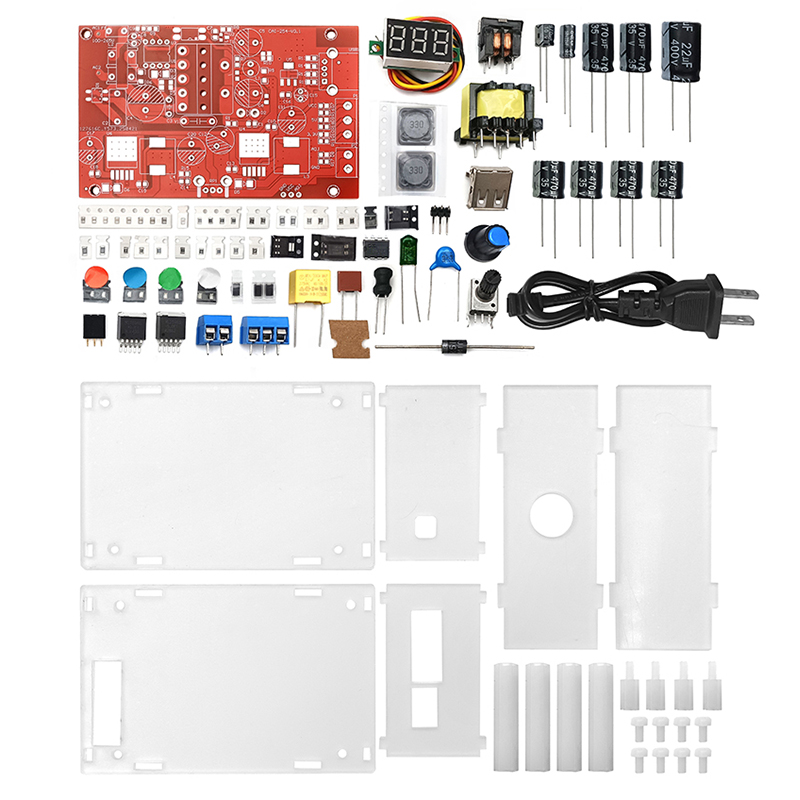

Package Included:
1 x Adjustable DC Power Supply Module DIY Kit (US plug)
