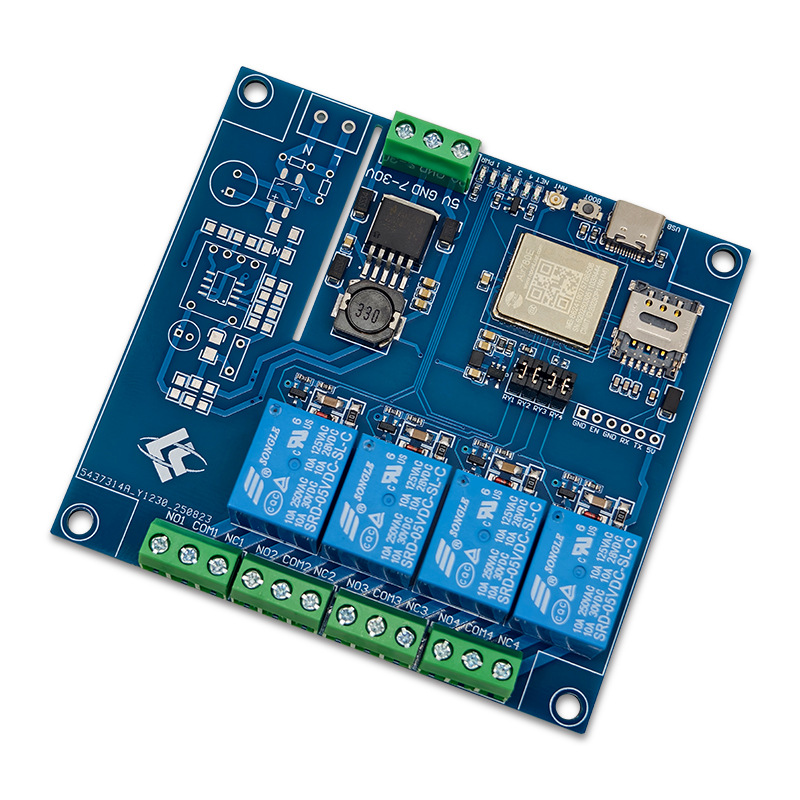

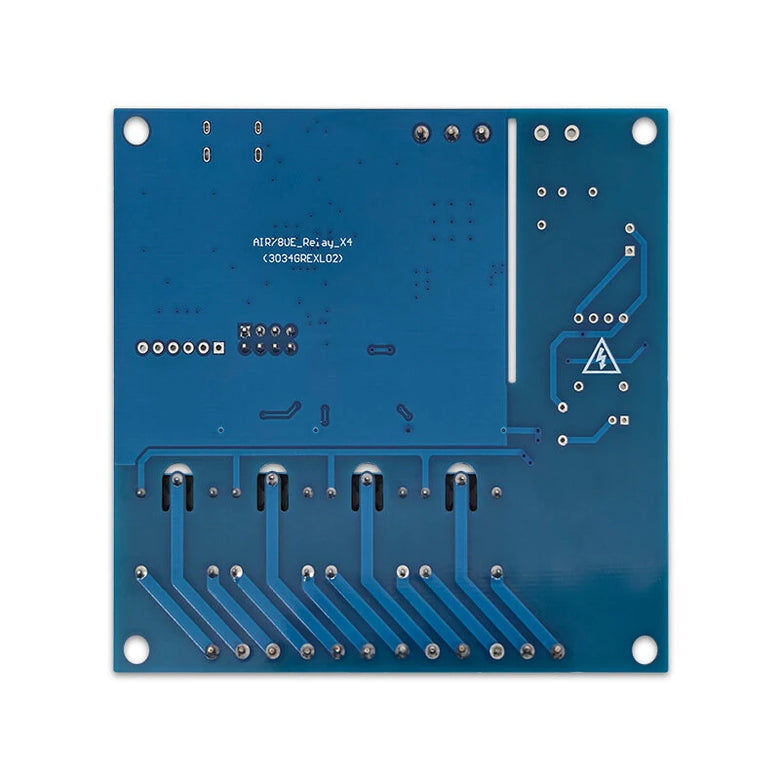

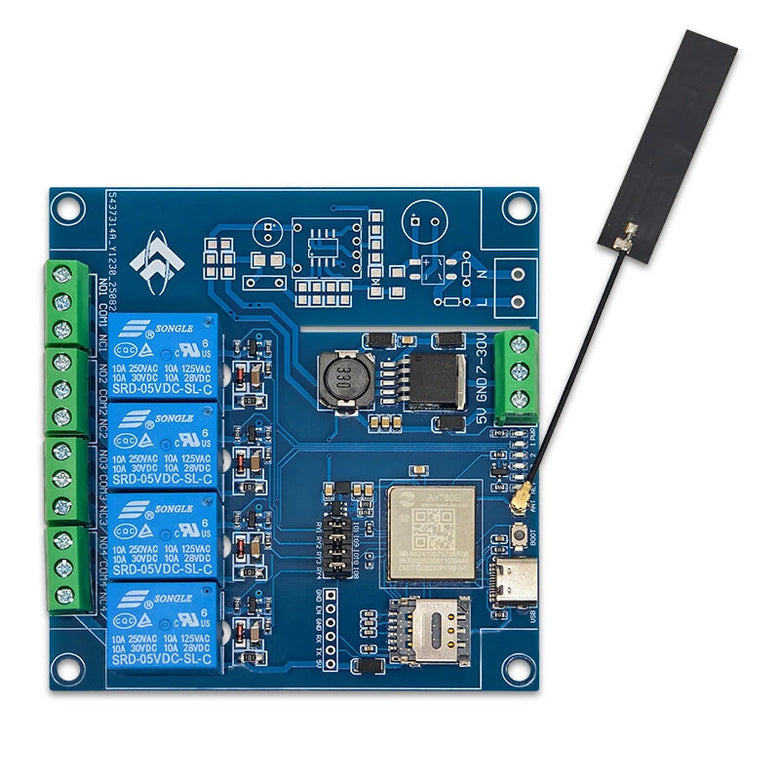

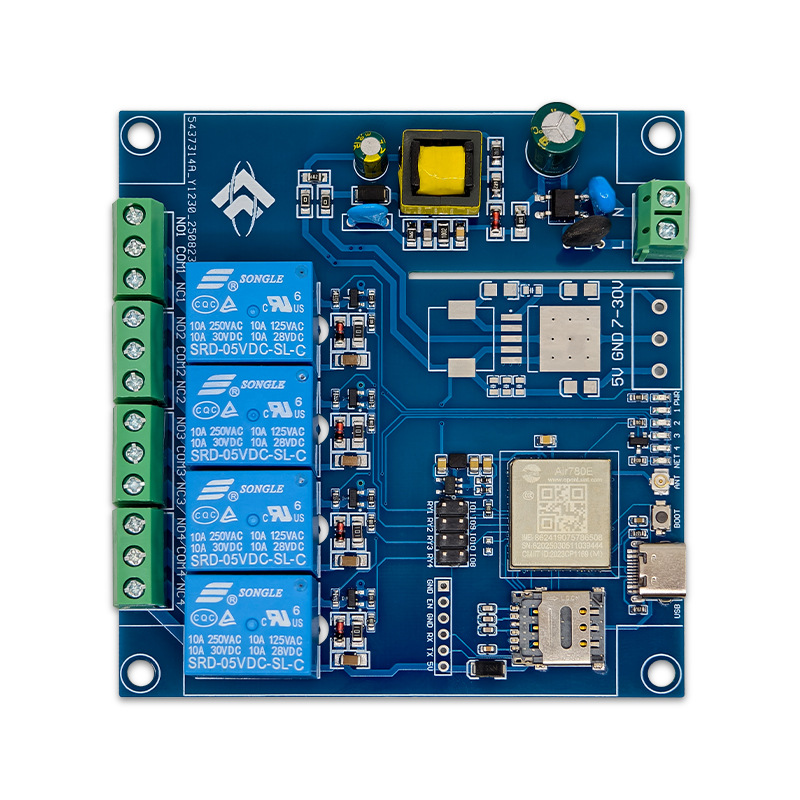

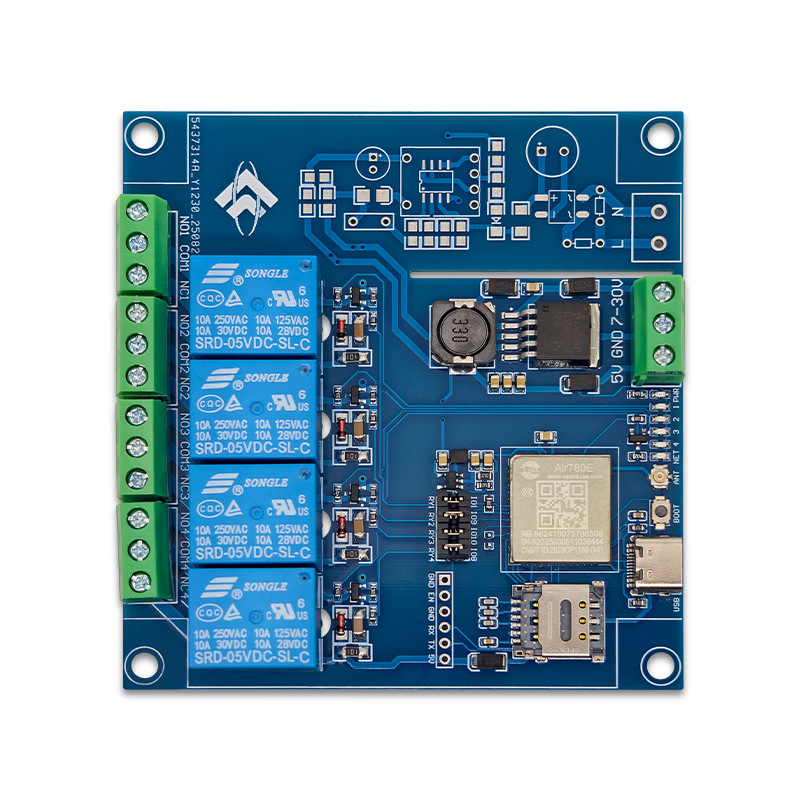

AIR780E 4G Full Netcom Four-Channel Relay Module LTE Cat.1 bis Communication Board Low Power Module Type-C DC7-24V GPIO Control Nano SIM Slot

R 549.69



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Specifications:
    Model: AIR780E 4G Full Netcom Four-Channel Relay Module
    Module: LTE Cat.1 bis communication module (AIR780E)
    Connectivity: Compatible with 4G networks, supports multiple operators and services
    Control Interface: GPIO1, GPIO9, GPIO10, GPIO8
    Ports: Type-C (5V) + 2.54mm pin (5V) + DC7~24V
    Dimensions: 93 x 87 mm
    Mounting Hole Diameter: 4 mm
    Weight: 78g

    Features:
    1.Versatile Development Options: Supports both AT command-based development and direct development using the AIR780E module, allowing flexibility for different projects.
    2.Energy Efficient Design: Equipped with a low-power AIR780E module that reduces energy consumption with a sleep power as low as 600μA.
    3.Nano SIM Integration: Easy-to-install flip SIM card holder supports nano SIMs for seamless connectivity.
    4.Network Status Indicators: Built-in network status indicator light powered by AIR780E module (GPIO27) for real-time connectivity status.
    5.Multiple Power Sources: Includes Type-C port, 2.54mm pin (5V), and DC7-24V input for compatibility with a variety of power sources and flexibility in installation.

    Package Included:
    1 x AIR780E 4G Full Netcom Four-Channel Relay Module
