  • AIR780E 4G IoT Relay Module Single Channel AT Command Support Low Power Type-C Nano SIM Slot Network Status LED Module

SKU:

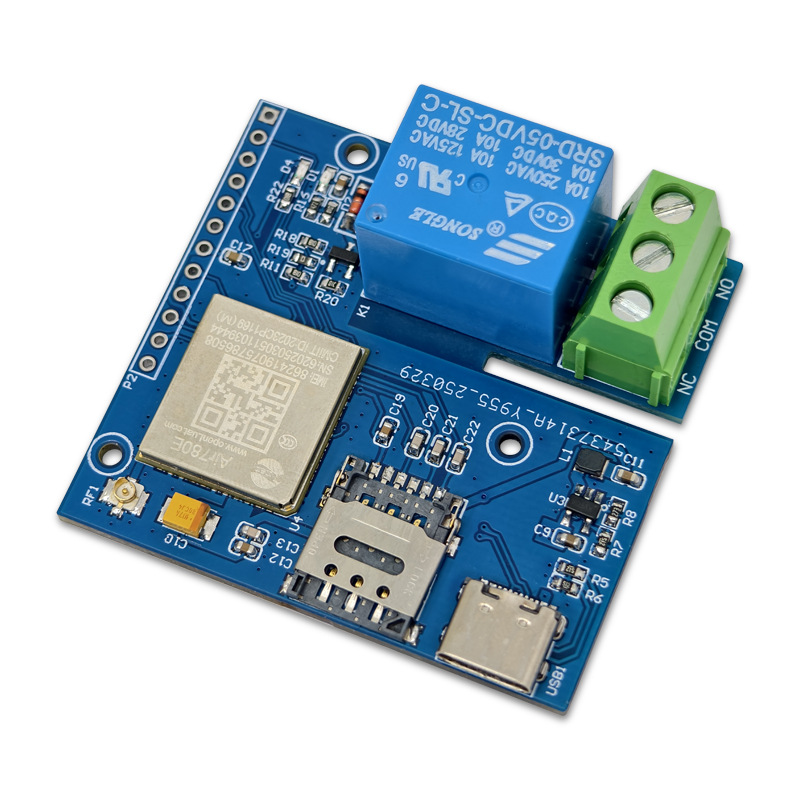

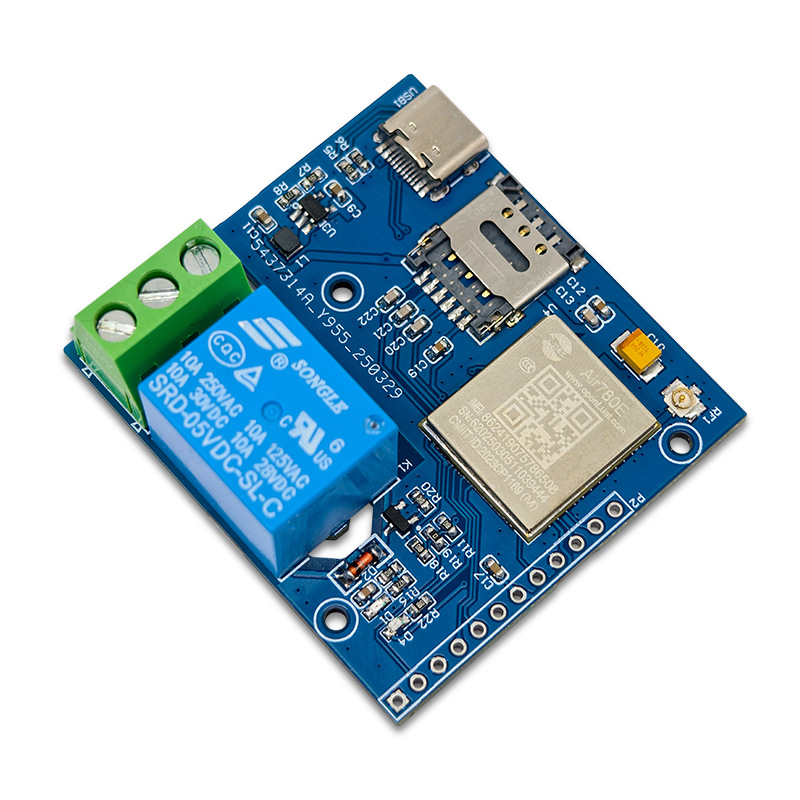

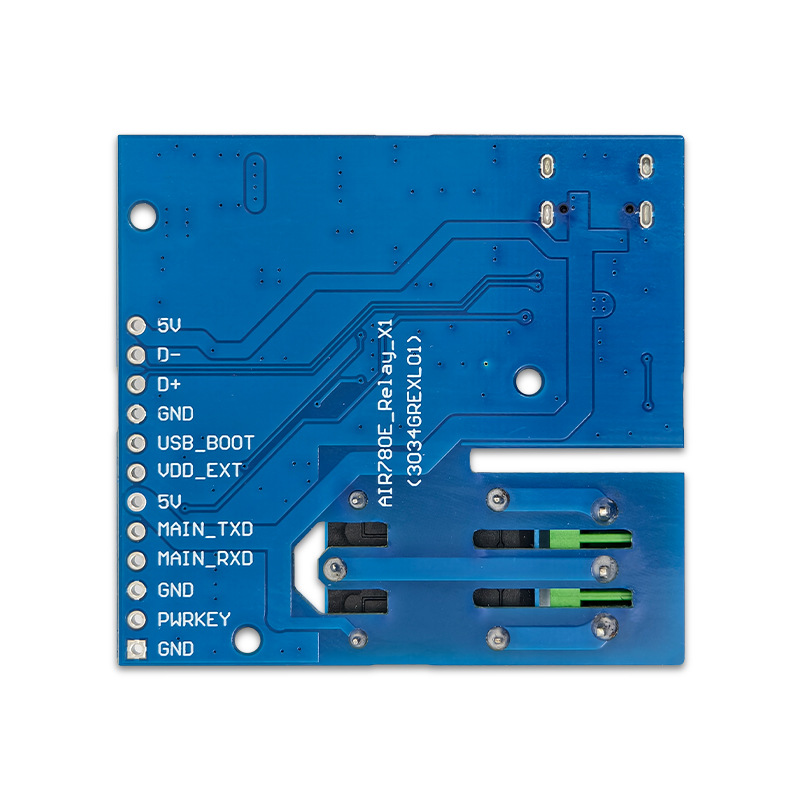

AIR780E 4G IoT Relay Module Single Channel AT Command Support Low Power Type-C Nano SIM Slot Network Status LED Module

R 452.70



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Specifications:
    Model: AIR780E
    Network Type: LTE Cat.1 bis
    Module Dimensions: 46 x 49.6 mm
    Weight: 22 g
    Pre-installed Module: AIR780E
    AT Command Support: Yes
    Supply Voltage: Type-C + 2.54 mm pin, 5V
    Relay Output Control: GPIO1 single-path control
    Low Power Mode Current: Sleep mode < 600uA
    Indicator: Network status LED (GPIO27)
    SIM Compatibility: Nano SIM card slot
    Mounting Hole Diameter: 2 mm

    Features:
    1. Versatile AT Command for Development
    Allows users to perform flexible development processes using AT commands, enabling seamless integration into various IoT scenarios.
    2. Low Power Consumption Design
    Equipped with ultra-low power efficiency, sleep mode operates below 600uA, making it ideal for applications requiring sustained usage.
    3. Simplified SIM Card Installation
    The flip-style nano SIM card slot provides effortless setup, designed for convenience and enhanced usability.
    4. Visual Network Status Notification
    Built-in status LED (GPIO27) offers an intuitive way to monitor network connectivity in real time.
    5. Universal Power Supply Options
    Supports reliable power input via Type-C and 2.54 mm pin header, catering to diverse user needs and ensuring stable performance.

    Package Included:
    1 x AIR780E 4G IoT Relay Module
    1 x 12P Pin Header
