Specifications:

1. Measurement power range: -60 to +30dBm (0 to -40dbm has a good linearity. When the input signal is greater than 0 to +30dbm, you can set the internal digital programmable attenuator ATT=30DB, OFFSET=+30DB to display the measured power value after measurement.)

2. Measurement power resolution: ±0.1 dBm

3. Measurement frequency range: 100K~10GHz (different frequency ranges of different models)

4. Input impedance: 50Ω

5. Dynamic range: 90dB

6. Working voltage: 5VDC (powered via type-c cable)

7. Charging current: 300mA

8. Size: 66 x 36 x 24mm/2.6 x 1.4 x 0.9' (excluding protruding N connector, referring to the mechanical drawings given), the shell is of CNC machined aluminum alloy. Weight is less than 100g/0.2lb

Features:

1. Supports a variety of high-speed dynamic acquisition, up to 500kbps (2uS) in the case of host computer acquisition;

2. Supports up to 10GHz RF signal acquisition;

3. Built-in digital programmable attenuator (0-31.75DB). With the attenuator, the maximum input power is 30dBm (1W). And the dynamic range is +30dBm to -60dBm.

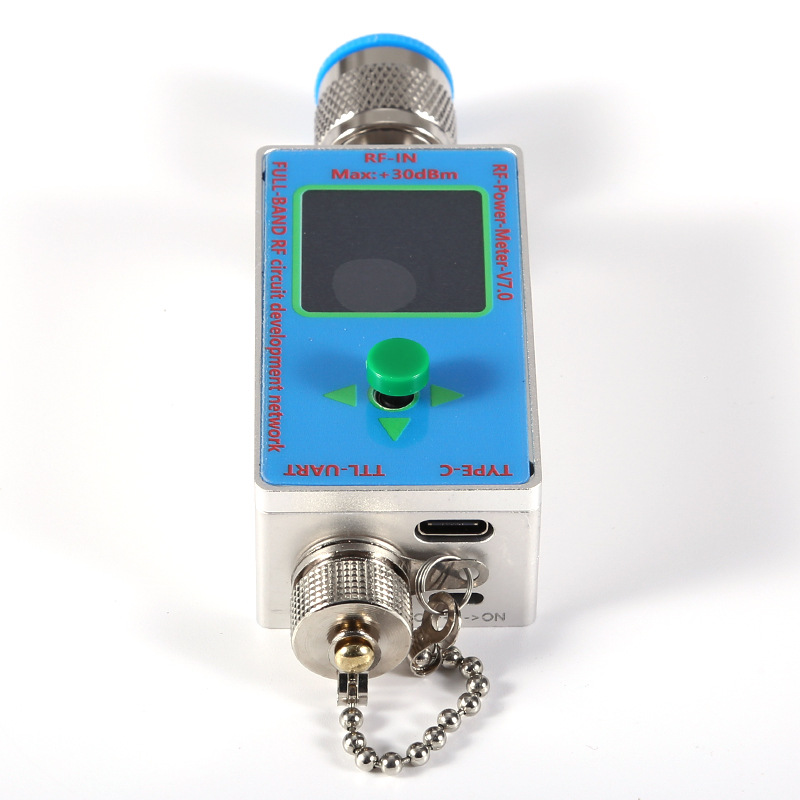

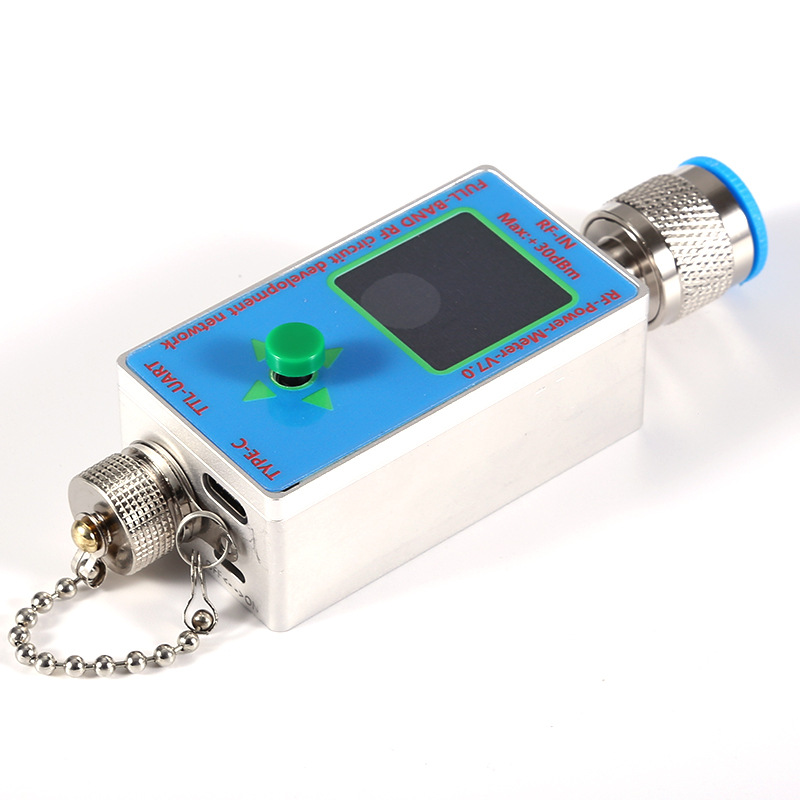

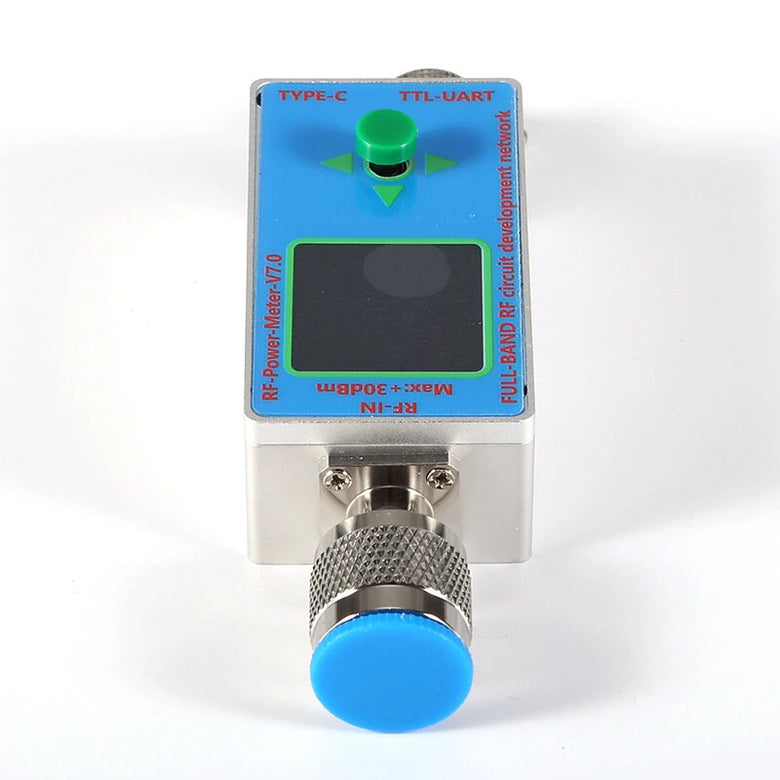

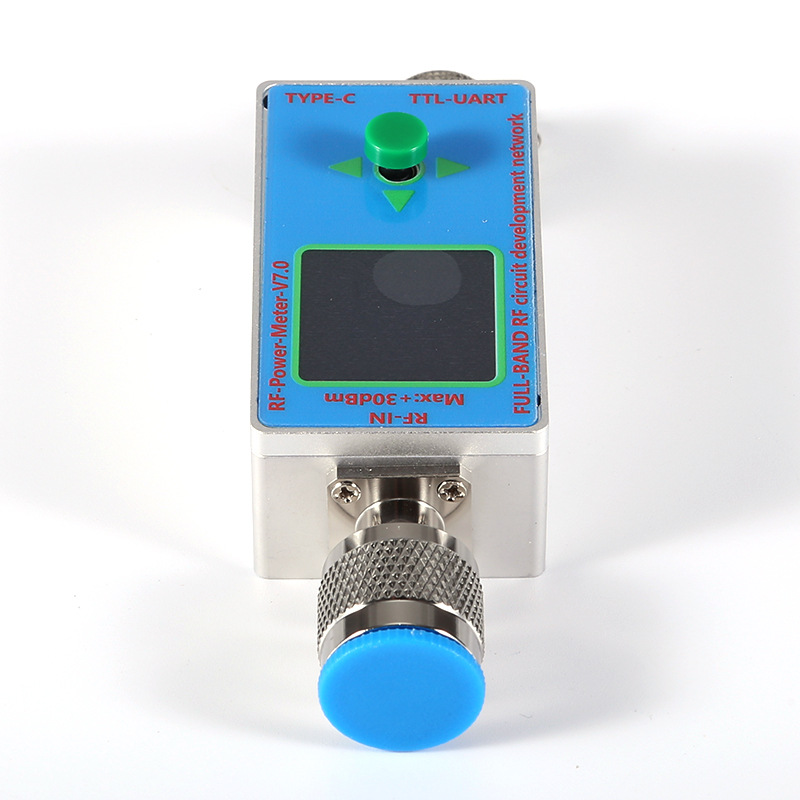

4. The power meter V7.0 can run offline, with a 1.3-inch TFT LCD and built-in lithium battery;

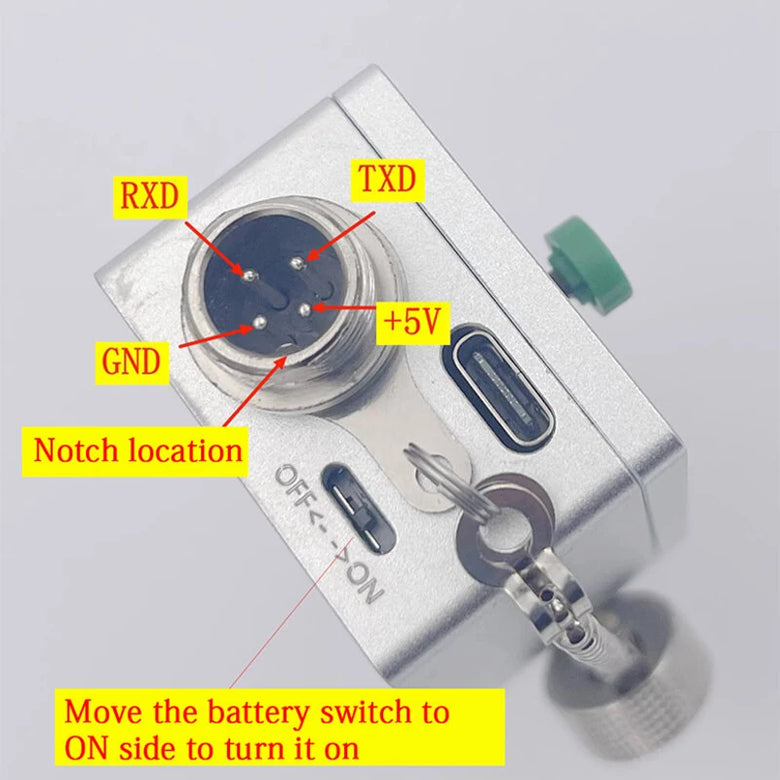

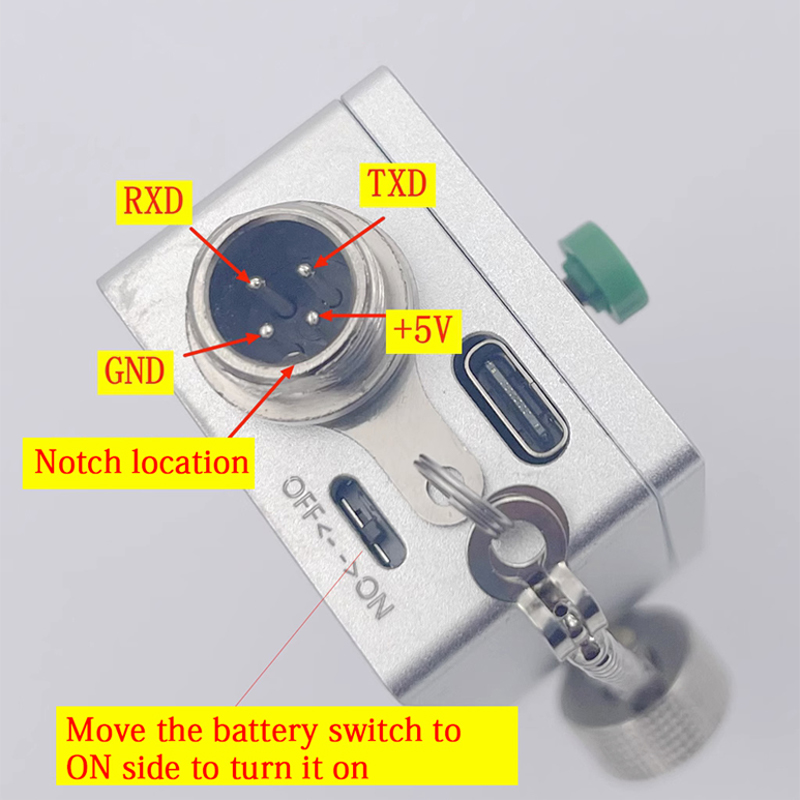

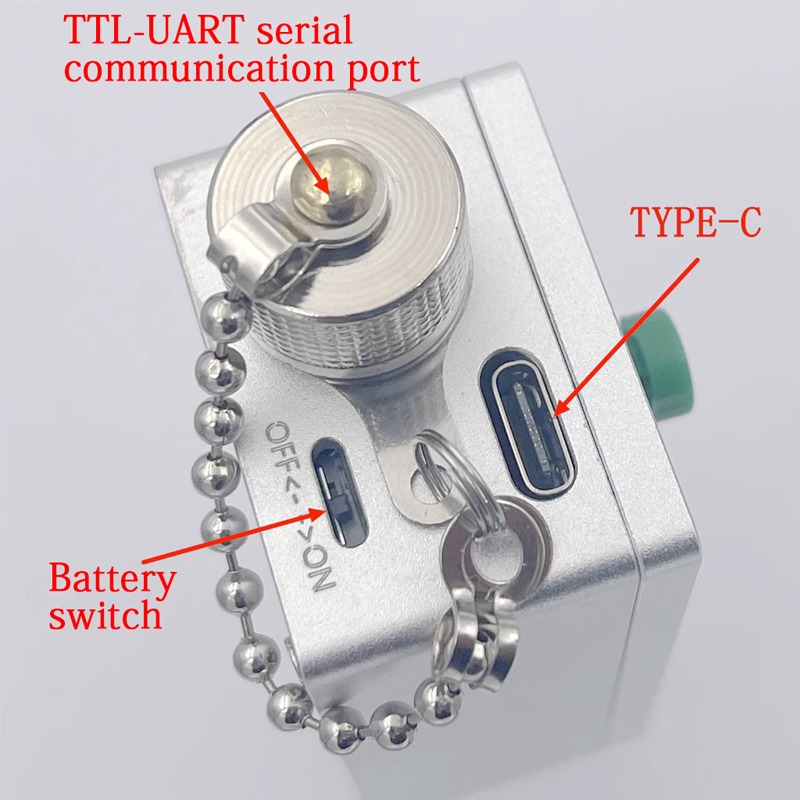

5. Its 4-port aviation plug is used to provide TTL serial port reading and writing function, and provide single and continuous reading data mode.

6. The host computer has 2 MARK cursors, which is convenient for measuring the modulation pulse width; it can automatically calculate the maximum value and minimum value, store the maximum depth of 500 points, and supports the functions of halt, data saving and export.

7. RF input interface: N-type male.

8. Boot process: make sure that battery switch is moved to the ON side. Press the middle button of the panel once, and then toggle the right arrow key for a long time.

9. Shutdown process: long press the middle button to turn it off.

Application:

1. Calibration of RF instruments;

2. Detection and maintenance of RF equipment;

3. Measurement of SWR of RF circuit (with feedback bridge);

4. Measurement of return loss of RF circuit;

5. Interference detection between wireless communication equipment;

6. RSSI (Received Signal Strength Indication) and transmit power level detection;

7. Performance evaluation of step attenuator;

8. Measurement of the gain of amplifier and the attenuation of network;

9. Measurement of forward power and reflected power in directional coupler;

10. Power measurement of GSM signal modulated by GMSK*.

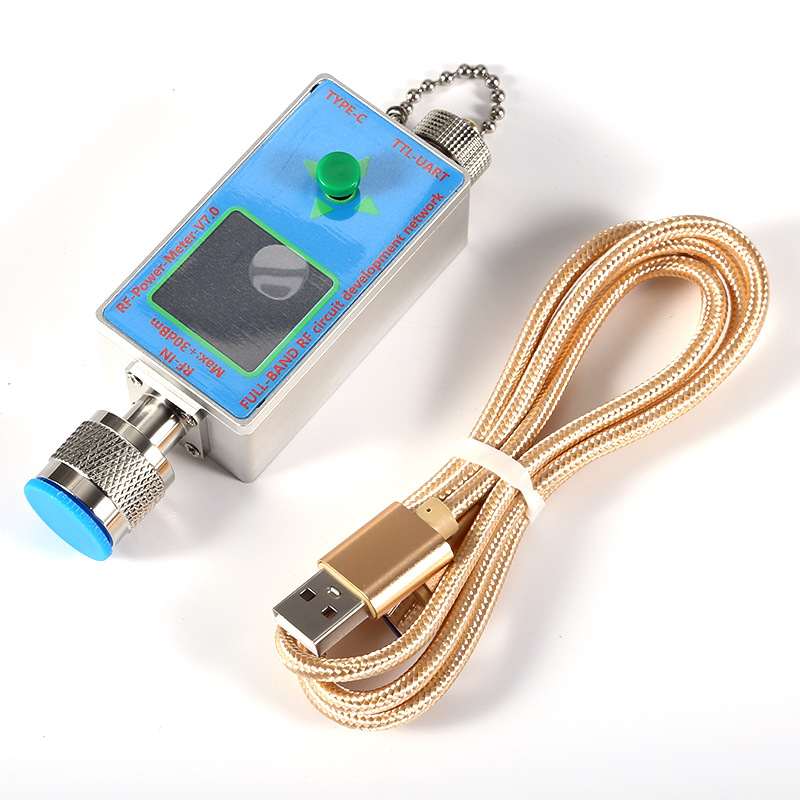

Package Included:

1 x RF power meter

1 x Type-c cable
