Specifications:
Model: LT1
Operating Range: Approximately 5 hours (400mAh)
Screen: 1.14-inch IPS LCD (240 x 135 resolution)
Dimensions: 148mm x 27mm x 17mm
Net Weight: 43g
Charging Interface: Type-C (USB 2.0)
Voltage Measurement Range: -5V to +5V (±0.1V)
Test Voltage Options: 0.1V, 0.3V, 0.6V, 1.0Vrms
Test Frequency Options: 100Hz, 120Hz, 1kHz, 10kHz
Operating Temperature: 0°C to 50°C (humidity ≤ 75%)
Storage Temperature: -20°C to 60°C (humidity ≤ 75%)


Features:

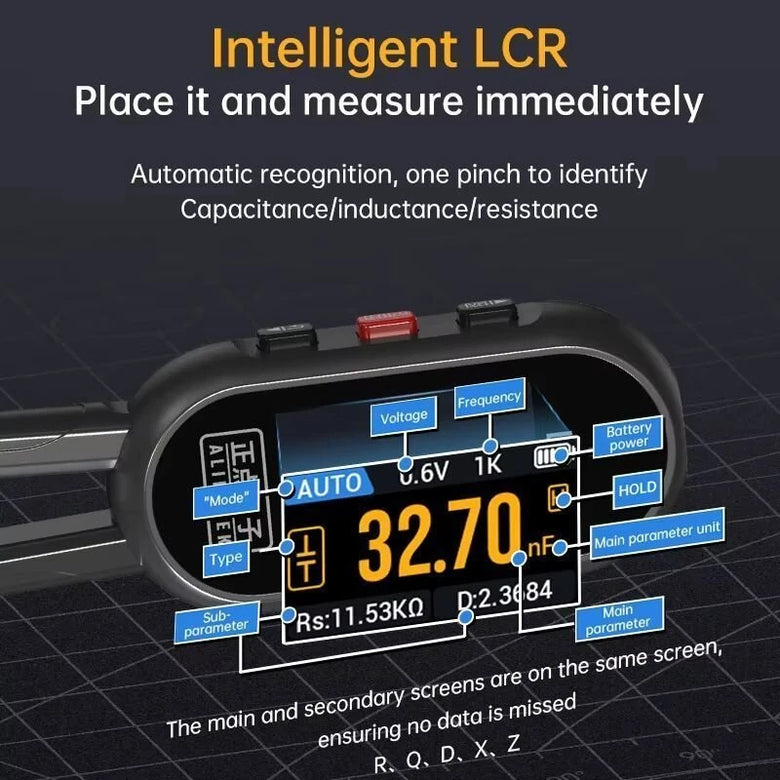

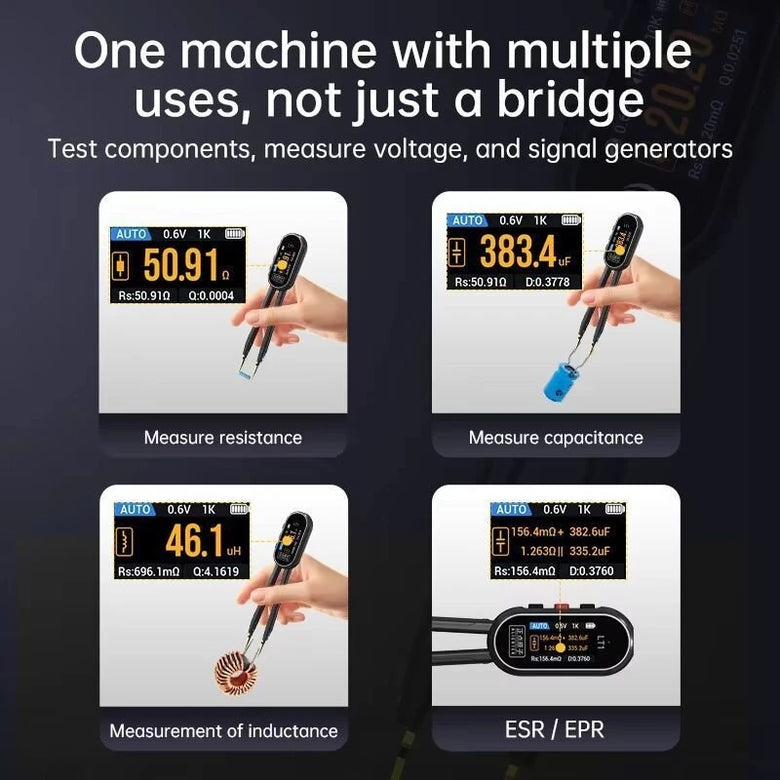

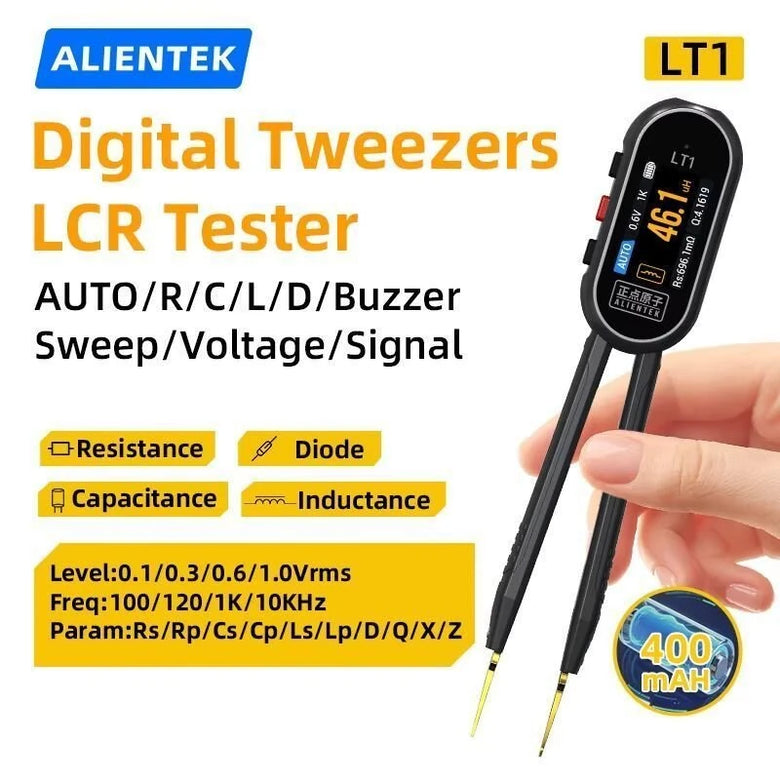

The LT1 is an all-in-one electronic testing tool capable of measuring resistance, capacitance, inductance, voltage, continuity, and diode properties. With adjustable test voltage levels ranging from 0.1V to 1.0Vrms and frequency options between 100Hz and 10kHz, it offers precise and customizable testing features. The 1.14-inch IPS HD screen ensures clear and accurate display of results. Compact and lightweight at just 43 grams, the tester is ideal for saving workspace and portability. Its intelligent recognition system automatically detects components and analyzes their models, simplifying the testing process efficiently.

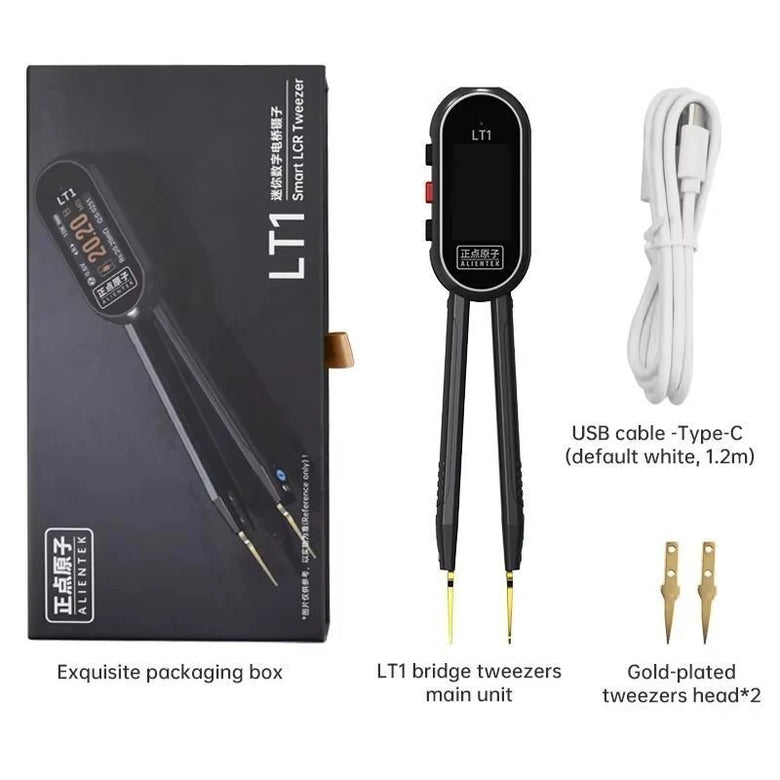

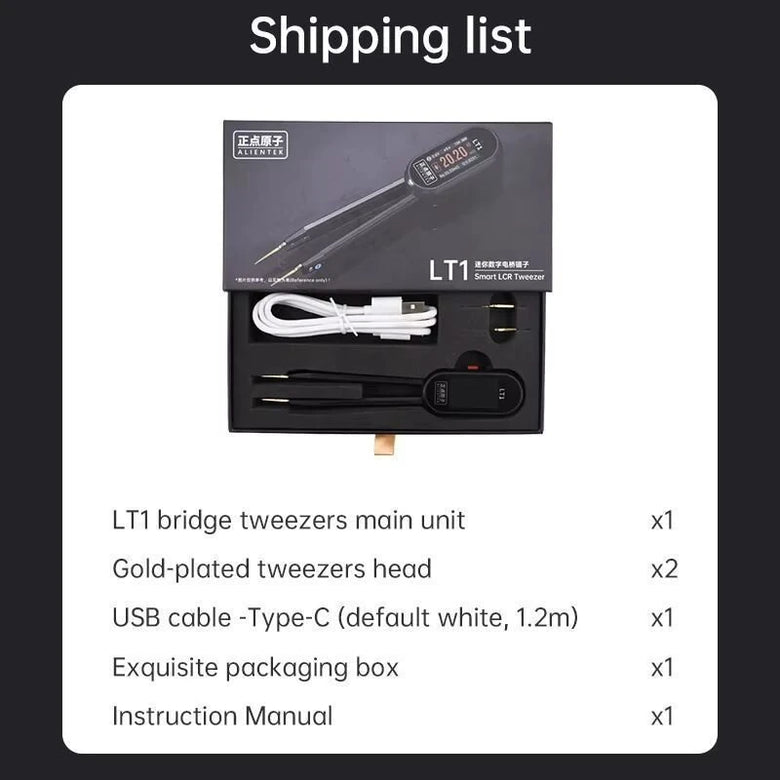

Package Included:
1 x LT1 Bridge Tweezers Main Unit
1 x USB Type-C Cable (1.2m, white)
2 x Gold-Plated Tweezer Heads
1 x Exquisite Packaging Box
