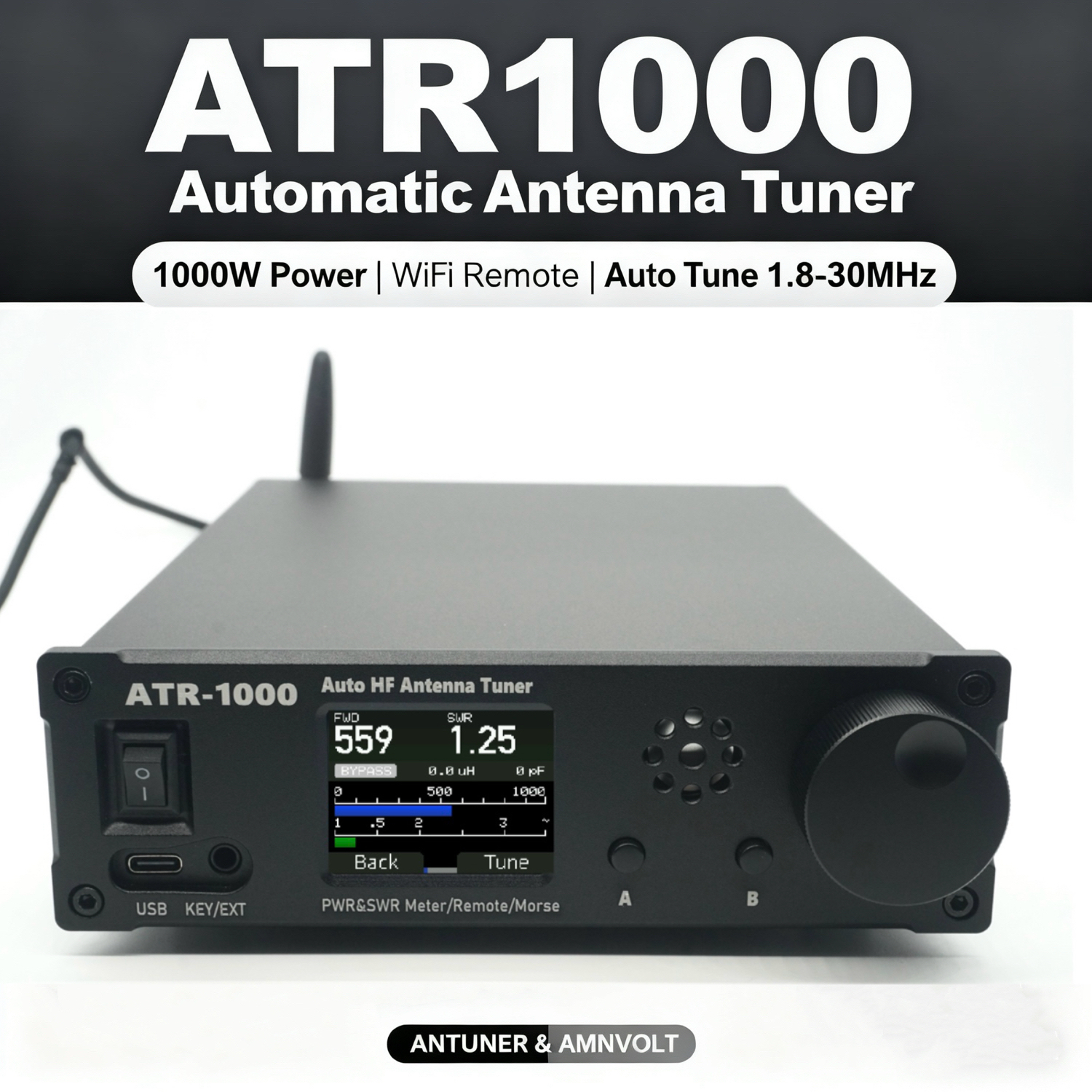

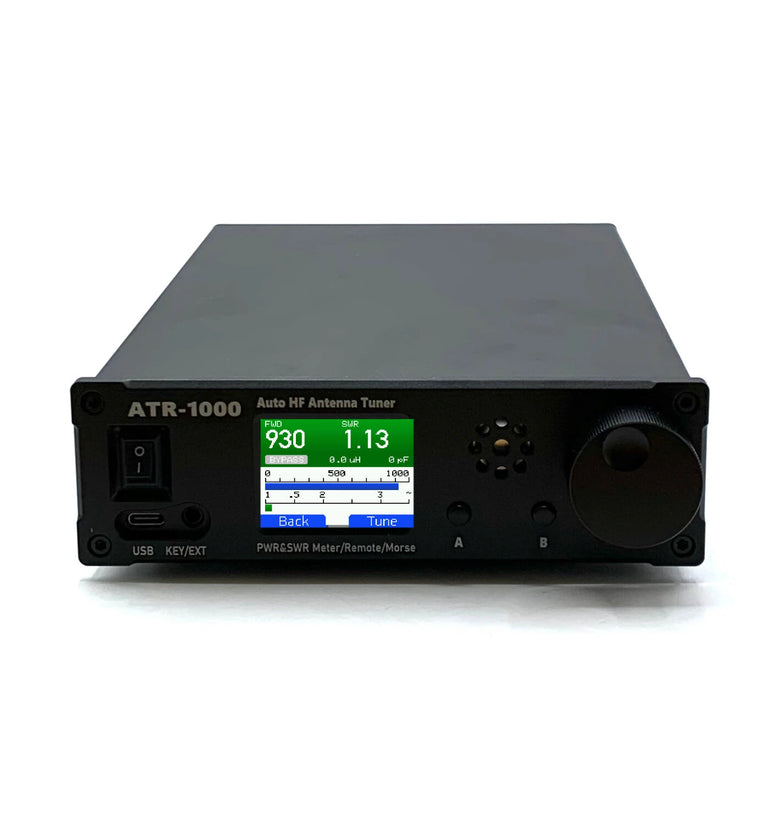

Product Overview:

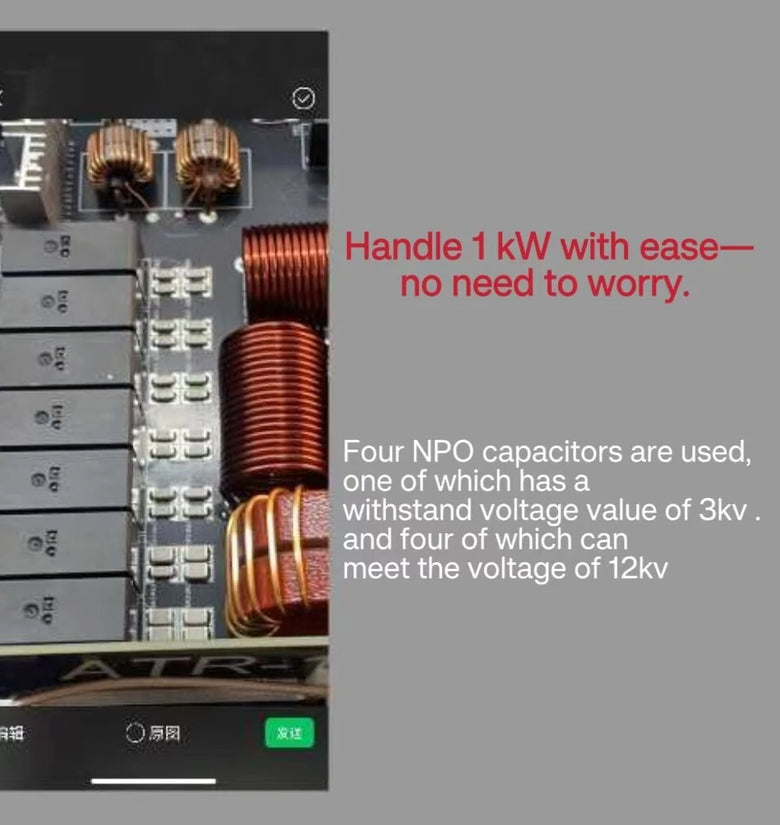

Under the premise of ensuring a maximum power of 1000W, we have designed this high-power tuning console to be very compact. To achieve the goal of being able to stably withstand 1000W power despite its small size, we have invested a large amount of experiments and research and development. After half a year of in-depth testing by 50 experienced Hams in China in various scenarios, we have finally successfully developed this compact high-power antenna tuner.
To make the product more long-lasting and sturdy, the appearance has also undergone meticulous CNC design, including the smooth touch treatment of each corner and the thickness and diameter of the large knob, all of which have been precisely calculated to ensure a comfortable hand feel.
The most outstanding feature of this product is that it achieves a maximum power capacity of 1000W within an extremely compact body and innovatively incorporates a remote control function, allowing operation via the network. In addition, it is equipped with a built-in power meter, standing wave meter and CW dynamometer functions.

Specification:
Frequency range: 1.8-30 MHz
Maximum power: SSB/CW 1000W; FM/AM/FT8 300W
Important: Please strictly abide by the power limit. Over-power use may cause permanent damage to the equipment
Tuning power: 1-20W (5-10W is recommended)
Operating voltage: 11-15V DC (12V is recommended)
Note: Please use a power adapter that meets the specifications. Excessive voltage may damage the equipment
Standby current: 0.2A
Full-power current: approximately 1A
Display screen: 1.8-inch TFT color screen
Speaker power: 3W
Wireless function: WiFi 2.4G (supports hotspot/client mode)
Remote control: Web control (local area network/Internet)
Morse Exercise: Supports single/double paddle keys
ADC accuracy: 16 bits

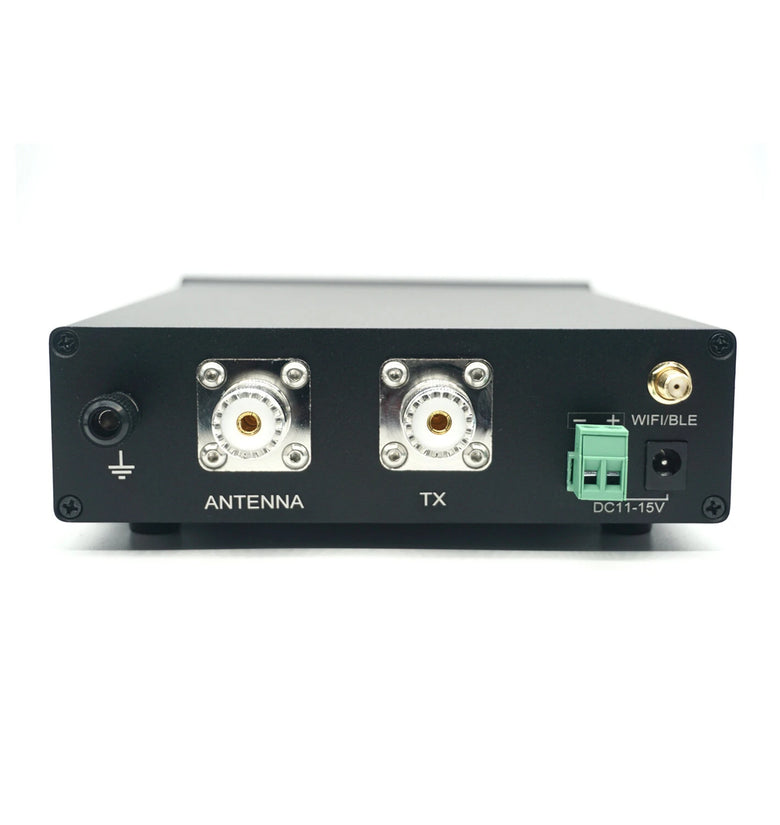

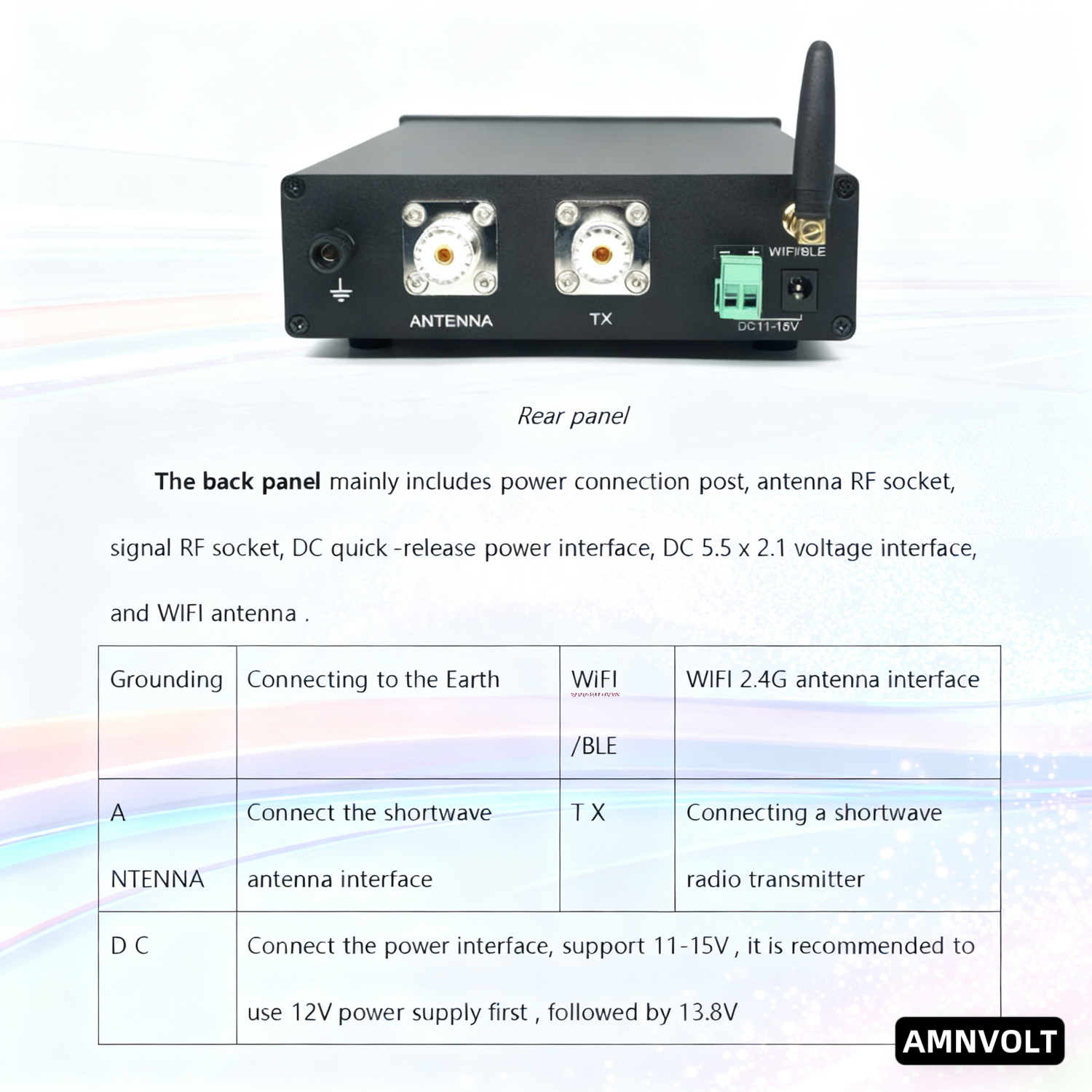

Interfaces: ANTENNA antenna interface, TX radio interface, ground post, DC voltage interface -1 (KF2EDGRC 5.08 quick-release interface), DC power interface -2 (DC 5.5-2.1), USB-C, 3.5mm KEY/EXT
Dimensions: 230 x 150 x 50 mm
Weight: 1.3 kg

Features:
1. Compact antenna tuner at kilowatt level:
Portable and compact kilowatt tuner, with dimensions of 230 x 150 x 50 mm and a weight of only 1.3kg.

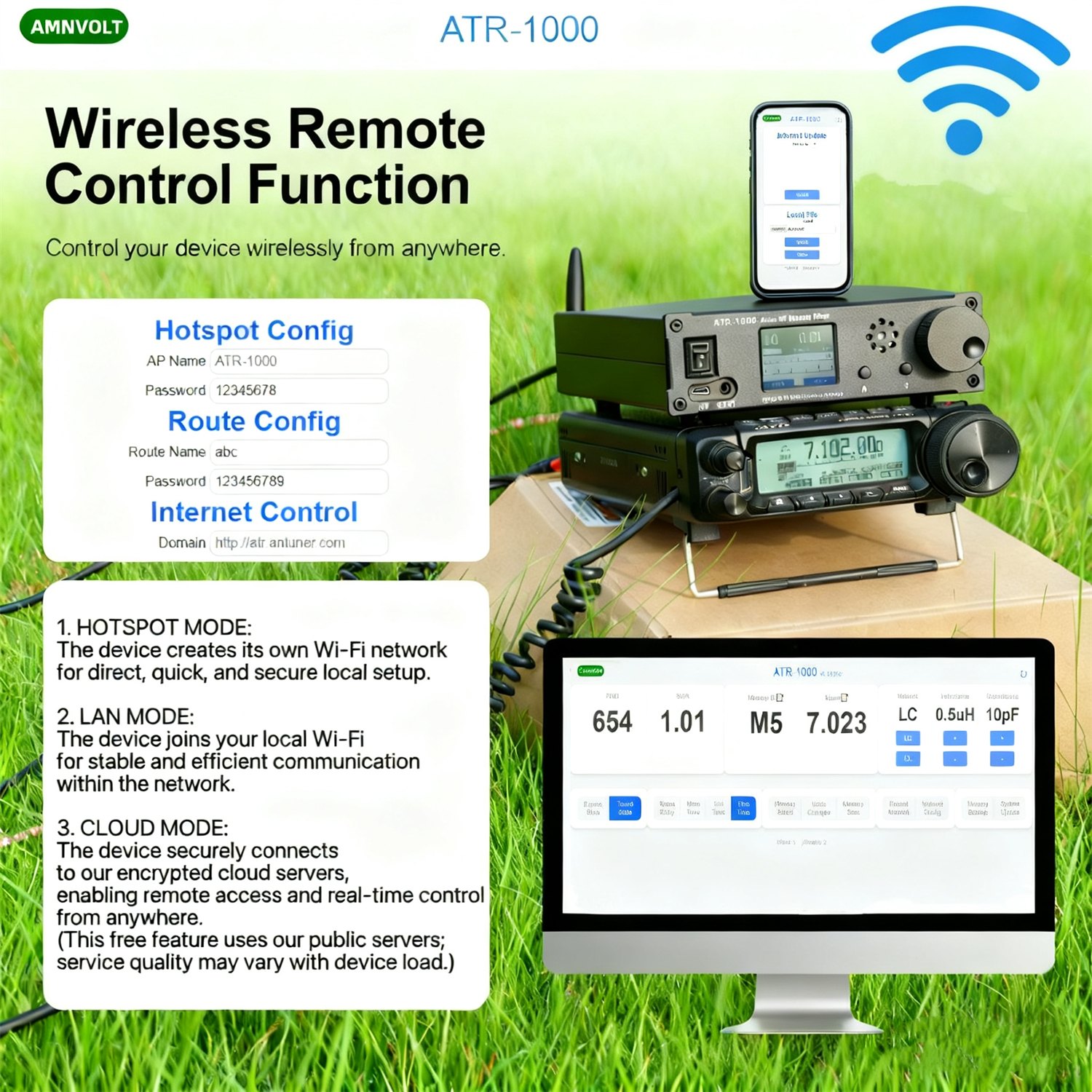

2. Intelligent remote control, safe and convenient operation:
It is equipped with a built-in WiFi module and supports remote control via web page. The power and standing wave can be viewed in real time through a mobile phone or computer in hotspot, local area network or Internet mode, and parameters can be remotely tuned and set.
Important: When operating at high power, using remote control can effectively ensure personal safety.

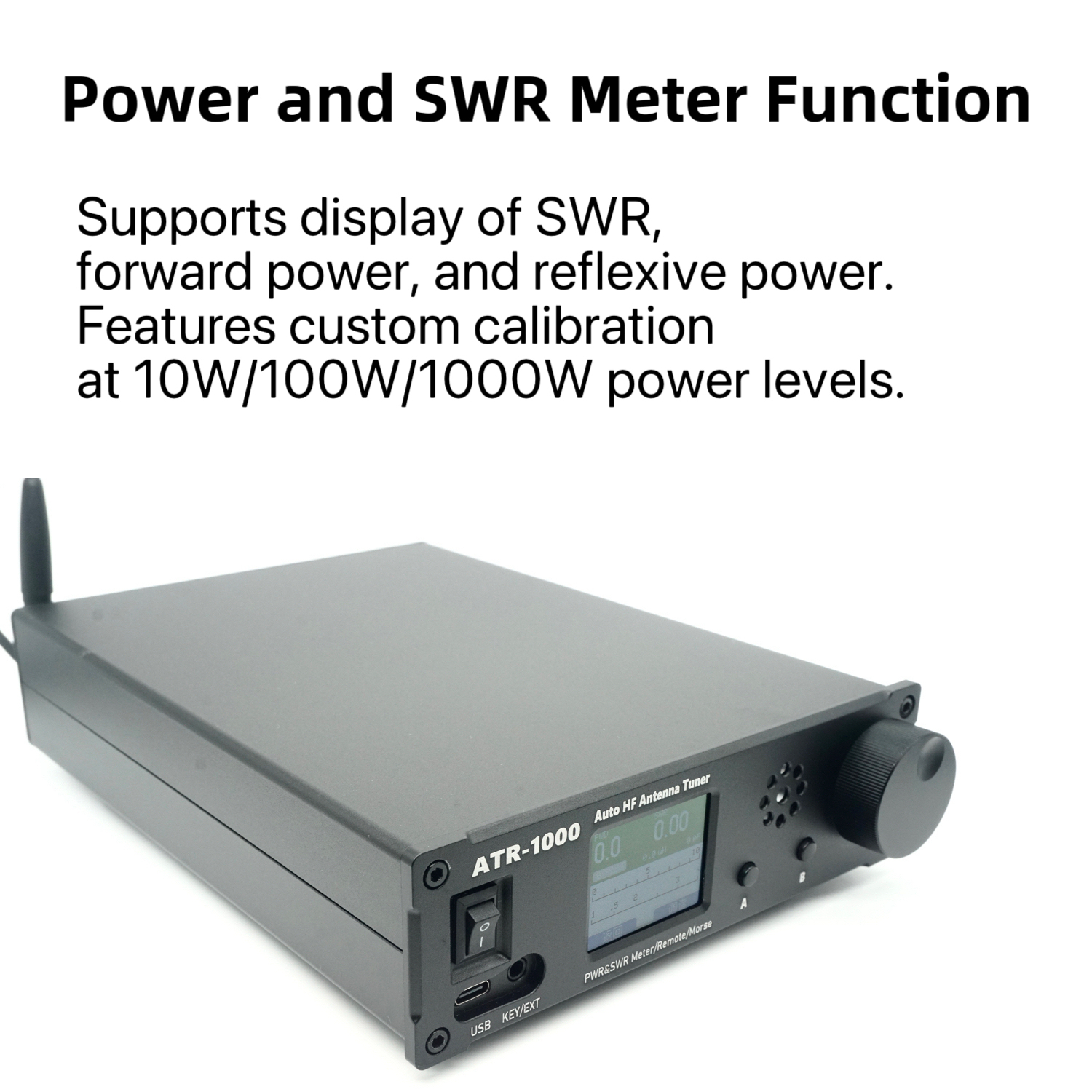

3. Built-in standing wave meter and power meter for high-precision real-time monitoring:
It can not only be used as a weather meter but also as a power and standing wave meter. Supports the display of standing wave values, forward power and reverse power. It features customizable 10W/100W/1000W calibration Settings.
Safety Reminder: In the non-tuned state, the power meter mode supports a maximum instantaneous power display of 1500W SSB, but continuous transmission for a long time is not allowed.

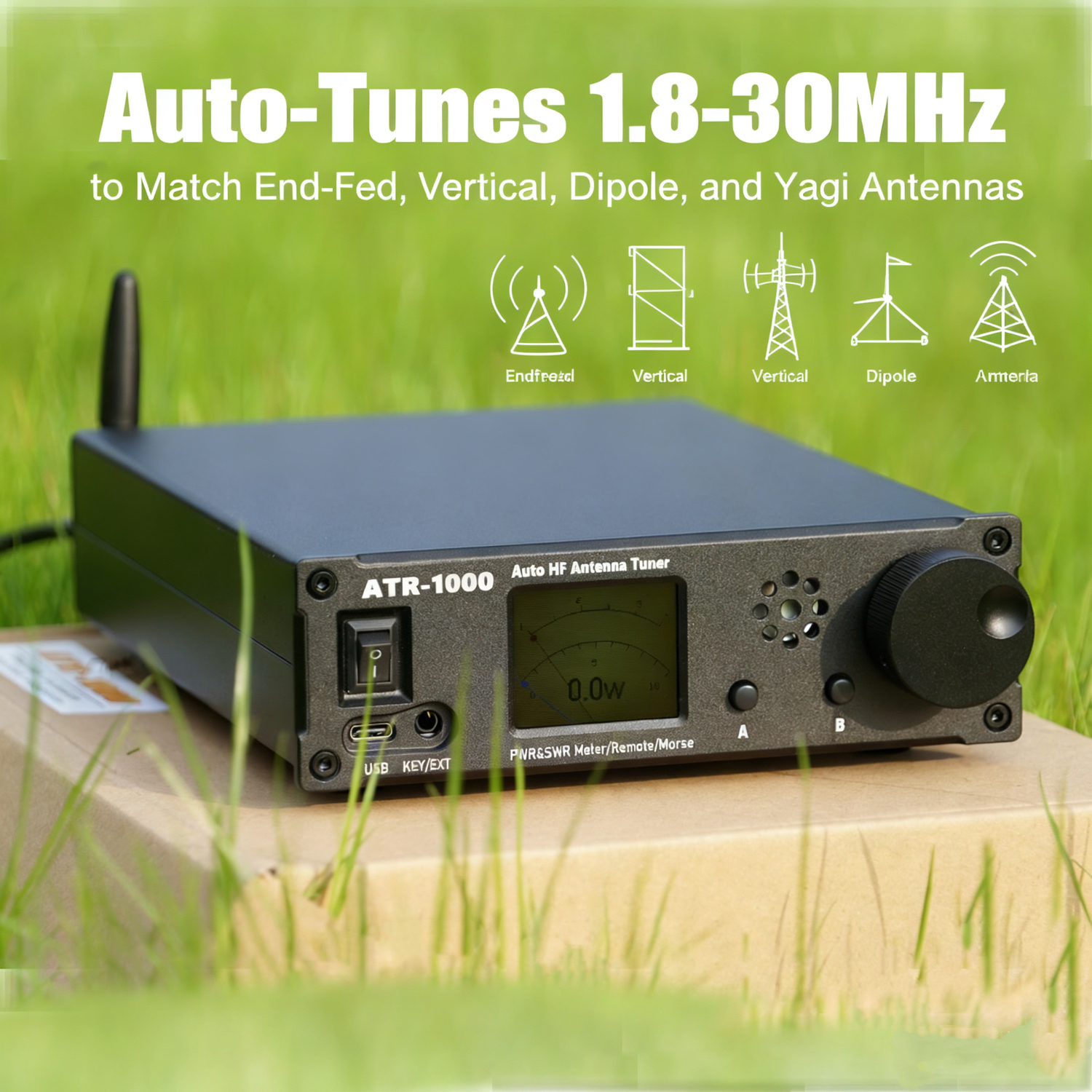

4. Full-band automatic tuning, easily match various antennas:
Supports the full shortwave frequency band of 1.8-30MHz, can be automatically tuned, and is suitable for various antenna types such as end-feed, vertical, inverted V, and Yagi.

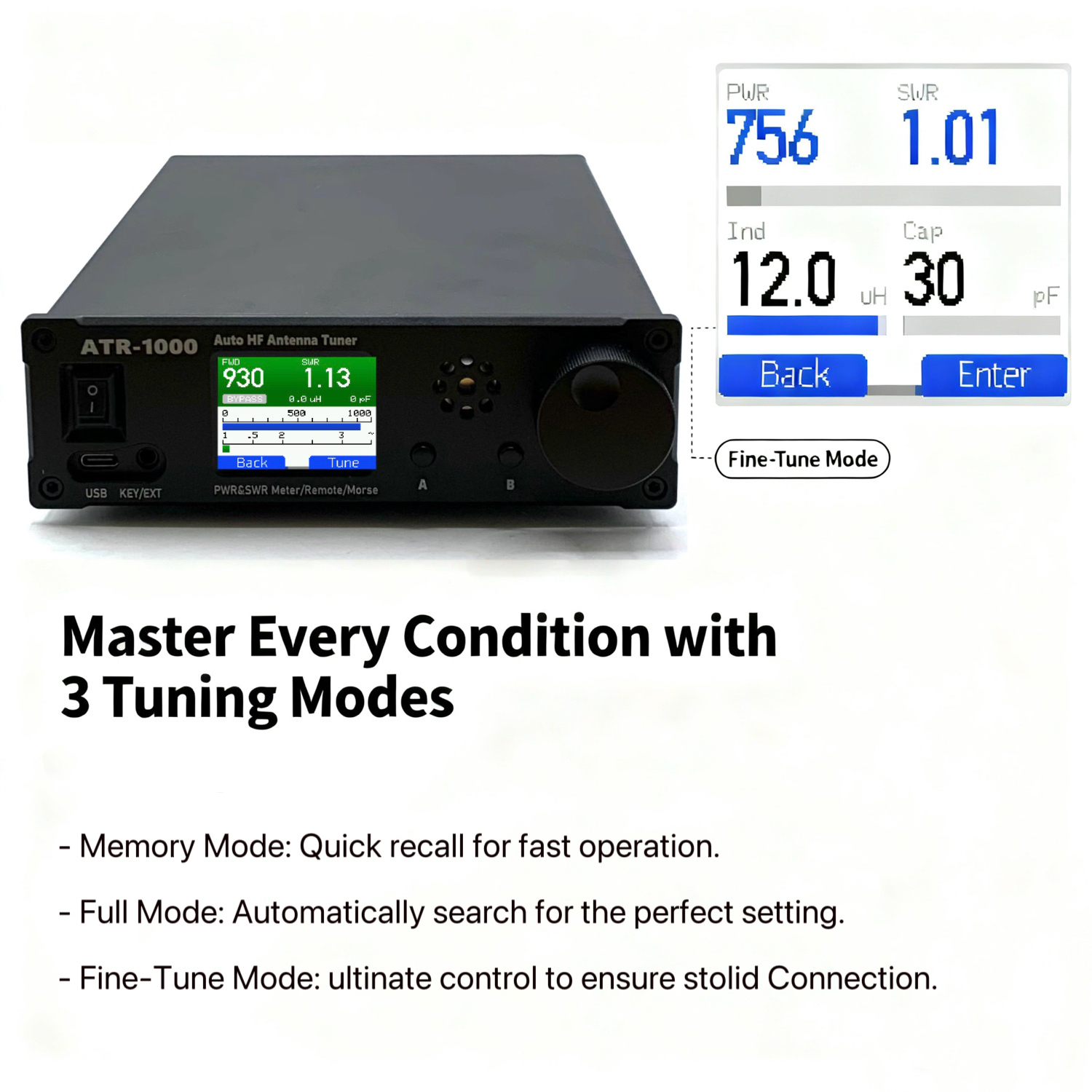

5. Three intelligent tuning modes:
Memory mode: Quick invocation of stored parameters;
Full mode: Comprehensive search for the best matching point;
Fine-tuning mode: Perform fine adjustments at high power to ensure communication effectiveness.

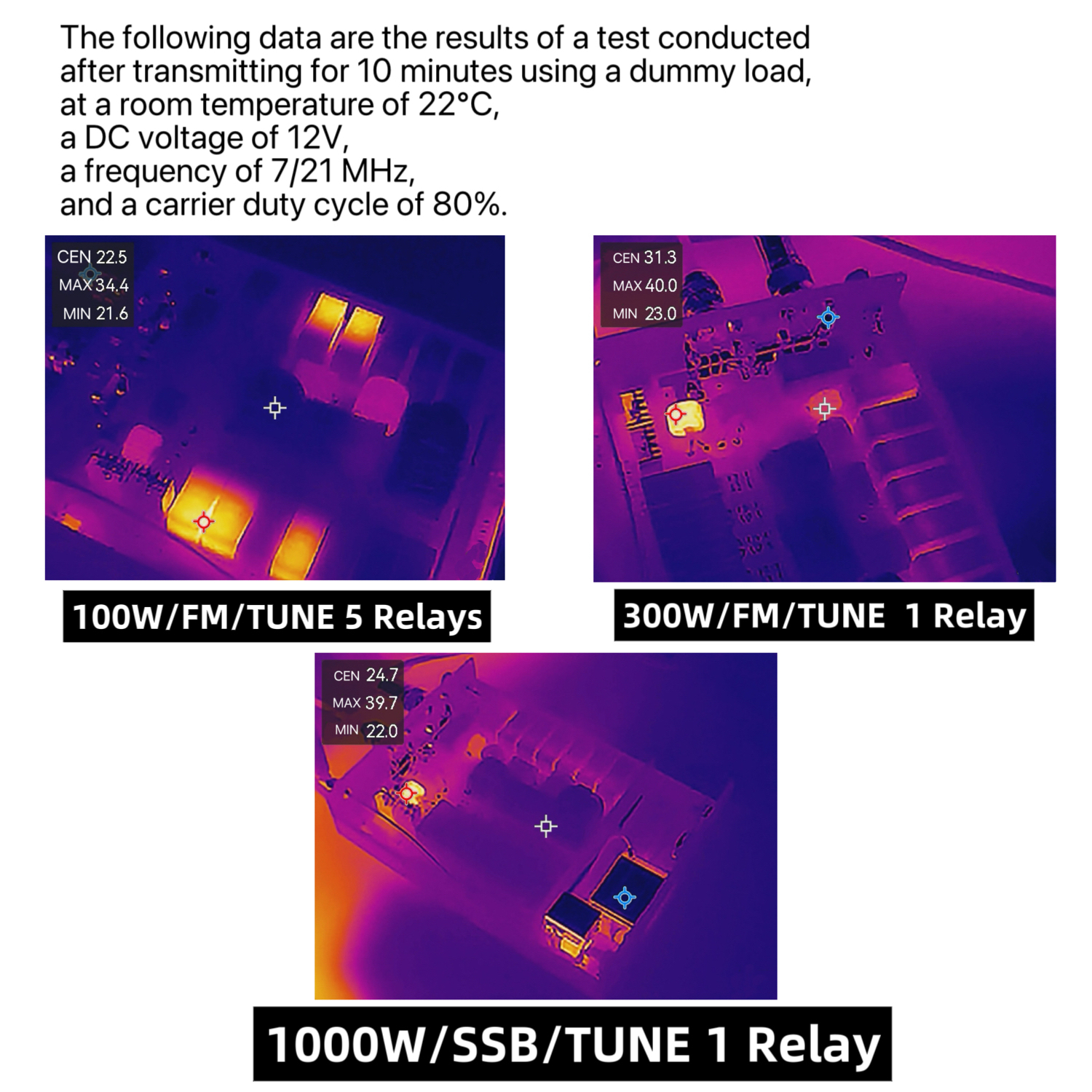

6. Professional-grade high-power load:

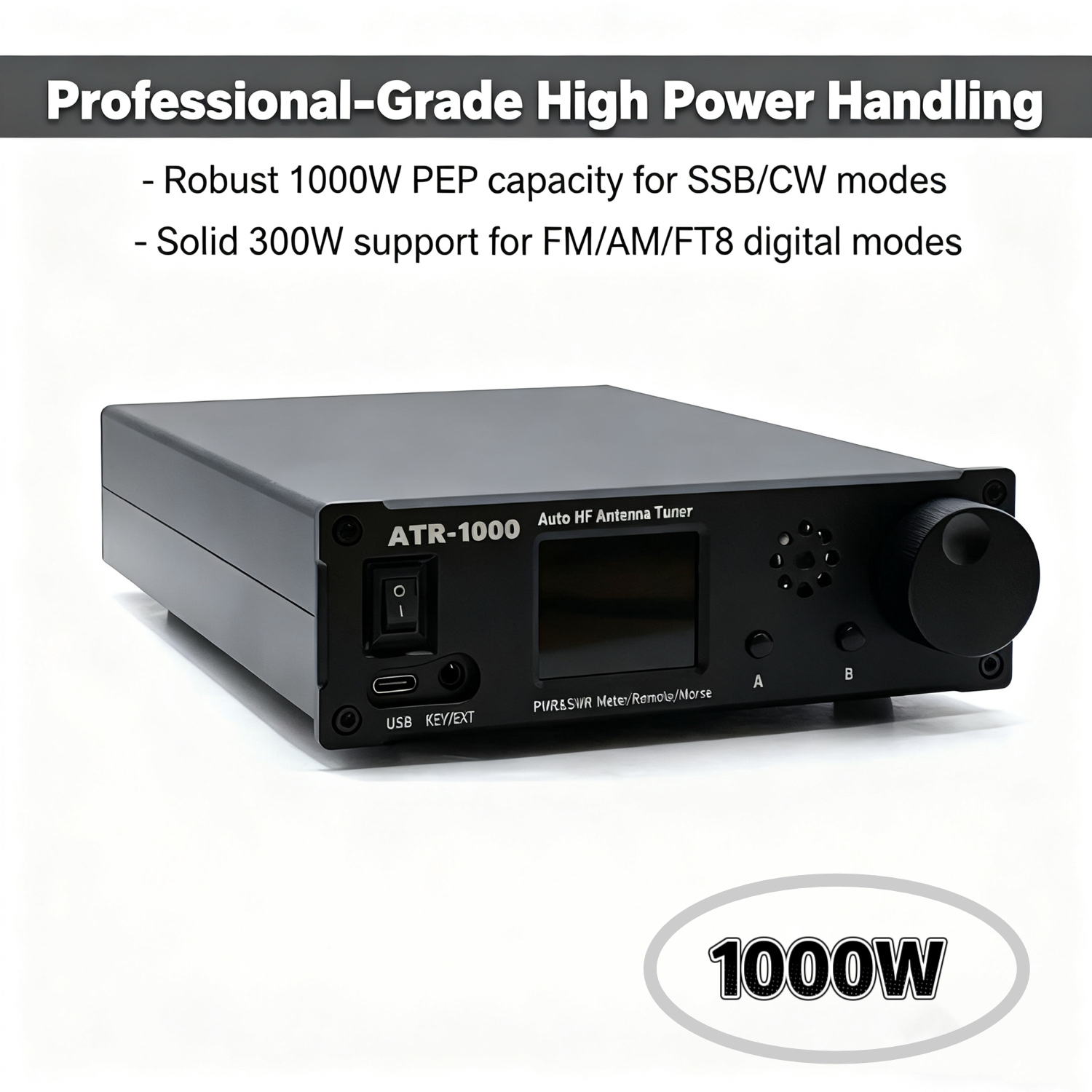

The maximum power supported is 1000W in SSB/CW mode and 300W in FM/AM/FT8 mode.
Note: Do not use beyond the rated power. The actual applicable power may vary due to factors such as the usage environment, antenna and frequency. When using for a long time, please consider ventilation or intermittent operation.

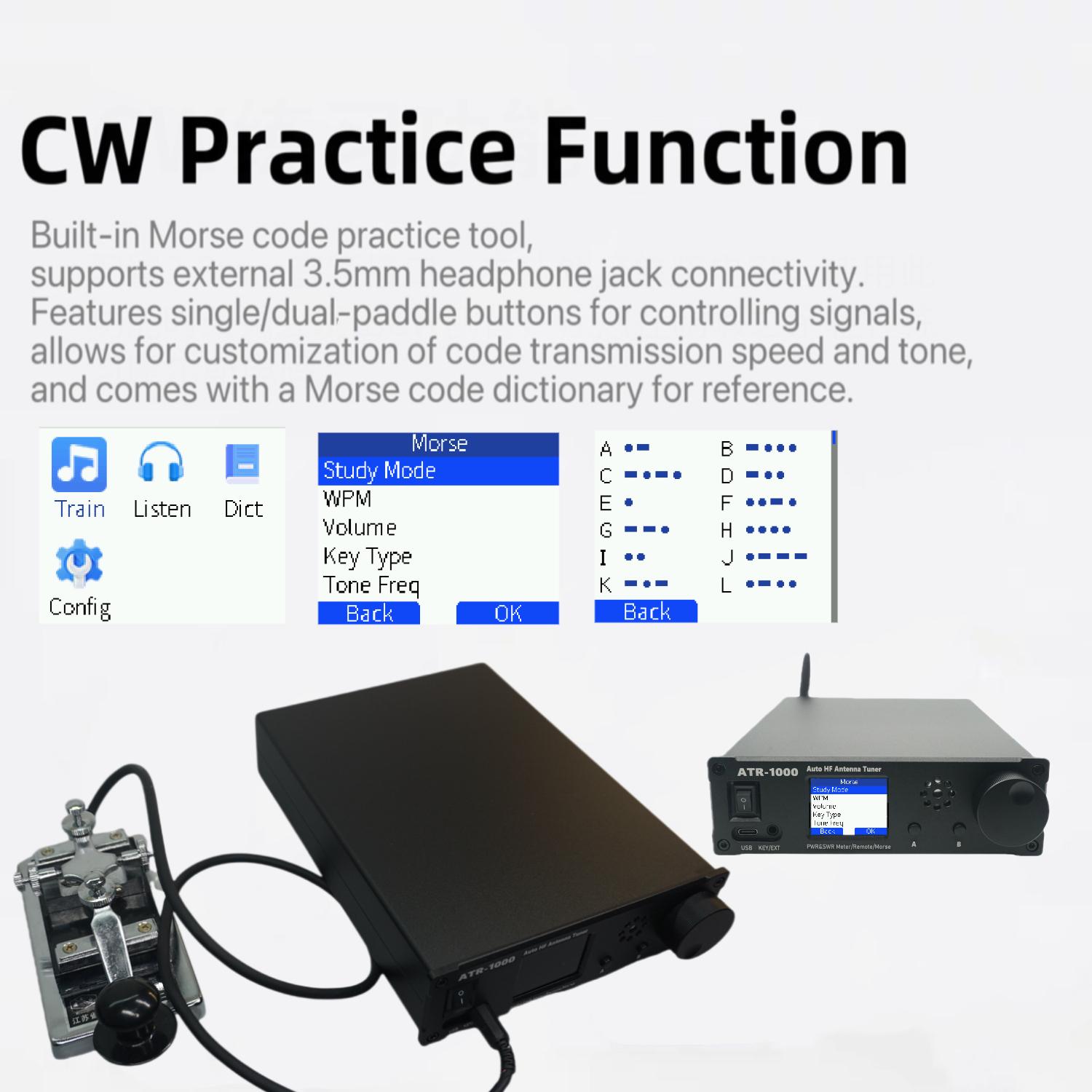

7. Built-in CW practice function:
It is equipped with a built-in Morse code practice device, supports external 3.5mm headphone jack specification hole single/dual propeller keys, allows customization of code speed and pitch, and comes with code dictionary query.

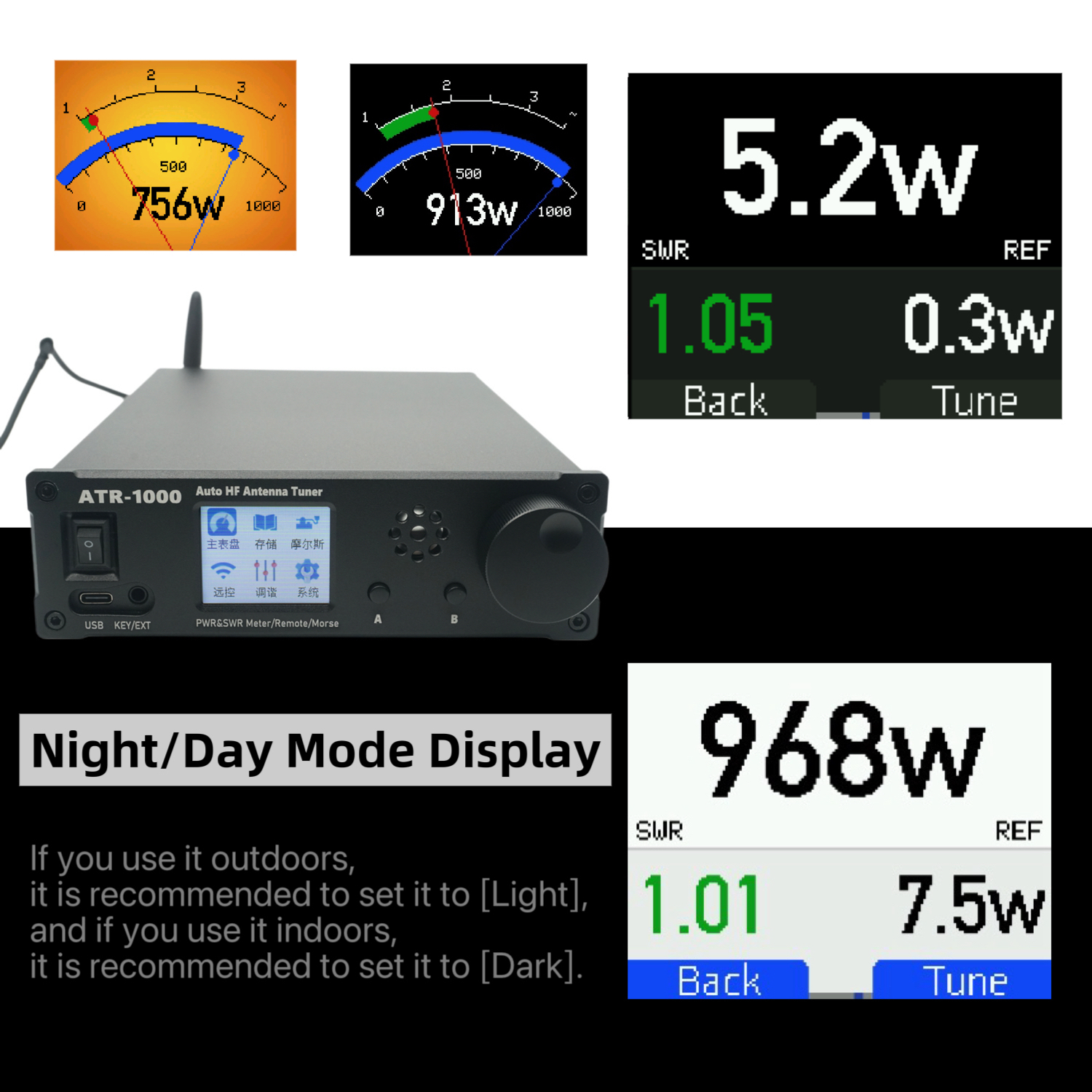

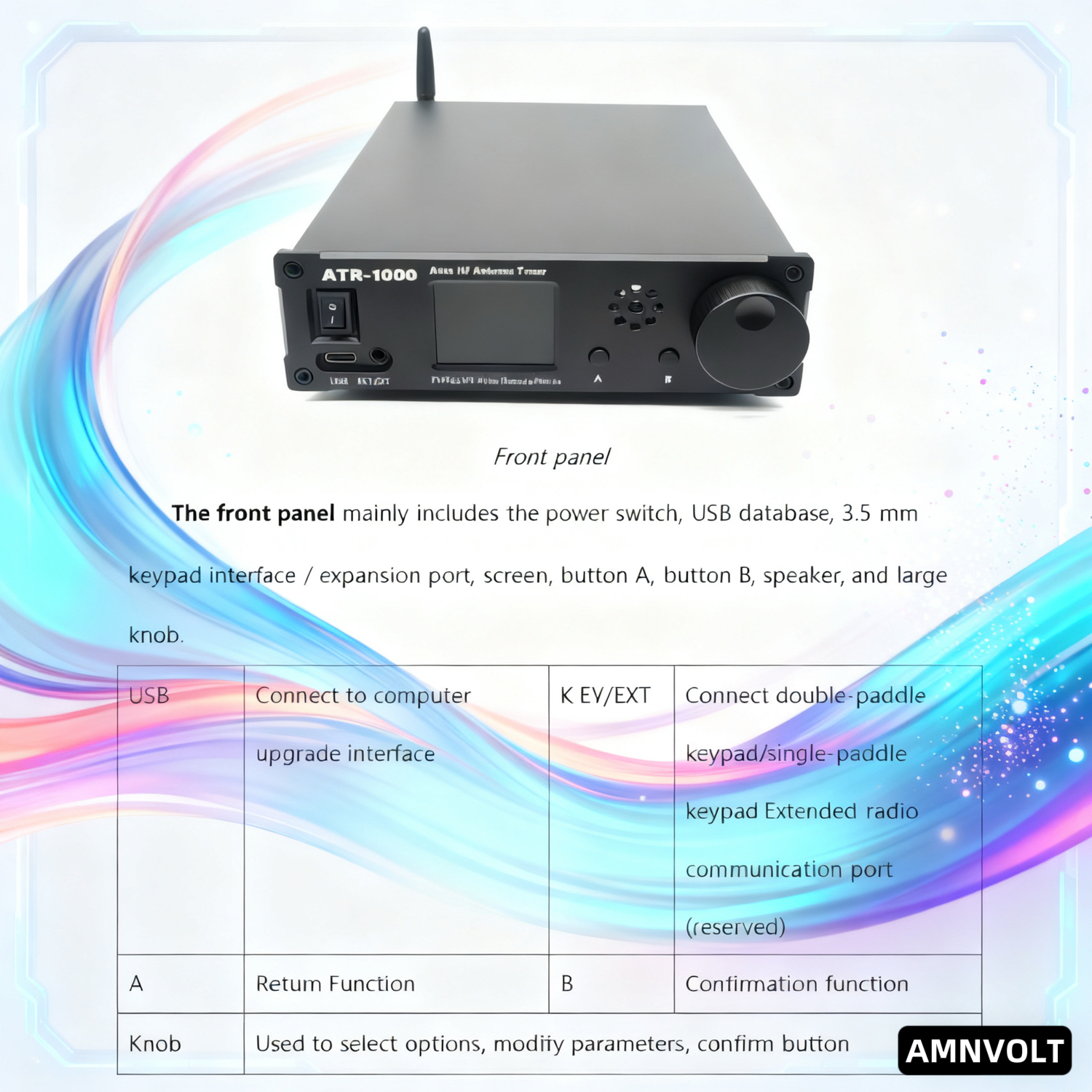

8. Intuitive and user-friendly operation experience:

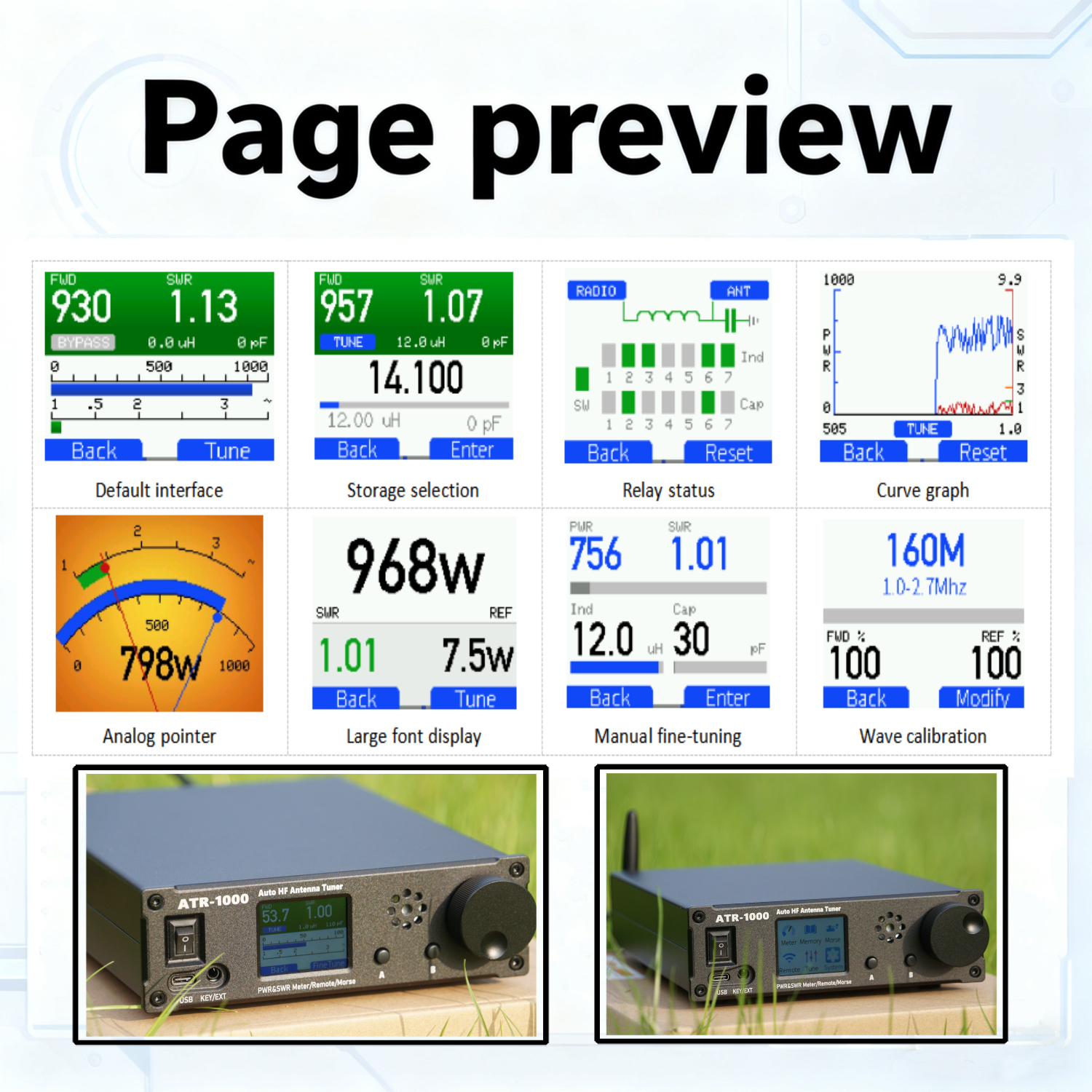

Equipped with a 1.8-inch TFT color screen, it features an English interface and offers multiple display themes. It can store multiple sets of tuning parameters, facilitating rapid frequency switching.

9. Built-in ATOS antenna tuner operating System:
Supports multiple advanced Settings, suitable for advanced users to deeply customize. More rich system functions will be released along the official development plan route, such as linkage control with radio stations, network Morse practice, network radio, etc.

10. Supports firmware upgrade:
Supports USB-Type-C for system firmware upgrade, and also supports WIFI Internet OTA firmware upgrade.

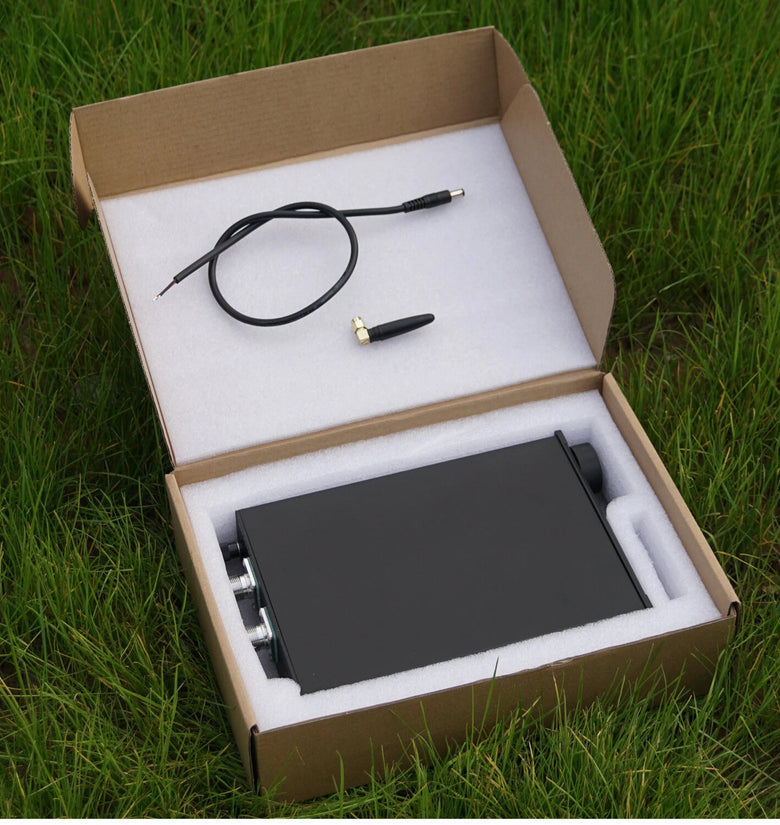

Package Included:
1 x Host
1 x DC Power Line
1 x WIFI Antenna
Note: Battery is not included.

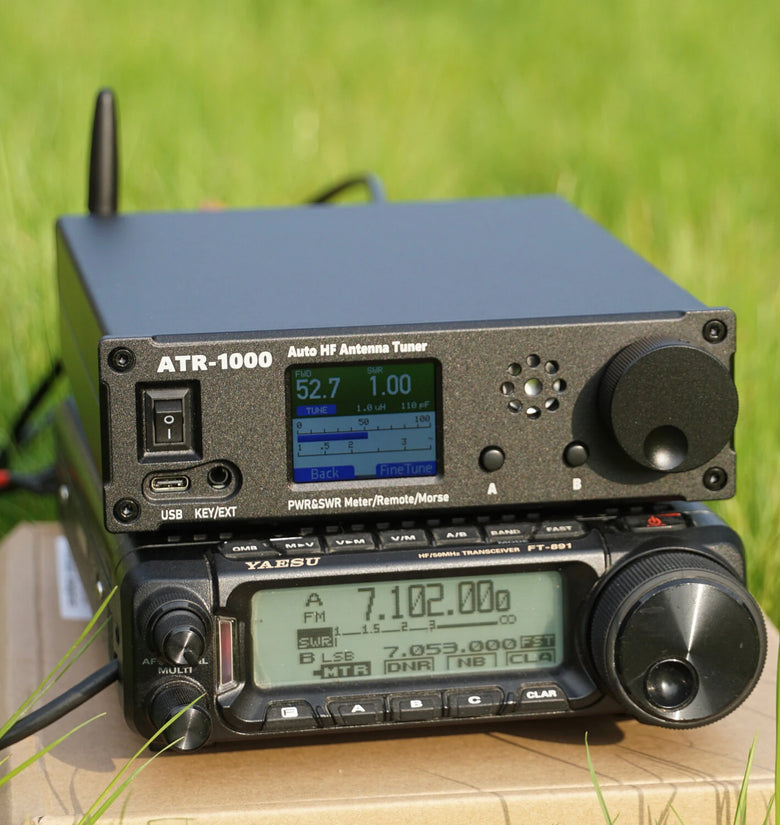

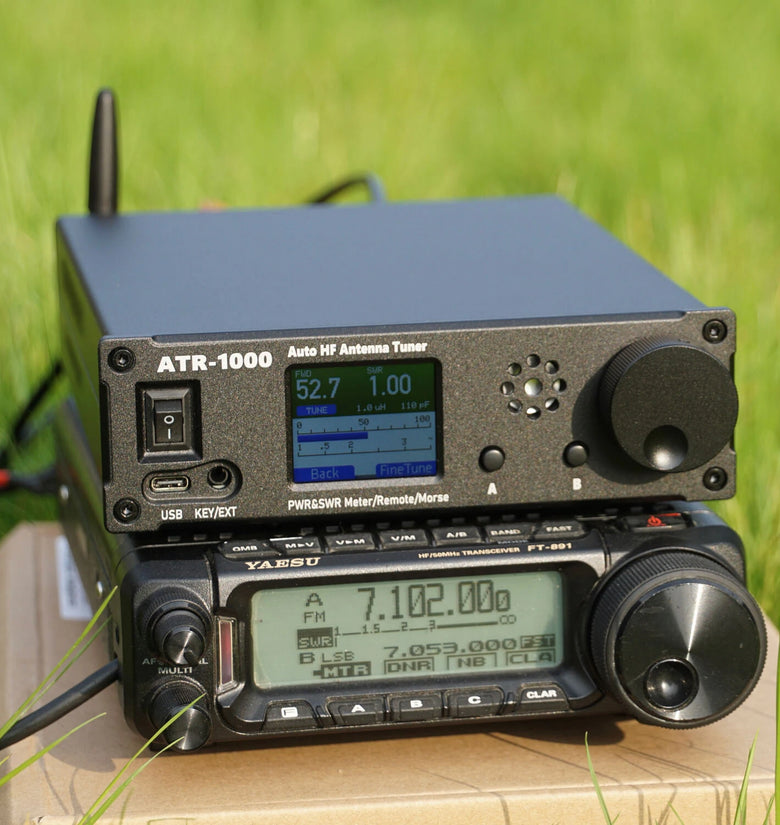

The YAESU ICOM is not includes, for reference only.

【 Important Safety Tips】
1. Please be sure to read the operation manual before operating and do not operate blindly.
2. When the radio is transmitting, there may be high voltage on the product casing. Do not touch it directly with your hands.
3. When using power amplifier equipment, please first test with low power and gradually increase the power step by step. Wait until it is stable before using it.
4. Please use the equipment within its rated power range. Long-term operation beyond the rated power may cause damage to the equipment.
5. The sound produced when the device is shaken in the off state is the normal contact sound of the relay, and it will disappear after being powered on.
