Features:
Automatic selection of measurement functions and ranges.
Full-scale overload protection.
The maximum voltage allowed between the measuring terminal and the earth is 1000V DC or 750V AC.
Specification:
Material: ABS

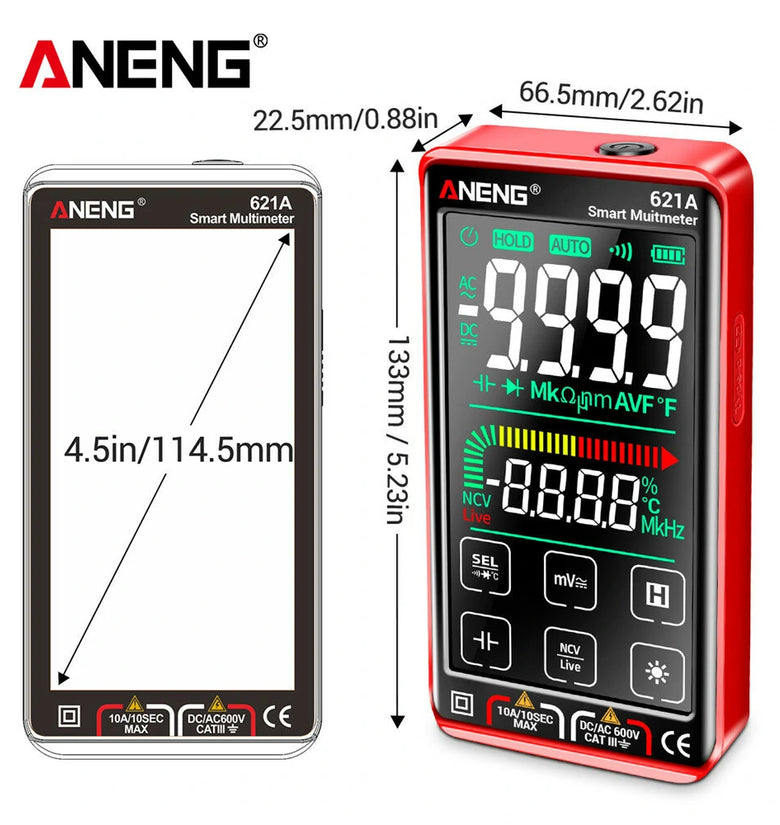

Size: 133 x 66.5 x 22.5mm/5.24 x 2.62 x 0.89in
Working height: up to 2000m

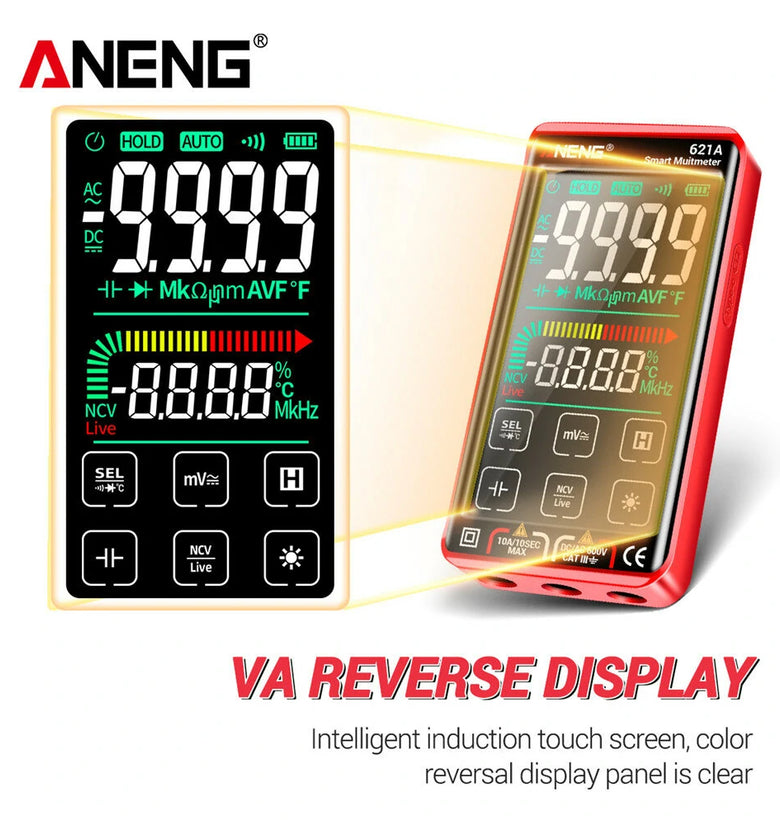

Display: LCD maximum display value of 9999 digits.
Polarity indication: Automatic indication, '-' means negative polarity
Overrange display: 'OL' or '-OL' .
Sampling time about: 3 times / second
Unit display: with function, power unit display.
Auto shutdown time: 15 minutes

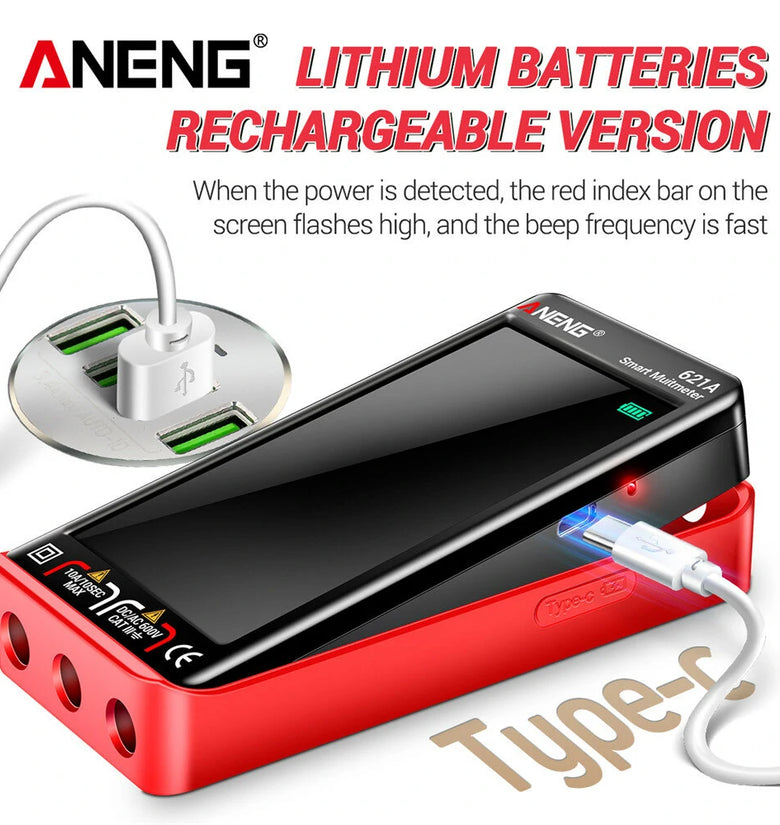

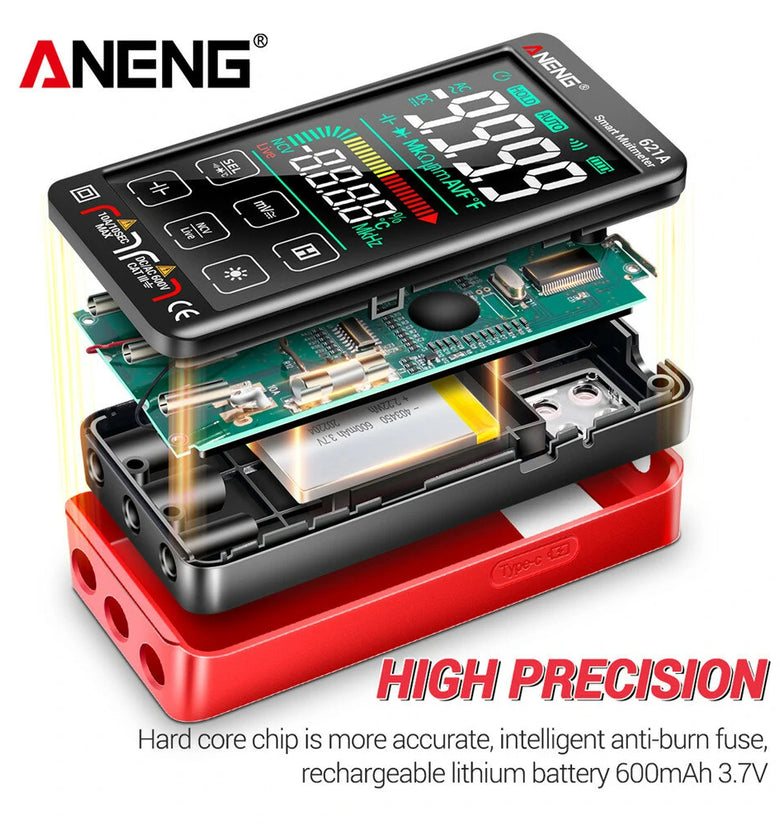

Power supply: 3.7V/600mAh lithium battery
Temperature coefficient: Less than 0.1X accuracy/℃
Working temperature: 0℃ - 40℃
Storage temperature: -10℃ - 50℃
Color: Black, Red
Function |
Range |
Resolution |
Accuracy |
DC voltage |
0.5-999.9V |
0.001-1V |
±(0.5% reading + 3 digits) |
mA DC voltage |
0-600mV |
0.001-1V |
±(0.5% reading + 3 digits) |
AC voltage |
0.5-999.9V |
0.001-1V |
±(0.8% reading + 5 digits) |
mA AC voltag |
0-600mV |
0.001-1V |
±(0.8% reading + 5 digits) |
DC current |
20mA-10A |
1mA-0.01A |
± (1.0% reading + 5 digits) |
AC current |
20mA-10A |
1mA-0.01A |
± (1.0% reading + 8 digits) |
Frequency |
40Hz-1000Hz |
0.1Hz-1Hz |
± (1.0% reading + 5 digits) |

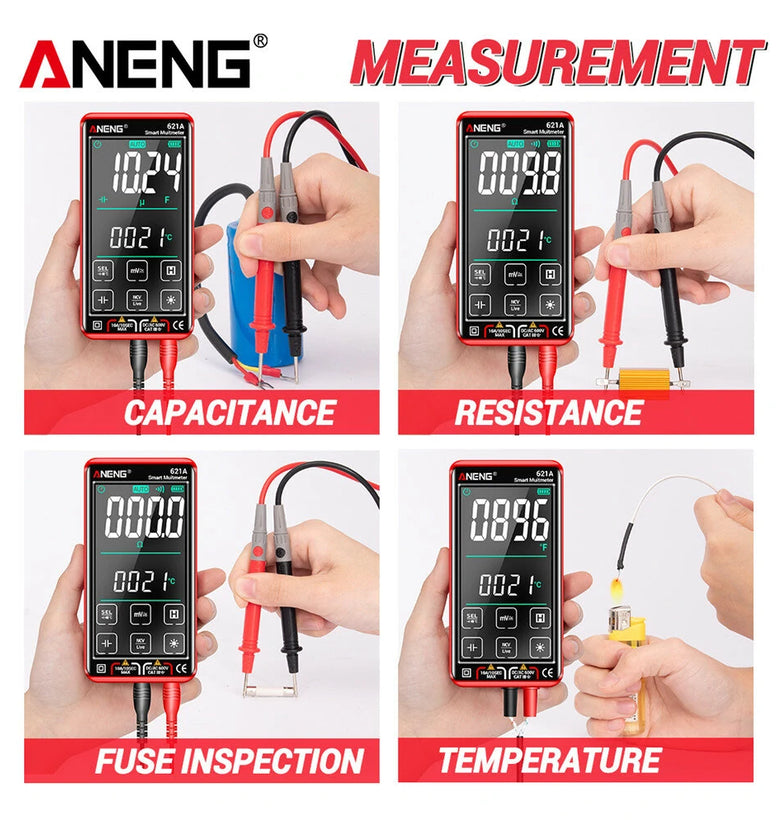

Capacitance |
9.999nF-99.99mF |
0.001nF-0.01mF |
± (2.5% reading + 20 digits) |
Resistance |
999.9Ω-99.99MΩ |
0.1Ω-0.01MΩ |
± (0.8% reading + 3 digits) |
Temperature |
