    ANENG 683 High-end Touch Smart Multimeter

    Introduce:
    This device is a 3 5/6 digital multimeter with stable performance and realiable quality.The meter adopts LCD display screen with analog bar display.Users in the process of use,truly achieve  continuous power operation,do not need to turn the dial to select functions.According to the input ac/DC voltage/resistance will be automatically identified and measured.

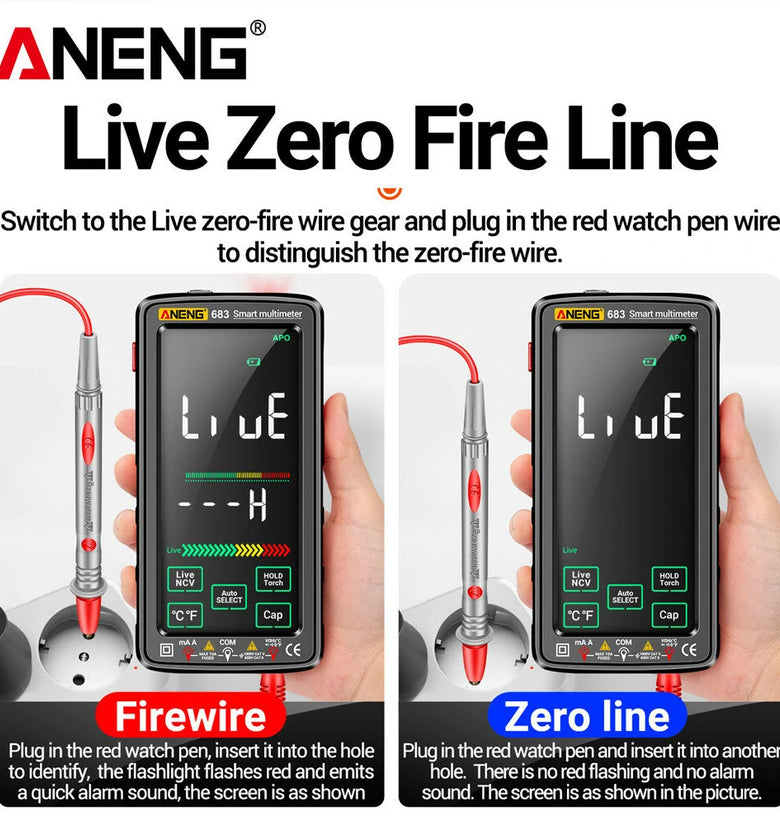

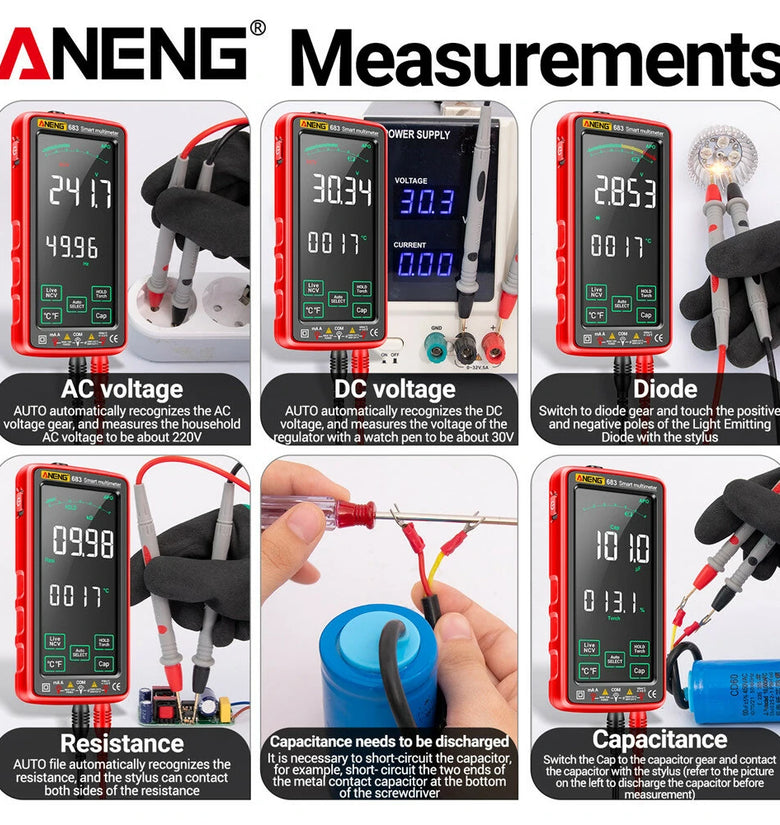

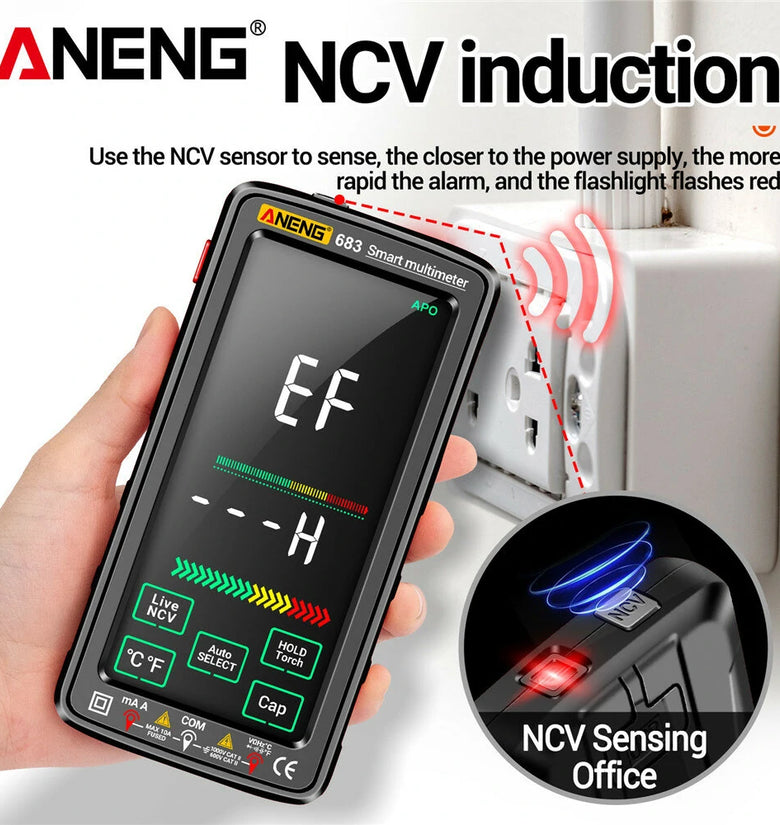

    It can be used to measure DC voltage,AC voltage sine RMS,DC Current,AC current sine RMS,resistance,capacitance,live-line indication,duty ratio,diode on/off test,symbol unit ,data hold and automatic power off.
    The meter is equipped with a high-capacity rechargeable batteries with full function and accurate measurement.The multimeter is an ideal tools for laboratory,factory,radio enthusiasts and household.

    Summary:
    Manual Range and Auto Range
    Full range overloaded protectection
    The maximum voltage allowed between the measuring terminal and ground:1000V DC or 750V AC
    Fuse Protection:uA/mA
    Display:6000 Counts LCD monitor with analog bar
    Battery Type:3.7V/2800mA rechargeable battery

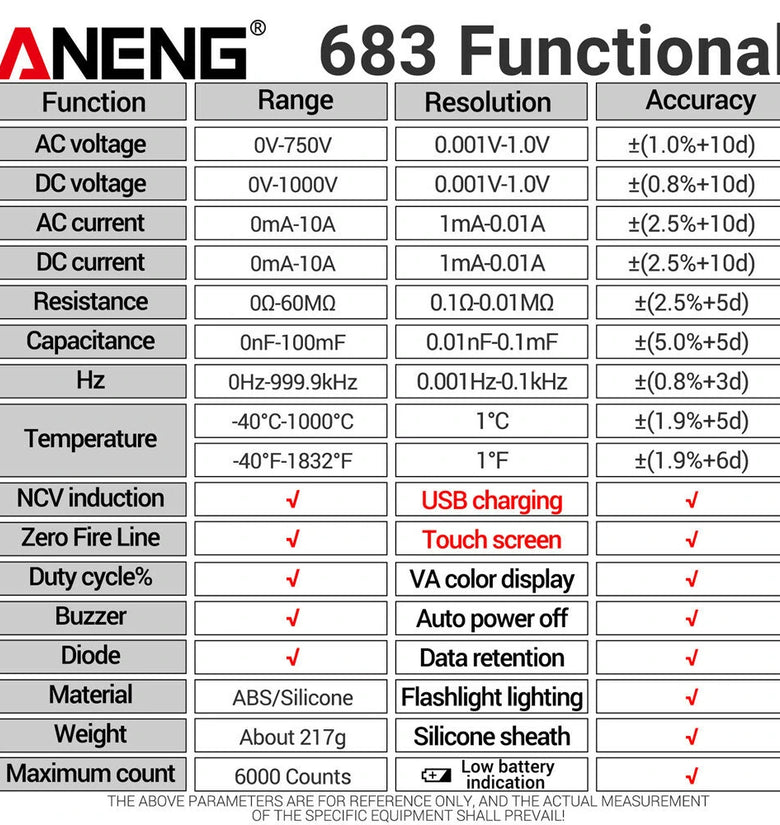

    Specification:
    DC Voltage:
    Measuring Range Resolution Accuracy
    6V/60V 0.001V/0.01V +-(0.5% readings+3digits)
    600V/1000V 0.1V/1.0V +-(0.8% readings+10digits)
    AC Voltage:
    Measuring Range Resolution Accuracy
    6V/60V 0.001V/0.01V +-(0.8% readings+3digits)
    600V/750V 0.1V/1.0V +-(1.0% readings+10digits)
    AC and AC Current
    Measuring Range Resolution Accuracy
    6000mA 1mA +-(1.0% readings+5digits )
    10A 0.01A +-(2.5% readings+10digits )
    Resistance
    Measuring Range Resolution Accuracy
    600Ω/6kΩ/60kΩ/600kΩ 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ +-(0.8% readings+3digits)
    6MΩ 0.001MΩ +-(1.2% readings+3digits)
    60MΩ 0.01MΩ +-(2.5% readings+5digits)
    Capacity
    Measuring Range Resolution Accuracy
    60nF/60nF/6uF/60uF/600uF/6mF 0.01nF/0.1nF/0.001uF/0.01uF/0.1uF +-(4.0%Readings+20 digits)
    60mF 0.01mF +-(5.0%Readings+5 digits)
    100mF 0.1mF for reference
    Frequency
    Measuring Range Resolution Accuracy
    9.999Hz/99.99Hz/999.9Hz 0.001Hz/0.01Hz/0.1Hz +-(0.8% readings+3digits)
