Features:
Material: ABS

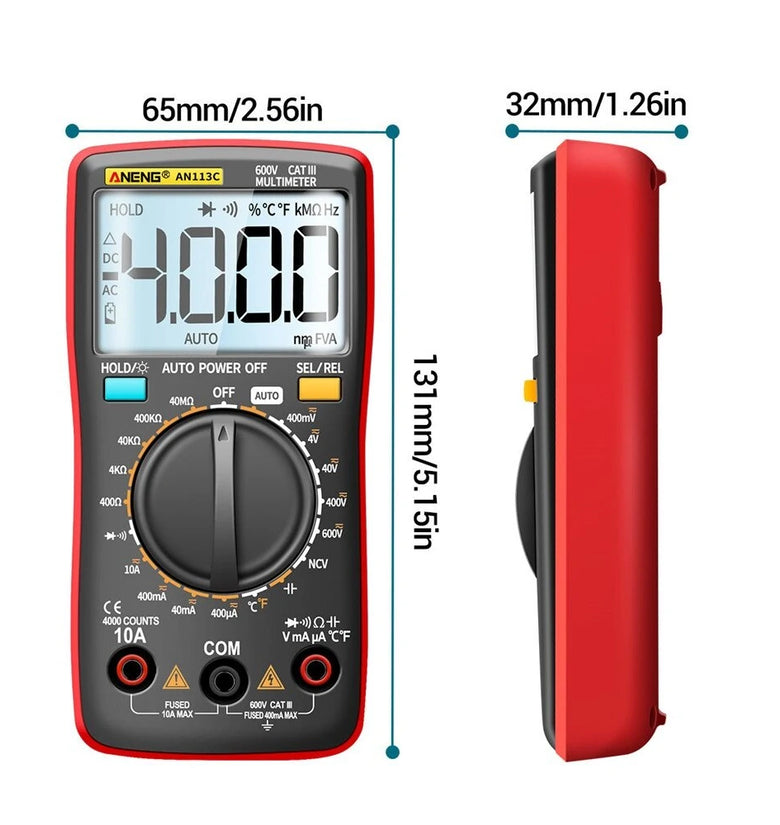

Size: 130*65*32mm
Display screen (LCD): 4000 digits
Range: Manual
Sampling rate: 3 times/sec
True valid value: Yes
Data retention: Yes
Screen backlight: Yes
Low battery prompt: Yes
Automatic shutdown: Yes
Battery type: 1.5V AAA battery*2 (not included)
Working environment: temperature 0-40℃, humidity <75%
Storage environment: temperature -20-60℃, humidity ＜80%

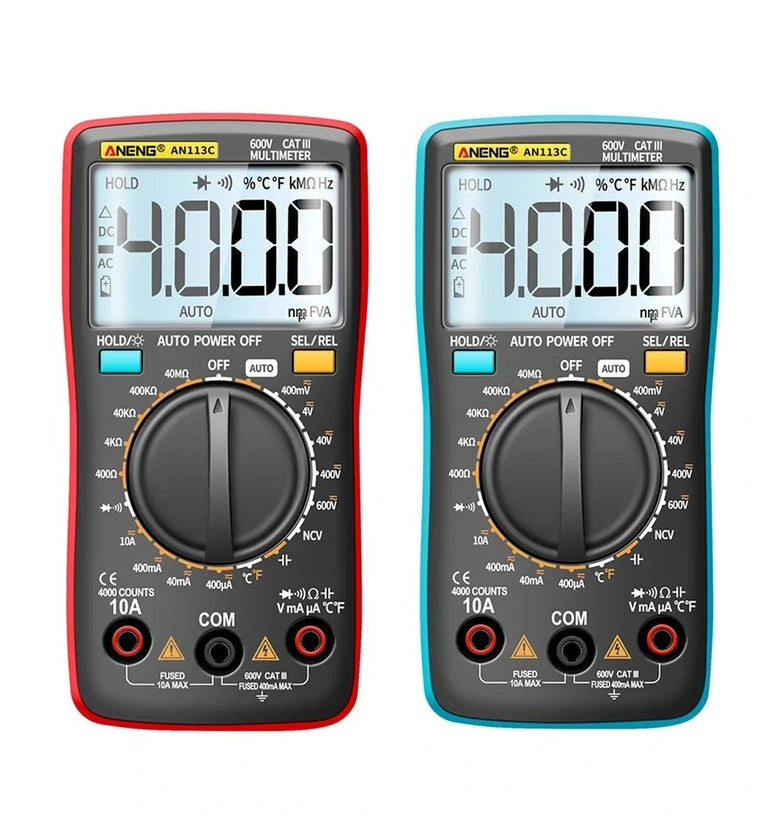

Color: Red, Blue
Color box size: 195 x 98 x 45mm
Gross weight: 220g
Specification:
Function |
Range |
Resolution |
Accuracy |
Maximum Measured Value |
DC voltage (V) |
4.000V |
0.001V |
±(0.5%+3) |
600V |
40.00V |
0.01V |
|||
400.0V |
0.1V |
|||
600V |
1V |
|||
400.0mV |
0.1mV |
400.0mV |
||
|
AC voltage (V) |
4.000V |
0.001V |
±(1.0%+3) |
600V |
40.00V |
0.01V |
|||
400.0V |
0.1V |
|||
600V |
1V |
|||
400.0mV |
0.1mV |
400.0mV |
||
|
DC current (A) |
10.00A |
0.01A |
±(1.2%+3) |
10.00A |
40.00mA |
0.01mA |
40.00mA |
||
400.0mA |
0.1mA |
400.0mA |
||
400.0μA |
0.1μA |
400.0μA |
||
AC current (A) |
10.00A |
0.01A |
±(1.5%+3) |
10.00A |
40.00mA |
0.01mA |
40.00mA |
||
400.0mA |
0.1mA |
400.0mA |
||
400.0μA |
0.1μA |
400.0μA |
||
Resistance |
400.0Ω |
0.1Ω |
±(0.5%+3) |
40.00MΩ |
4.000kΩ |
0.001kΩ |
|||
40.00kΩ |
0.01kΩ |
|||
400.0kΩ |
0.1kΩ |
|||
40.00MΩ |
0.01MΩ |
±(1.5%+3) |
||
Capacitance |
4.000nF |
0.001nF |
±(5.0%+20) |
4.000mF |
40.00nF |
0.01nF |
±(2.0%+5) |
||
400.0nF |
0.1nF |
|||
4.000μF |
0.001μF |
|||
40.00μF |
0.01μF |
|||
400.0μF |
