Good News!
ANENG AN113D the upgrade version of ANENG AN8002 has already released.
This new product not only has the Manual gear as AN8002,but also added an automatic measurement button which is more convenient measurement and more friendly operation for the novices.
Annnnd,It also equipped with a Black EBTN Screen, which can be clearly displayed without backlighting!!!
Features:
This product is a multi-functional, auto-ranging digital multimeter with a 6000 counts LCD display.
1. Measurement functions include AC/DC voltage, AC/DC current, resistance, diode test/continuity, NCV, frequency/duty cycle, capacitance.
2. Support True- RMS
3. Support Auto Power Off

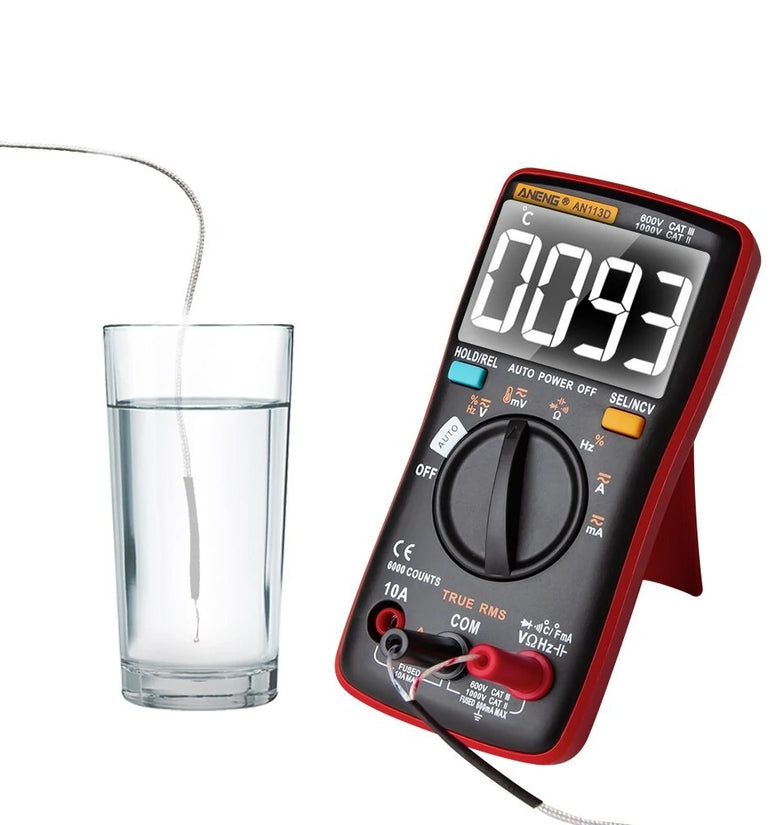

4. Support temperature measurement
5. Support data hold
Specification:
Display(LCD): 6000 counts
Ranging :Auto
Material: ABS/PVC
Update Rate: 3 times / second
Low Battery Indication: √
Product Weight :114g (batteries not included)
Product Dimension :130*65*32mm
OperatingStorage: Temperature 0~40℃ Humidity <75%
OperatingStorage :Temperature -20~60℃ Humidity < 80%
OperatingStorage: Temperature 0~40℃ Humidity <75%
OperatingStorage :Temperature -20~60℃ Humidity < 80%
DC Voltage : 6.000V (0.001V) / 60.00V( 0.01V)/ 600.0V (0.1V )/1000V (1V) ±(0.5%+3)
DC Voltage : 60.00mV (0.01mV)/ 600mV (0.1mV) ±(0.5%+3)
AC Voltage : 6.000V (0.001V) / 60.00V (0.01V)/ 600.0V (0.1V)/ 750V (1V ) ±(1.0%+3)
AC Voltage : 60.00mV (0.01mV) / 600.0mV (0.1mV) ±(1.0%+3)
DC Current : 6.000A (0.001A) / 10.00A( 0.01A) ±(1.2%+3)
DC Current : 60.00mA (0.01mA)/600.0mA (0.1mA)
AC Current : 6.000A (0.001A) /10.00A (0.01A) ±(1.5%+3)
AC Current : 60.00mA (0.01mA)/ 600.0mA (0.1mA) ±(1.5%+3)
Resistance : 600.0Ω (0.1Ω)/6.000kΩ(0.001kΩ)/60.00kΩ (0.01kΩ) /600.0kΩ(0.1kΩ) / 6.000MΩ (0.001MΩ) ±(0.5%+3) /60.00MΩ (0.01MΩ) ±(1.5%+3)
Capacitance : 9.999nF(0.001nF) ±(5.0%+20) /99.99nF(0.01nF) 999.9nF(0.1nF)/ 9.999μF (0.001μF)/ 99.99μF(0.01μF)/ 999.9μF (0.1μF)±(2.0%+5) / 9.999mF (0.001mF) ±(5.0%+5)
Frequency : 99.99Hz (0.01Hz) /999.9Hz (0.1Hz)/ 9.999kHz (0.001kHz)/ 99.99kHz (0.01kHz)/ 999.9kHz (0.1kHz)/ 9.999MHz (0.001MHz) ±(0.1%+2)
Duty Cycle 1%~99% 0.1% ±(0.1%+2)
Temperature (-20~1000)℃ 1℃ ±(2.5%+5)1000℃ (-4~1832)℉ 1℉ 1832℉
DC Voltage : 60.00mV (0.01mV)/ 600mV (0.1mV) ±(0.5%+3)
AC Voltage : 6.000V (0.001V) / 60.00V (0.01V)/ 600.0V (0.1V)/ 750V (1V ) ±(1.0%+3)
AC Voltage : 60.00mV (0.01mV) / 600.0mV (0.1mV) ±(1.0%+3)
DC Current : 6.000A (0.001A) / 10.00A( 0.01A) ±(1.2%+3)
DC Current : 60.00mA (0.01mA)/600.0mA (0.1mA)
AC Current : 6.000A (0.001A) /10.00A (0.01A) ±(1.5%+3)
AC Current : 60.00mA (0.01mA)/ 600.0mA (0.1mA) ±(1.5%+3)
Resistance : 600.0Ω (0.1Ω)/6.000kΩ(0.001kΩ)/60.00kΩ (0.01kΩ) /600.0kΩ(0.1kΩ) / 6.000MΩ (0.001MΩ) ±(0.5%+3) /60.00MΩ (0.01MΩ) ±(1.5%+3)
Capacitance : 9.999nF(0.001nF) ±(5.0%+20) /99.99nF(0.01nF) 999.9nF(0.1nF)/ 9.999μF (0.001μF)/ 99.99μF(0.01μF)/ 999.9μF (0.1μF)±(2.0%+5) / 9.999mF (0.001mF) ±(5.0%+5)
Frequency : 99.99Hz (0.01Hz) /999.9Hz (0.1Hz)/ 9.999kHz (0.001kHz)/ 99.99kHz (0.01kHz)/ 999.9kHz (0.1kHz)/ 9.999MHz (0.001MHz) ±(0.1%+2)
Duty Cycle 1%~99% 0.1% ±(0.1%+2)
Temperature (-20~1000)℃ 1℃ ±(2.5%+5)1000℃ (-4~1832)℉ 1℉ 1832℉
Diode: √
Continuity :√
Continuity :√
Package Includes:
1 x Multimeter
1 x Pair of test leads
1 x Thermocouple
1 x English user manual

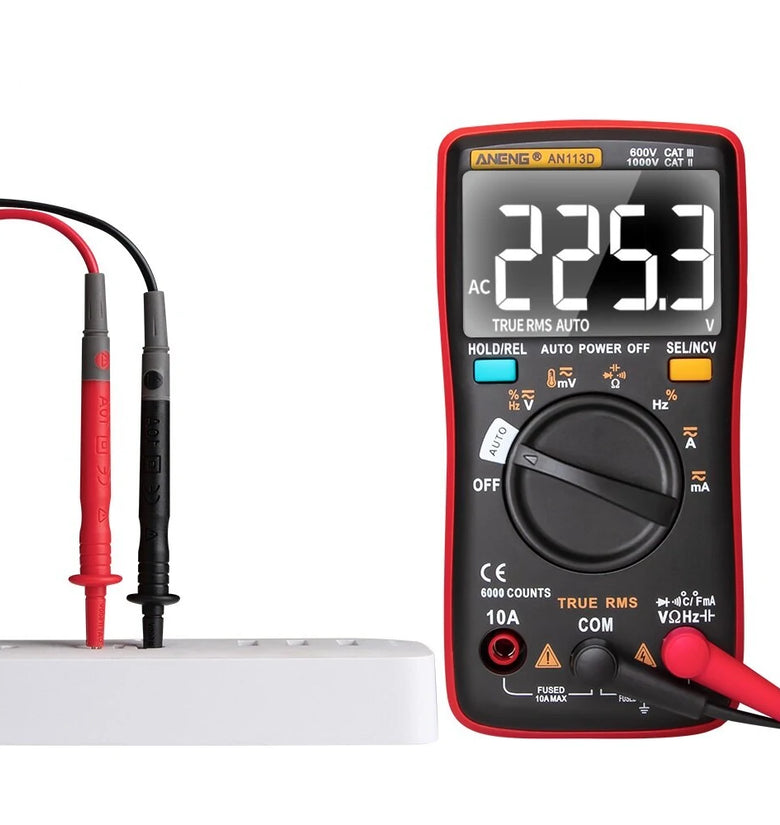

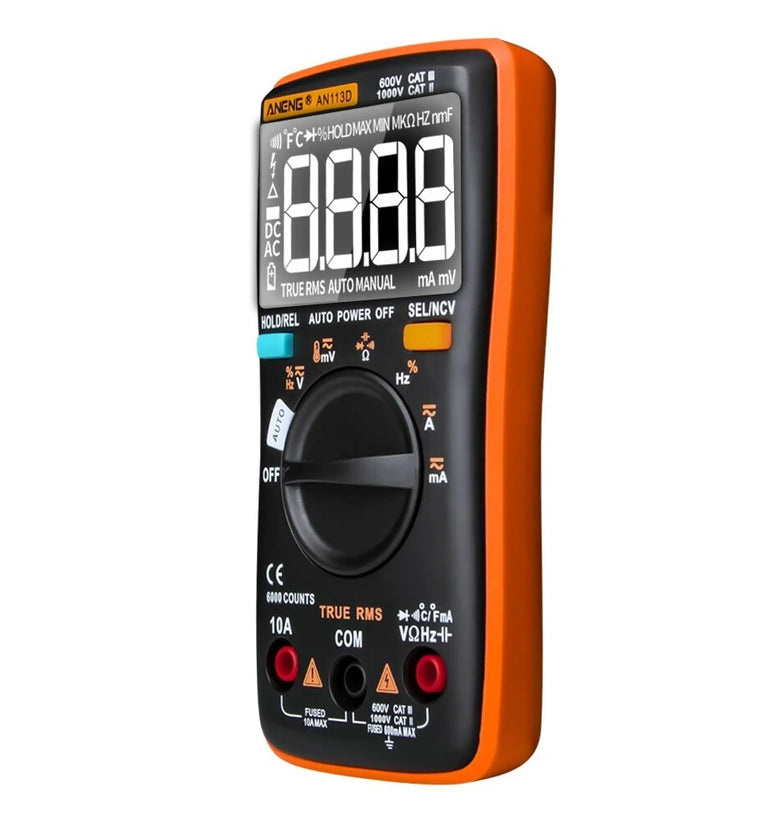

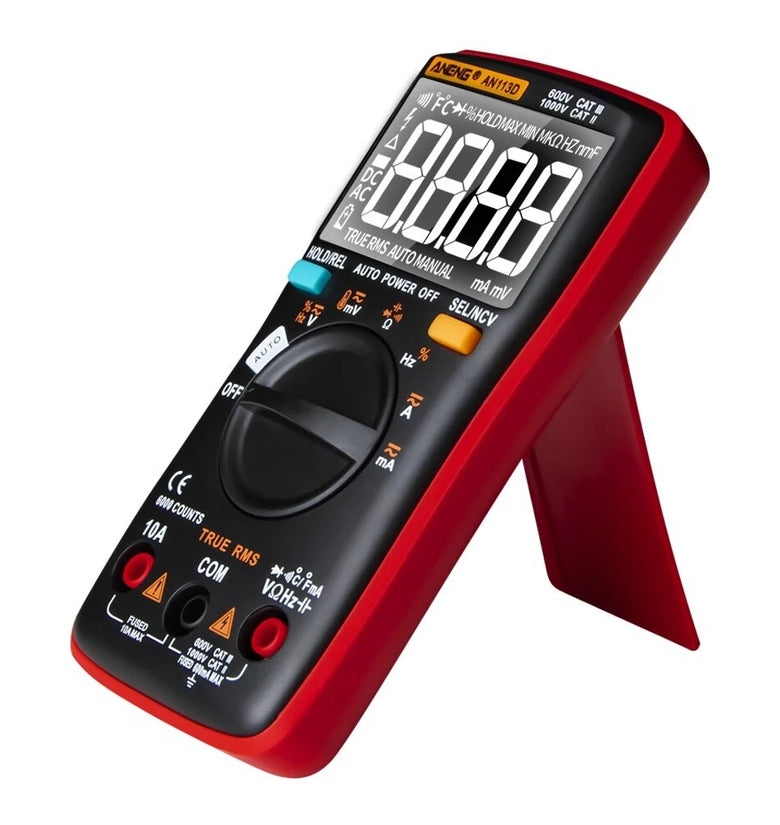

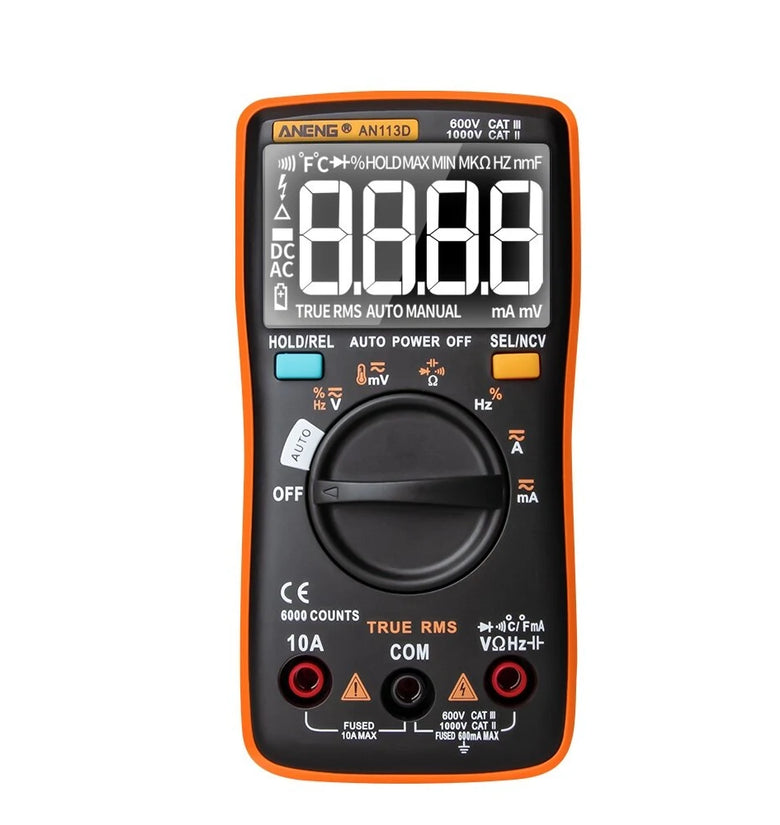

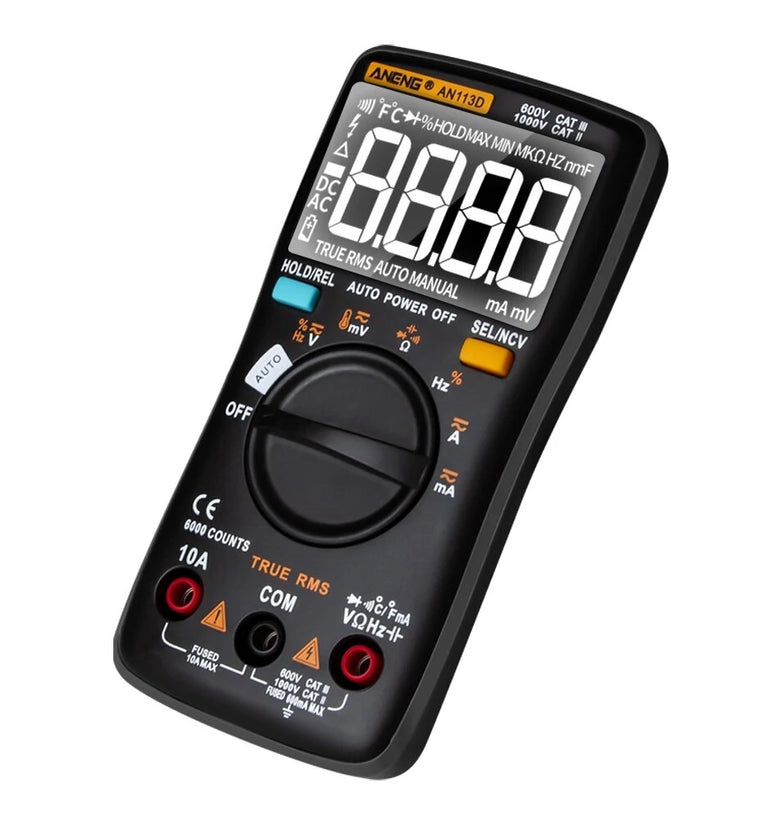

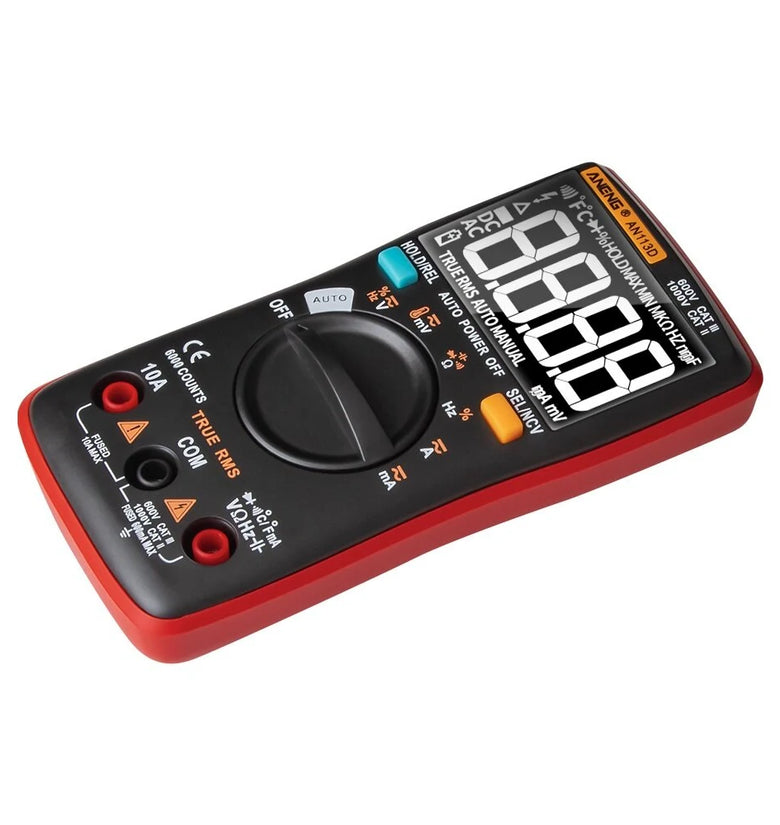

Details Pictures:
