Specifications:
DC Voltage Range: 0V-999.9V | Resolution: 1mV-100mV | Accuracy: ±(0.5%+3)
AC Voltage Range: 0V-750.0V | Resolution: 1mV-100mV | Accuracy: ±(1.0%+3)
DC Current Range: 0mA-20.00A | Resolution: 0.01mA-0.01A | Accuracy: ±(1.0%+3)
AC Current Range: 0mA-20.00A | Resolution: 0.01mA-0.01A | Accuracy: ±(1.2%+3)
Resistance Range: 0Ω-99.99MΩ | Resolution: 0.1Ω-10kΩ | Accuracy: ±(3.0%+5)
Capacitance Range: 0nF-99.99mF | Resolution: 0.001nF-0.01mF | Accuracy: ±(5.0%+5)
Frequency Range: 0Hz-9.999MHz | Resolution: 0.001Hz-0.001MHz | Accuracy: ±(0.1%+2)

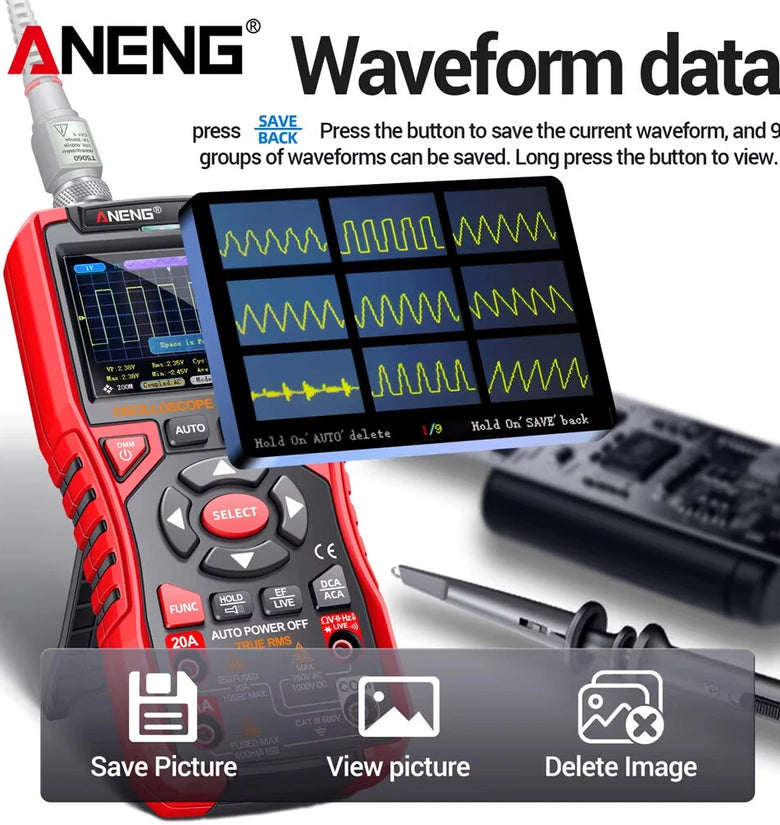

Waveform Storage: 9 sets
Screen Display: VA reverse display
Material: ABS/Silicone
Power Supply: 3.7V/2500mAh rechargeable battery
Weight: 367g
Automatic Shutdown: Configurable (OFF/15/30/60/120 minutes)
Maximum Count: 9999 count

Features:
1.High Sampling and Bandwidth: Equipped with a 50MS/s sampling rate and 10MHz bandwidth, this device delivers precise and real-time waveform analysis for accurate measurements across various scenarios.
2.Dual Functionality: Combines a smart multimeter with a digital oscilloscope, enabling triple-display functionality for electrical parameters and waveform analysis in one tool.
3.User-Friendly Design: Lightweight, compact, and convenient handheld format with a silicone-protected shell for enhanced grip and portability during field work or operations.
4.Versatile Measurement Range: Supports NCV detection, capacitor testing, frequency measurement up to 9.999MHz, and resistance testing up to 99.99MΩ, meeting diverse testing needs for professionals and hobbyists alike.
5.Multilingual Interface: Offers both Chinese and English language options on the display, suitable for users from different regions and backgrounds.

Package Included:
1 x ANENG AOS04 Set(Optional: Basic / Pro)
