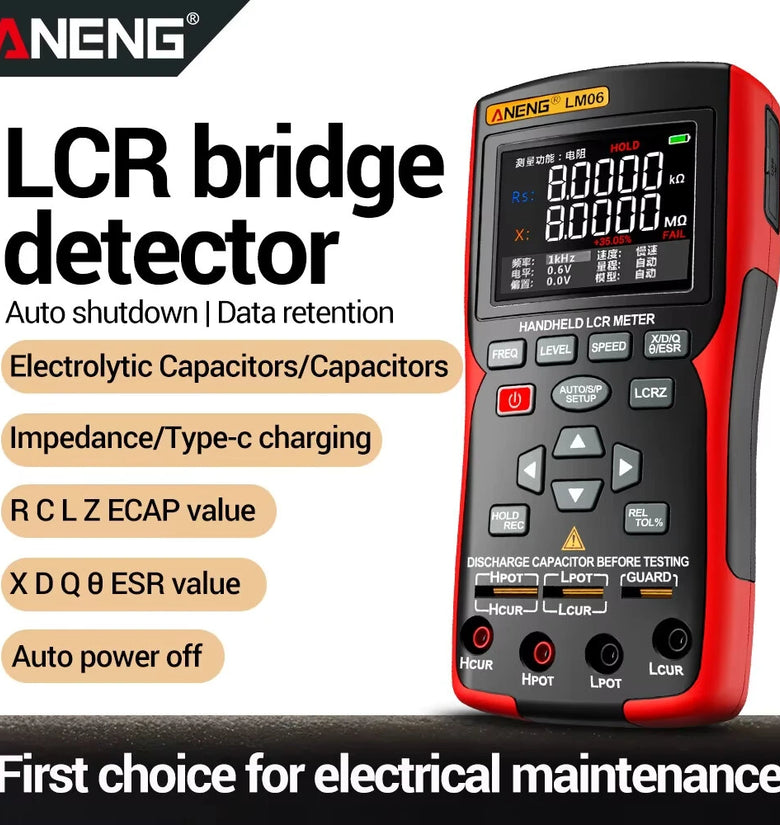

Specifications:

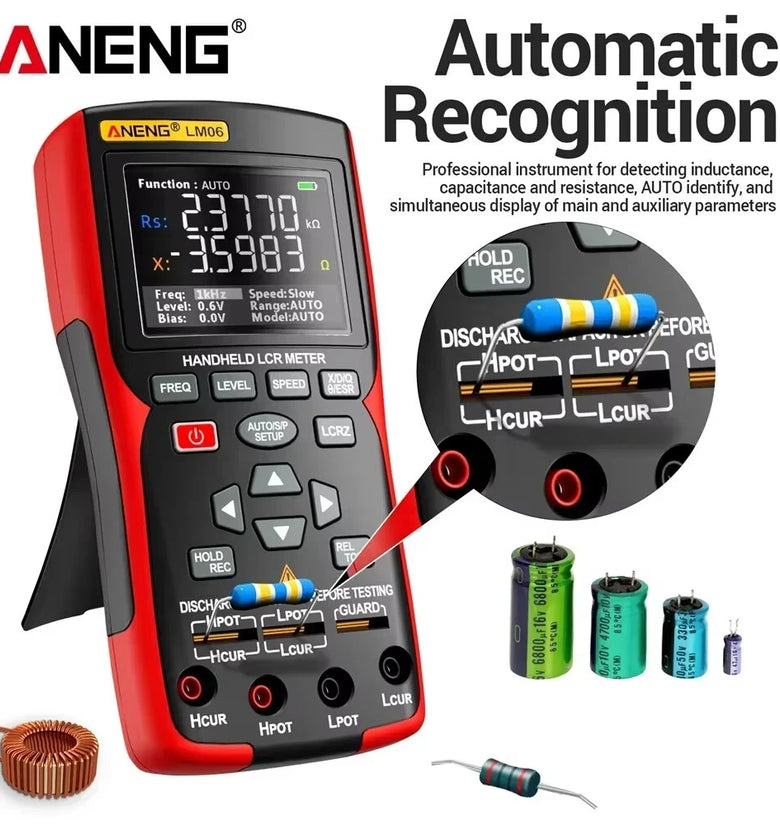

Measurement Functions: Automatic measurement of resistance, capacitance, inductance, impedance, and electrolytic capacitors
Main Parameters: L, C, R, Z
Secondary Parameters: X, D, Q, θ, ERS
Equivalent Measurement Type: Automatic, series, parallel
Inductance Range: 0~100H
Capacitance Range: 0~100000uF
Resistance Range: 0~20MΩ
Test Levels: 0.1V, 0.3V, 0.6V

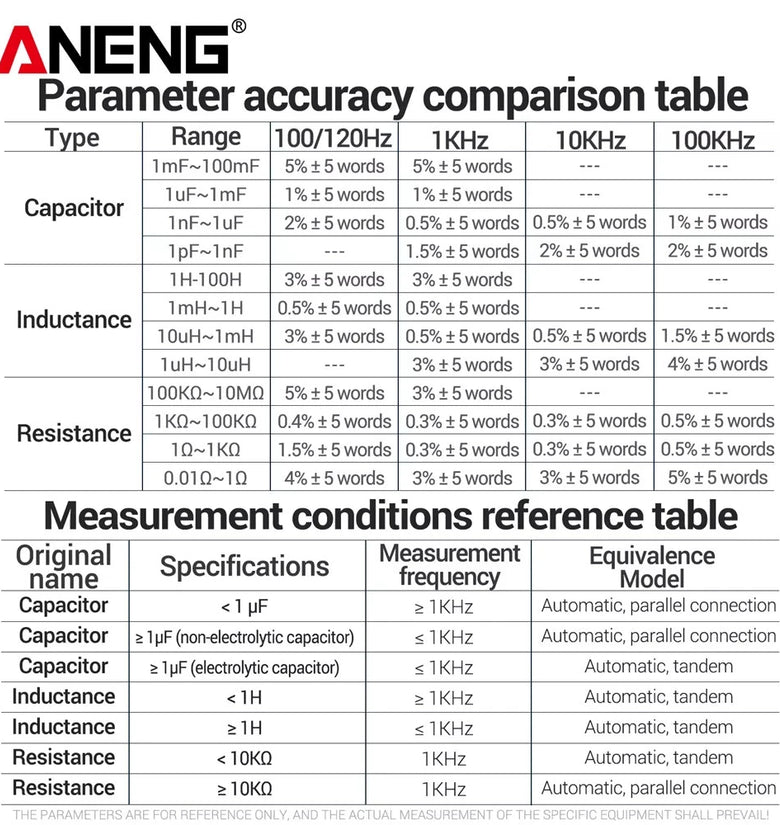

Accuracy: 0.3%
Measurement Speeds: 1 second/time, 2 seconds/time, 4 seconds/time
Output Impedance: 100Ω
Material: ABS + TPE
Display Screen: 2.8-inch TFT screen (320x240 resolution)

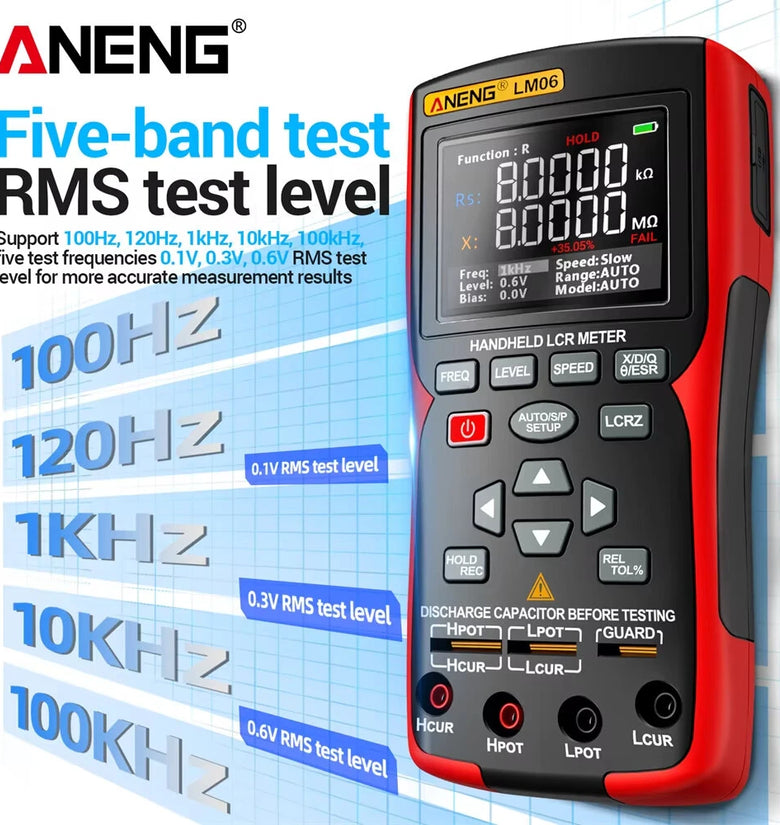

Test Frequencies: 100Hz / 120Hz / 1kHz / 10kHz / 100kHz
Battery Type: 18650, 2000mAh lithium battery
Battery Life: Approximately 13 hours
Weight: 336g
Automatic Shutdown Options: 15 minutes / 30 minutes / 45 minutes / 60 minutes / Disabled
Features:
1.High Precision Measurement: Offers a wide range of inductance, capacitance, and resistance measurements with up to 0.3% accuracy, suitable for professional and laboratory-grade requirements.
2.Advanced Display: Equipped with a 2.8-inch TFT screen (320x240 resolution), ensuring clear visibility of measurements and detailed parameter analysis in various lighting conditions.

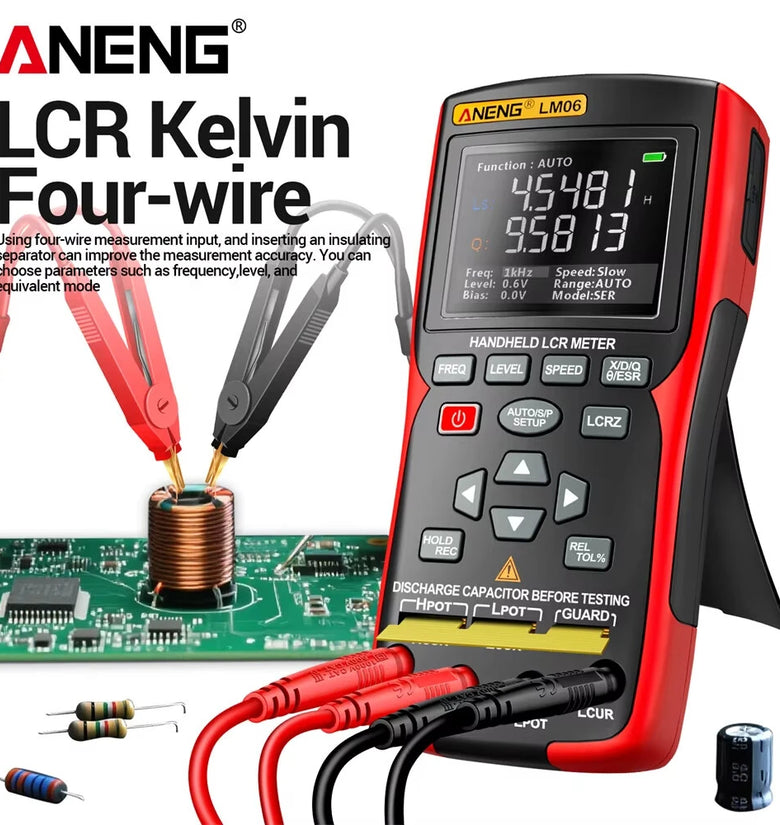

3.Versatile Input and Calibration: Features 4-wire measurement input and bridge calibration, enabling increased measurement reliability and adaptability to diverse test scenarios such as open circuits and short circuits.

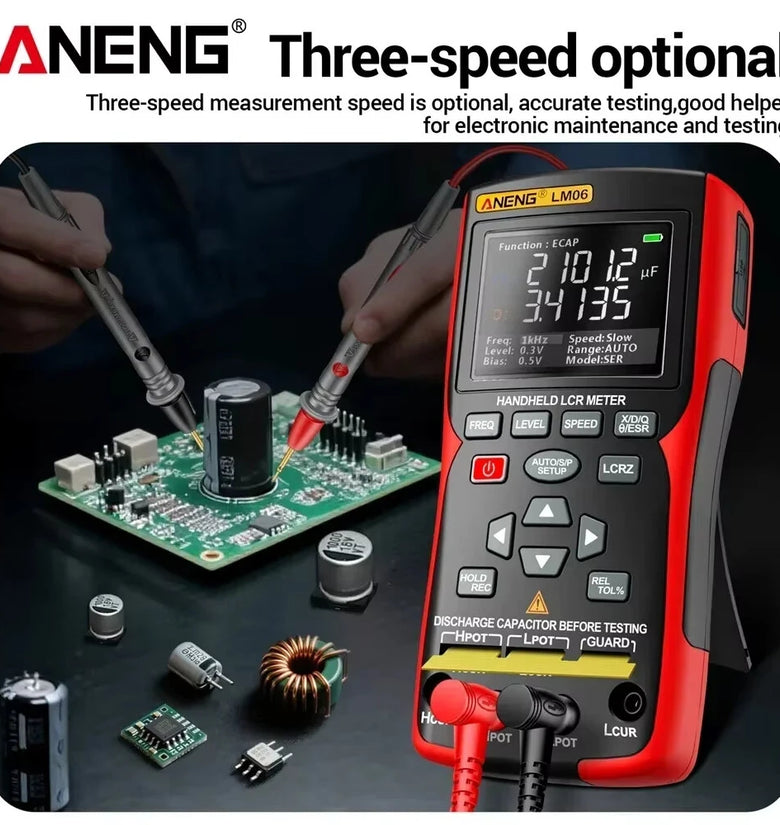

4.Flexible Test Frequencies and Speeds: Provides selectable test frequencies from 100Hz to 100kHz and adjustable measurement speeds (1s, 2s, 4s per test), making testing faster and customizable.
5.Portable Design with Long Battery Life: Compact size and lightweight build (336g) combined with a 13-hour battery life using a rechargeable 18650 lithium battery provide convenience for extended testing sessions.
Package Included:
1 x LCR Meter Kit
