ANENG MH13 Megohmmeter Ohm Tester Digital Multimeter Megometro Insulation Earth High Voltage Resistance Meter Tester Tool
General:

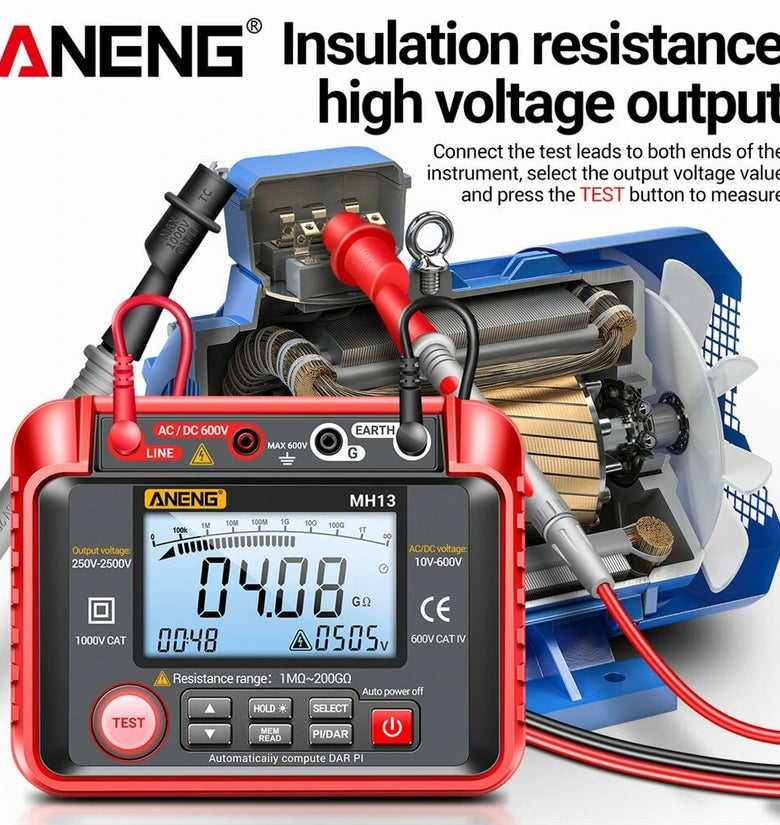

Insulation resistance tester (or high voltage insulation meter) is a special instrument for measuring insulation resistance. It is an ideal test instrument for measuring insulation resistance of large , generators, high-voltage motors, power capacitors, power cables, arresters, etc.
Technical Parameters:
The output voltage |
Measuring range |
Precision |
Short circuit |
250V |
1MΩ -10GΩ |
±(5%+10d) |
1.8mA |
500V/1000V |
2MΩ -20GΩ |
±(5%+10d) |
|
2000V/2500V |
5MΩ -40GΩ |
±(5%+10d) |
|
AC voltage |
10-600V |
±(1%+5d) |
|
DC voltage |
10-600V |
±(0.8%+5d) |
|
Resistance range |
1MΩ -200GΩ |
100 sets of |
√ |
Max Count |
2000 Counts |
HD backlit screen |
√ |
Use battery |
AA5 battery *8 |
Absorption ratio |
√ |
Material |
Silica gel/ABS |
Polarization Index |
√ |
Weight |
640g |
Autoranging |
√ |
Pen material |
PVC/brass |
Automatic discharge |
√ |
Overall length |
108cm |
Test voltage display |
√ |
Back support |
√ |
High pressure |
√ |
Low voltage |
√ |
Measurement |
√ |

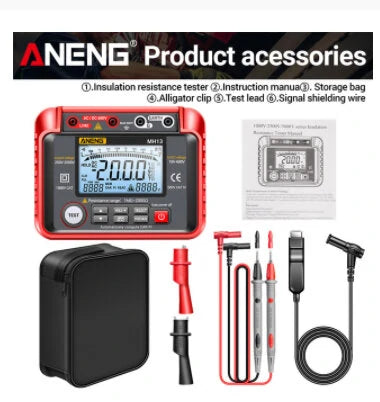

Package inclued:
1* Packing box
1* Resistance megohmmeter
1* Aligator clip
1* Storage bag
1* Instruction Manual
1* Test lead
1* Wire
1* Resistance megohmmeter
1* Aligator clip
1* Storage bag
1* Instruction Manual
1* Test lead
1* Wire
